Description

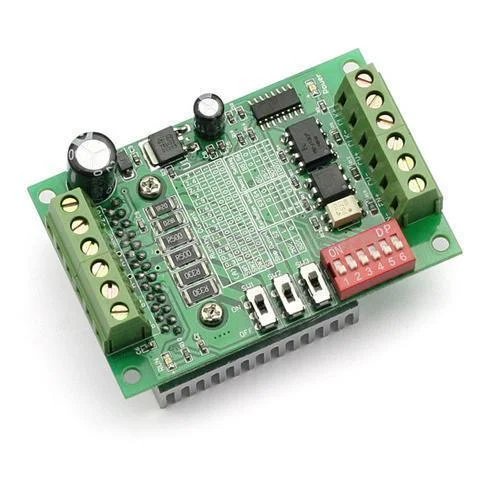

The TB6560 3A Single Axis Stepper Motor Driver is a compact and adjustable driver board based on the Toshiba TB6560AHQ chip. It is designed to provide reliable control of larger stepper motors while allowing adjustment of the motor current and stepping mode.
The driver uses a 6N137 high-speed optocoupler for fast signal transmission and includes protection features such as low-voltage shutdown, over-temperature, and over-current protection. Its automatic half-current function helps reduce power consumption and heat when the motor is not actively moving.
Features
- Adjustable current level to suit different application requirements.
- Adjustable automatic half-current function.
- 6N137 high-speed optical coupling for reliable high-speed operation.
- Thick heat sink for improved heat dissipation.
- Supports full-step, half-step, 1/8-step, and 1/16-step operation.
- Suitable for controlling larger stepper motors in CNC and 3D printing systems.
Specification
- Driver Chip: Toshiba TB6560AHQ
- Working Voltage: DC 10–35V
- Recommended Supply Voltage: DC 24V
- Optocoupler: 6N137 high-speed optocoupler
- Rated Maximum Output Current: Approximately 3A
- Peak Output Current: 3.5A
- Compatible Motors: 42 and 57 series stepper motors up to 3A
- Motor Type: Two/four-phase, 4-wire or 6-wire stepper motors
- Maximum Motor Current: 3A
- Current Control: Adjustable
- Half-Current Function: Automatic
- Microstepping: Full step, half step, 1/8 step, 1/16 step, up to 16 subdivisions
- Protection: Low-voltage shutdown, over-temperature, and over-current protection
- Dimensions: 50 × 75 × 35mm
- Weight: 82g
Packing List
- 1 × TB6560 Motor Driver Board
