Description
The TS5828 Micro 5.8GHz FPV Video Transmitter is a compact, high-power transmitter designed for FPV drones, RC aircraft and other wireless video applications. With 600mW transmission power and 40 selectable channels, it provides a wide range of frequency options for stable FPV video transmission.
The transmitter features a simple two-button interface and memory for the last selected channel and frequency band. Its lightweight design and pre-wired harness make it convenient for installation in compact aircraft and FPV platforms.
Features
- 5.8GHz FPV video transmitter
- 40 selectable channels
- Supports A, B, C, D, E and F frequency bands
- 600mW transmission power
- Digital display/interface
- Two-button control
- Power-off memory for the last channel and band
- NTSC/PAL video support
- Compact and lightweight design
- RP-SMA antenna connection
- Suitable for FPV drones and RC aircraft
Specification
- Model: TS5828
- Frequency: 5.8GHz
- Channels: 40CH
- Transmission Power: 600mW / 27dBm maximum
- Video Format: NTSC / PAL
- Power Input: 7–12V recommended; 3S LiPo suggested
- Listed Maximum Work Voltage: 24V DC
- Working Current: 310mA at 12V
- Video Bandwidth: 8MHz
- Audio Bandwidth: 6.5MHz
- Antenna Connection: RP-SMA Female
- Antenna Gain: 2dBi
- Dimensions: Approximately 40 × 23 × 8mm
- Weight: 22.9g listed; approximately 7g for the compact transmitter body without antenna
Applications
- FPV drones
- RC airplanes
- Multirotor aircraft
- FPV racing platforms
- Wireless FPV video systems
Package Includes

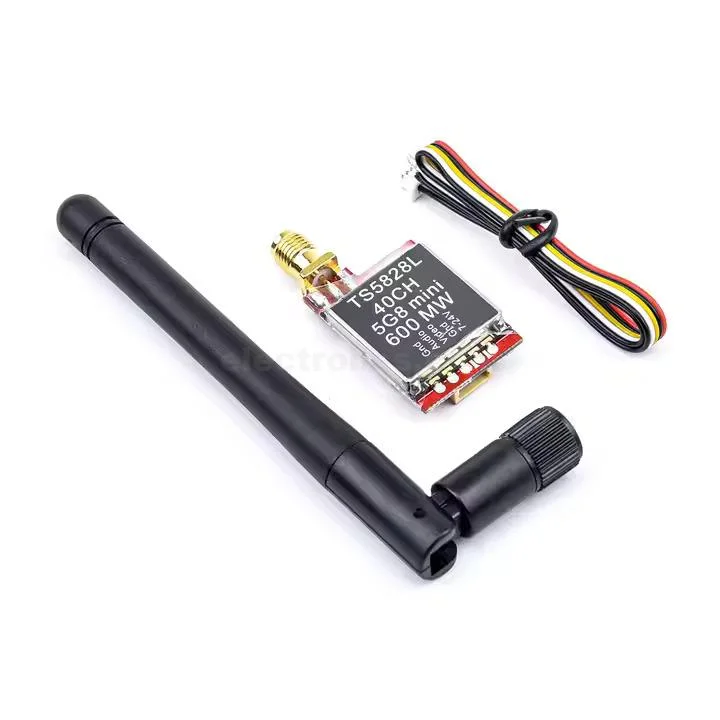

- 1 × TS5828 5.8GHz 600mW FPV Video Transmitter
