Description

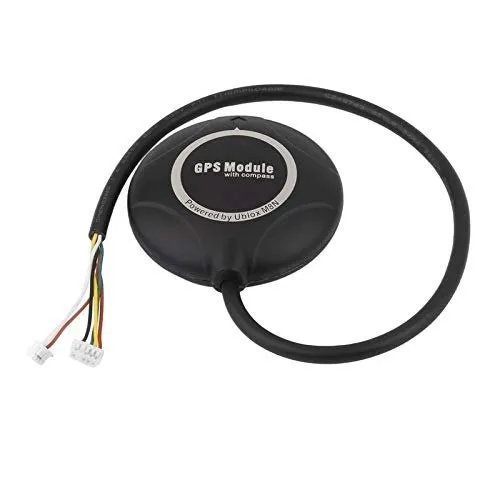

The UBLOX NEO-M8N High Precision GPS Module is a multi-GNSS positioning solution designed for flight controllers such as APM and Pixhawk. It uses the u-blox M8 GNSS engine to receive signals from GPS, GLONASS, BeiDou, and SBAS systems, providing reliable positioning and navigation data for unmanned aircraft.
The module features a ceramic antenna and built-in compass for accurate heading information. Its RF architecture, active interference detection, SAW filtering, and additional low-noise amplification help maintain reliable reception in challenging environments. The NEO-M8N also includes internal Flash memory, allowing firmware updates and support for additional GNSS capabilities.
With support for AssistNow services, configurable update rates, odometer functions, and position/velocity/time data logging, it is well suited for autonomous flight, navigation, and GPS-assisted applications.
Features
- u-blox M8 72-channel GNSS engine
- Supports GPS, QZSS, GLONASS, BeiDou and SBAS
- Galileo-ready E1B/C support
- Built-in compass for heading information
- Ceramic antenna for reliable satellite reception
- Fast acquisition and reacquisition
- Low-power operation
- Active CW interference detection and removal
- Onboard SAW bandpass filter and additional LNA
- Internal Flash memory for firmware updates
- AssistNow Online, Offline and Autonomous support
- Odometer function for travelled distance
- Data logging for position, velocity and time
- Suitable for APM and Pixhawk flight controllers
- RoHS compliant
Specification
- Module: NEO-M8N
- GNSS Engine: u-blox M8
- Channels: 72
- Supported GNSS: GPS/QZSS L1 C/A, GLONASS L1OF, BeiDou B1
- SBAS: WAAS, EGNOS, MSAS
- Galileo: E1B/C ready
- Single GNSS Update Rate: Up to 18 Hz
- Concurrent GNSS Update Rate: Up to 10 Hz
- Position Accuracy: 2.0 m CEP
- Cold Start: 26 seconds
- Aided Start: 2 seconds
- Reacquisition: 1.5 seconds
- Tracking & Navigation Sensitivity: –167 dBm
- Cold Start Sensitivity: –148 dBm
- Hot Start Sensitivity: –156 dBm
- Operating Temperature: –40°C to +85°C
- Storage Temperature: –40°C to +85°C
- Supply Voltage: 2.7–3.6V
- Power Consumption: 23 mA @ 3.0V continuous
- Power Save Mode: 5 mA @ 3.0V, 1 Hz GPS mode
- Backup Supply: 1.4–3.6V
- Memory: Flash
- Oscillator: TCXO
- Timepulse: 0.25 Hz to 10 MHz, configurable
- Color: Black
- Dimensions: 77 × 115 × 12 mm
- Net Weight: 33 g
Applications
- APM-based drones and quadcopters
- Pixhawk flight controllers
- Autonomous aerial vehicles
- FPV and multirotor navigation
- GPS-assisted flight
- Robotics and navigation projects
- Position, velocity and time logging
Package Includes
- 1 × NEO-M8N GPS Module
