Description
The USB to FCC 10 Pin 1.0mm Adapter Board HDL662B is a convenient interface designed for debugging and testing LCM LCD modules and compatible LCD displays. It provides an easy way to connect a supported display module to a computer through a standard USB connection.

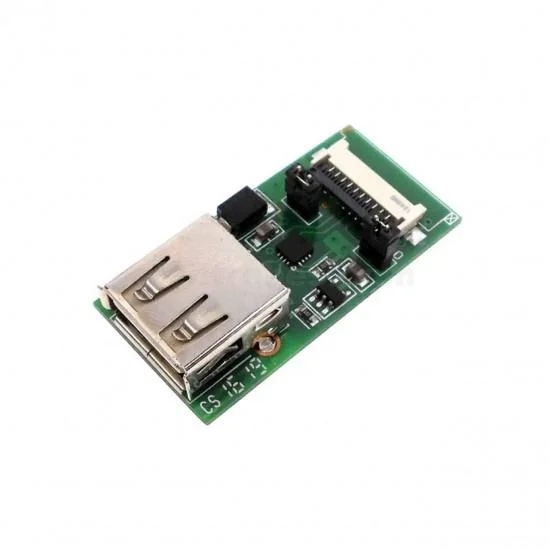

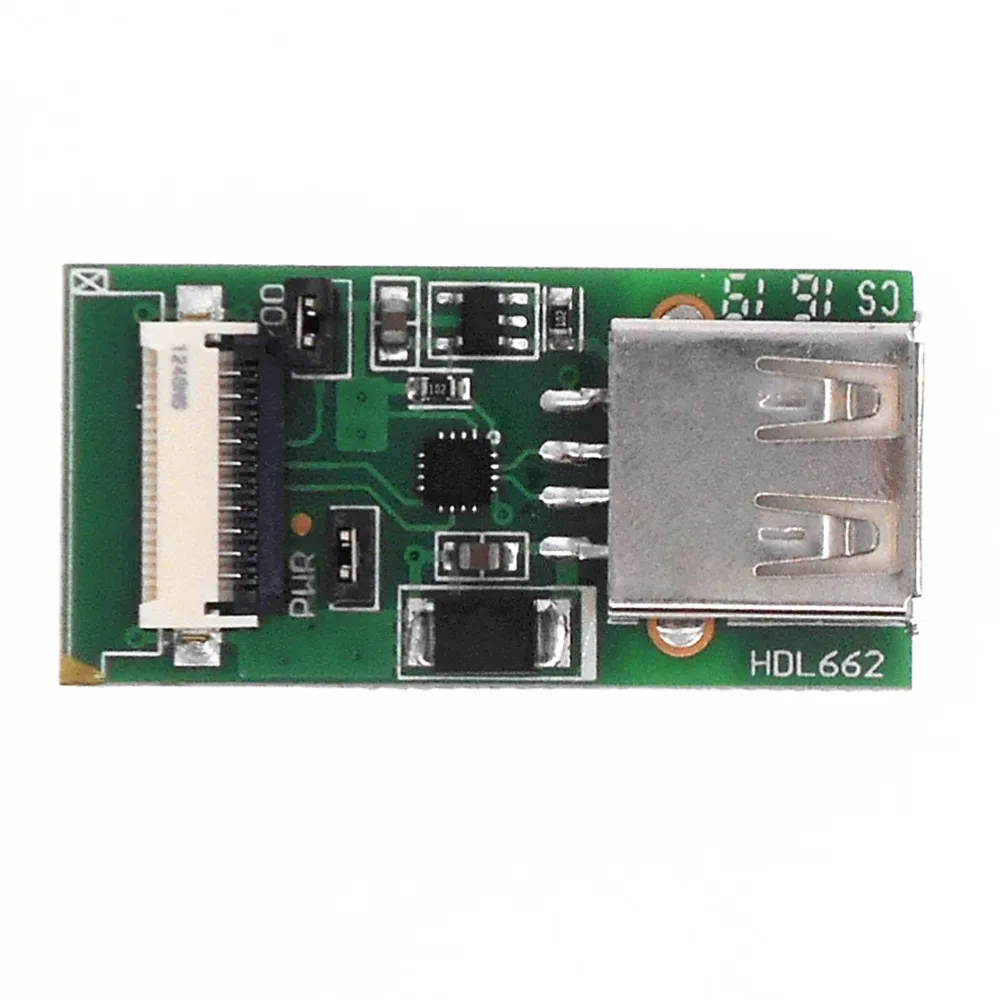

The HDL662B features a USB connector on one side and a 10-pin 1.0mm pitch FFC/FCC connector on the other, making it simple to interface with compatible LCD modules. Once connected to a PC, the adapter can operate directly through the USB interface, so no separate power supply is required.
This adapter board is particularly useful when working with DWIN LCM LCD modules and DWIN C-Series products. It provides a practical solution for developers, engineers, students, and electronics enthusiasts who need to test, configure, or debug compatible display modules.
Key Features
- USB to 10-Pin FFC/FCC adapter board
- Designed for LCM LCD module debugging and testing
- 10-pin 1.0mm pitch FFC connector
- Connects compatible LCD modules directly to a PC via USB
- No additional power supply required when used as supported
- Suitable for DWIN LCD modules
- Compatible with DWIN C-Series products when used with the required 10-pin FFC cable
- Compact and convenient design for electronics development
- Useful for LCD display testing, debugging, and development projects
HDL662B Adapter Board Specifications
| Specification | Details |
|---|---|
| Model | HDL662B |
| Interface | USB to FFC/FCC |
| FFC Connector | 10 Pin |
| Connector Pitch | 1.0mm |
| Application | LCM LCD Module Debugging |
| PC Connection | USB |
| Power | Powered through USB interface |
| Compatible Products | Compatible DWIN LCM/LCD modules and C-Series products |
Easy USB Connection for LCD Debugging
The HDL662B USB to FCC Adapter Board makes LCD debugging more convenient by allowing a compatible display module to be connected to a computer using USB. This eliminates the need for a separate power source in supported applications and keeps the setup simple.
The 10-pin 1.0mm FFC connector provides a compact connection for compatible LCD modules. Please make sure your display uses the correct connector and pin configuration before connecting the adapter.
Compatible with DWIN C-Series Products

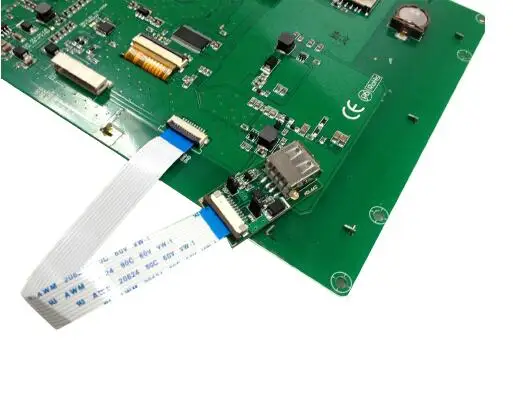

When working with DWIN C-Series products, a suitable 10-pin FFC cable is required to connect the PC and adapter board. This makes the HDL662B a useful accessory for developers working with compatible DWIN display solutions.
Applications
The HDL662B adapter board can be useful for:
- LCM LCD module debugging
- LCD display testing
- Display development projects
- DWIN display programming and testing
- Electronics prototyping
- Embedded system development
- PC-to-LCD interface testing
Package Includes:
1 x HDL662B
1 x FCC1015A-FCC10-1.0
