Description

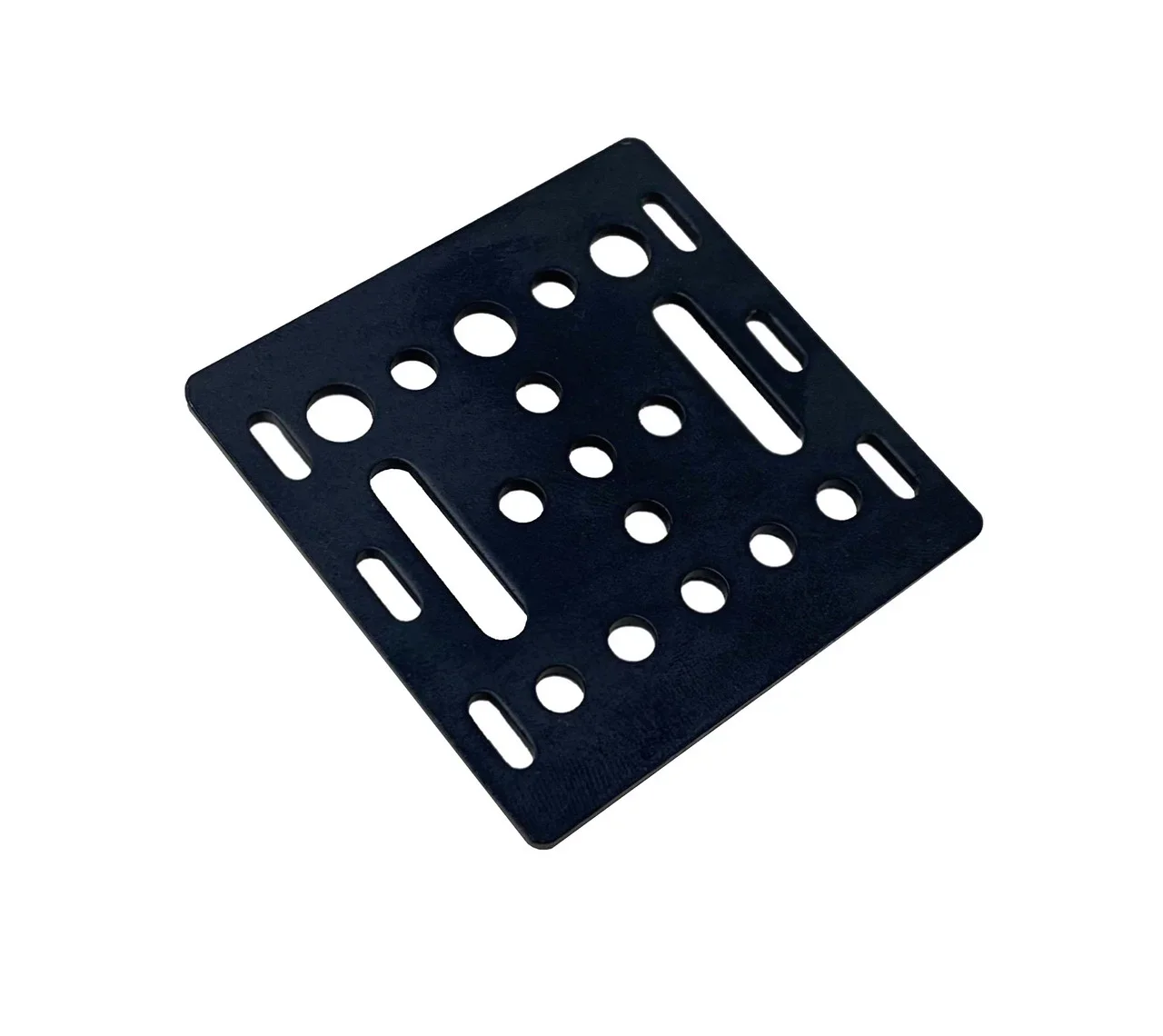

The X-Axis Universal Wheel Bracket for 2020 Profile is designed for use with 20mm V-slot aluminum extrusion profiles, including 2020 profiles commonly used in 3D printers and CNC machines.

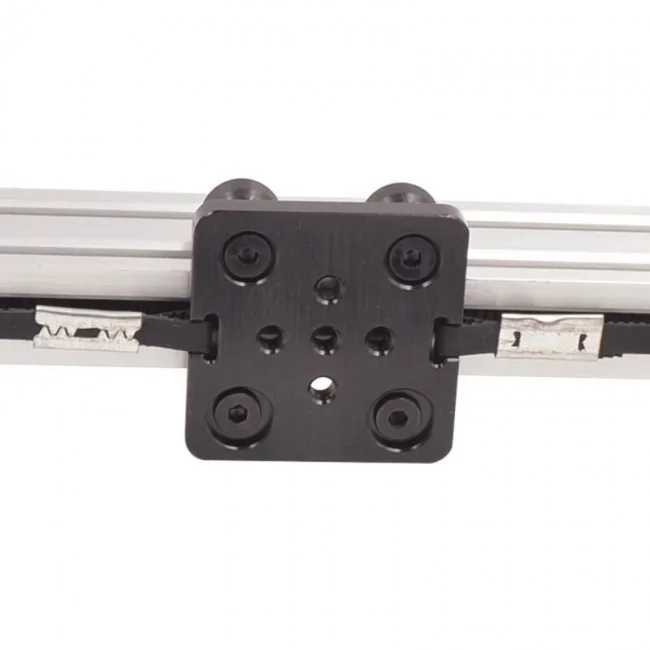

The bracket can be used as part of an X-axis motion system and supports V-wheel mounting and belt tension adjustment. Its adjustable design helps maintain proper belt tension and alignment, reducing belt movement, slack, and unwanted vibration during operation.
The aluminum alloy construction provides a durable and rigid mounting solution compared with standard plastic brackets. It is suitable for compatible machines such as Ender 3, Ender 3 Pro, Ender 3 V2, Ender 5, CR-10, and similar 2020-profile systems.
Features:
- Durable Aluminum Construction: Made from aluminum alloy with a black anodized finish for improved durability and corrosion resistance.
- 2020 Profile Compatibility: Designed for 2020 V-slot aluminum profiles commonly used in 3D printers and CNC equipment.
- Adjustable Belt Tension: Allows fine adjustment of X-axis belt tension using the tensioning mechanism.
- Improved Belt Alignment: Helps keep the timing belt properly aligned and running smoothly along the X-axis.

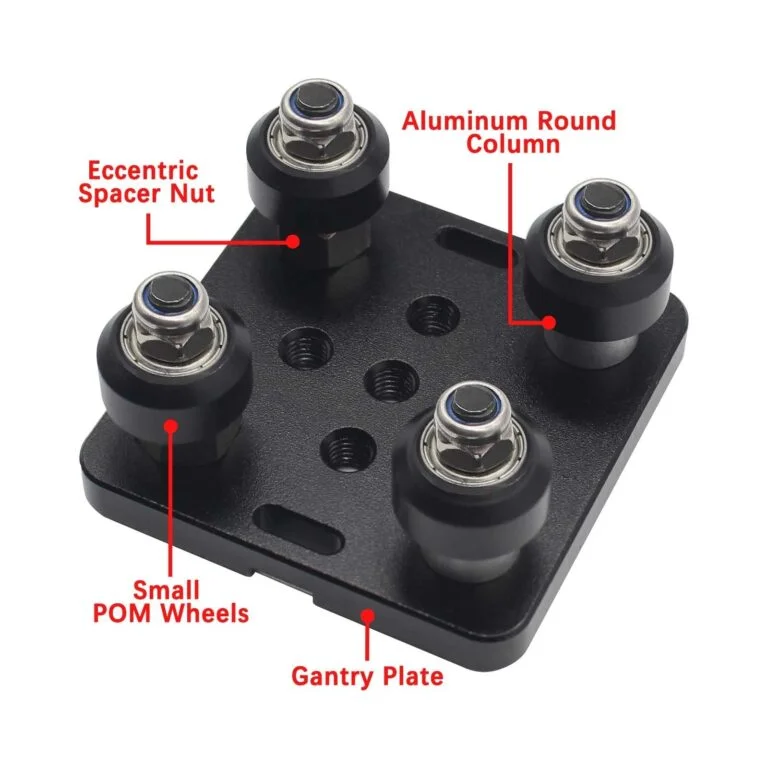

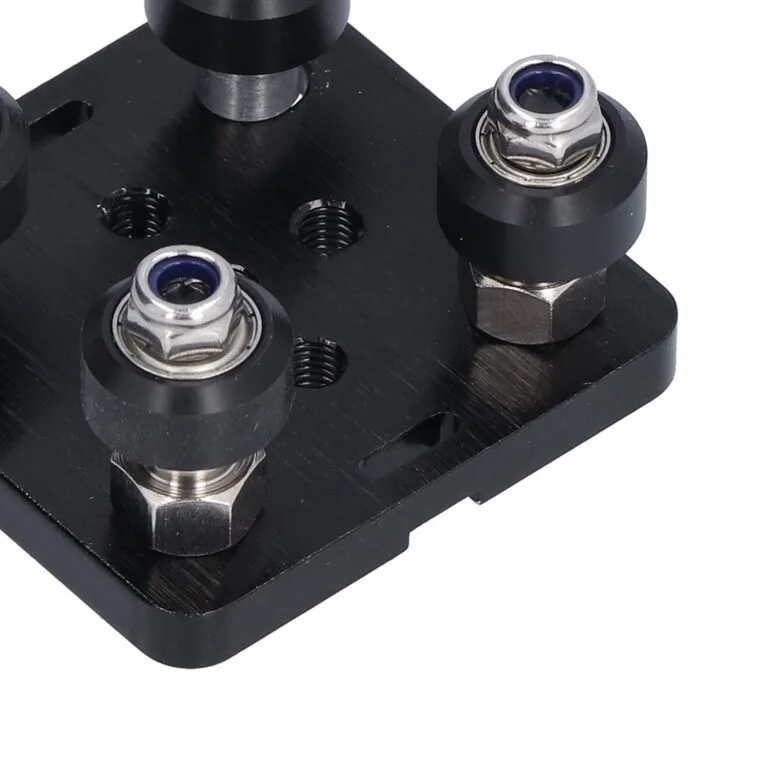

- Smooth Motion: Designed for use with POM V-wheels to provide low-friction, quiet, and stable linear movement.
- Improved Print Quality: Proper belt tension and alignment can help reduce belt sag and vibration while improving motion consistency and dimensional accuracy.
- Easy Installation: Designed for straightforward mounting with compatible screws and hardware.
- Wide Compatibility: Suitable for compatible Ender and CR-series 3D printers and other machines using 2020 V-slot profiles.
- Left/Right Direction Options: Available in left- and right-direction configurations depending on the required installation.
Specification:
- Type: Universal X-Axis Wheel Bracket / V-Gantry Plate
- Application: 2020 V-slot aluminum profile
- Compatibility: Ender 3, Ender 3 Pro, Ender 3 V2, CR-10, CR-10S, and similar compatible machines
- Material: Aluminum Alloy
- Surface Finish: Black Anodized
- Profile Compatibility: 2020 V-slot aluminum extrusion
- Adjustable Bracket Movement: Approx. 8mm
- Adjustable Belt Length Limit: Approx. 16mm
- Belt Width Compatibility: 6mm

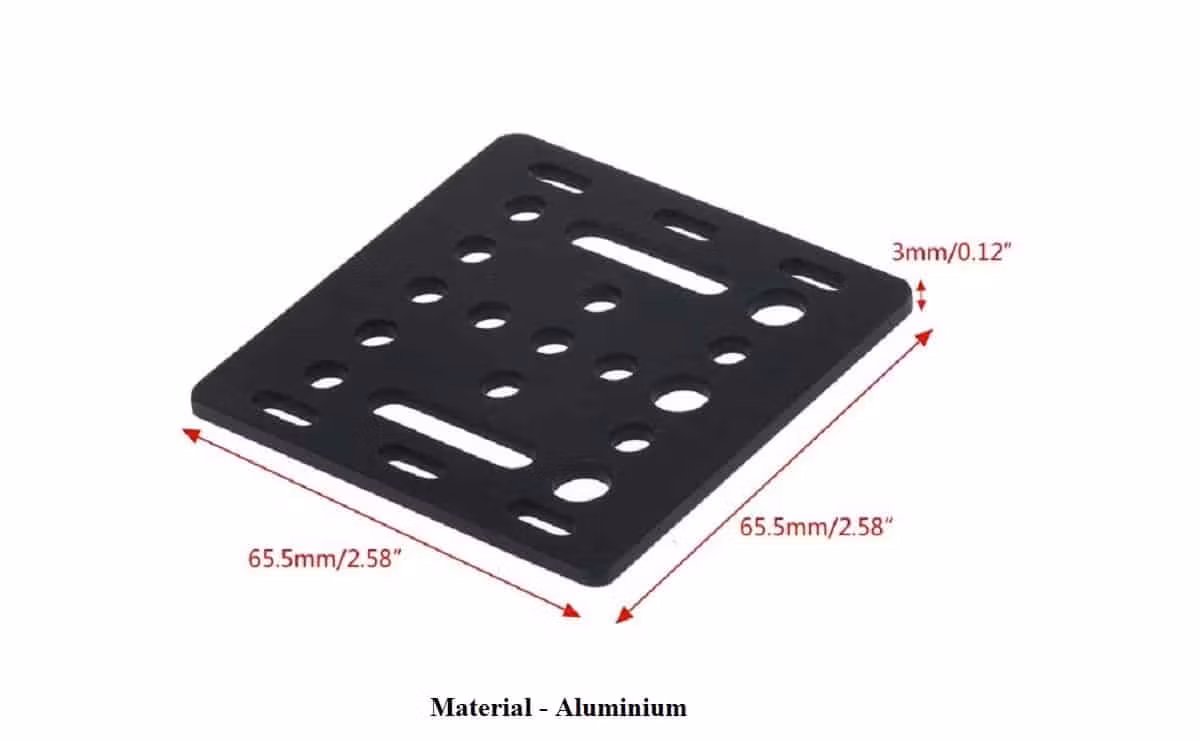

- Dimensions: Approx. 65.5 × 65.5 × 3mm
- Overall Size: Approx. 11.5 × 7.6 × 2.0cm
- Weight: Approx. 68g
- Direction: Left / Right
Package Includes:
- 1 × X-Axis Universal Wheel Bracket
