Description

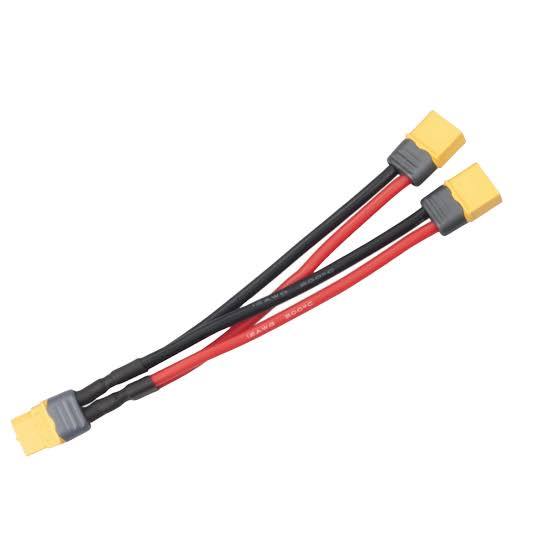

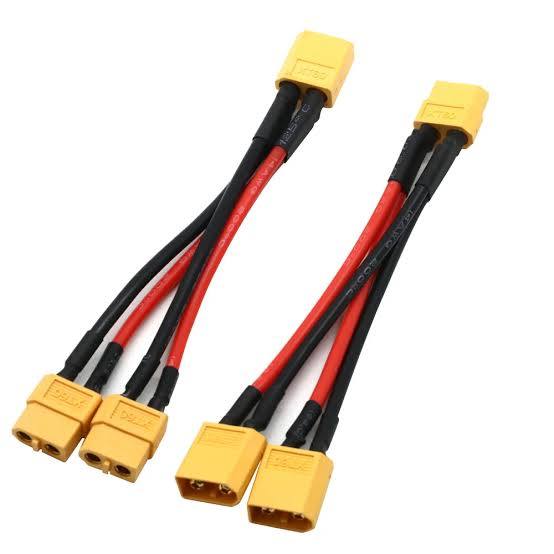

The XT60 Parallel Battery Connector Cable Extension Y Splitter F16768 is a practical cable assembly for connecting two compatible batteries in parallel through XT60 connectors. It is designed with one male XT60 connector and two female XT60 connectors, allowing two battery connections to be combined into a single output connection.
When two batteries are connected in parallel, the voltage remains the same while the available battery capacity is combined. This makes the splitter useful for compatible RC models, drones, multicopters, aircraft, and other battery-powered projects that use XT60 connectors.
The cable uses 14AWG wire and has a total length of approximately 152mm (6 inches). Its compact Y-splitter design makes battery connections easier to organize while providing a straightforward plug-and-play connection between compatible XT60-equipped batteries and equipment.
According to the supplied product information, the connector is compatible with applications such as DJI Phantom quadcopters and other aerial multicopter aircraft.
Key Features
- XT60 parallel battery connector Y splitter
- Designed to connect two batteries in parallel
- Helps combine battery capacity while maintaining the same voltage
- 1 × Male XT60 and 2 × Female XT60 connectors
- 14AWG wire
- Total cable length: approximately 152mm / 6 inches
- Interface length: approximately 17mm / 0.7 inch
- Compact and easy-to-use cable design
- Suitable for compatible LiPo battery setups
- Compatible with DJI Phantom quadcopter and other aerial multicopter applications
- Brand-new product
- SKU: CC-018
How the XT60 Parallel Splitter Works
This Y splitter is designed for parallel battery connection.
When two compatible batteries are connected in parallel:
Battery 1 + Battery 2 → Combined Battery Output
The battery voltage remains at the same nominal level, while the available capacity is combined.
For example, two compatible 11.1V 2200mAh batteries connected in parallel can provide an equivalent 11.1V 4400mAh battery capacity, provided the batteries and system are properly matched for parallel operation.
Specifications
| Specification | Details |
|---|---|
| Product Type | XT60 Parallel Battery Connector Y Splitter |
| Category | Parallel Adapter |
| SKU | CC-018 |
| Connector Configuration | 1 Male / 2 Female |
| Connector Type | XT60 |
| Wire Gauge | 14AWG |
| Usage | Connect 2 Batteries in Parallel / Double Capacity |
| Total Length | 152mm / 6 inch |
| Interface Length | 17mm / 0.7 inch |
| Net Weight | 24g |
| Condition | Brand New |
