Description

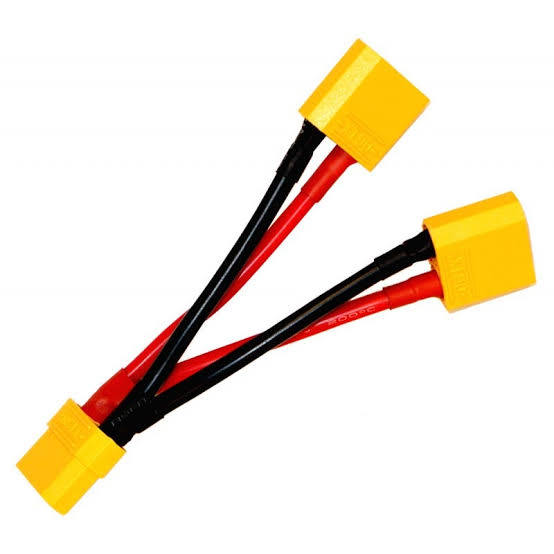

The XT60 Series Battery Connector Cable Extension Delta Splitter is designed to connect two compatible batteries in series using XT60 connectors. This series harness combines the voltage of two battery packs, allowing you to create a higher-voltage battery setup while keeping the same nominal capacity when matching batteries are used.
For example, two matching 11.1V 3S 2200mAh LiPo battery packs can be connected in series to create a combined 22.2V 6S 2200mAh setup. This makes the harness useful for RC applications that require a higher operating voltage.
The cable uses 14AWG wire and durable XT60 connectors designed for reliable high-current connections. The XT60 connectors feature a nylon housing and gold-plated contacts, providing a secure connection for compatible LiPo battery systems.
With an approximately 10cm wire length, this series battery adapter provides convenient installation and wiring flexibility in RC drones, airplanes, cars, vehicles, and other battery-powered projects.
Key Features
- XT60 series battery connector harness
- Designed to connect two compatible batteries in series
- Increases the combined output voltage
- 14AWG wire for high-current battery applications
- Durable nylon XT60 connector housing
- Gold-plated contacts for reliable electrical connection
- Approximately 10cm cable length
- Suitable for LiPo battery packs
- Ideal for RC drones, airplanes, cars, and vehicles
- Compact and convenient series connection design
Example Series Connection
Two matching 3S 11.1V 2200mAh LiPo batteries can be connected in series:
11.1V + 11.1V = 22.2V
The resulting battery configuration is approximately:
6S 22.2V 2200mAh
A series connection increases voltage while the nominal capacity in Ah remains the same. Always use compatible batteries with matching voltage, chemistry, capacity, and similar charge condition.
Specifications
| Specification | Details |
|---|---|
| Product Type | Series Battery Adapter / Delta Splitter |
| Connector Type | XT60 |
| Connector Configuration | 2 Male + 1 Female |
| Wire Gauge | 14AWG |
| Wire Length | Approximately 10cm |
| Weight | Approximately 23g |
| Connection Type | Series |
| Main Application | Connect 2 compatible batteries in series |
| Main Purpose | Increase combined battery voltage |
| Connector Material | High-temperature nylon |
| Contact Type | Gold-plated |
| Current Handling | Designed for high-current RC applications |
| Package Includes | 1 × XT60 Series Battery Connector Cable |
| SKU | CC-019 |
