Description

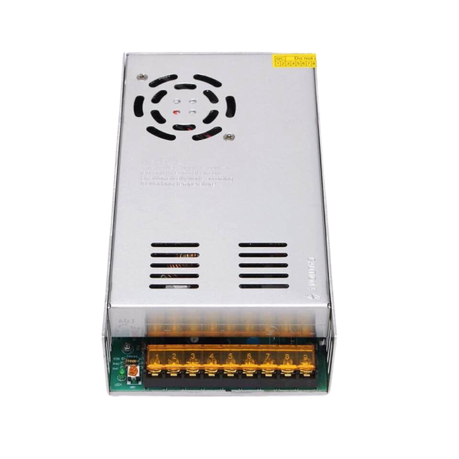

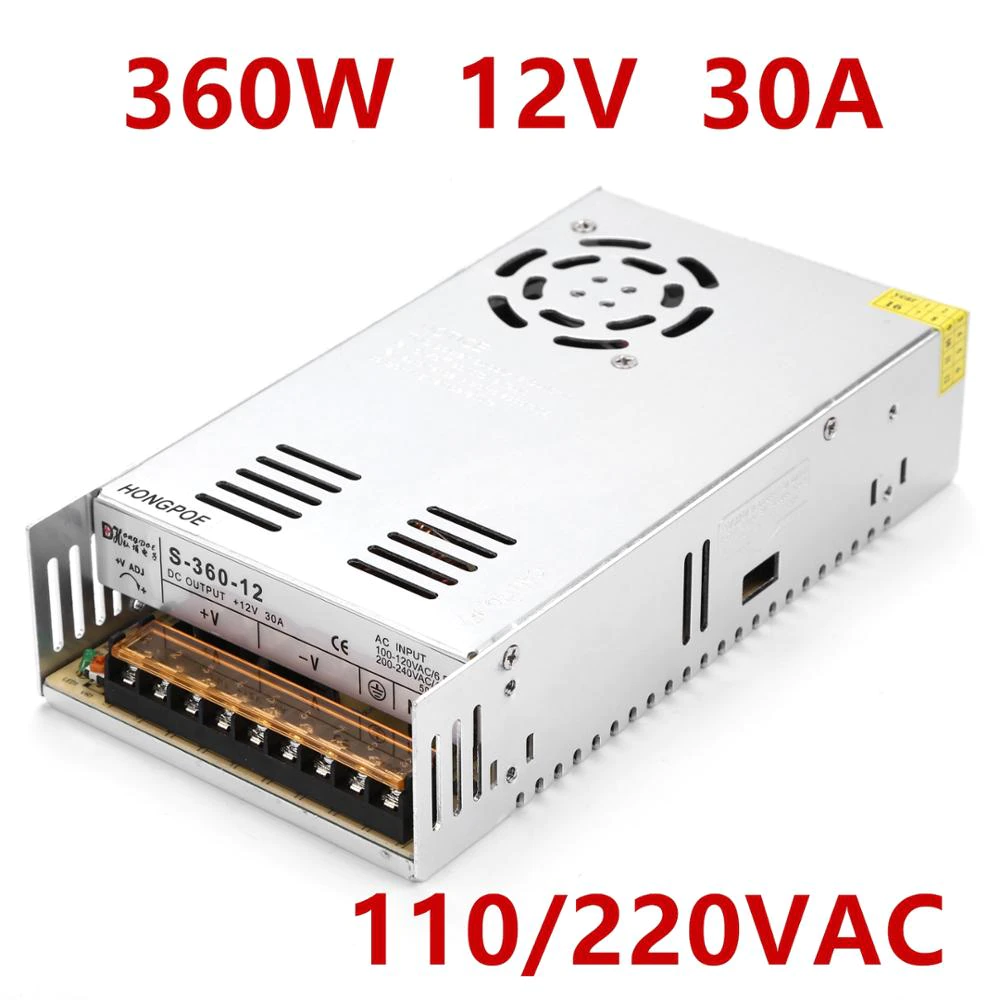

The 12V 30A 360W Switching Power Supply Driver is a high-capacity regulated SMPS designed to provide a stable 12V DC output at up to 30A. With a maximum rated power of 360W, it is suitable for powering LED lighting systems, electronic equipment, control systems and other devices that require a reliable 12V DC supply.
The unit accepts a wide AC 110–240V input at 50/60Hz, making it suitable for different electrical installations. Its regulated output provides consistent DC power for compatible loads.
Built-in overload, over-voltage, short-circuit and over-temperature protection helps protect the power supply and connected equipment during abnormal operating conditions. The aluminum enclosure and free-air convection cooling provide a practical solution for heat dissipation during normal operation.
This 12V SMPS is a useful replacement for an old or damaged power supply and can be used in a wide range of LED, CCTV, automation and electronic projects.
Key Features
- Output Voltage: 12V DC
- Output Current: 30A
- Rated Power: 360W
- Input Voltage: AC 110–240V
- Input Frequency: 50/60Hz
- Stable regulated 12V DC output
- Overload protection
- Over-voltage protection
- Short-circuit protection
- Over-temperature protection
- Low ripple and low output noise
- Efficient switching design
- Fire-resistant PCB and cover materials
- Free-air convection cooling
- Compact and practical design
- CE / RoHS compliant
- 1-year warranty
Specifications
| Specification | Details |
|---|---|
| Product Type | Regulated Switching Power Supply / SMPS |
| Model | Not specified |
| Input Voltage | AC 110–240V |
| Input Frequency | 50/60Hz |
| Input Signal | AC |
| Output Voltage | DC 12V |
| Output Current | 30A |
| Rated Power | 360W |
| Output Signal | DC |
| Cooling | Free-Air Convection |
| Protection | Overload, Over-Voltage, Short Circuit, Over-Temperature |
| Dimensions | 215 × 115 × 50 mm |
| Certifications | CE, RoHS |
Power Rating
The stated power rating is consistent with the output specifications:
12V × 30A = 360W
The supply can therefore deliver up to 360 watts at 12V, subject to appropriate installation, ventilation and operating conditions.
Applications
The 12V 30A 360W power supply is suitable for:
- 12V LED strips
- LED light bars
- LED downlights and ceiling lights
- LED displays and signage
- CCTV and compatible security equipment
- Industrial automation systems
- 3D printer systems requiring 12V DC
- Electronic control systems
- Communication equipment
- DIY electronics projects
- Replacement of damaged or faulty 12V power supplies
