Description

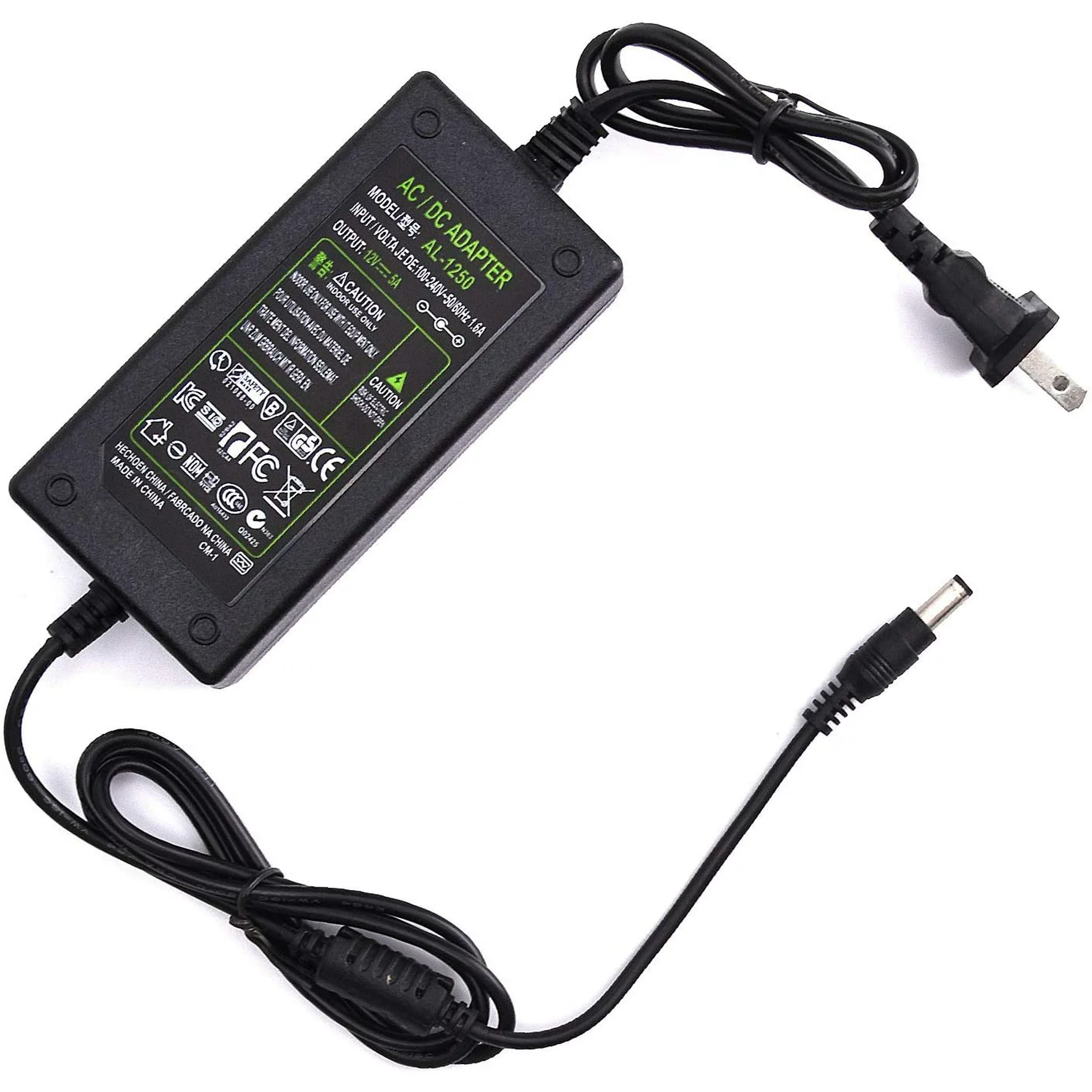

The 12V 5A 60W Power Supply Adapter is a compact AC-to-DC switching power supply designed to provide a stable 12V DC output at up to 5A. It can be used for a wide range of electronics and electrical applications that require a regulated 12V power source.
This 12V SMPS accepts an AC input of 110V–220V and converts it into 12V DC power. Its switching-mode design provides efficient power conversion while keeping the unit compact and suitable for applications such as LED lighting, CCTV cameras, RGB LED strips, advertising displays and other 12V devices.
The power supply features overload and short-circuit protection and can automatically recover after a protection event. It also uses high-temperature-resistant copper enameled wire and a double-winding U-shaped iron core for reliable operation.
Important Condition Note
This product is supplied in used condition. The physical appearance, casing style or exact design may vary from the product image because different lots may be supplied. However, the electrical power characteristics are intended to remain according to the specifications listed on this page.
Key Features
- 12V DC regulated switching power supply
- 5A maximum output current
- 60W rated output power
- 110V–220V AC input
- Wide input voltage range suitable for common AC mains
- Overload protection
- Short-circuit protection
- Automatic recovery after protection
- Good insulation and electrical strength
- Good anti-interference performance
- Compact design for space-limited installations
- Suitable for LED lighting and other 12V electronics
- Used product; physical appearance may vary by available lot
Specifications
| Specification | Details |
|---|---|
| Product Type | Switching Mode Power Supply / SMPS |
| Input Voltage | AC 110V–220V |
| Input Frequency | 47–63Hz |
| Output Voltage | 12V DC |
| Output Current | 5A |
| Rated Output Power | 60W |
| Output Voltage Adjustment | ±10% |
| Protection | Overload & Short Circuit |
| Protection Recovery | Automatic |
| Certifications | CE, RoHS, FCC |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–90% RH |
| Approx. Dimensions | 158 × 97 × 42 mm |
| Approx. Weight | 420g |
| Color | As shown / may vary by lot |
| Condition | Used |
