Description

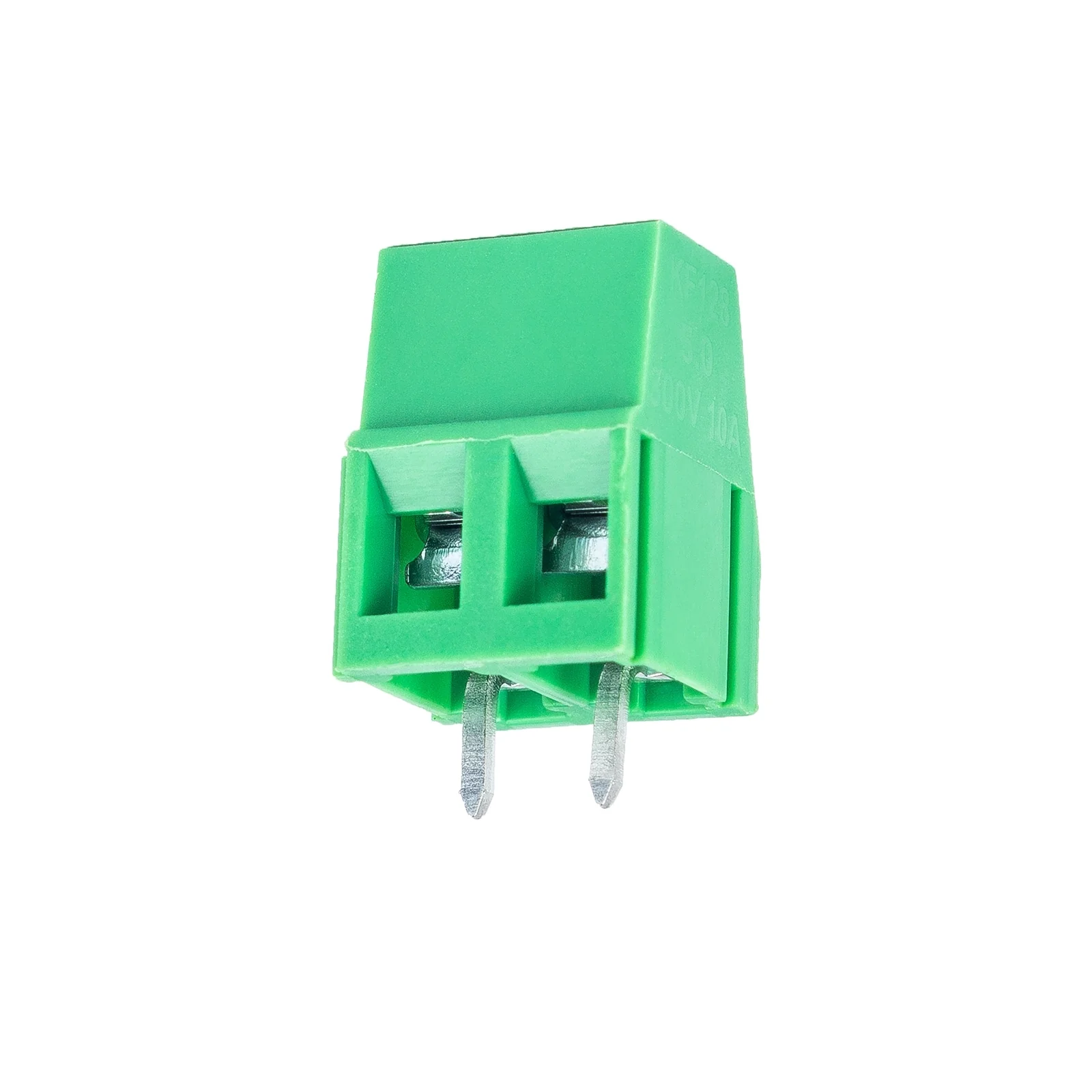

The 2-Pin 5.00mm Pitch PCB Mount Screw Terminal Block provides a simple and reliable way to connect wires to a printed circuit board. Its screw-clamp design holds wires securely while allowing easy installation, removal, and maintenance.
Made from plastic and copper, this terminal block supports 22–12 AWG wire and is suitable for a variety of electronic and electrical applications. Its compact design makes it useful for PCB assemblies, power connections, control circuits, and DIY projects.
Specifications
| Specification | Details |
|---|---|
| Product Type | PCB Mount Screw Terminal Block |
| Number of Pins / Poles | 2 Pins |
| Pitch / Pin Spacing | 5.00mm / 0.196 inch |
| Stitch | 4.2mm |
| Rated Voltage | 300V* |
| Rated Current | 10A* |
| Compatible Wire Range | 22–12 AWG |
| Material | Plastic and Copper |
| Color | Green |
| Operating Temperature | -40°C to +105°C |
| Mounting Type | Through Hole / PCB Mount |
| Connection Type | Screw Terminal |
| Overall Size | Approx. 10.5 × 10.5 × 14.1mm (L × W × H) |
| Additional Listed Voltage | 320V |
| Additional Listed Current | 6A |
| Additional Dimensions | Approx. 10 × 10 × 18mm (L × W × H) |
| Package Includes | 1 × 2-Pin Terminal Block |
*The supplied specifications list 300V 10A as the rated value, while another specification set lists 320V 6A. Please verify the exact rating against the product batch/datasheet before using it in a specific application.
