Description

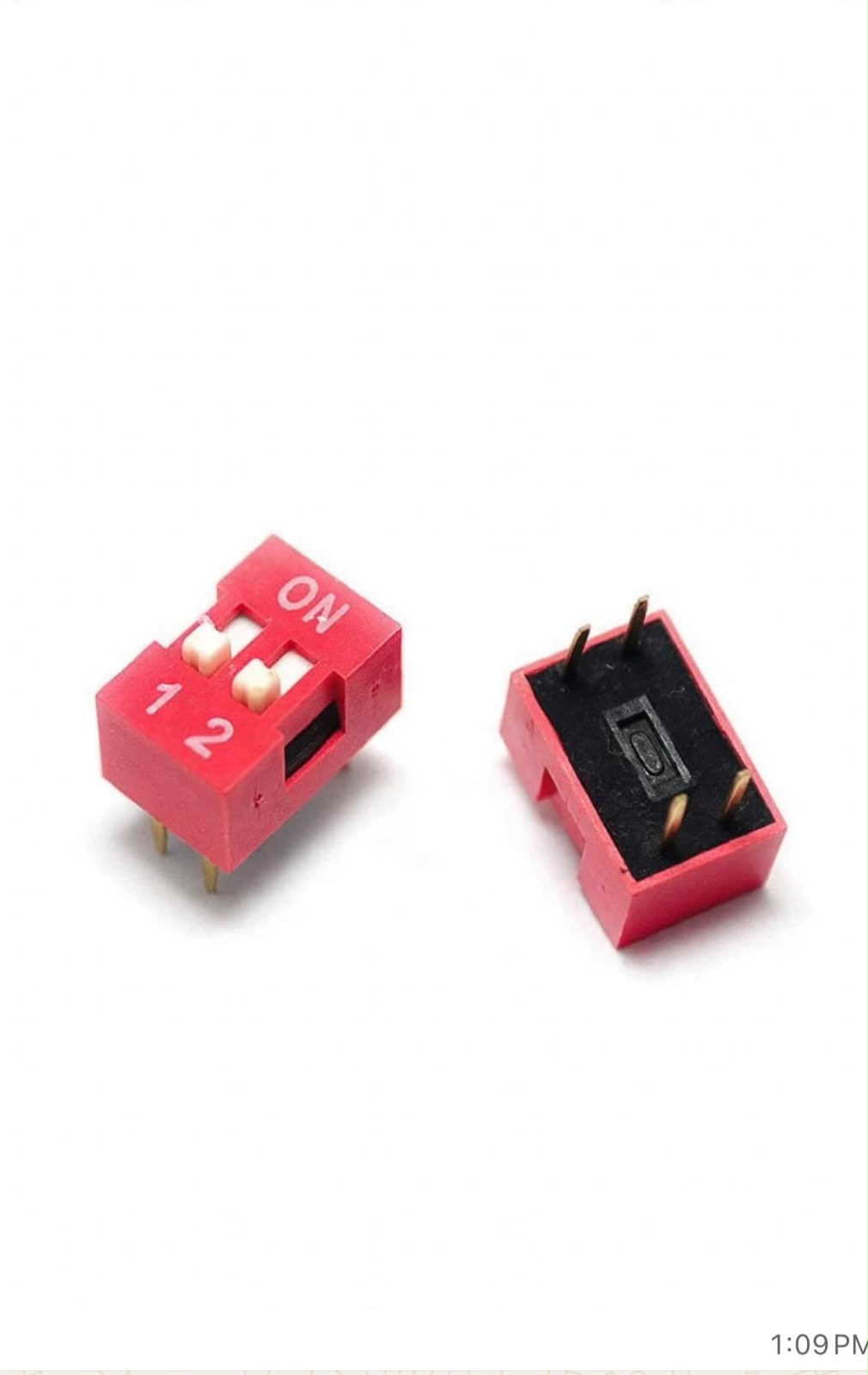

The 2-Way DIP Switch Slide Switch is a compact and practical component for configuring and controlling electronic circuits. It features two independently operated SPST switches, allowing you to easily turn individual circuit functions ON or OFF or select between different settings.
With 4 pins, a 2.54mm terminal pitch, and 7.62mm row spacing, this DIP switch is designed for straightforward through-hole PCB installation. The raised slide actuators make it easy to change switch positions during circuit development, testing, or regular operation.
The switch features gold-plated brass contacts for dependable electrical contact and durable polyamide actuators for reliable switching. Its compact DIP design makes it a useful choice for digital circuits, development boards, control systems, DIY electronics, and custom PCB projects.
Specifications
| Specification | Details |
|---|---|
| Product Type | DIP Slide Switch |
| Family | 206 |
| Number of Positions | 2 |
| Number of Pins | 4 |
| Switch Configuration | SPST |
| Actuator Style | Slide, Raised |
| Contact Plating | Gold |
| Contact Material | Brass |
| Actuator Material | Polyamide |
| Body Orientation | Straight |
| Terminal Type | PC Pins |
| Mounting Type | Through Hole |
| Row Spacing | 7.62mm |
| Terminal Pitch | 2.54mm |
| Total Pitch | 2.54mm |
| Product Depth | 9.6mm |
| Product Length | 8.08mm |
Features
- 2 individually controlled switch positions
- 4-pin DIP configuration
- SPST switch arrangement
- Raised slide actuators for easy operation
- Gold-plated brass contacts
- Durable polyamide actuator material
- Standard 2.54mm terminal pitch
- Through-hole PCB mounting
- Straight body orientation
- Compact and space-saving design
Applications
The 2-Way DIP Switch is suitable for a variety of electronic applications, including:
- PCB configuration
- Digital and logic circuits
- Arduino and microcontroller projects
- Address and mode selection
- Development boards
- Control circuits
- DIY electronics
- Prototyping
- Custom PCB projects
Max Ratings
Maximum voltage and current ratings depend on the specific switch model. Always check the manufacturer’s datasheet and operate the switch within the specified electrical limits.
