Description

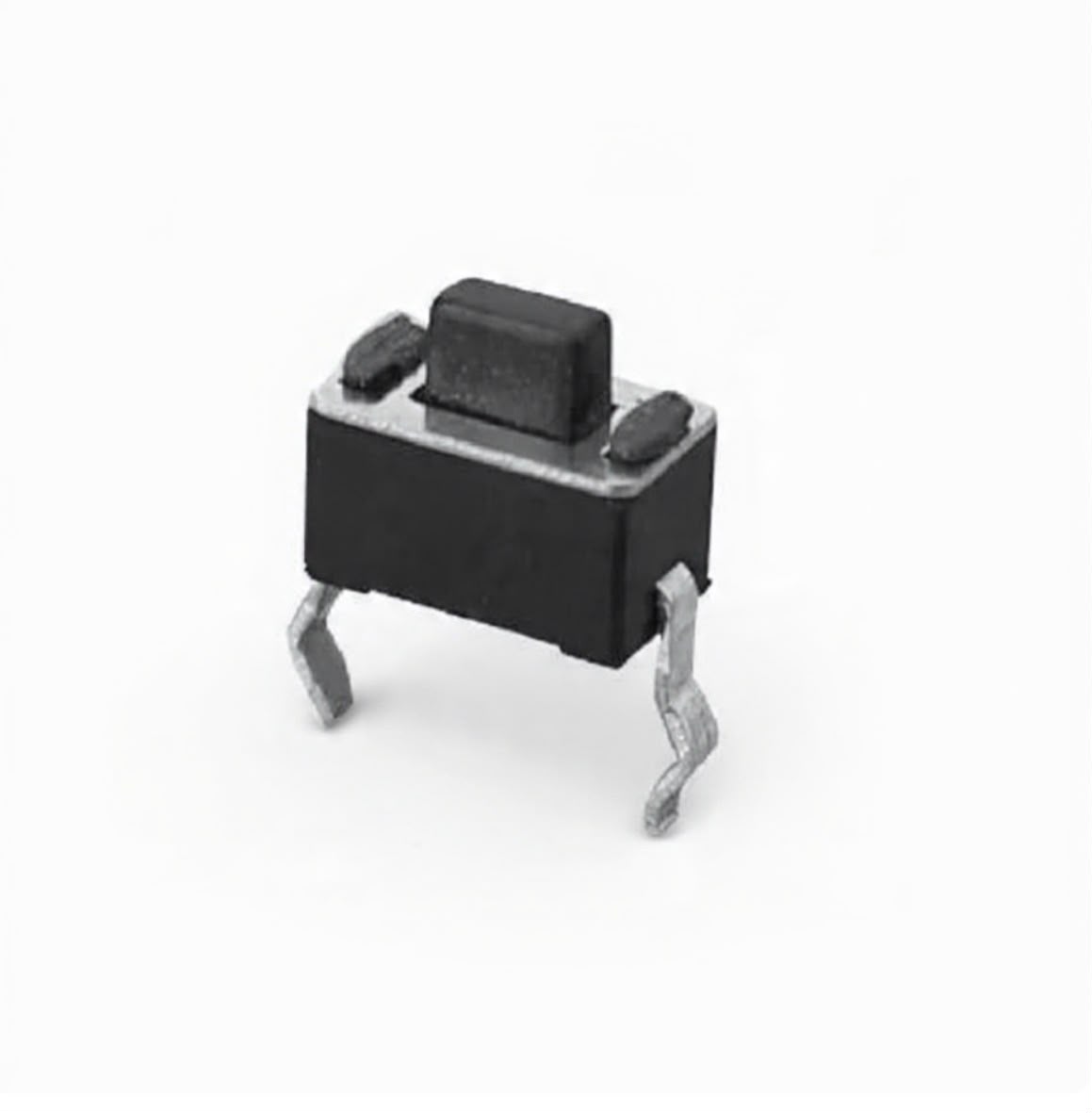

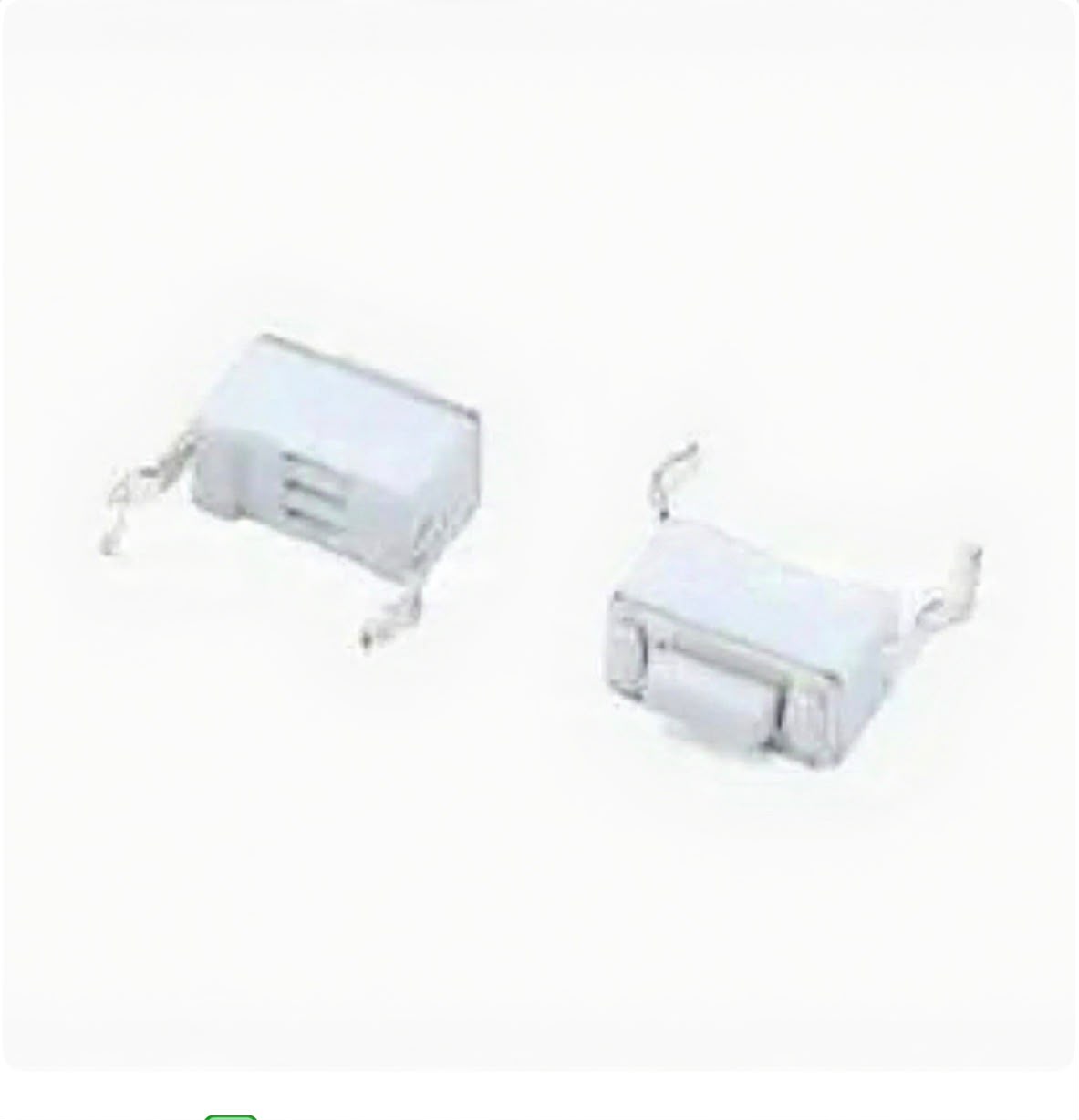

The 6×3.5×4.3mm PCB Tactile Push Button Switch is a compact momentary switch designed for reliable input and control in electronic circuits. Its small size makes it a good choice for PCBs where space is limited, while the tactile action provides a noticeable response when the button is pressed.
With a rated life of up to 50,000 cycles at 160gf, this switch is suitable for repeated use in electronic devices and DIY projects. It features a 2-pin, 1-pole 1-throw contact arrangement and a short 0.25mm stroke for quick and responsive operation.
The switch uses a durable nylon thermoplastic base and stem, with silver-clad contacts and terminals for dependable electrical performance.
Specifications
| Specification | Details |
|---|---|
| Product Type | PCB Tactile Push Button Switch |

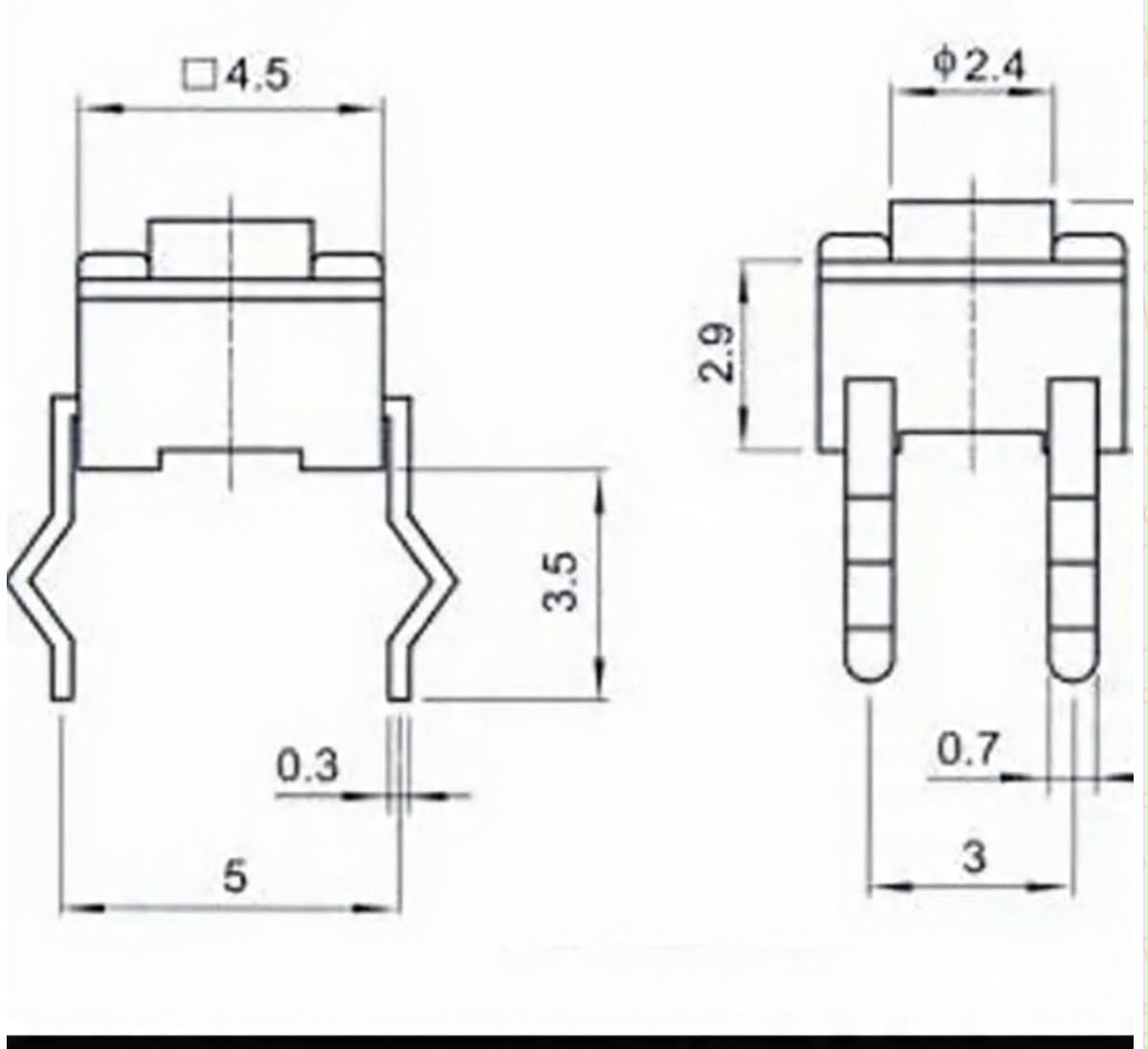

| Size | 6 × 3.5 × 4.3 mm |
| Pin Count | 2 Pins |
| Switch Action | Momentary |
| Contact Arrangement | 1 Pole 1 Throw (SPST) |
| Electrical Life | 50,000 Cycles at 160gf |
| Rated Current | 50mA |
| Rated Voltage | 12VDC |
| Contact Resistance | 100mΩ max. |
| Insulation Resistance | 100MΩ min. at 500VDC |
| Dielectric Strength | 250VAC for 1 minute |
| Operating Force | 160 ± 50gf |
| Stroke | 0.25 +0.2 / -0.1 mm |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Cover Material | Nickel Silver |
| Contact Disc | Stainless Steel with Silver Cladding |
| Terminal Material | Brass with Silver Cladding |
| Base Material | Black Nylon High-Temperature Thermoplastic |
| Stem Material | White Nylon High-Temperature Thermoplastic |
| Adhesive Tape | Teflon |
| Mounting | PCB Mount |
