Description
The 200mAh 3.7V 1S Rechargeable LiPo Battery is a compact and lightweight lithium-polymer battery designed for small electronic devices, RC mini drones, mini quadcopters, multicopters, and DIY electronics projects. With a nominal voltage of 3.7V and a capacity of 200mAh, this 1S battery provides a convenient rechargeable power source for compact applications.
Its slim 40 × 22 × 2.4mm form factor makes it suitable for projects where available space is limited. It can also be used in compatible ESP8266, ESP32, and ESP32-CAM projects, provided the device’s voltage and current requirements are properly matched.
Key Features
- Battery Type: Lithium Polymer (LiPo)
- Configuration: 1S
- Nominal Voltage: 3.7V
- Capacity: 200mAh
- Maximum Charge Voltage: 4.25V
- Weight: 8g
- Dimensions with PCM: 40 × 22 × 2.4mm
- Slim and lightweight rechargeable battery design
- Suitable for small RC and electronics applications
- Designed for compact battery-powered projects
- Suitable for applications requiring a 3.7V 1S LiPo battery
Specifications
| Specification | Details |
|---|---|
| Battery Type | Lithium Polymer / LiPo |

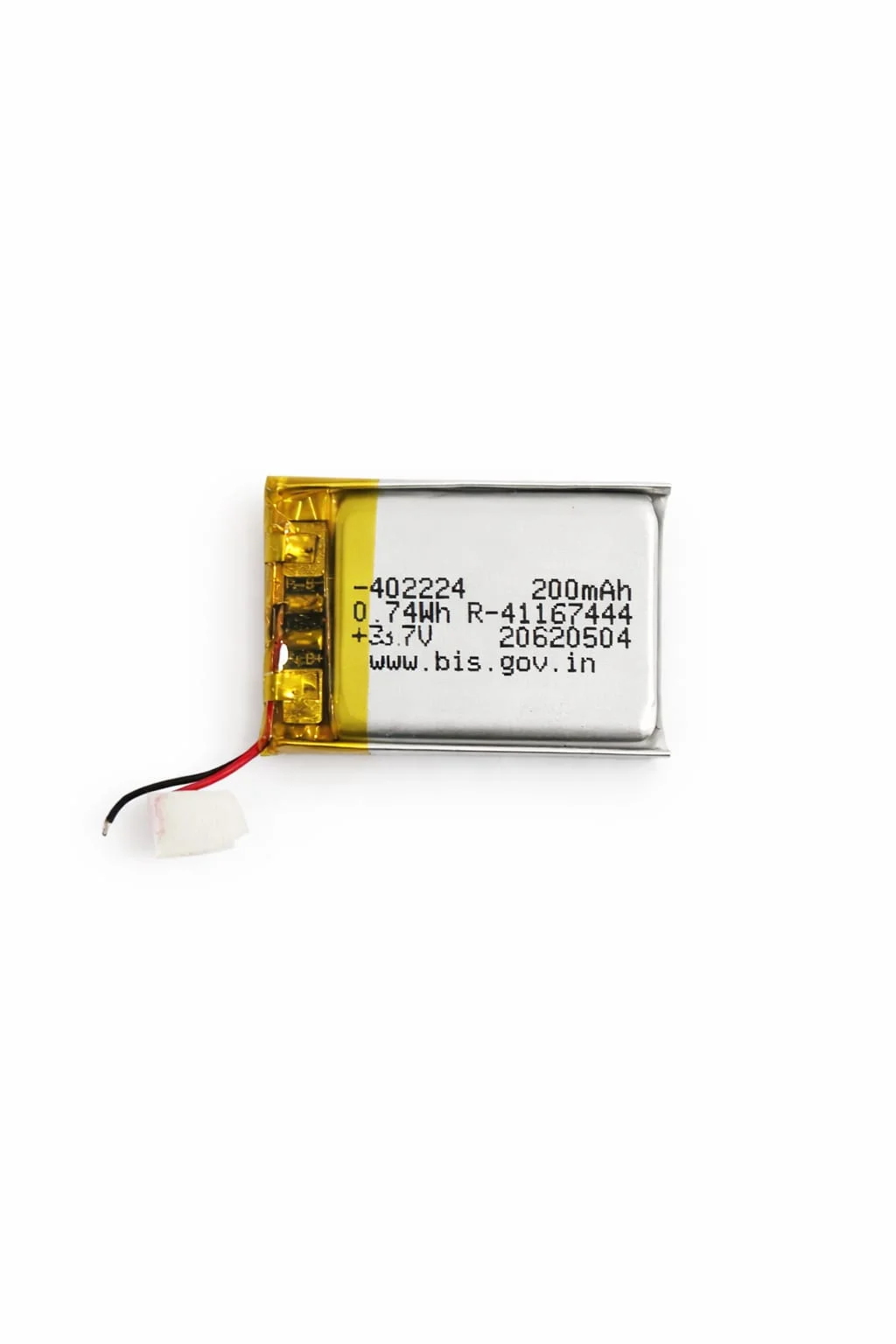

| Model | 402224 |
| Configuration | 1S |
| Nominal Voltage | 3.7V |
| Capacity | 200mAh |
| Maximum Charge Voltage | 4.25V |
| General Charge Current | 0.2C / Adjustable |
| Fast Charge Current | 1C / Adjustable |
| General Discharge Current | 0.2C / Adjustable |
| Maximum Continuous Discharge | 1C / Adjustable |
| Peak Discharge Current | 2C / Adjustable |
| Cycle Life | 500+ cycles at 0.2C, 80% DOD |
| Dimensions with PCM | 40 × 22 × 2.4mm |
| Weight | 8g |
Applications
The 200mAh 3.7V 1S LiPo battery can be used for:
- RC mini drones
- Mini quadcopters
- Multicopters
- Small remote-controlled devices
- ESP8266 projects
- ESP32 development projects
- ESP32-CAM projects
- Small robotics projects
- DIY electronics
- Portable battery-powered devices
- Other compatible 1S 3.7V LiPo applications
