Description

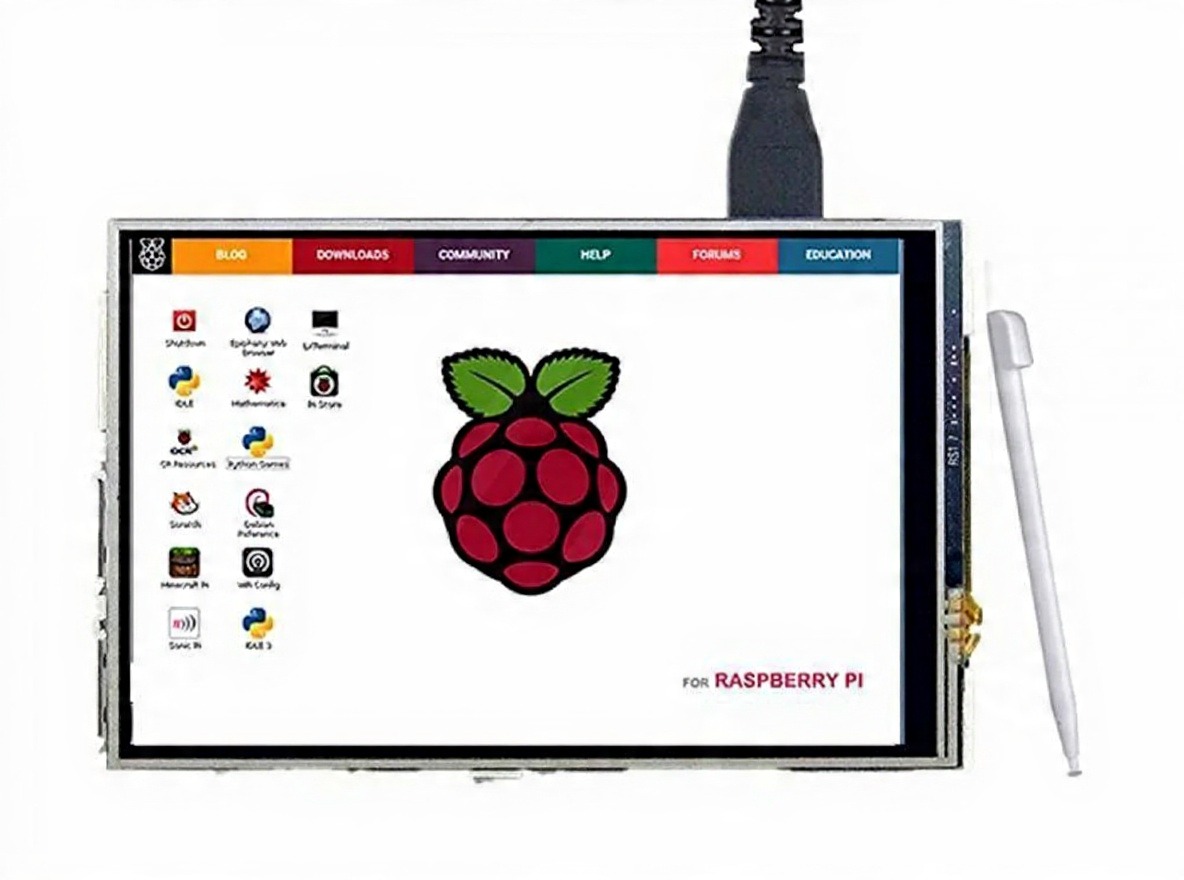

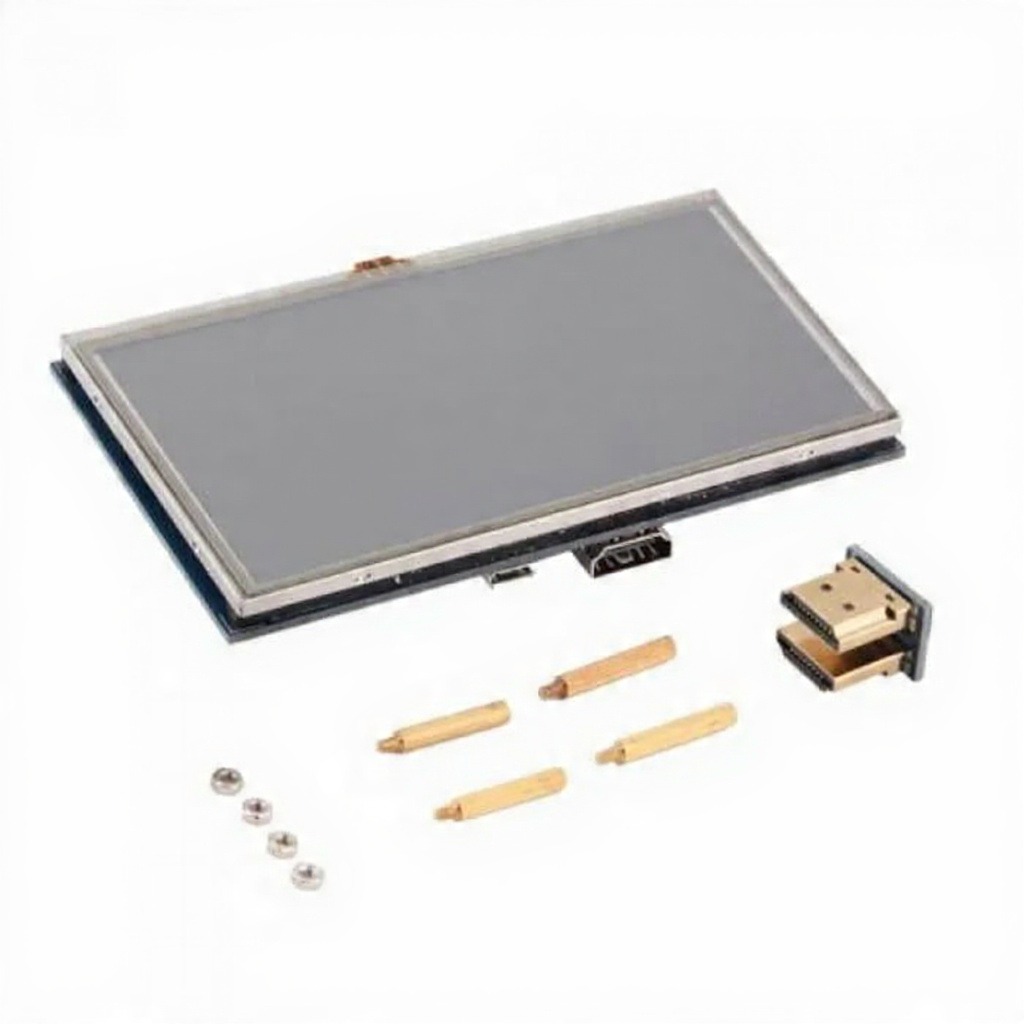

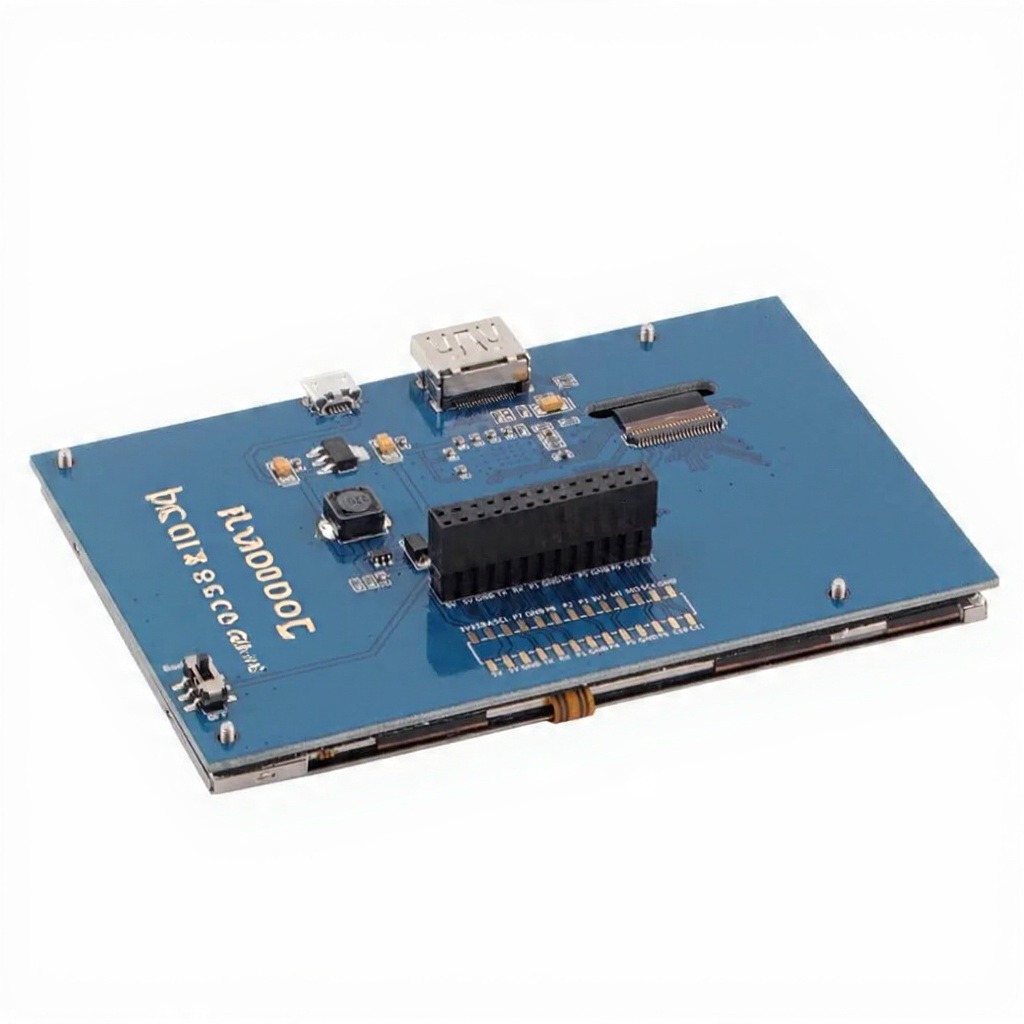

The 5 Inch Capacitive Touch Screen LCD for Raspberry Pi is a compact and versatile touchscreen display designed for Raspberry Pi, mini PCs, computers, and other HDMI-compatible devices. With an 800×480 resolution, HDMI connectivity, and USB touch control, it provides a convenient interactive display solution for electronics, computing, and DIY projects.
The display features a responsive capacitive touchscreen and supports multi-touch functionality, making it suitable for applications that require an interactive user interface. When connected to a Raspberry Pi, it can be used with popular operating systems such as Raspbian, Ubuntu, Kali, RetroPie, and Windows 10 IoT without requiring additional display drivers.
For use as a computer monitor, the display supports Windows operating systems and offers five-point touch control. Its HDMI interface provides video and audio connectivity, while the USB connection handles touchscreen input.
Key Features
- 5-inch TFT LCD touchscreen display
- 800×480 hardware resolution
- Resolution can be configured by software up to 1920×1080
- Responsive capacitive touch control
- Supports five-point multi-touch on compatible systems
- HDMI interface for video input
- USB 2.0 interface for touchscreen control
- Low power consumption
- Powered through 5V Micro USB
- Built-in EDID for automatic display identification
- Multi-language OSD menu
- Adjustable brightness and contrast
- 3.5mm audio jack
- Speaker connector
- Supports HDMI audio output
- Compact and lightweight design
Compatible Devices
The 5-inch HDMI touchscreen can be used with a wide range of devices, including:
- Raspberry Pi
- Jetson Nano
- BeagleBone Black
- Banana Pi
- UDOO
- Mini PCs
- Desktop computers
- Laptops
- Windows-based computers
- Compatible gaming consoles
Operating System Support
When used with a Raspberry Pi, the display supports popular operating systems including:
- Raspbian
- Ubuntu
- Kali Linux
- RetroPie
- Windows 10 IoT
For computer monitor applications, it supports:
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7
The exact touch functionality and driver requirements may vary depending on the operating system and connected device.
HDMI and USB Connectivity
The display uses HDMI for video input and USB for touchscreen control, providing a simple connection setup. When touchscreen functionality is not required, the display can be used as a standard HDMI monitor.
The built-in EDID system helps compatible devices identify the display automatically, making setup easier with supported hardware.
Touchscreen Display for Raspberry Pi Projects
This 5-inch Raspberry Pi touchscreen display is a practical option for projects that require both visual output and touch interaction. It can be used to create Raspberry Pi dashboards, control panels, media centers, information displays, portable computers, kiosks, and other interactive applications.
Its compact size makes it particularly useful for projects where a larger monitor would be inconvenient.
Low Power Consumption
The display is designed to operate from a 5V USB power supply and requires less than 150mA of current, making it suitable for a variety of low-power electronics and embedded applications.
Audio Support
In addition to HDMI video input, the display provides audio functionality through a 3.5mm audio jack and speaker connector. It supports HDMI audio output, making it suitable for multimedia and Raspberry Pi entertainment projects.
OSD Control
The built-in multi-language OSD menu provides convenient control over display settings such as brightness, contrast, and power management. This allows users to adjust the screen according to their application and viewing environment.
Technical Specifications
| Specification | Details |
|---|---|
| Display Type | 5-inch TFT LCD |
| Screen Size | 5 inches |
| Resolution | 800 × 480 |
| Maximum Software Resolution | Up to 1920 × 1080 |
| Touch Type | Capacitive Touch |
| Touch Points | Up to 5-point touch on supported systems |
| Video Interface | HDMI |
| Touch Interface | USB 2.0 Full Speed |
| Power Input | 5V via Micro USB |
| Current Consumption | Less than 150mA |
| Dimensions | 133 × 76 × 7mm |
| Weight Without Packaging | Approx. 120g |
| Weight With Packaging | Approx. 140g |
| Audio | 3.5mm audio jack / speaker connector |
| OSD | Multi-language |
| EDID | Built-in |
| Touchscreen | USB capacitive touch |
Applications
The 5 Inch Capacitive HDMI Touch Screen LCD is suitable for:
- Raspberry Pi projects
- Raspberry Pi dashboards
- Touchscreen control panels
- Portable computers
- Mini PC projects
- Kiosks and information terminals
- Media centers
- Home automation interfaces
- Industrial control interfaces
- DIY touchscreen projects
- Embedded systems
- Gaming and RetroPie projects
