Description

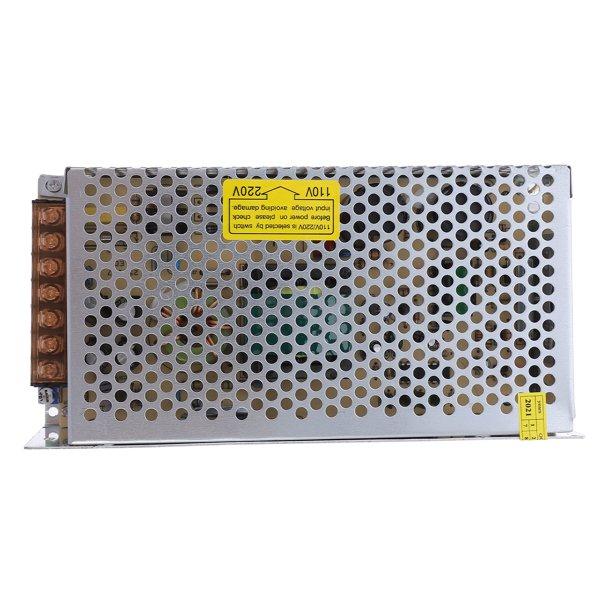

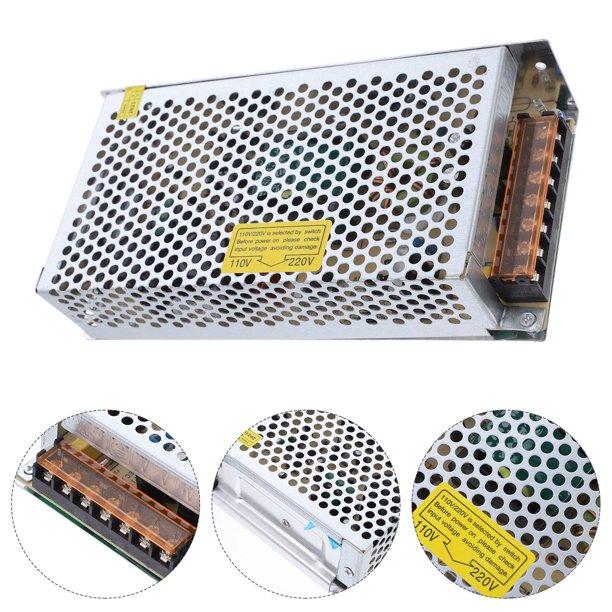

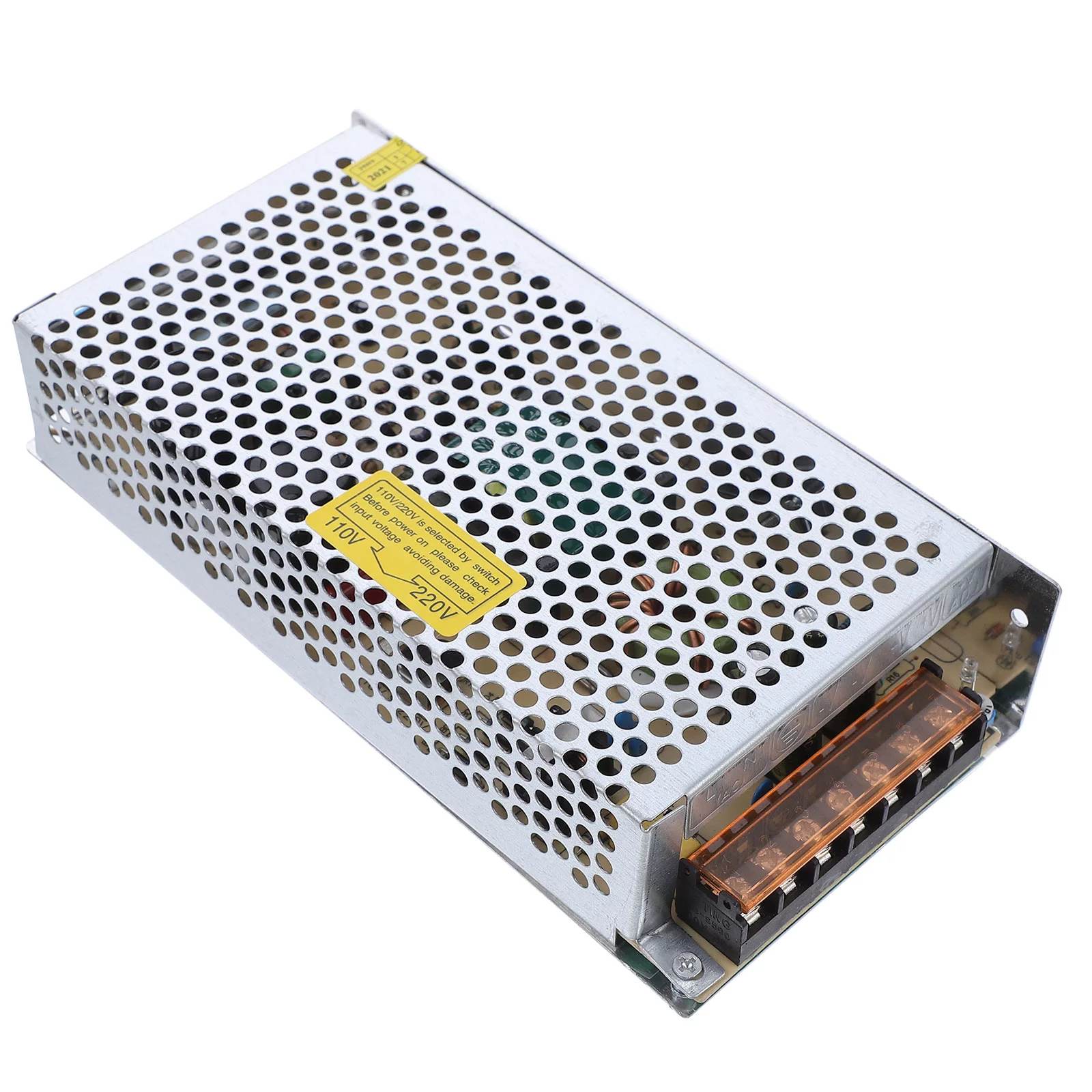

The 5V 30A 150W DC Universal Regulated Switching Power Supply is a compact and efficient SMPS designed to provide a stable 5V DC output for electronic and lighting applications. With a maximum output of 30A and 150W, it is suitable for systems that require a reliable, high-current 5V power source.
The power supply supports a wide AC 110–240V input range at 50/60Hz, making it suitable for a variety of electrical installations. Its regulated 5V output helps provide consistent power to compatible equipment.
Built-in overload, over-voltage and short-circuit protection helps protect the power supply and connected devices during abnormal operating conditions. The unit also features over-temperature protection, low ripple and low noise for reliable operation.
The aluminum housing provides a practical enclosure, while free-air convection cooling helps dissipate heat during normal operation. Its compact dimensions and lightweight design make it convenient for installation in LED systems, control equipment and electronic projects.
Key Features
- Output Voltage: 5V DC
- Output Current: 30A
- Rated Power: 150W
- Input Voltage: AC 110–240V
- Input Frequency: 50/60Hz
- Stable regulated 5V DC output
- Overload protection
- Over-voltage protection
- Short-circuit protection
- Over-temperature protection
- Low ripple and low output noise
- Efficient switching design
- Aluminum housing
- Fire-resistant PCB and cover materials
- Free-air convection cooling
- Compact and lightweight construction
- CE / RoHS compliant
- 1-year warranty
Specifications
| Specification | Details |
|---|---|
| Product Type | Regulated Switching Power Supply / SMPS |
| Model | S-150-5 |
| Input Voltage | AC 110–240V |
| Input Frequency | 50/60Hz |
| Input Signal | AC |
| Output Voltage | DC 5V |
| Output Current | 30A |
| Rated Power | 150W |
| Output Signal | DC |
| Material | Aluminum |
| Cooling | Free-Air Convection |
| Protection | Overload, Over-Voltage, Short Circuit, Over-Temperature |

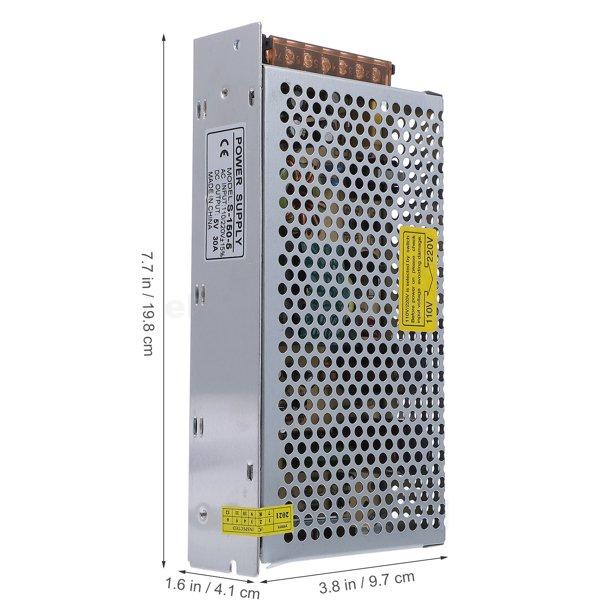

| Dimensions | 198 × 97 × 41 mm |
| Weight | Approx. 0.51 kg |
| Certifications | CCC, CE, FCC, RoHS |
