Description

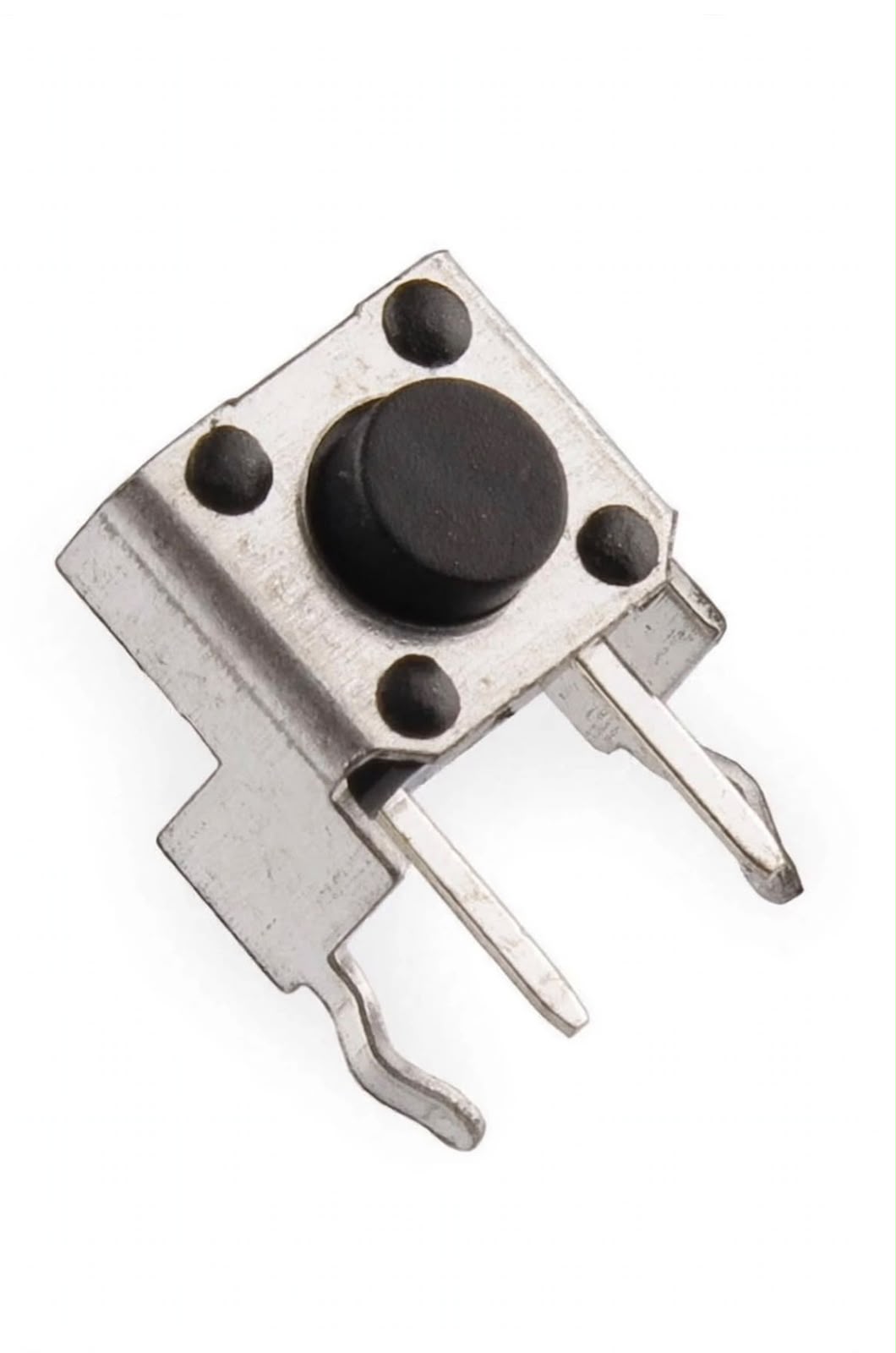

The 6×6mm Right-Angle Momentary Tactile Push Button Switch is a compact switch designed for applications where the button needs to be operated from the side of the PCB. Its right-angle design makes it especially useful for compact enclosures, control panels, and boards with limited vertical space.
The switch provides a tactile response when pressed and returns to its normal position when released. With a rated life of up to 100,000 cycles, it offers reliable performance for frequently used controls.
Its 4-pin DIP-style design is suitable for both PCB mounting and breadboard prototyping, making it a practical choice for DIY electronics and embedded projects.
Specifications
| Specification | Details |
|---|---|
| Product Type | Tactile Push Button Switch |
| Design | Right Angle |
| Action Type | Momentary |
| Pin Count | 4 Pins |
| Package Type | DIP |
| Mounting Type | PCB Mount |
| Breadboard Friendly | Yes |
| Dimensions | 6 × 6 × 1 mm |
| Button Length | 1.24 mm |
| Rated Voltage | 12V DC |
| Rated Current | 50mA |
| Contact Resistance | 100MΩ max. |
| Electrical Life | 100,000 Cycles |
| Operating Force | 130 ± 30g |
