Description

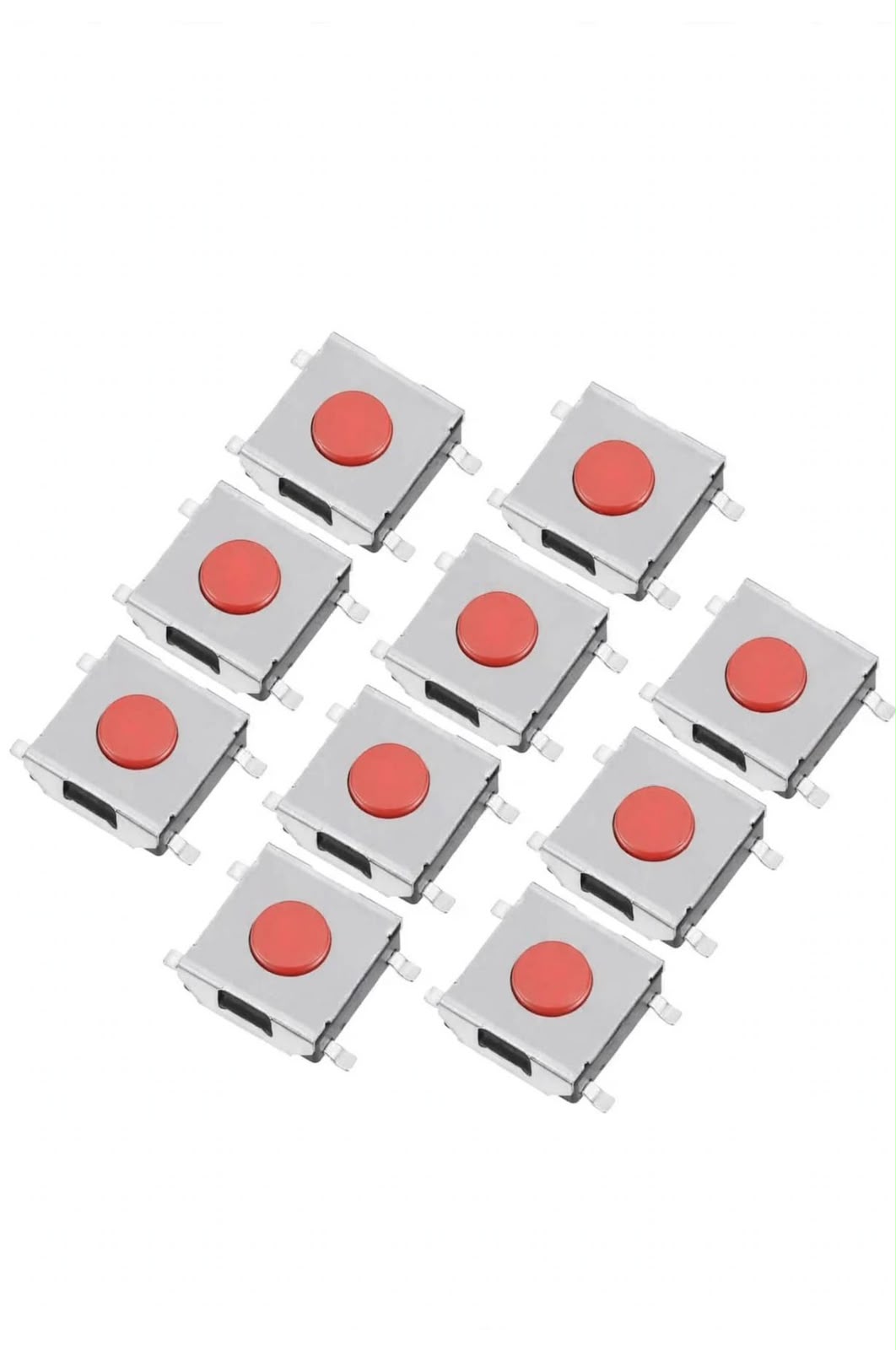

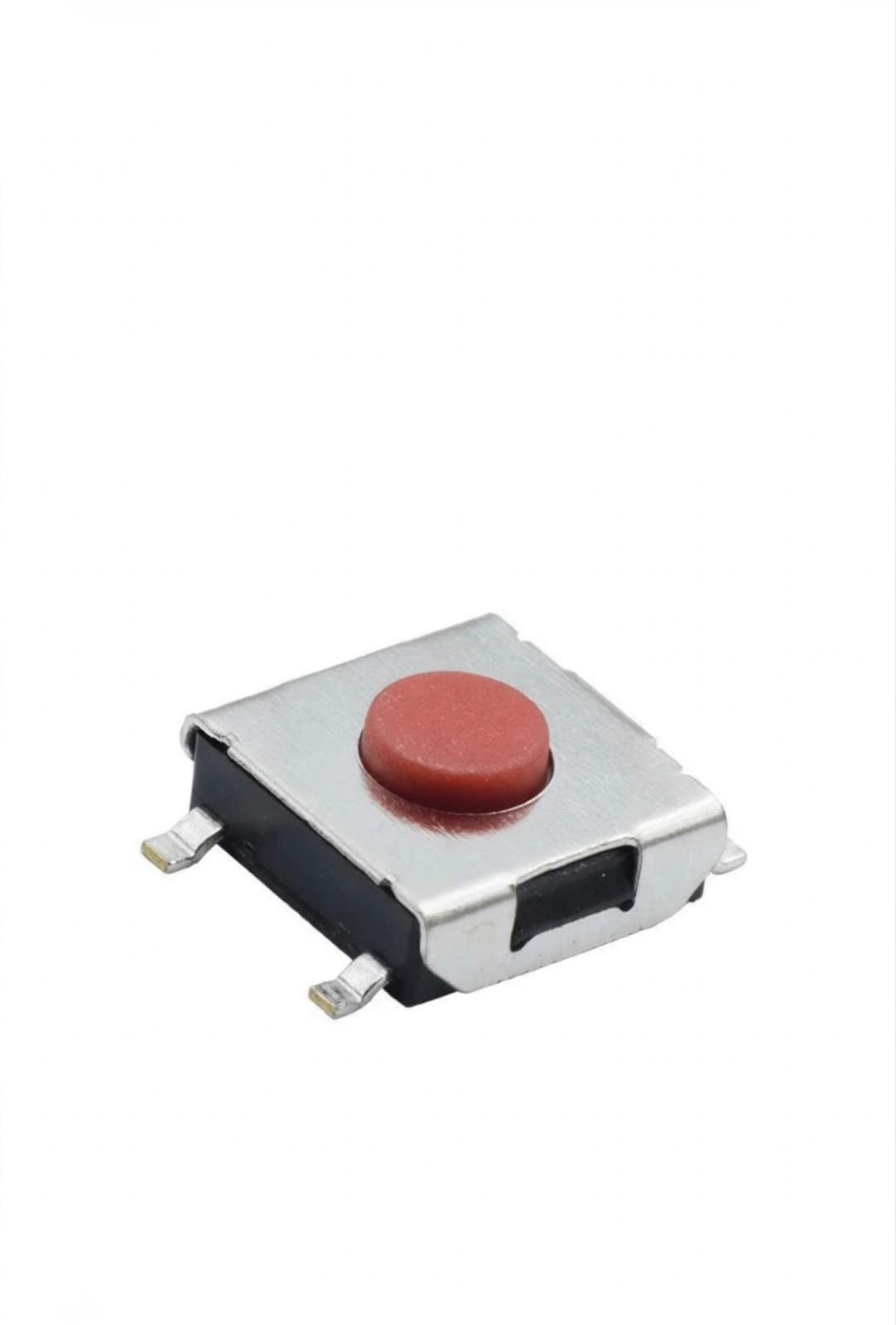

The 6×6×2.5mm SMD SMT Tactile Push Button Switch is a low-profile 4-pin switch designed for direct mounting on PCBs. Its compact size makes it suitable for applications where board space is limited, while the tactile action provides a clear response when pressed.
The switch offers reliable momentary operation with a rated life of up to 50,000 cycles at 160gf. Its SPST contact arrangement makes it a simple choice for user-input buttons, reset controls, menu buttons, and other switching functions in electronic circuits.
Specifications
| Specification | Details |
|---|---|
| Product Type | SMD Tactile Push Button Switch |
| Size | 6 × 6 × 2.5 mm |
| Pin Count | 4 Pins |
| Mounting Type | SMD / SMT PCB Mount |
| Switch Type | Tactile Push Button |
| Contact Arrangement | 1 Pole 1 Throw (SPST) |
| Operation | Momentary |
| Electrical Life | 50,000 Cycles at 160gf |
| Rated Current | 50mA |
| Rated Voltage | 12VDC |
| Contact Resistance | 100mΩ max. |
| Insulation Resistance | 100MΩ min. at 500VDC |
| Dielectric Strength | 250VAC for 1 minute |
| Operating Force | 160 ± 50gf |
| Stroke | 0.25 +0.2 / -0.1 mm |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Cover Material | Nickel Silver |
| Contact Disc | Stainless Steel with Silver Cladding |
| Terminal Material | Brass with Silver Cladding |
| Base Material | Black Nylon High-Temperature Thermoplastic |
| Stem Material | White Nylon High-Temperature Thermoplastic |
| Adhesive Tape | Teflon |
