Description

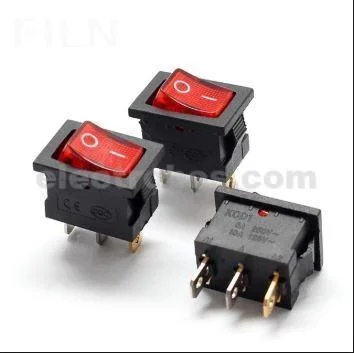

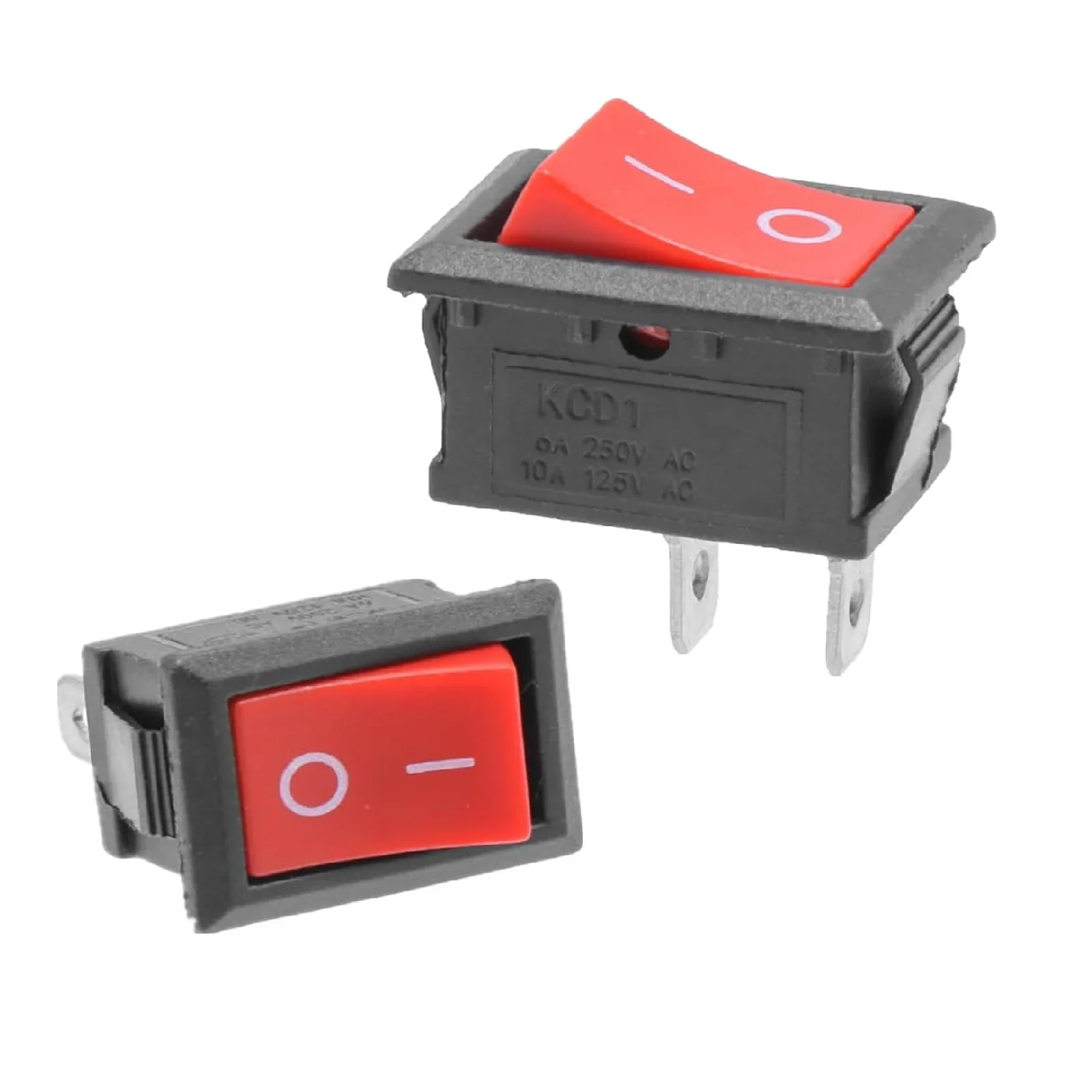

The KCD1 Mini Rocker Switch is a compact and reliable switch designed for easy ON/OFF control of electrical circuits. Its rocker-style design provides smooth operation and makes it easy to identify and operate the switch.
Despite its small size, the switch offers high current handling capacity and is suitable for a wide range of electrical and electronic applications. It is commonly used in power supplies, appliances, electrical equipment, control panels, and DIY projects.
With low contact resistance, good insulation performance, and a long electrical life, the KCD1 is a practical choice for applications that require reliable switching.
Specifications
| Specification | Details |
|---|---|
| Product Type | Mini Rocker Switch |
| Model | KCD1 |
| UL/CUL Rating | 20A 125VAC / 16A 250VAC |
| Additional UL/CUL Rating | 6A 125VL / 3/4HP 250VAC |
| VDE/ENEC/CQC Rating | 16(4)A 250VAC~T125 |
| Initial Contact Resistance | 20 mΩ max. |
| Insulation Resistance | 100 MΩ min. at 500VDC |
| Dielectric Strength | 1,000VAC (UL) / 3,000VAC (VDE) for 1 minute |
| Electrical Life | 6,000 cycles (UL) / 10,000 cycles (VDE) |
| Operation | Rocker |
| Application | Electrical & Electronic Circuit Control |
Applications
- Power supplies
- Electrical appliances
- Control panels
- Electronic equipment
- DIY electronics projects
- Machines and equipment
- General ON/OFF circuit control
