Description

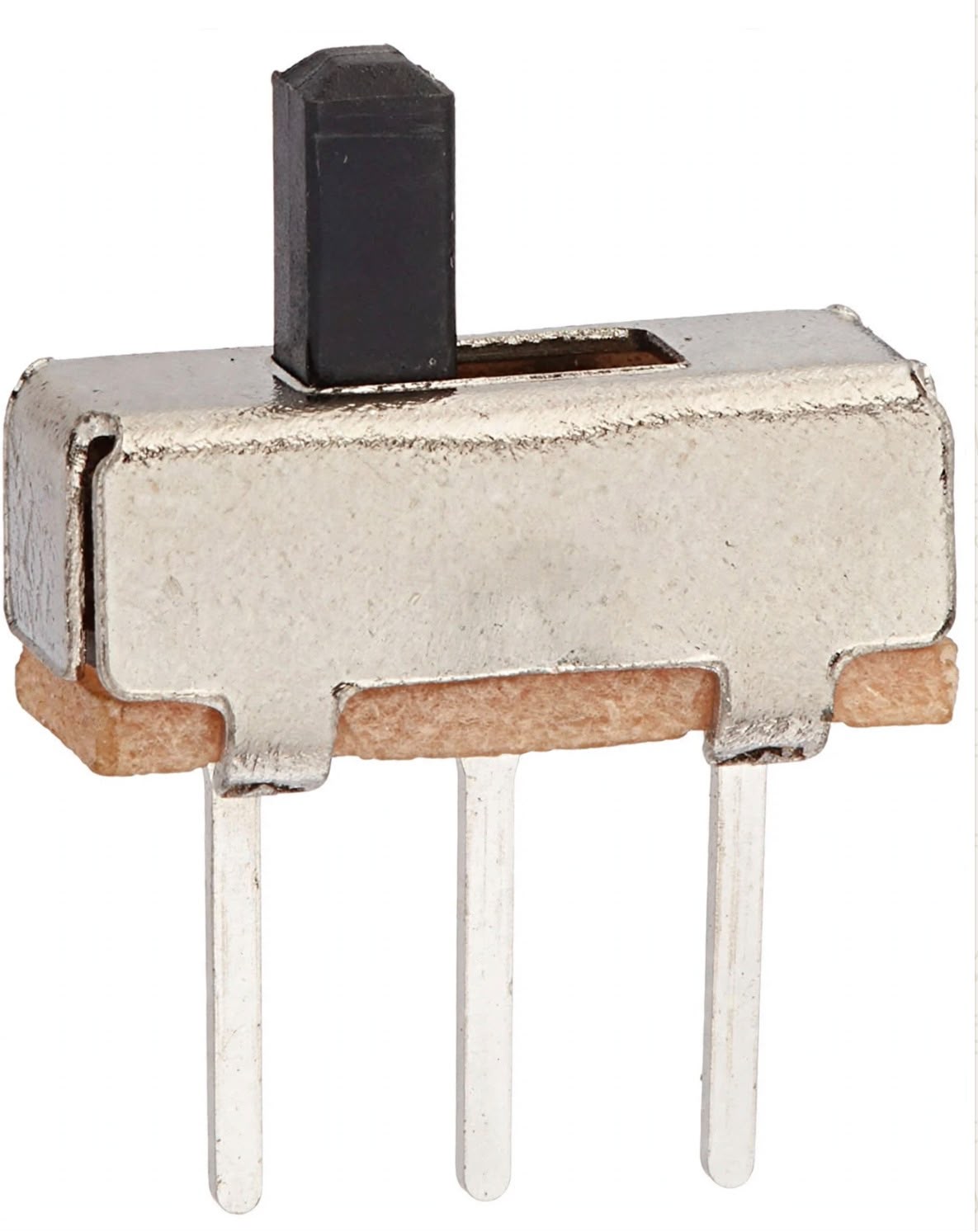

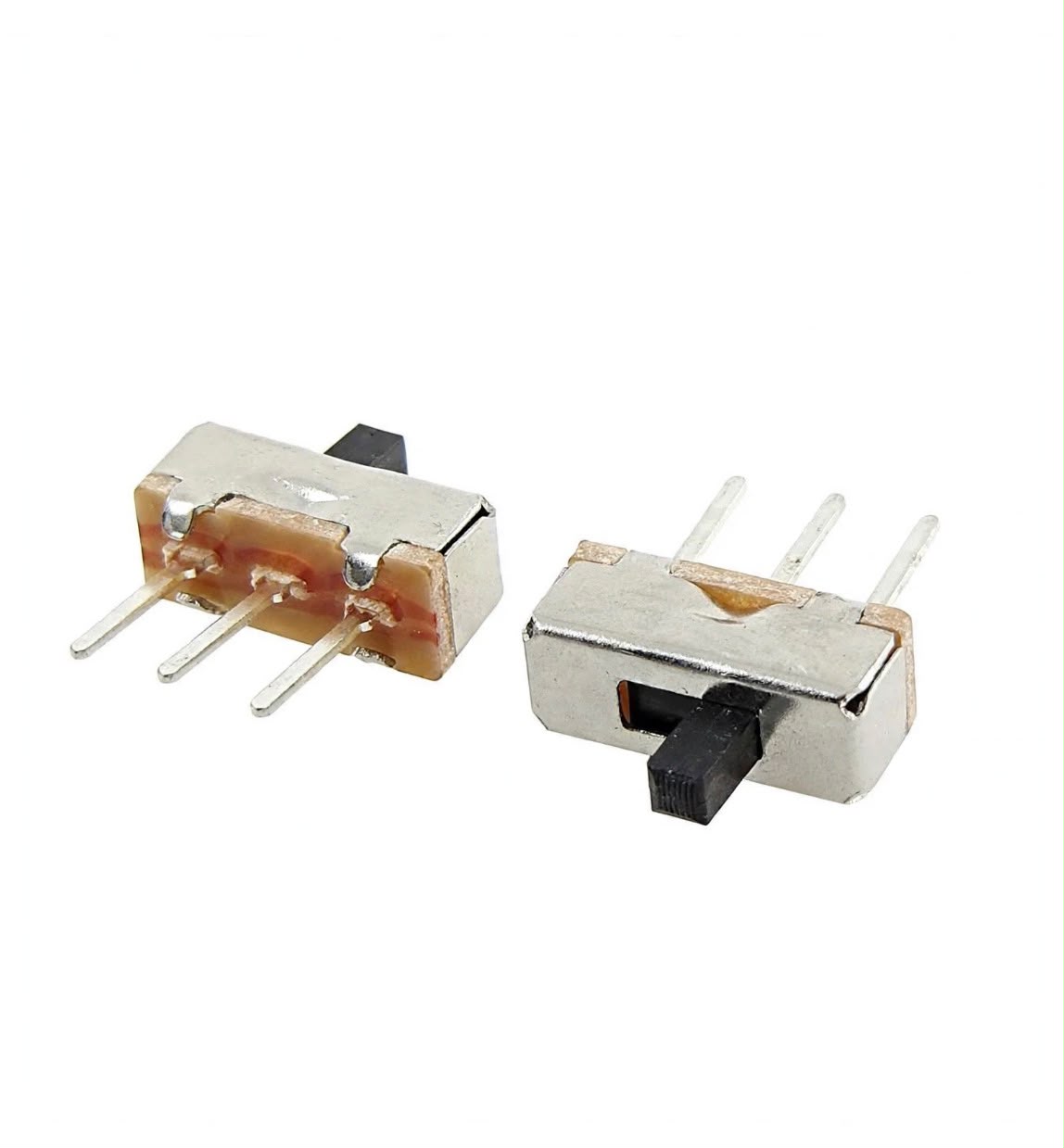

The Mini Maintained ON/OFF Selector Slide Switch is a simple and reliable switch for controlling power or selecting between circuit functions. Its compact design makes it a convenient choice when you need a small switch that can be easily mounted on a PCB or used during breadboard prototyping.
This is a maintained slide switch, meaning it stays in the selected position until you move it to another position. Unlike a momentary pushbutton, you do not need to keep pressing or holding the switch for the circuit to remain ON or OFF.
The switch uses a small sliding actuator that moves between its available positions, providing a straightforward way to control an electronic circuit. With 3 pins, it is commonly used in selector and SPDT-style switching applications, where a common terminal can be connected to one of two outputs depending on the switch position.
Its DIP-style PCB mounting design and breadboard-friendly terminals make it suitable for a wide range of electronics projects, including Arduino projects, DIY circuits, prototypes, control panels, and small electronic devices.
Specifications
| Specification | Details |
|---|---|
| Product Type | Mini Slide Switch |
| Switch Operation | Maintained |
| Number of Pins | 3 |
| Switch Function | ON/OFF / Selector |
| Mounting Type | PCB Mount |
| Package/Style | DIP |
| Breadboard Friendly | Yes |
| Actuator Type | Slide |
| Application | ON/OFF Control & Circuit Selection |
Features
- Compact mini slide switch design
- 3-pin configuration
- Maintained switching operation
- Suitable for ON/OFF and selector applications
- Breadboard friendly
- PCB mountable
- Easy-to-operate sliding actuator
- Ideal for compact electronic projects
- Simple and reliable mechanical operation
Applications
This mini slide switch can be used in a variety of applications, including:
- Arduino and microcontroller projects
- DIY electronics
- Breadboard prototypes
- PCB projects
- Power ON/OFF control
- Circuit selection
- Battery-powered devices
- Small electronic equipment
- Control panels and interfaces
How a Slide Switch Works
A slide switch controls the flow of electricity by changing the connection between its internal contacts. When the actuator is moved to one position, the common terminal connects to the corresponding contact. Moving it to the other position changes that connection.
Because the switch is maintained, it remains in the selected position after you release it. This makes it useful for applications where the circuit needs to stay ON, OFF, or connected to a particular output without continuously holding the switch.
