Description
The Creality Sprite Direct Drive Extruder Pro is a compact direct-drive extrusion system designed to improve filament feeding and expand the range of materials that can be used with compatible Creality 3D printers.
Unlike a traditional Bowden setup, the direct-drive design keeps the extruder and hotend close together, creating a shorter filament path. This makes filament control more responsive and is particularly useful when printing with flexible materials such as TPU.

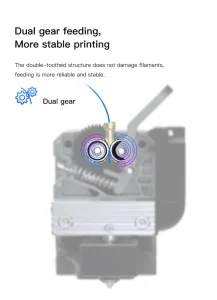

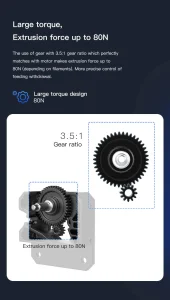

The extruder uses a 3.5:1 gear ratio to provide high extrusion force and more precise control over filament feeding and retraction. Its dual-drive gear system grips the filament from both sides, helping maintain consistent feeding while reducing the risk of slipping.

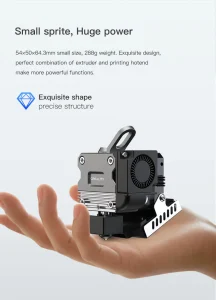

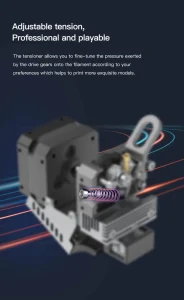

An adjustable tensioner allows you to fine-tune the pressure applied to the filament, which can be useful when switching between different filament types. The compact assembly measures approximately 54 × 50 × 64.3mm and weighs around 288g.

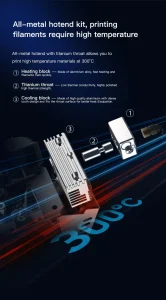

The full-metal hotend features a titanium heatbreak and aluminum alloy heat block, supporting printing temperatures of up to 300°C. This allows compatible printers to work with a wider range of materials, including PLA, PETG, TPU, ABS, PA, and PC, depending on the printer and filament requirements.
Specifications
| Specification | Details |
|---|---|
| Product Type | Direct Drive Extruder Pro Kit |
| Brand | Creality |
| Extruder Type | Direct Drive |
| Hotend Type | Full Metal |
| Maximum Temperature | Up to 300°C |
| Gear Ratio | 3.5:1 |
| Extrusion Force | Up to 80N* |
| Filament Feeding | Dual-Drive Gear |
| Filament Tension | Adjustable |
| Heatbreak | Titanium |
| Heat Block | Aluminum Alloy |

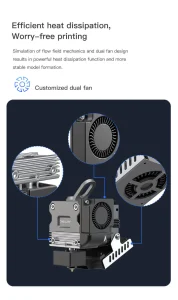

| Cooling | Dual Fan |
| Product Size | Approx. 54 × 50 × 64.3 mm |
| Product Weight | Approx. 288 g |
| Supported Filaments | PLA, PETG, TPU, ABS, PA, PC & Other Compatible Materials |
| Compatible Printers | Creality Ender-3 S1 / S1 Plus |
| Application | Direct Drive & High-Temperature 3D Printing |
*Extrusion force can vary depending on filament type and operating conditions.
Key Benefits
- 300°C high-temperature printing capability
- Direct-drive extrusion for improved filament control
- Dual-drive gears for stable and consistent feeding
- 3.5:1 gear ratio for higher extrusion force
- Adjustable filament tension
- Titanium heatbreak for improved thermal isolation
- Suitable for flexible and high-temperature filaments
- Compact and lightweight design
Package Includes
- 1 × Creality Sprite Direct Drive Extruder Pro Kit
- 1 × CR Touch/BL Touch compatible short cable
- Required components for the supplied kit
