Description

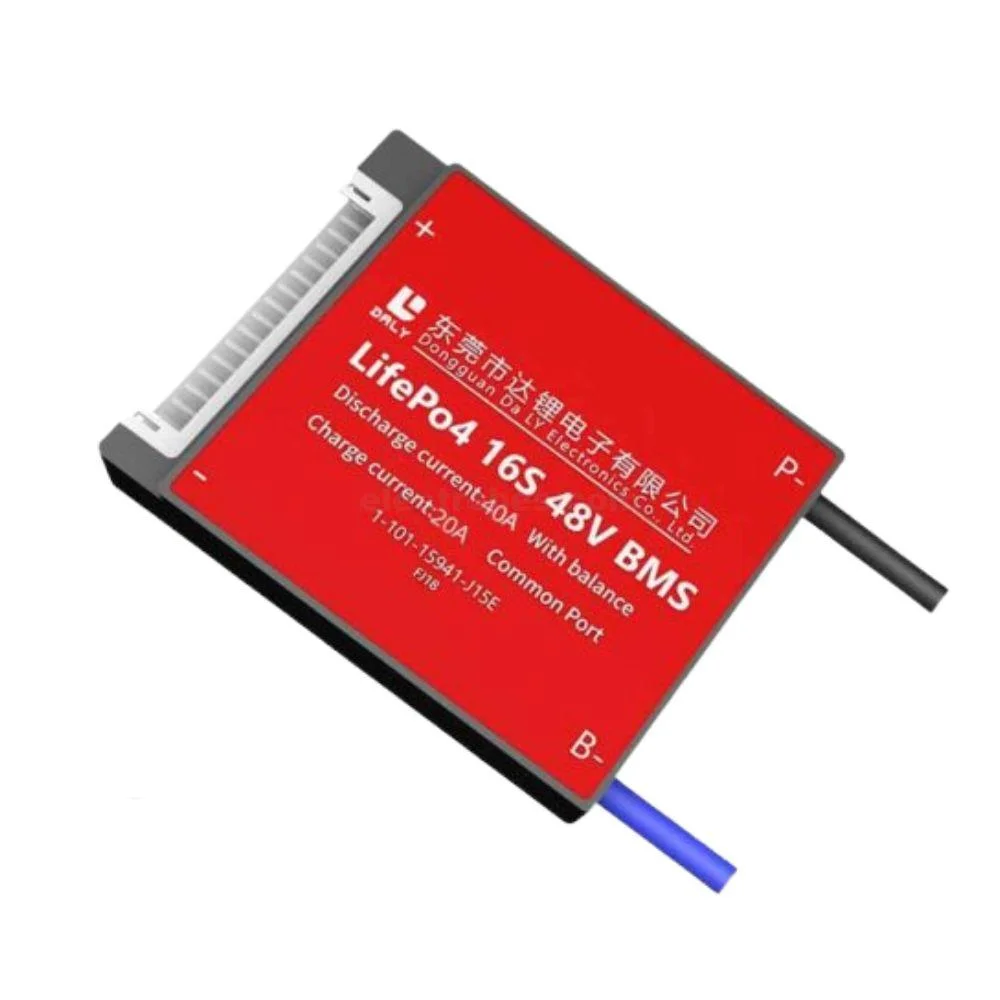

The DALY BMS 16S 48V 40A LiFePO4 Battery Management System is a protection and balancing board designed specifically for 16S LiFePO4 battery packs. It is suitable for battery packs made from 16 individual 3.2V LiFePO4 cells connected in series, providing a nominal battery-pack voltage of approximately 48V.
This BMS continuously monitors individual cell voltages and helps protect the battery pack against unsafe operating conditions. It supports a continuous discharge current of up to 40A and includes a balance function to help maintain more consistent voltage levels between cells.
LiFePO4 16S Battery Compatibility
This is a fixed 16S LiFePO4 BMS, so it is intended for battery packs containing 16 LiFePO4 cells in series. It should not be used with other battery chemistries such as standard Li-ion, Li-metal, or LTO batteries unless the BMS is specifically rated for that chemistry.
For a typical 16S LiFePO4 pack:
- Cell voltage: 3.2V nominal per cell
- Configuration: 16S
- Battery pack nominal voltage: 51.2V
- Maximum charging voltage: approximately 60V
- Continuous discharge current: 40A
Multiple Protection Functions
The DALY BMS provides several protection features to help improve the safety and reliability of the battery pack:
- Overcharge protection: Helps prevent individual cells from being charged beyond the specified voltage.
- Over-discharge protection: Disconnects the battery when cell voltage drops below the protection threshold.
- Over-current protection: Helps protect the battery pack and BMS from excessive current.
- Short-circuit protection: Disconnects the output when a short-circuit condition is detected.
- Temperature protection: Provides protection against specified high- and low-temperature conditions.
- Cell balancing: Helps maintain more consistent voltage levels across the 16 cells.
Built-In Cell Balancing
The BMS features passive cell balancing with a balance current of approximately 30 ± 5mA. Balancing helps reduce voltage differences between individual cells during charging and can help maintain the overall performance of the battery pack.
Balance Wire and Temperature Sensor
The BMS includes a 17-wire balance/sense cable with connector for monitoring the individual cells in a 16S battery pack. A temperature sensor is also included for temperature-based protection.
Suitable Applications
This 16S 48V 40A LiFePO4 BMS can be used in a variety of battery-pack applications, including:
- Solar energy storage systems
- 48V LiFePO4 battery packs
- RV and camping power systems
- Electric bicycles
- Electric skateboards
- Electric vehicles and mobility projects
- Power tools
- DIY LiFePO4 battery packs
- Backup power systems
- Household energy-storage projects
Important Compatibility Note
This BMS is specifically designed for 16S LiFePO4 battery packs. Always make sure the battery chemistry, number of cells, charging voltage, and current ratings match the BMS specifications before installation.
Package Includes
- 1 × DALY 16S 48V 40A LiFePO4 BMS
- 1 × 17-wire balance/sense cable with connector
- Temperature sensor, where included with the supplied BMS version
Specifications
| Specification | Details |
|---|---|
| Brand | DALY |
| Battery Chemistry | LiFePO4 |
| Battery Configuration | 16S |
| Nominal Battery Voltage | 51.2V |
| Common Battery Pack Rating | 48V class |
| Continuous Discharge Current | 40A |
| Peak Current | 120 ± 20A |
| Charge Current | 20A |
| Charge Voltage | 16 × 3.75V |
| Overcharge Detection Voltage | 3.75 ± 0.05V |
| Overcharge Protection Delay | 1 second |
| Overcharge Release Voltage | 3.65 ± 0.05V |
| Balance Detection Voltage | 3.5V |
| Balance Release Voltage | 3.5V |
| Balance Current | 30 ± 5mA |
| Over-discharge Detection Voltage | 2.7 ± 0.1V |
| Over-discharge Protection Delay | 1 second |
| Over-discharge Release Voltage | 2.7 ± 0.1V |
| Over-current Detection Delay | 1ms |
| Short-circuit Detection Delay | 250µs |
| Main Circuit Internal Resistance | ≤20mΩ |
| Working Current | 100µA |
| Sleeping Current | 20µA |
| Working Temperature | -20°C to 70°C |
| Sleeping Temperature | -40°C to 80°C |
| Temperature Protection | Charge: below -5°C / above 50°C; Discharge: above 70°C |
| Balance Cable | 17-wire |
| BMS Type | Fixed 16S LiFePO4 |
| Approx. Weight | 5.5 oz |
| Approx. Dimensions | 2.5 × 3.1 × 0.6 inches |
| Protection Functions | Overcharge, over-discharge, over-current, short circuit, temperature |
| SKU | BMS-026 |
| Availability | In Stock |
| Price | ₨4,500 |
