Description

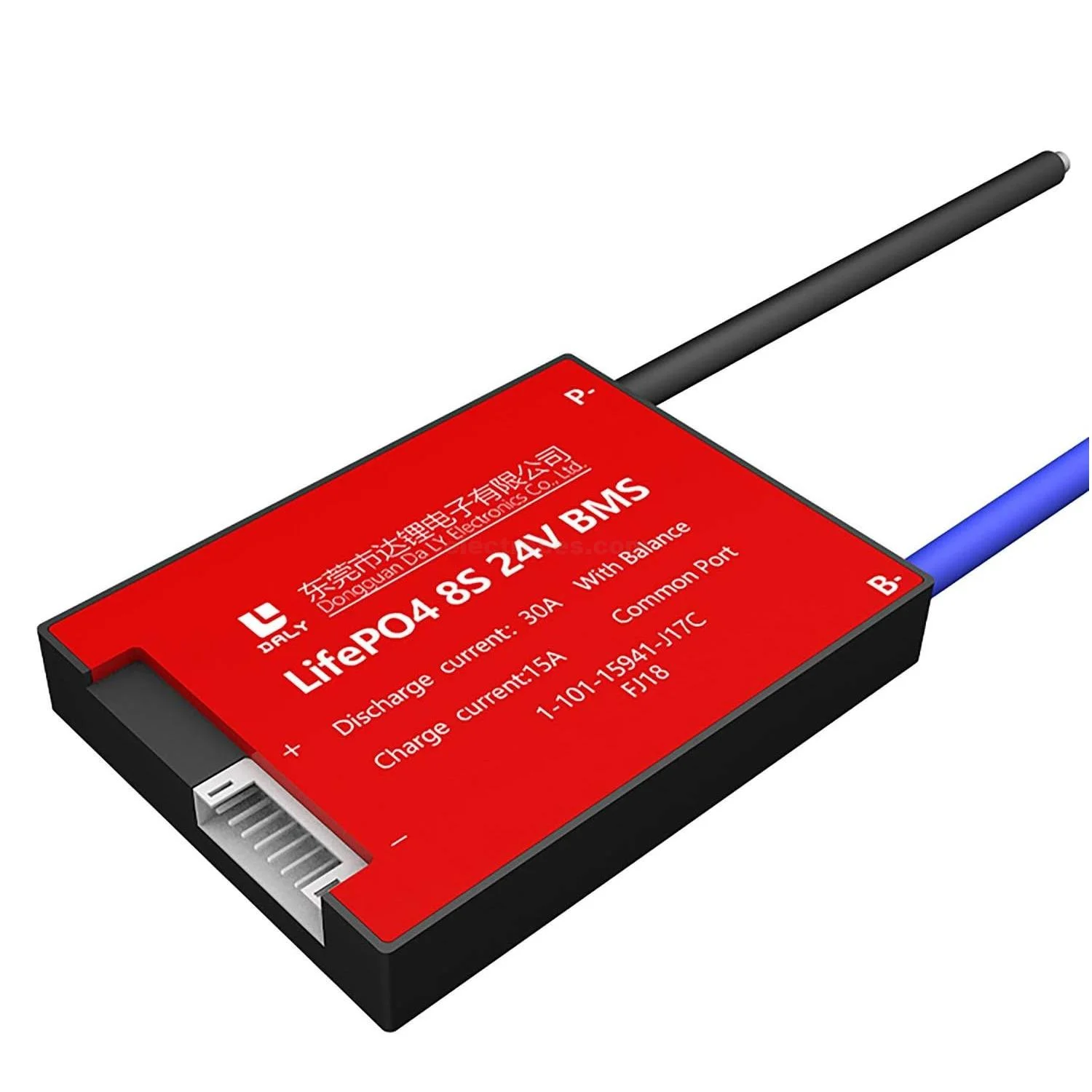

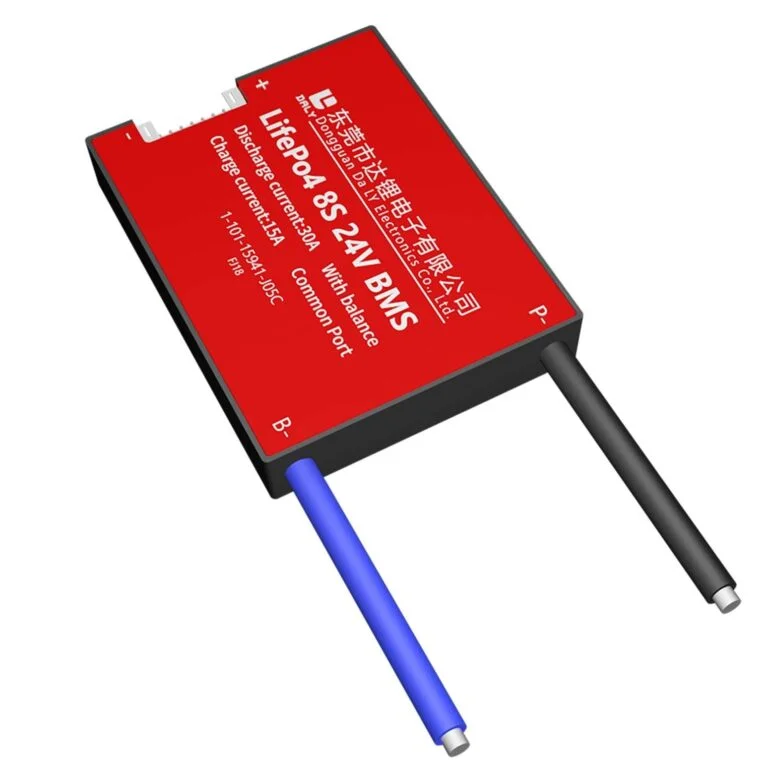

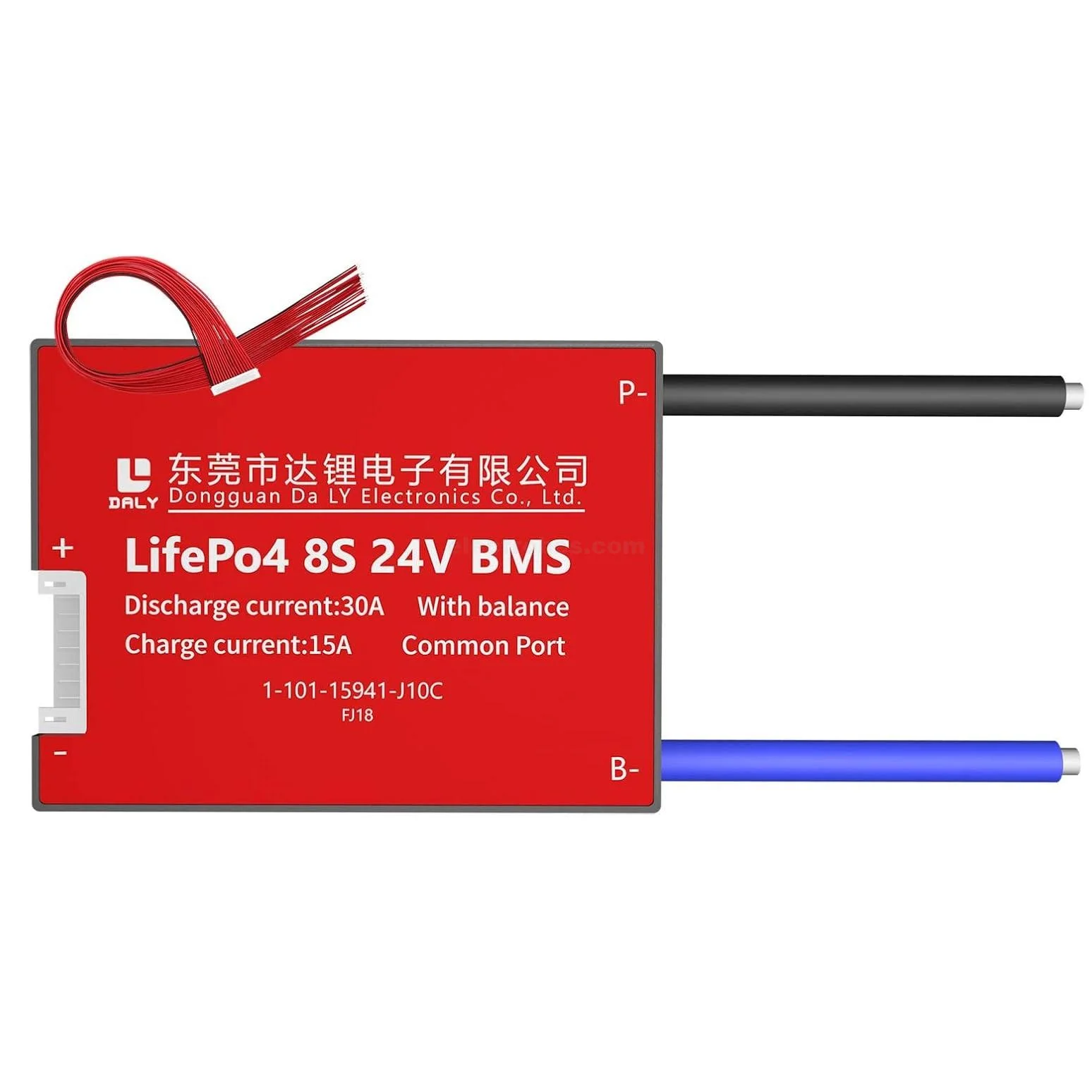

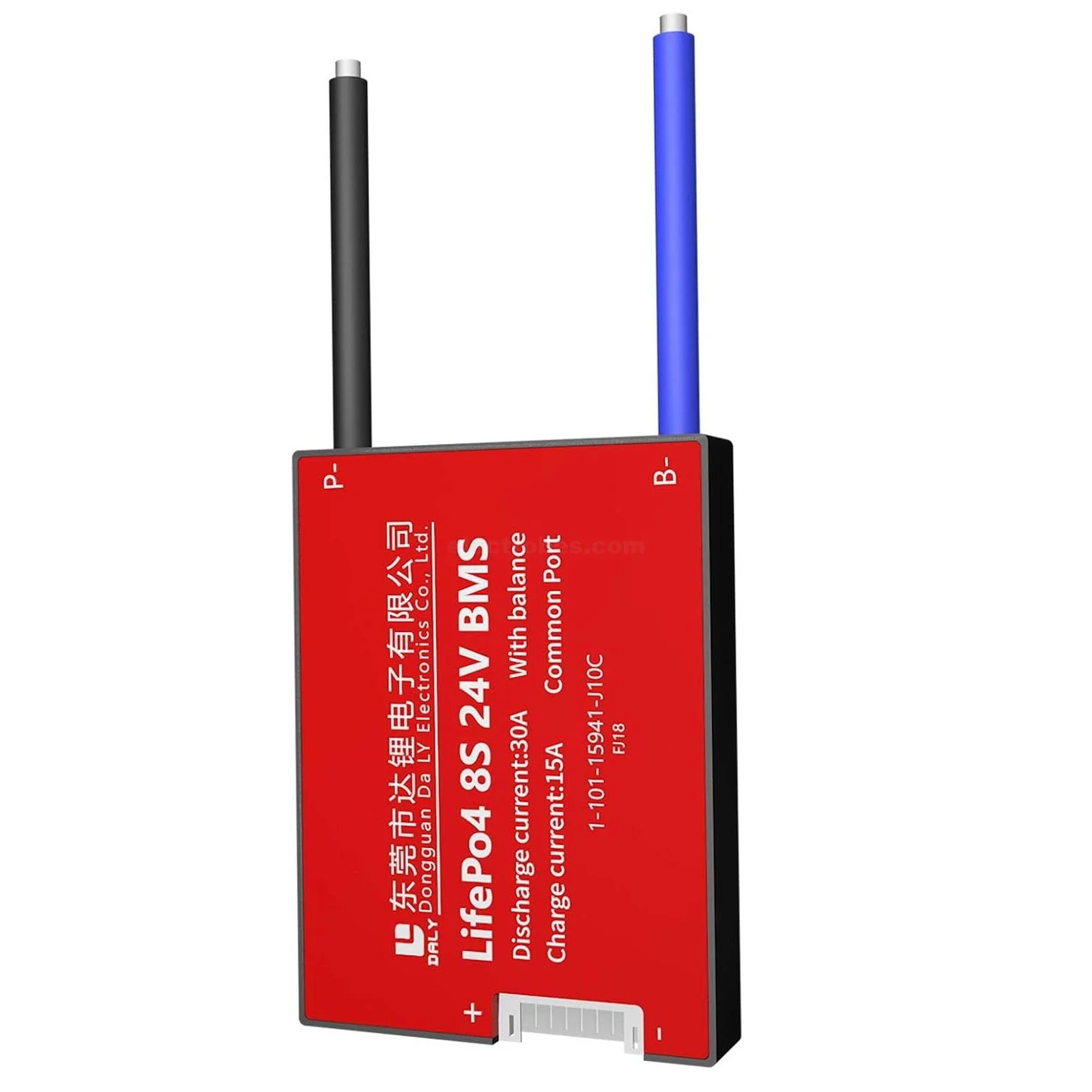

The DALY BMS LFP LiFePO4 8S 24V 30A is a fixed-configuration Battery Management System designed specifically for 24V LiFePO4 battery packs made from 8 series-connected 3.2V cells. It includes a balance/sense cable for monitoring individual cell voltages and maintaining better balance during charging.
This BMS is strictly designed for LiFePO4 battery chemistry and cannot be used with Li-ion, Li-Metal, or LTO batteries. It helps protect the battery pack from overcharging, over-discharging, excessive temperature, and short circuits.
The BMS is suitable for cylindrical and prismatic LiFePO4 cells, including commonly used 18650, 21700, and 36500 cell formats. It can be used in custom battery packs for electric mobility, solar power, energy storage, and other applications.
Key Features
- Fixed 8S LiFePO4 BMS configuration
- Designed for 24V LiFePO4 battery packs
- Continuous discharge current: 30A
- Peak current: 90 ± 15A
- Supports 8 × 3.2V LiFePO4 cells
- Cell voltage monitoring and balancing
- Overcharge protection
- Over-discharge protection
- Temperature protection
- Short-circuit protection
- Balance current: 30 ± 5mA
- 9-wire balance/sense cable
- Compatible with cylindrical and prismatic LiFePO4 cells
- Supports 18650, 21700, and 36500 cell formats
- Compact and lightweight design
Protection Functions
- Overcharge Protection: Detects excessive cell voltage and helps prevent overcharging.
- Over-Discharge Protection: Protects the battery cells from excessive discharge.
- Temperature Protection: Provides protection during specified charging and discharging temperature conditions.
- Short-Circuit Protection: Disconnects the battery circuit when a short circuit is detected.
- Cell Balancing: Helps maintain balanced voltage levels between individual cells.
Applications
- 24V LiFePO4 battery packs
- Electric bikes
- Electric skateboards
- Solar power systems
- RV battery systems
- Household energy storage
- Power tools
- Camping boats
- Lawn and garden equipment
- Custom battery pack projects
Battery Compatibility
- Battery Chemistry: LiFePO4 / LFP only
- Series Configuration: 8S fixed
- Cell Voltage: 3.2V nominal
- Battery Pack: 8 × 3.2V cells
- Nominal Pack Voltage: 24V
- Not compatible with: Li-ion, Li-Metal, or LTO batteries
Package Includes
- 1 × DALY 8S 24V 30A LiFePO4 BMS
- 1 × 9-wire balance/sense cable with connector

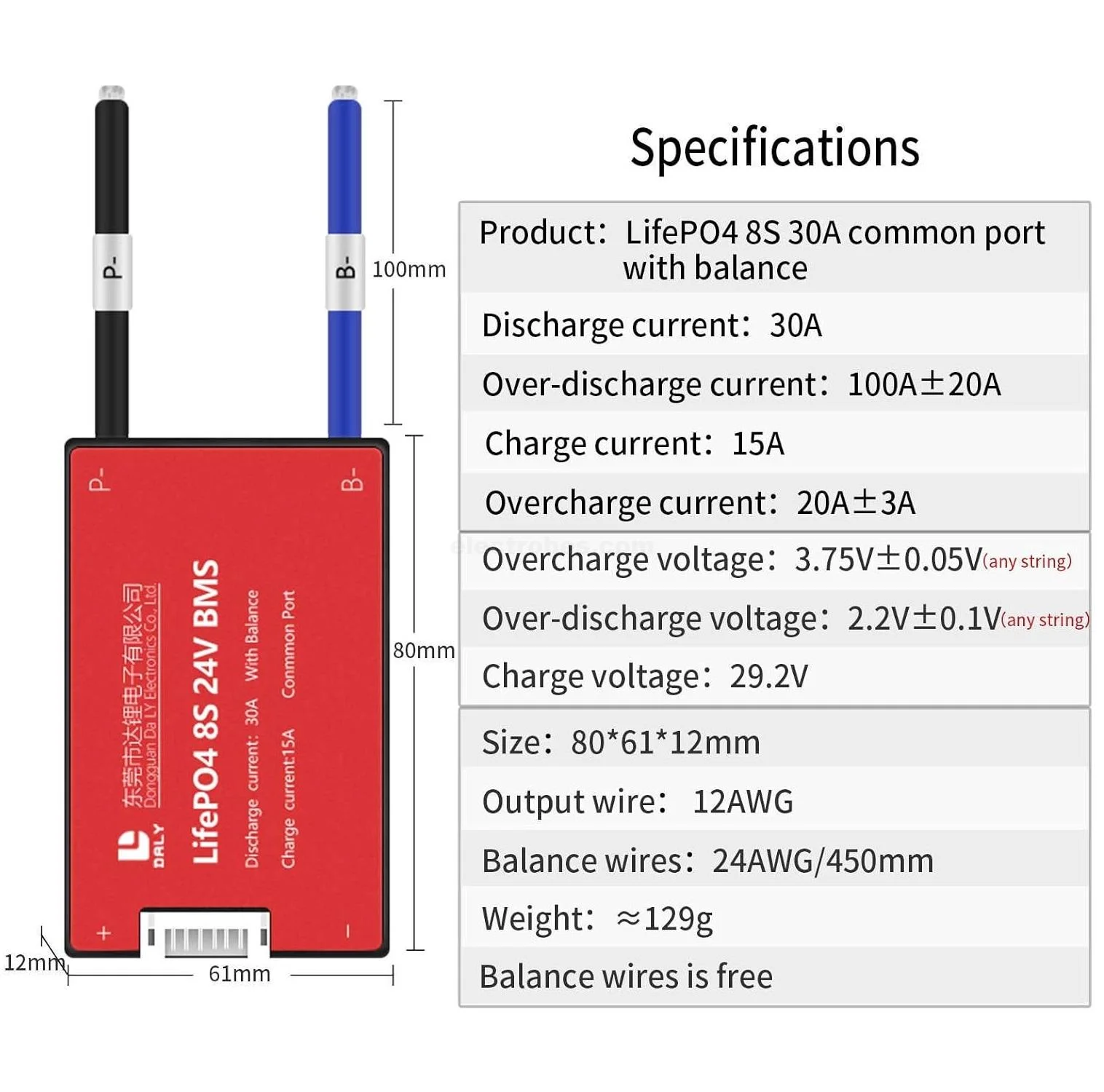

Specifications
| Specification | Details |
|---|---|
| Brand | DALY |
| Battery Type | LiFePO4 / LFP |
| Series Configuration | 8S |
| Nominal Battery Voltage | 24V |
| Continuous Discharge Current | 30A |
| Peak Current | 90 ± 15A |
| Main Circuit Resistance | ≤ 20mΩ |
| Charge Voltage | S × 3.75V |
| Charge Current | 15A |
| Overcharge Detection Voltage | 3.75 ± 0.05V |
| Overcharge Protection Delay | 1S |
| Overcharge Release Voltage | 3.65 ± 0.05V |
| Balance Detection Voltage | 3.5V |
| Balance Release Voltage | 3.5V |
| Balance Current | 30 ± 5mA |
| Over-Discharge Detection Voltage | 2.7 ± 0.1V |
| Over-Discharge Detection Delay | 1S |
| Over-Discharge Release Voltage | 2.7 ± 0.1V |
| Over-Current Detection Delay | 1mS |
| Over-Current Detection Condition | Off load |
| Short-Circuit Protection Condition | Short circuit external load |
| Short-Circuit Detection Delay | 250µS |
| Short-Circuit Relay Condition | Off load |
| Charging Temperature Protection | < -5°C or > 50°C |
| Discharging Temperature Protection | < 70°C |
| Working Current | 100µA |
| Sleeping Current | 20µA |
| Working Temperature | -20°C to 70°C |
| Sleeping Temperature | -40°C to 80°C |
| Weight | 5.5 oz |
| Dimensions | 2.5 × 3.1 × 0.6 inches |
| Balance Cable | 9-wire sense cable |
| SKU | BMS-033 |
