Description

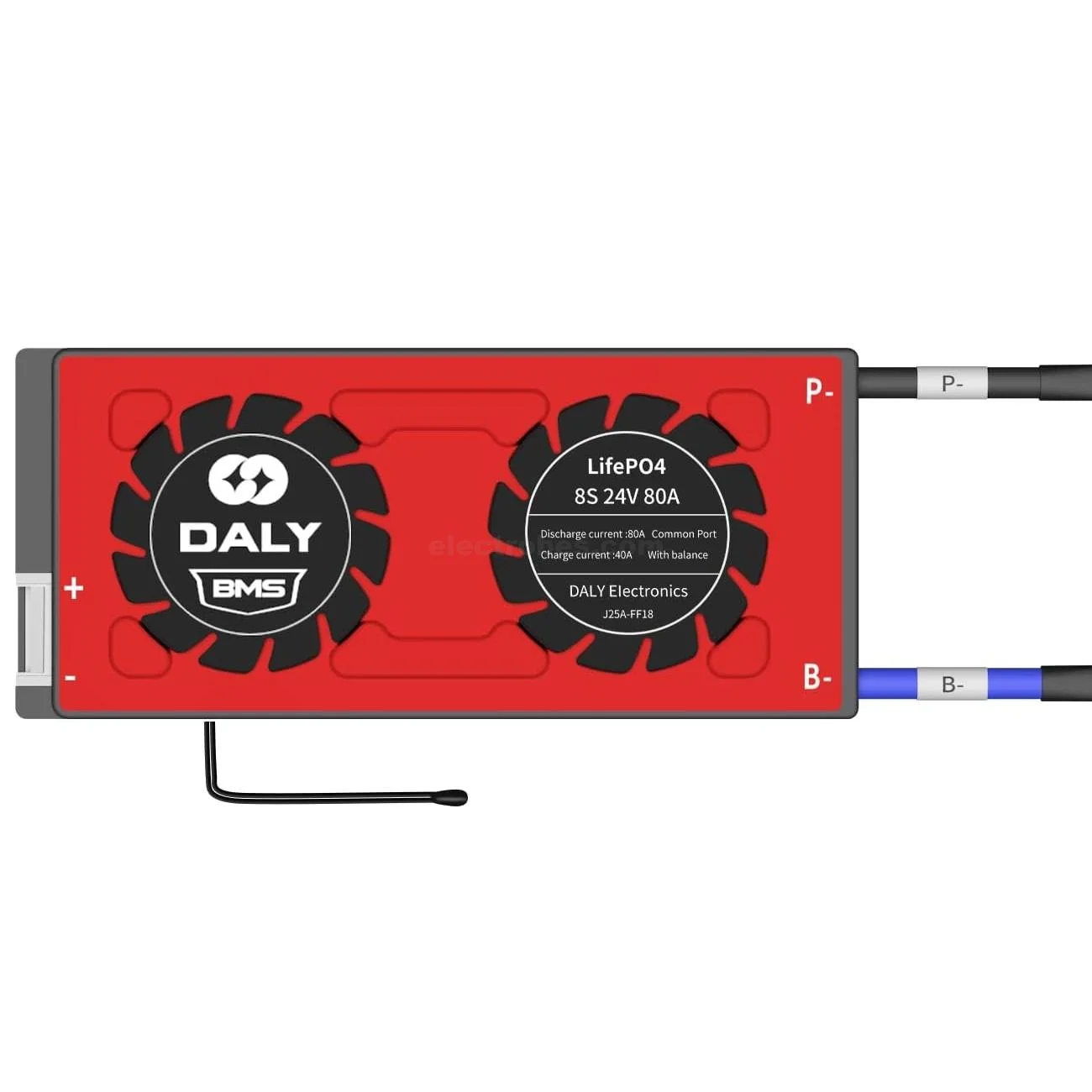

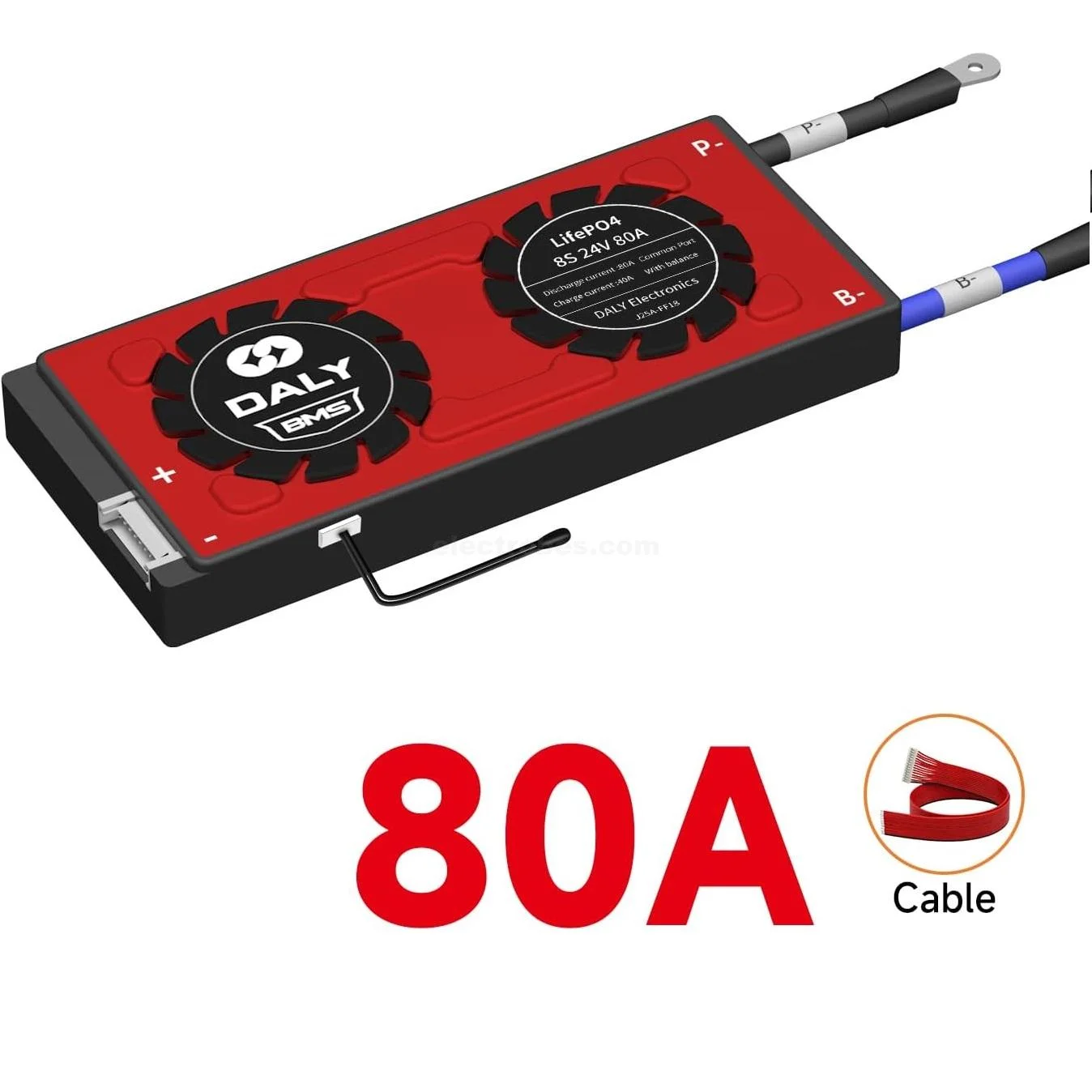

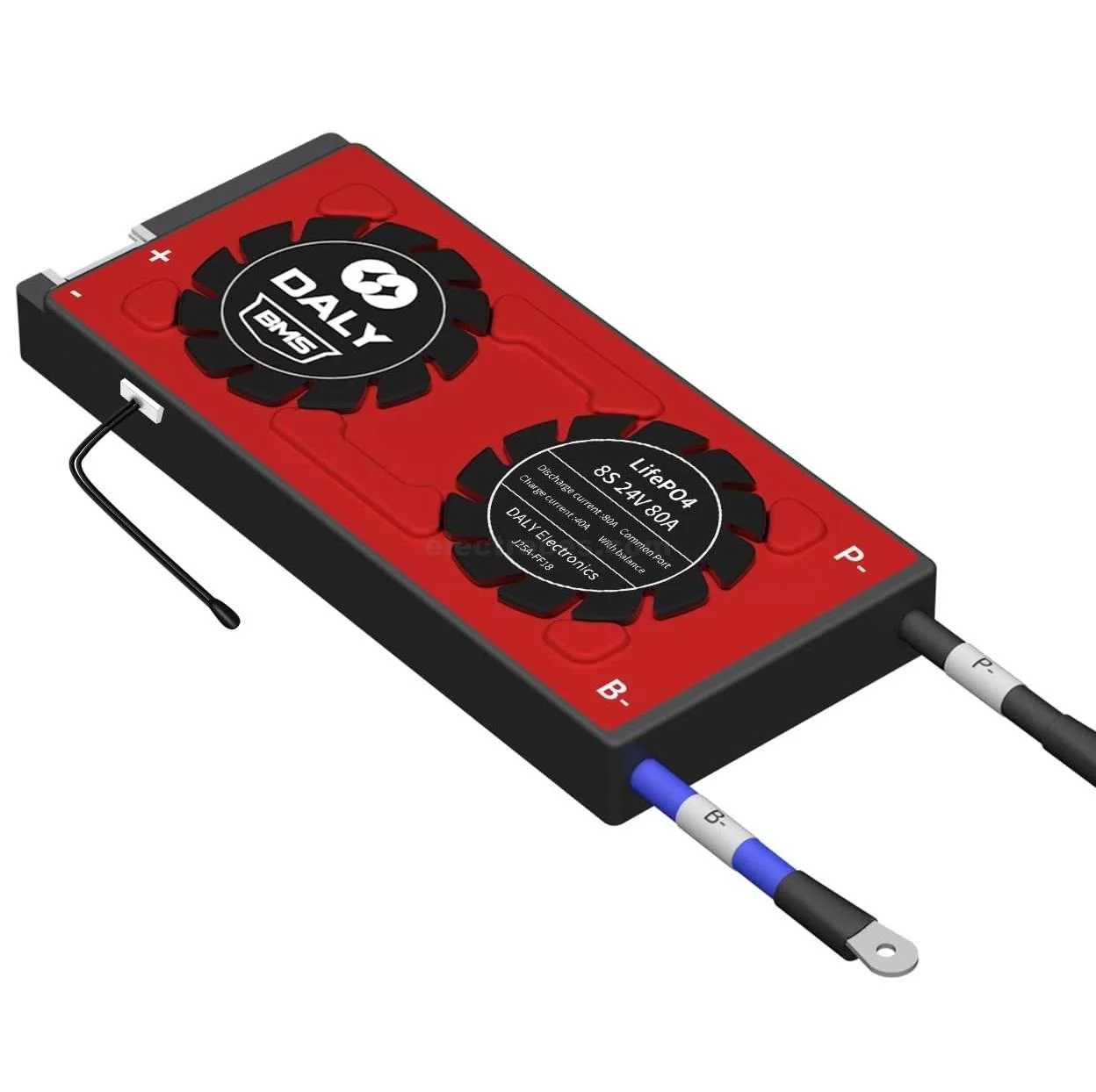

The DALY BMS LFP LiFePO4 8S 24V 80A is a fixed-configuration Battery Management System designed for 24V LiFePO4 battery packs using 8 series-connected 3.2V cells. It features a balance/sense cable for monitoring individual cells and supporting balanced charging.
This BMS is designed specifically for LiFePO4 battery packs and is suitable for applications requiring higher continuous discharge current. It provides protection against overcharging, over-discharging, excessive temperature, and short circuits while helping maintain balanced cell voltages.
The BMS is compatible with commonly used cylindrical and prismatic lithium battery cells, including 18650, 21700, and 36500 formats. It can be used in electric mobility, solar energy storage, RV systems, power tools, and other custom battery pack applications.
Key Features
- Fixed 8S LiFePO4 BMS configuration
- Designed for 24V LiFePO4 battery packs
- Continuous discharge current: 80A
- Peak current: 240 ± 40A
- Supports 8 × 3.2V LiFePO4 cells
- Cell voltage monitoring and balancing
- Overcharge protection
- Over-discharge protection
- Temperature protection
- Short-circuit protection
- Balance current: 30 ± 5mA

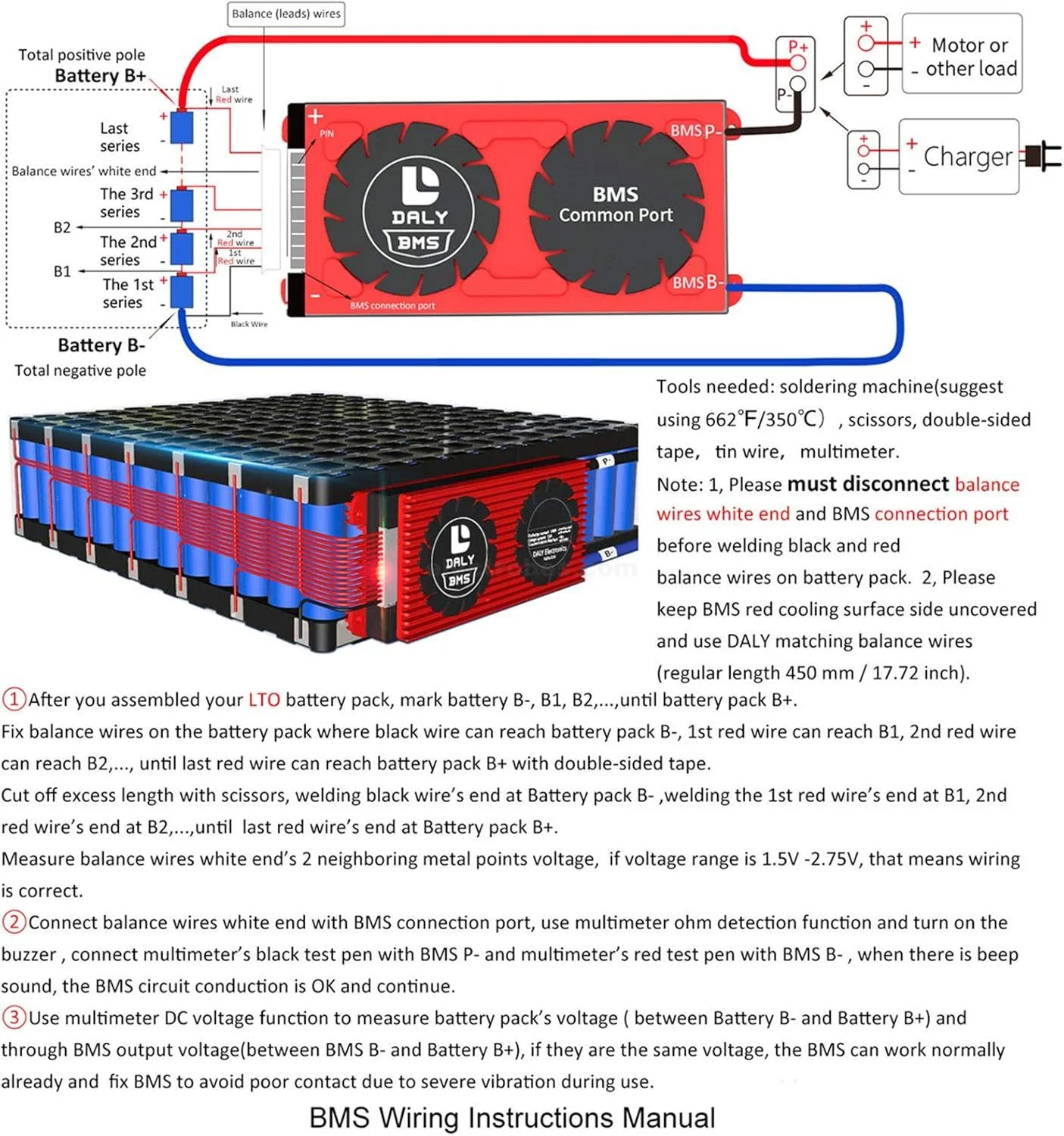

- 9-wire balance/sense cable with connector
- Suitable for cylindrical and prismatic cells
- Supports 18650, 21700, and 36500 cell formats
Protection Functions
- Overcharge Protection: Helps prevent excessive charging voltage at the cell level.
- Over-Discharge Protection: Protects the battery cells from excessive discharge.
- Temperature Protection: Provides protection during specified charging and discharging temperature conditions.
- Short-Circuit Protection: Disconnects the battery circuit when a short circuit is detected.
- Cell Balancing: Helps keep individual cell voltages balanced during charging.
Applications
- 24V LiFePO4 battery packs
- Electric bikes
- Electric skateboards
- Solar energy storage systems
- RV battery systems
- Household energy storage
- Power tools
- Camping boats
- Lawn and garden equipment
- Custom high-current battery packs
Battery Compatibility
- Battery Chemistry: LiFePO4 / LFP
- Series Configuration: 8S fixed
- Cell Voltage: 3.2V nominal
- Battery Pack: 8 × 3.2V cells
- Nominal Pack Voltage: 24V
- Rated Continuous Discharge: 80A
Package Includes
- 1 × DALY 8S 24V 80A LiFePO4 BMS
- 1 × 9-wire balance/sense cable with connector
Specifications
| Specification | LiFePO4 / LFP |
|---|---|
| Brand | DALY |
| Battery Type | LiFePO4 |
| Series Configuration | 8S |
| Nominal Battery Voltage | 24V |
| Continuous Discharge Current | 80A |
| Peak Current | 240 ± 40A |
| Main Circuit Resistance | ≤ 20mΩ |
| Charge Voltage | S × 3.75V |
| Charge Current | 40A |
| Overcharge Detection Voltage | 3.75 ± 0.05V |
| Overcharge Protection Delay | 1S |
| Overcharge Release Voltage | 3.65 ± 0.05V |
| Balance Detection Voltage | 3.5V |
| Balance Release Voltage | 3.5V |
| Balance Current | 30 ± 5mA |
| Over-Discharge Detection Voltage | 2.2 ± 0.1V |
| Over-Discharge Detection Delay | 1S |
| Over-Discharge Release Voltage | 2.7 ± 1.0V |
| Short-Circuit Protection Condition | Short circuit external load |
| Short-Circuit Detection Delay | 250µS |
| Short-Circuit Relay Condition | Off load |
| Temperature Protection | Charge < -5°C or > 50°C; discharge < 70°C |
| Working Current | 100µA |
| Sleeping Current | 20µA |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Weight | 1 lb |
| Dimensions | 6 × 2.5 × 0.8 inches |
| Balance Cable | 9-wire sense cable |
| SKU | BMS-032 |
