Description

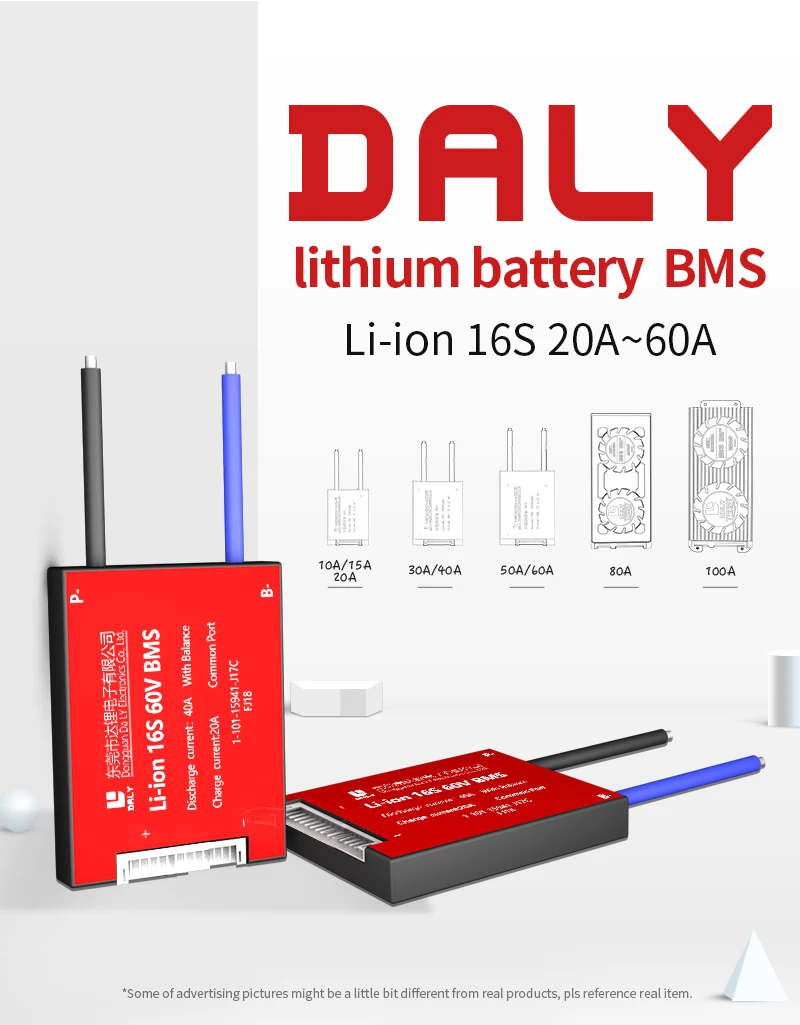

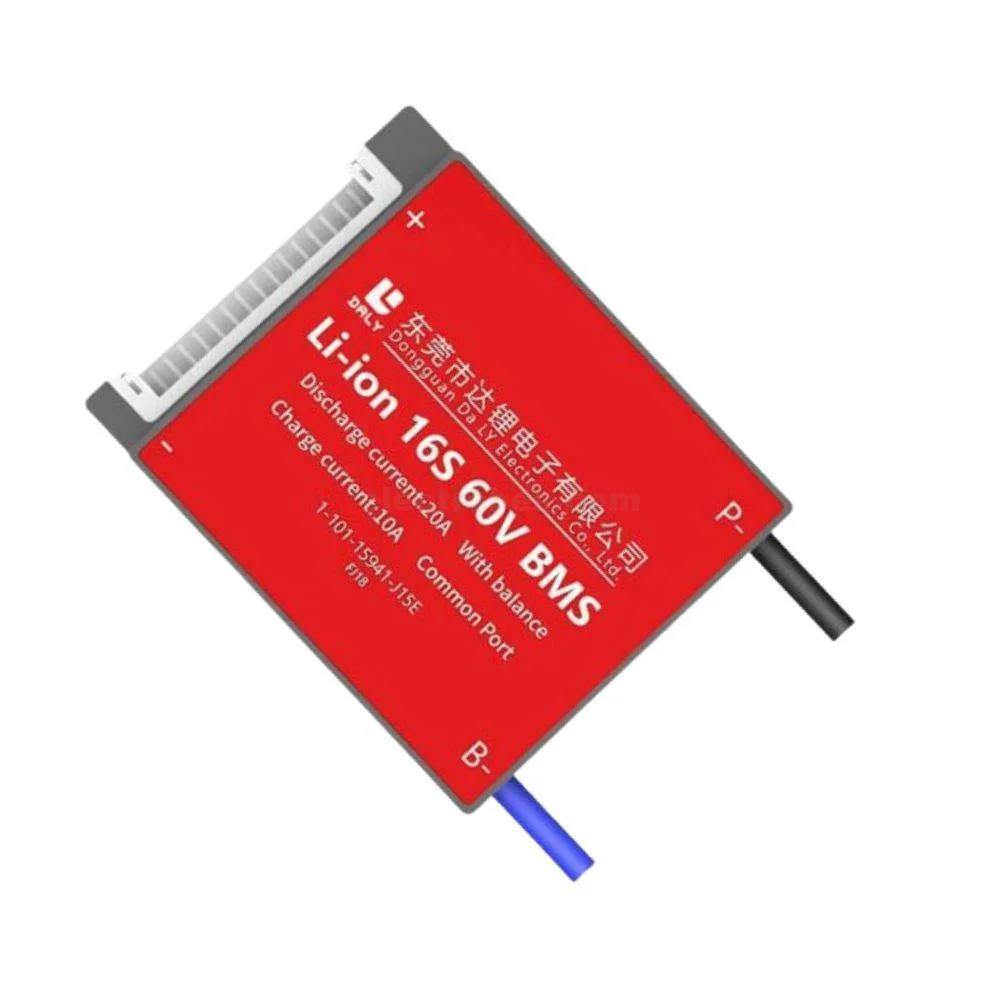

The DALY BMS Li-ion 16S 60V 20A is a battery management system designed specifically for 16-series (16S) Lithium-ion battery packs. It provides essential battery protection and cell balancing to help maintain safe and reliable battery operation.
This 20A BMS is suitable for 60V-class Li-ion battery applications, including electric bikes, electric scooters, skateboards, solar systems, RVs, power tools, camping equipment, and household energy storage.
The BMS uses high-quality MOSFETs and an imported protection IC to provide protection against over-charge, over-discharge, over-current, short circuit, and temperature-related conditions.
Fixed 16S Li-ion Configuration
This BMS is designed for a fixed 16S battery configuration and cannot be used with other series configurations.
It is specifically designed for Lithium-ion battery packs and should not be used with:
- LiFePO4 batteries
- Lithium-metal batteries
- LTO batteries
Always confirm the battery chemistry and 16S configuration before installation.
Over-Charge and Over-Discharge Protection
The BMS monitors individual cell voltage and provides protection against excessive charging and discharging.
According to the supplied specifications:
- Over-charge detection voltage: 4.25 ± 0.05V per cell
- Over-charge release voltage: 4.15 ± 0.05V
- Over-discharge detection voltage: 2.7 ± 0.1V
- Over-discharge release voltage: 3.0 ± 1.0V
Temperature Protection
The 16S BMS includes a mechanical temperature sensor for monitoring battery temperature during operation.
The supplied specifications indicate:
- Charging temperature protection: below -5°C or above 50°C
- Discharge temperature protection: below 70°C
- Working temperature range: -20°C to 70°C
Over-Current and Short-Circuit Protection
The DALY 16S 20A BMS monitors the battery pack for excessive current and short-circuit conditions.
The supplied specifications list:
- Over-current detection delay: 1ms
- Short-circuit detection delay: 250µs
- Short-circuit protection condition: Short circuit external load
- Short-circuit protection relay condition: Off load
When a short-circuit condition is detected, the BMS can shut down the battery output to help protect the circuit and battery pack.
Cell Balancing
The BMS includes a balancing function for the cells in the 16S battery pack. Cell voltage monitoring helps maintain more consistent voltage levels between individual cells.
- Balance detection voltage: 4.18V
- Balance release voltage: 4.18V
- Balance current: 30 ± 5mA
Key Features
- Designed specifically for 16S Li-ion battery packs
- 60V-class Lithium-ion BMS
- 20A continuous discharge current
- 40A ± 10A peak current
- Cell voltage monitoring
- Cell balancing function
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Charging and discharging temperature protection
- Built-in mechanical temperature sensor
- High-voltage, low-resistance power MOSFETs
- Heat sink for improved cooling
- Low power consumption
- High water-resistance coating
- Anti-corrosion PCB protection
- Suitable for cylindrical and prismatic Li-ion cells

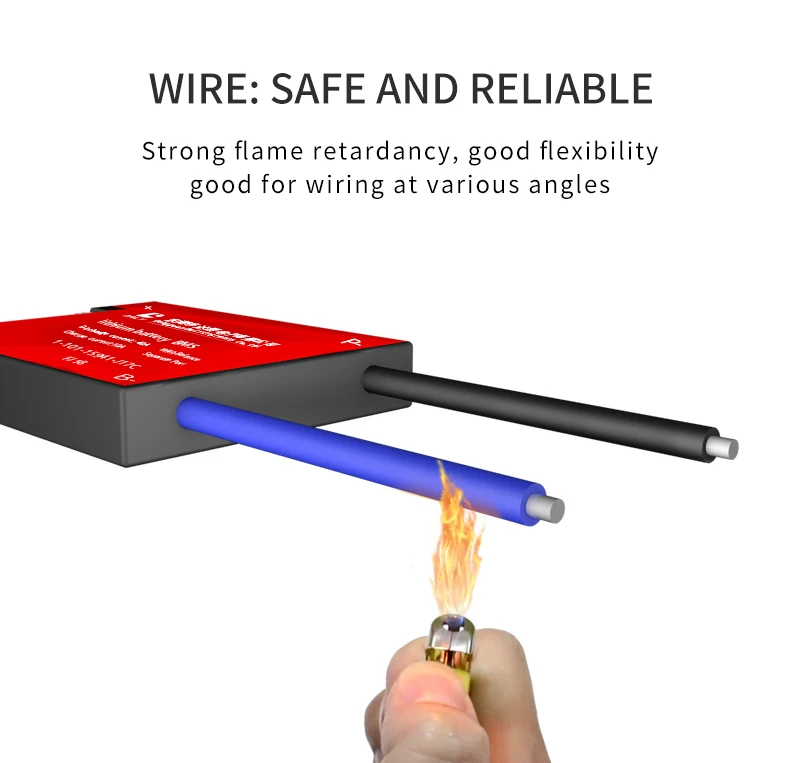

- Includes 17-wire balance/sense cable
Compatible Battery Cells
This BMS is designed for Lithium-ion battery packs using compatible cell formats such as:
- 18650 Li-ion cells
- 21700 Li-ion cells
- 36500 cylindrical cells
- Compatible prismatic Li-ion cells
Important: This is a Li-ion BMS and should not be used with LiFePO4, LTO, Lithium-metal, or other incompatible battery chemistries.
Protection Functions
| Protection Function | Specification |
|---|---|
| Over-Charge Detection | 4.25 ± 0.05V |
| Over-Charge Release | 4.15 ± 0.05V |
| Over-Discharge Detection | 2.7 ± 0.1V |
| Over-Discharge Release | 3.0 ± 1.0V |
| Over-Current Detection Delay | 1ms |
| Short-Circuit Detection Delay | 250µs |
| Charging Temperature Protection | < -5°C or > 50°C |
| Discharge Temperature Protection | < 70°C |
| Balance Detection Voltage | 4.18V |
| Balance Current | 30 ± 5mA |
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Li-ion |
| Battery Configuration | 16S |
| Continuous Discharge Current | 20A |
| Peak Current | 40A ± 10A |
| Main Circuit Inner Resistance | ≤ 20mΩ |
| Charge Voltage | S × 4.25V |
| Charge Current | 10A |
| Over-Charge Detect Voltage | 4.25 ± 0.05V |
| Over-Charge Protection Delay | 1 sec |
| Over-Charge Release Voltage | 4.15 ± 0.05V |
| Balance Detect Voltage | 4.18V |
| Balance Release Voltage | 4.18V |
| Balance Current | 30 ± 5mA |
| Over-Discharge Detect Voltage | 2.7 ± 0.1V |
| Over-Discharge Detect Delay | 1 sec |
| Over-Discharge Release Voltage | 3.0 ± 1.0V |
| Over-Current Detect Delay | 1ms |
| Over-Current Detect Voltage | Off Load |
| Short-Circuit Protection Condition | Short Circuit External Load |
| Short-Circuit Detect Delay | 250µs |
| Short-Circuit Protection Relay Condition | Off Load |
| Temperature Protection | Charge < -5°C or > 50°C; Discharge < 70°C |
| Working Current | 100µA |
| Sleeping Current | 20µA |
| Working Temperature Range | -20°C to 70°C |
| Sleeping Temperature Range | -40°C to 80°C |
| Weight | 1.1 ounces |
| Size | 1.4 × 2.2 × 0.2 inches |
Applications
The DALY BMS 16S 60V 20A can be used in various Lithium-ion battery projects and systems, including:
- 60V electric bikes
- Electric scooters
- Electric skateboards
- Solar battery systems
- RV power systems
- Power tools
- Camping equipment
- Household energy storage
- Battery-powered equipment
- Custom 16S 18650 battery packs
