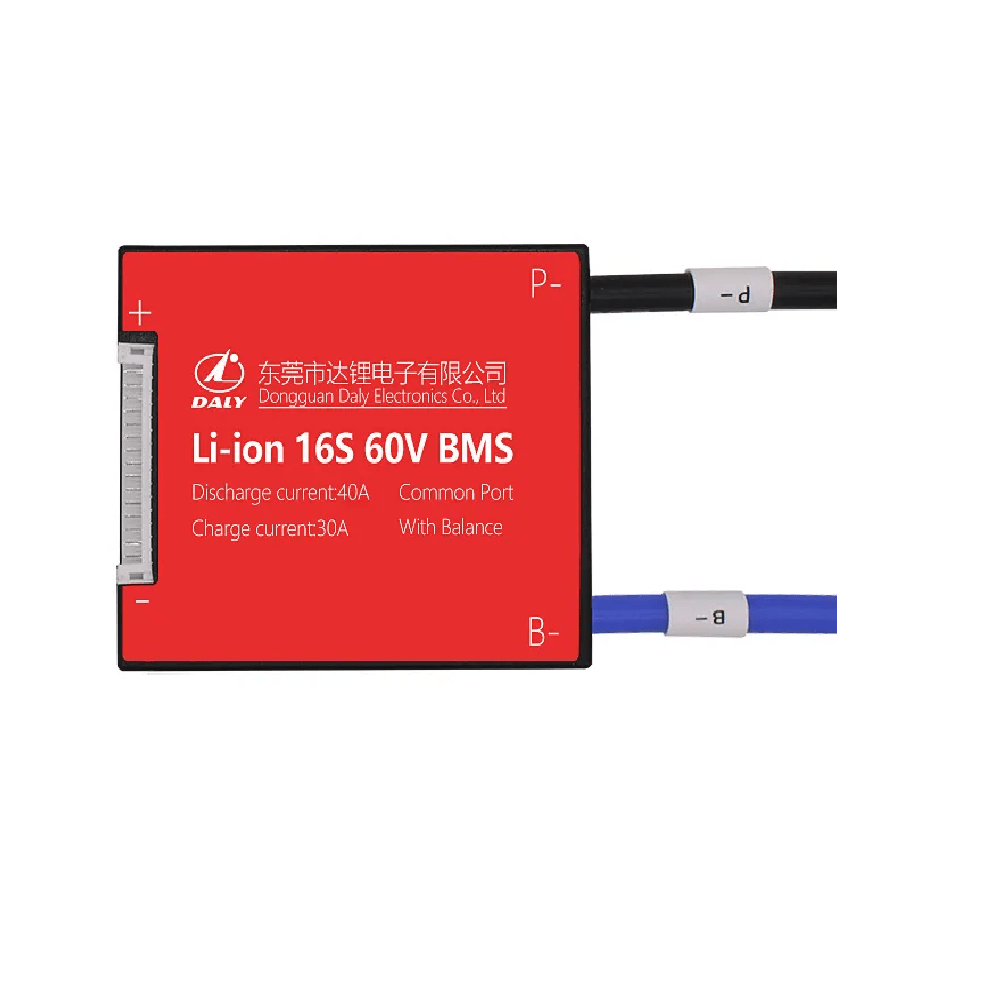

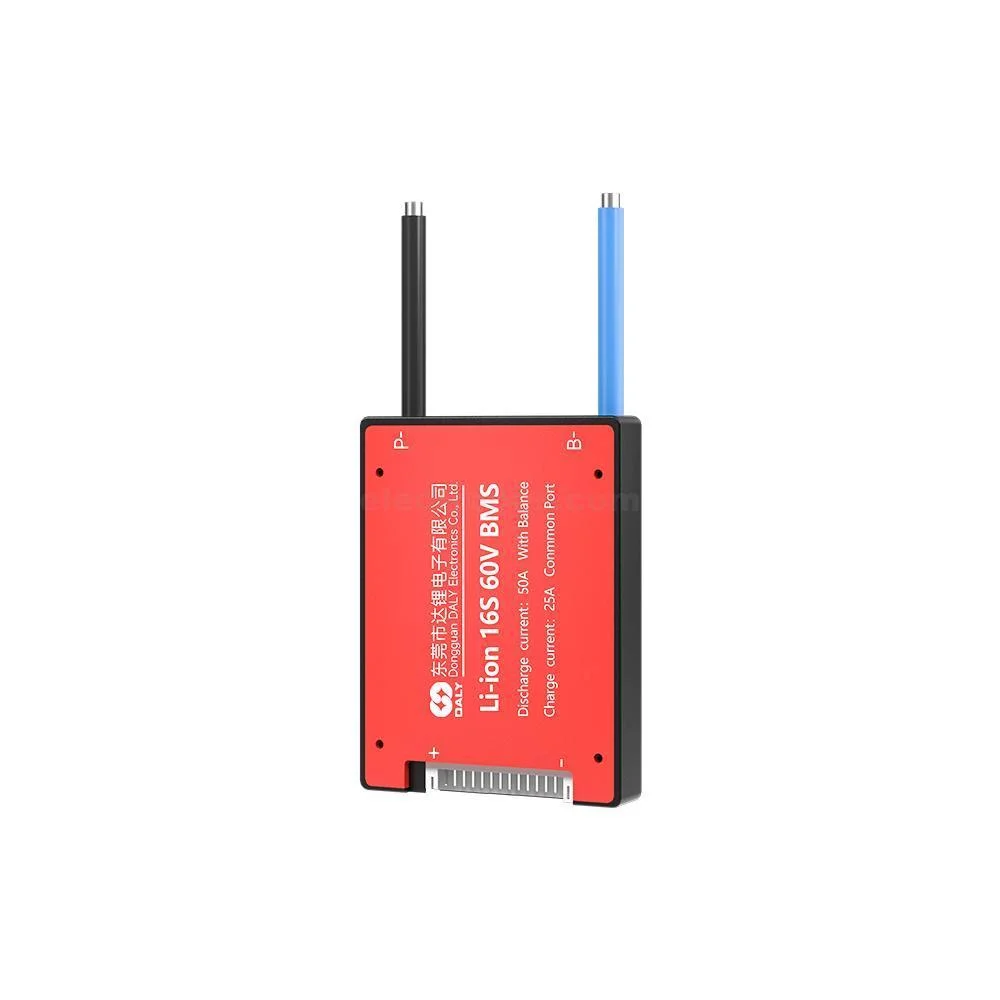

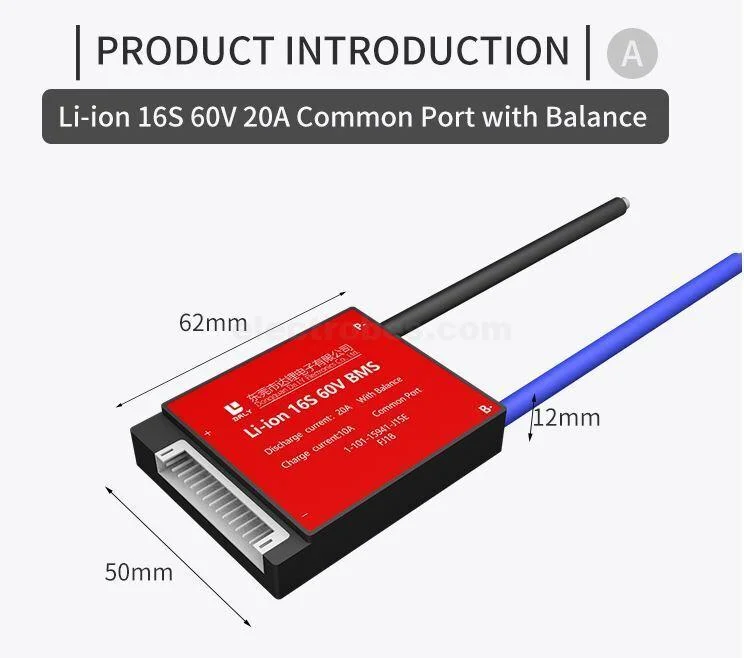

Description
The DALY BMS Li-ion 16S 60V 40A is a battery management and protection board designed for 16-series Li-ion battery packs. It monitors individual battery groups and provides multiple protection functions to help protect the battery pack during charging and discharging.
With a 40A continuous discharge current and 120A ±20A peak current, this BMS is suitable for higher-current 60V Li-ion battery applications.

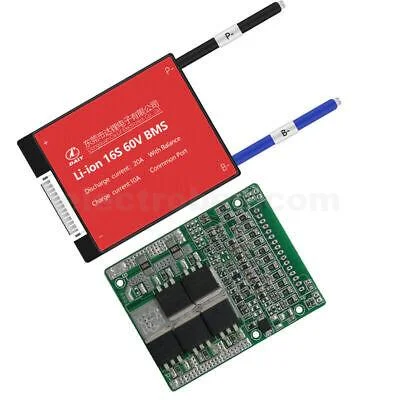

The board uses high-quality MOSFETs and a protective integrated circuit to provide battery monitoring, protection, and balancing functions.
Fixed 16S Li-ion Configuration
This is a 16S fixed-configuration BMS designed specifically for lithium-ion battery packs.
It cannot be used with other battery pack configurations and is strictly intended for Li-ion batteries.
It should not be used with:
- LiFePO4 batteries
- Li-Metal batteries
- LTO batteries
Always confirm the battery chemistry and series configuration before installation.
60V Li-ion Battery Protection
The DALY 16S 60V 40A BMS provides several protection functions for the connected Li-ion battery pack, including:
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Cell voltage detection
- Cell balancing
The BMS monitors the voltage of individual battery groups to help prevent abnormal charging and discharging conditions.
Over-Charge & Over-Discharge Protection
The BMS monitors each cell group and provides protection according to the supplied voltage parameters.
The specified over-charge detection voltage is 4.25 ±0.05V per cell, while the over-charge release voltage is 4.15 ±0.05V.
For over-discharge protection, the detection voltage is 2.7 ±0.1V, with a specified release voltage of 3.0 ±1.0V.
These protection functions are designed to help prevent excessive charging and discharge of the connected Li-ion cells.
Temperature Protection
The 16S BMS includes a mechanical temperature sensor for temperature monitoring and protection.
The supplied temperature protection parameters are:
- Charging protection: Below -5°C or above 50°C
- Discharge protection: Below 70°C
- Working temperature: -20°C to 70°C
- Sleeping temperature: -40°C to 80°C
Temperature protection during charging and discharging helps provide additional protection for the battery pack.
Over-Current & Short-Circuit Protection
The DALY 16S 60V 40A BMS is designed to provide protection against excessive current and short-circuit conditions.
The specified electrical protection parameters include:
- Continuous discharge current: 40A
- Peak current: 120A ±20A
- Over-current detection delay: 1ms
- Short-circuit detection delay: 250µs
- Short-circuit protection condition: Short circuit external load
When a short-circuit condition is detected, the BMS can shut down the battery output according to its protection parameters.
Cell Balancing
The BMS includes a cell balancing function for the 16 series-connected Li-ion battery groups.
The supplied balancing specifications are:
- Balance detection voltage: 4.18V
- Balance release voltage: 4.18V
- Balance current: 30 ±5mA
Cell balancing helps maintain more consistent voltage levels across the series-connected battery groups.
Key Features
- Designed for 16S 60V Li-ion battery packs
- 40A continuous discharge current
- 120A ±20A peak current
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Individual cell voltage detection
- Cell balancing function
- Mechanical temperature sensor
- High-voltage resistance MOSFETs
- Low internal-resistance power MOSFETs
- Heat sink for improved cooling
- Low power consumption
- High anti-corrosion PCB coating
- High water-resistance coating
- High-impedance ESD conformal coating
- Suitable for Li-ion cylindrical and prismatic cells
Compatible Battery Cells
This BMS is designed for Li-ion battery chemistry and can be used with compatible:
- 18650 Li-ion cells
- 21700 Li-ion cells
- 36500 cylindrical cells
- Prismatic Li-ion cells
Important: This is a fixed 16S Li-ion BMS. It is not designed for LiFePO4, Li-Metal, or LTO battery packs.
Protection Functions
| Protection Function | Specification |
|---|---|
| Over-Charge Detection | 4.25 ±0.05V |
| Over-Charge Release | 4.15 ±0.05V |
| Over-Charge Protection Delay | 1 Sec |
| Over-Discharge Detection | 2.7 ±0.1V |
| Over-Discharge Release | 3.0 ±1.0V |
| Over-Discharge Protection Delay | 1 Sec |
| Over-Current Detection Delay | 1ms |
| Short-Circuit Detection Delay | 250µs |
| Charging Temperature Protection | < -5°C or > 50°C |
| Discharge Temperature Protection | < 70°C |
| Balance Detection Voltage | 4.18V |
| Balance Release Voltage | 4.18V |
| Balance Current | 30 ±5mA |
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Li-ion |
| Configuration | 16S |
| Rated Voltage | 60V |
| Continuous Discharge Current | 40A |
| Peak Current | 120A ±20A |
| Main Circuit Inner Resistance | ≤20mΩ |
| Charge Voltage | S × 4.25V |
| Charge Current | 20A |
| Over-Charge Detect Voltage | 4.25 ±0.05V |
| Over-Charge Protection Delay | 1 Sec |
| Over-Charge Release Voltage | 4.15 ±0.05V |
| Balance Detect Voltage | 4.18V |
| Balance Release Voltage | 4.18V |
| Balance Current | 30 ±5mA |
| Over-Discharge Detect Voltage | 2.7 ±0.1V |
| Over-Discharge Protection Delay | 1 Sec |
| Over-Discharge Release Voltage | 3.0 ±1.0V |
| Over-Current Detect Delay | 1ms |
| Over-Current Detect Voltage | OFF LOAD |
| Short-Circuit Protection Condition | Short circuit external load |
| Short-Circuit Detect Delay | 250µs |
| Short-Circuit Protection Relay Condition | OFF LOAD |
| Charging Temperature Protection | < -5°C or > 50°C |
| Discharge Temperature Protection | < 70°C |
| Working Current | 100µA |
| Sleeping Current | 20µA |
| Working Temperature | -20°C to 70°C |
| Sleeping Temperature | -40°C to 80°C |
| Weight | 5.5 ounces |
| Size | 2.5 × 3.1 × 0.6 inches |
Applications
The DALY BMS 16S 60V 40A can be used for a variety of Li-ion battery applications, including:
- 60V electric bikes
- Electric scooters
- Electric skateboards
- Electric vehicles
- Solar energy storage
- RV battery systems
- UPS battery packs
- Power tools
- Camping boats
- Lawn and garden equipment
- Household energy storage
- DIY 60V Li-ion battery packs
