Description

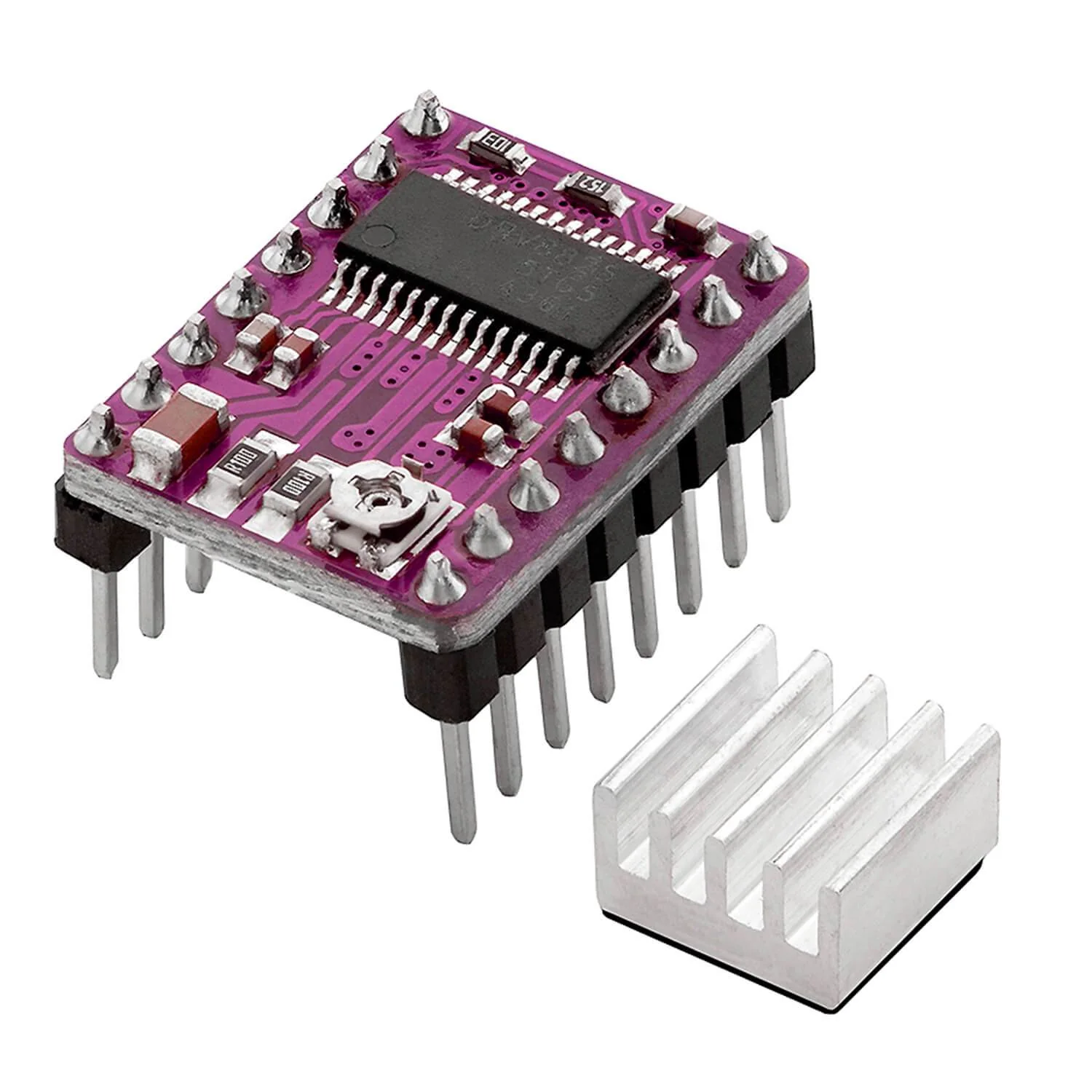

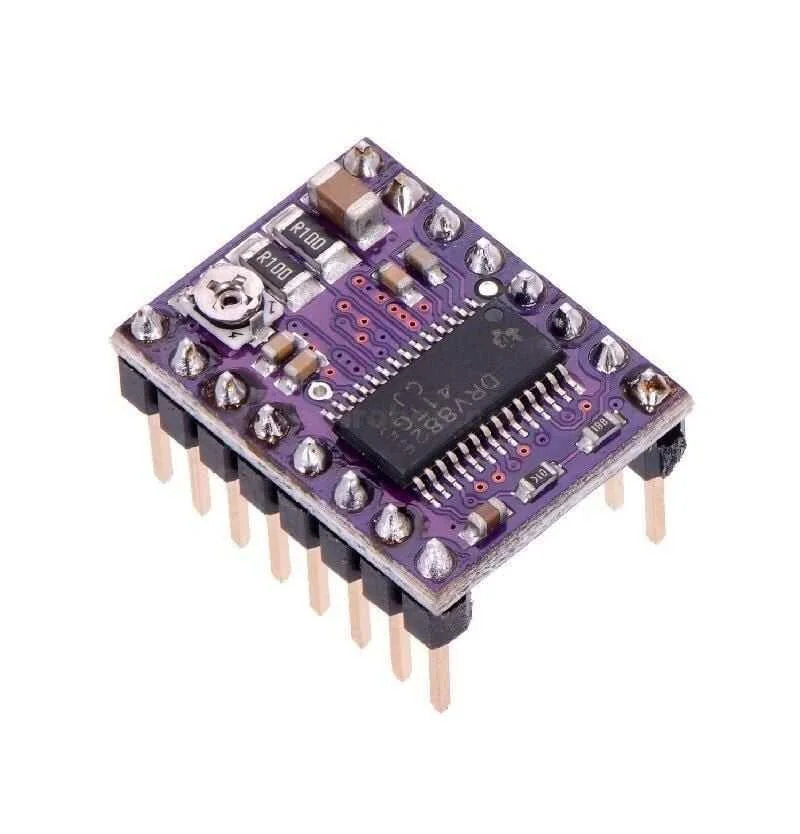

The DRV8825 Stepper Motor Driver Carrier is a breakout board based on Texas Instruments’ DRV8825 bipolar stepper motor driver. Its pinout and interface are nearly identical to common A4988 driver carriers, making it suitable as a higher-performance replacement in many applications.
The module provides adjustable current limiting, multiple microstep resolutions, and built-in protection against overcurrent, overheating, undervoltage, and short circuits. It can interface directly with both 3.3V and 5V logic systems and is suitable for CNC machines, 3D printers, and other motion-control projects.
Features
- Simple step and direction control interface.
- Six microstep resolutions: full-step, 1/2, 1/4, 1/8, 1/16, and 1/32.
- Adjustable current limiting using an onboard potentiometer.
- Intelligent chopping control for automatic current-decay selection.
- Motor supply voltage up to 45V.
- Built-in regulator eliminates the need for a separate logic power supply.
- Compatible with 3.3V and 5V logic systems.
- Over-temperature thermal shutdown.
- Over-current shutdown and under-voltage lockout.
- Short-to-ground and shorted-load protection.
- 4-layer, 2 oz copper PCB for improved heat dissipation.
- Exposed solderable ground pad beneath the driver IC.
- Pinout and interface compatible with A4988 driver carriers in most respects.

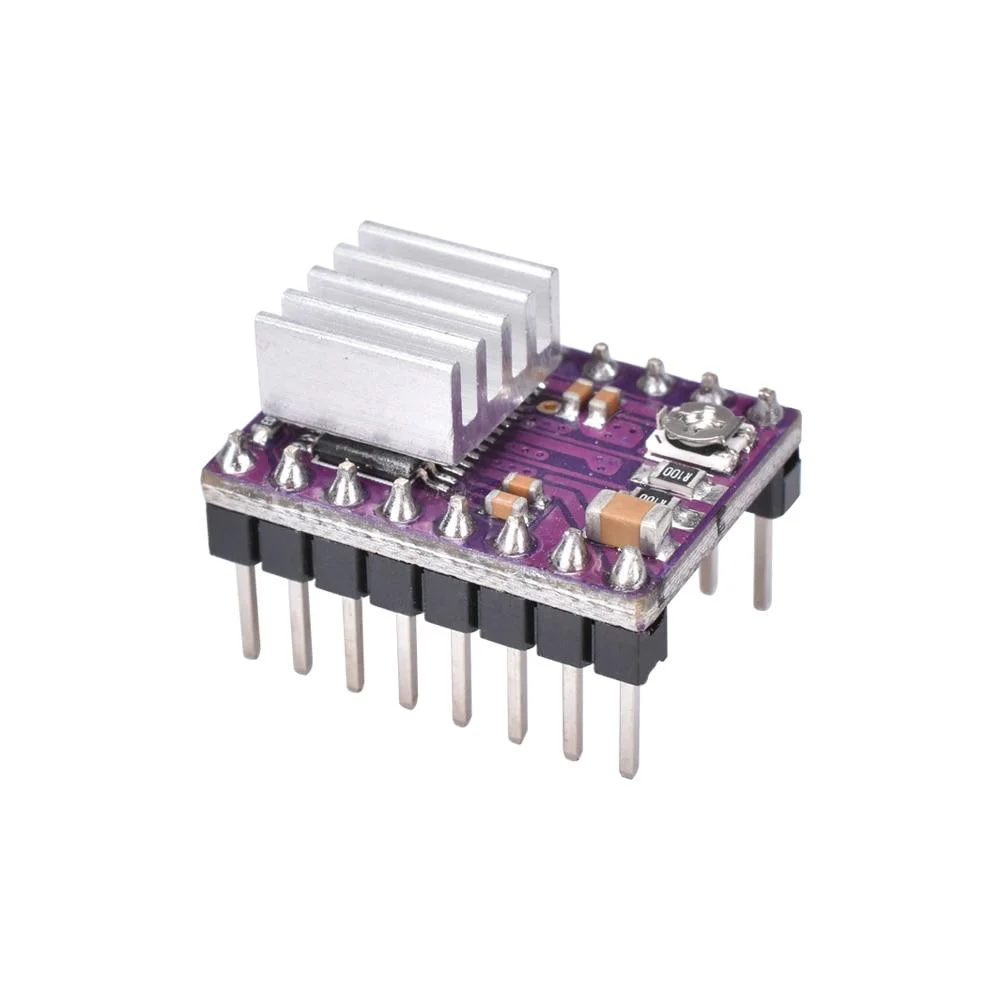

- Includes an adhesive heatsink for improved cooling.
Package Includes
- 1 × DRV8825 Stepper Motor Driver Module
- 1 × Adhesive Heatsink
Specification
- Driver IC: Texas Instruments DRV8825
- Motor Type: Bipolar Stepper Motor
- Minimum Operating Voltage: 8.2V
- Maximum Operating Voltage: 45V
- Continuous Current per Phase: 1.5A
- Maximum Current per Phase: 2.2A with sufficient additional cooling
- Minimum Logic Voltage: 2.5V
- Maximum Logic Voltage: 5.25V
- Microstep Resolutions: Full, 1/2, 1/4, 1/8, 1/16, and 1/32
- Current Control: Adjustable
- Protection: Over-temperature, over-current, under-voltage, short-to-ground, and shorted-load protection
- Logic Interface: Step and direction
- Built-in Regulator: Yes
- Reverse Voltage Protection: No
- Header Pins Soldered: No
