Description

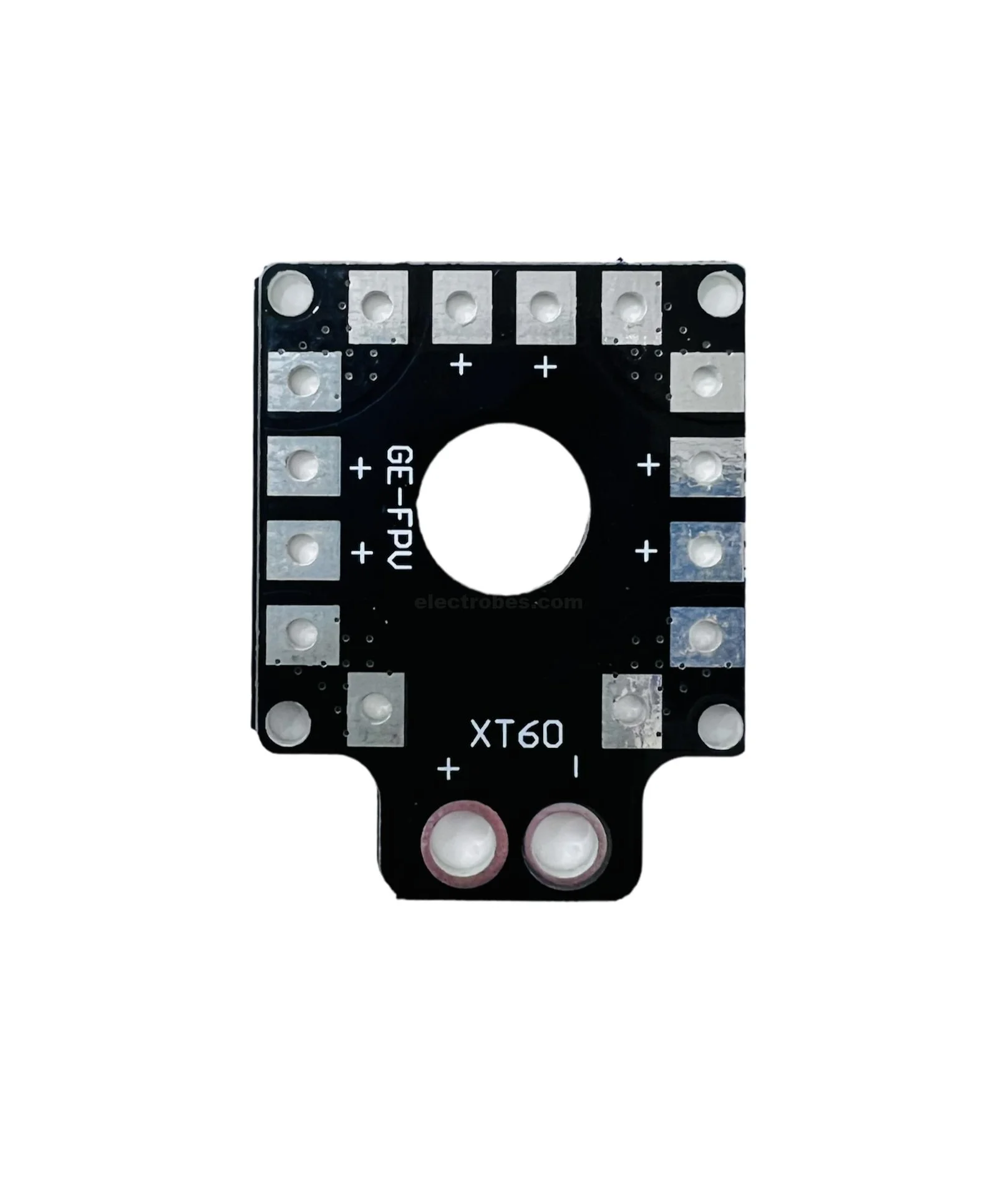

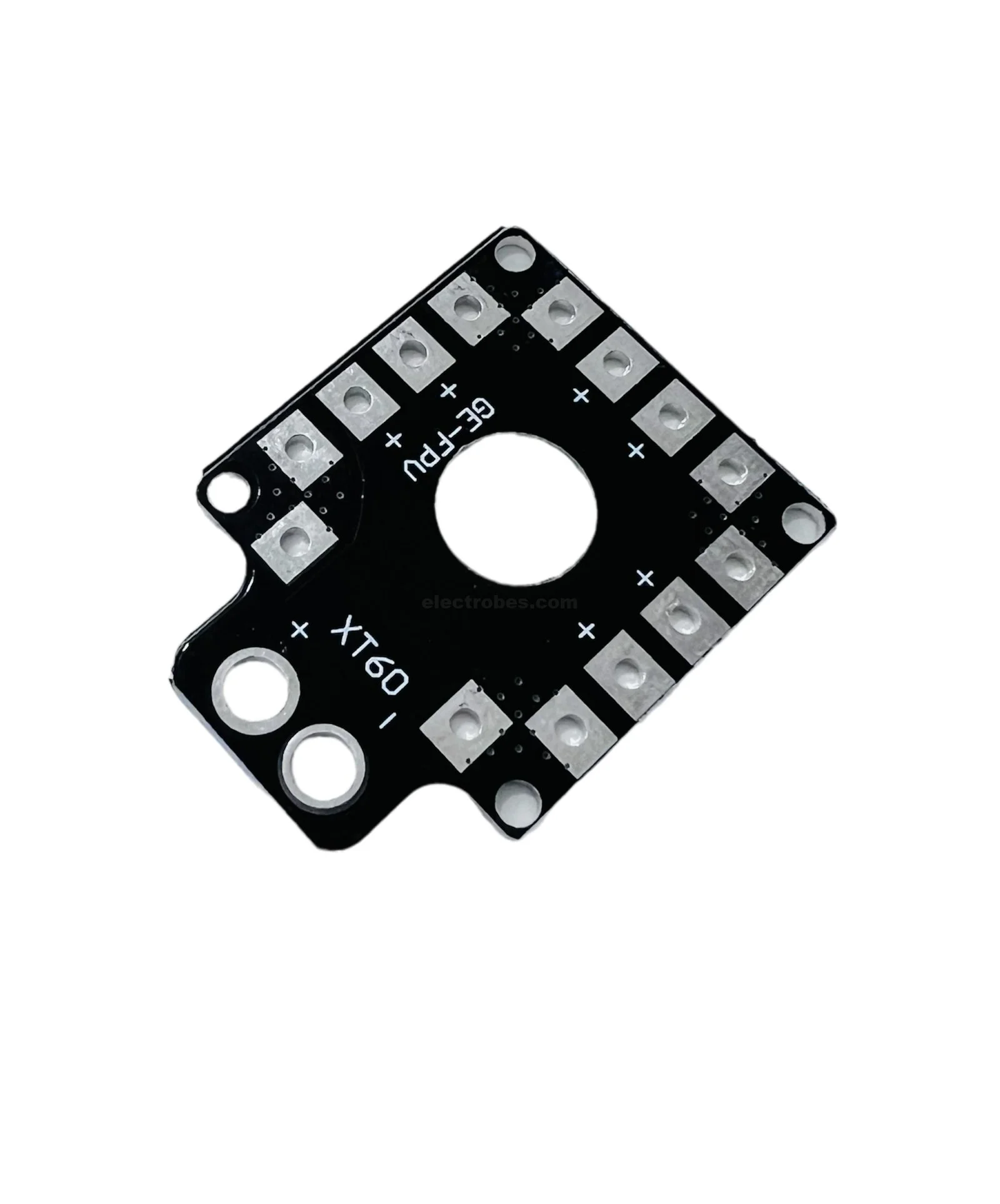

The F17169 Power Distribution Board is a compact and lightweight PCB designed to distribute battery power to multiple ESCs and other components in DIY multirotor builds. It is particularly suitable for mini quadcopters, hexacopters, and FPV drones where a dedicated power distribution board is required.
The board features large solder pads for convenient wiring. Connect the battery to the two central terminals to provide multiple power output connections for ESCs and other compatible components. It can support up to 20A per output in a quadcopter setup, or approximately 10A per output when used in an octocopter configuration.
Features
- 100A power distribution board
- Compact and lightweight design
- 30 × 30mm mounting-hole spacing
- 35 × 35mm overall board size
- Large solder pads for easy wiring
- Multiple power output connections
- Suitable for mini multirotor frames without integrated PCB
- Supports quadcopter, hexacopter, and octocopter builds
- Glass fiber PCB construction
Specification
- Model: F17169
- Product Type: Power Distribution Board
- Material: Glass Fiber
- Overall Size: 35 × 35 × 2mm
- Mounting Hole Spacing: 30 × 30mm
- Maximum Current: Up to 100A
- Output Capability: Up to 20A per output for quadcopter setups
- Recommended Octocopter Output: Up to 10A per output
- Weight: Approx. 5g
- Application: Mini Quadcopter, Hexacopter, Multicopter, FPV Drone
Package Includes
- 1 × F17169 30 × 30mm Power Distribution Board
