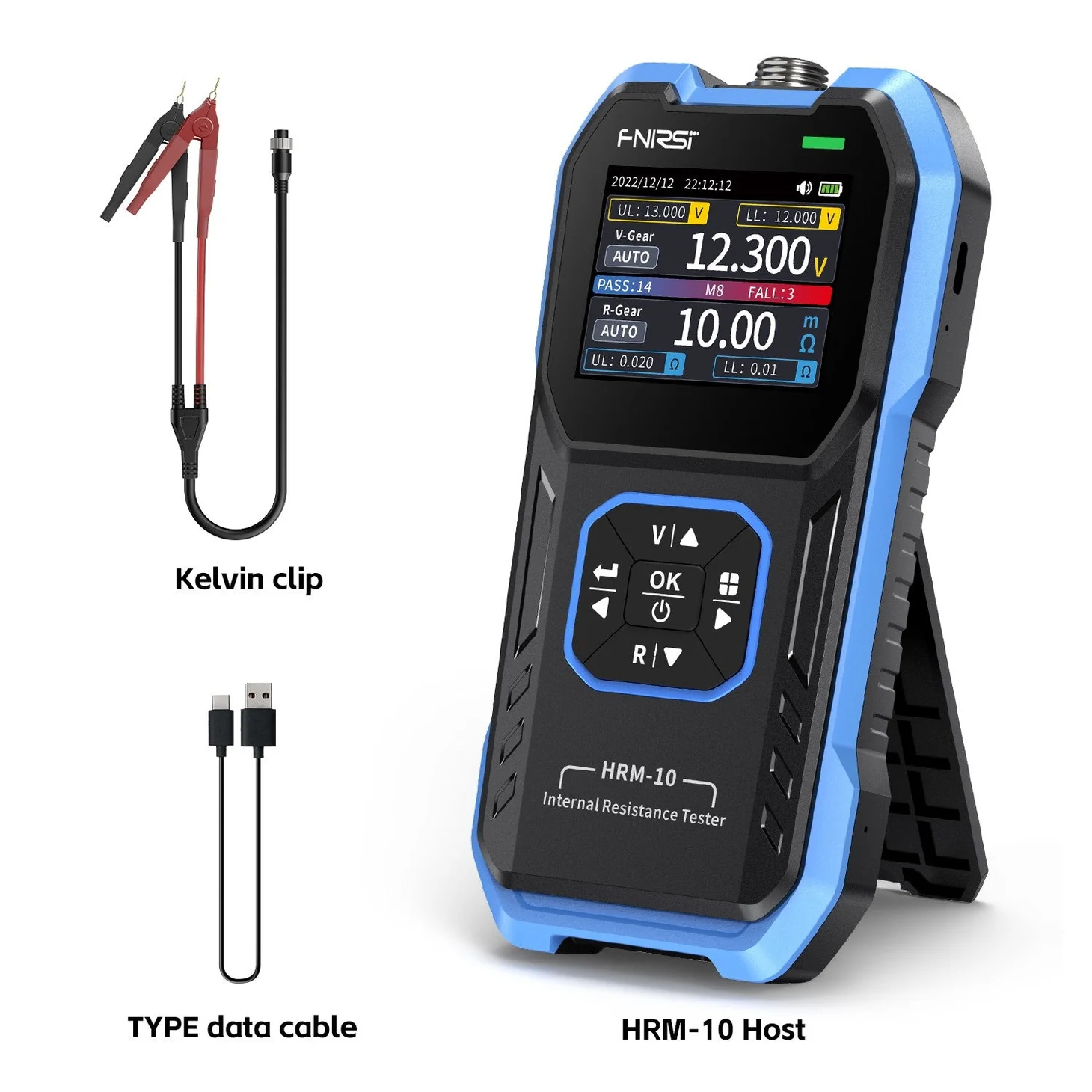

Description
The FNIRSI HRM-10 Battery Voltage and Internal Resistance Tester is a compact and versatile testing instrument designed to quickly evaluate battery condition. It can measure battery voltage and internal resistance at the same time, allowing users to identify batteries that may have degraded or are no longer performing properly.
The HRM-10 uses a Kelvin four-wire measurement method to reduce the influence of lead and contact resistance, helping improve measurement accuracy. Users can select automatic or manual measurement ranges depending on their testing requirements.
Equipped with a high-definition TFT color display, the tester presents measurement results clearly and makes it easy to monitor voltage and resistance values. It also supports sorting, history records, user calibration, and data export, making it useful when testing and comparing multiple batteries.
The device supports voltage measurements up to 100V DC and resistance measurements up to 200Ω. Its rechargeable 1000mAh lithium battery and USB Type-C charging interface make it convenient for portable testing in workshops, laboratories, battery repair, and automotive applications.
Key Features
- Voltage & Internal Resistance Testing – Measures both values simultaneously
- High-Precision Measurement – Accuracy of up to ±0.5%
- Kelvin Four-Wire Connection – Helps reduce errors caused by lead and contact resistance
- HD TFT Color Display – Provides clear and easy-to-read measurement results
- Wide Voltage Range – Supports DC voltage measurement up to ±100V
- Wide Resistance Range – Measures resistance from 0 to 200Ω
- Auto & Manual Range Selection – Flexible measurement control

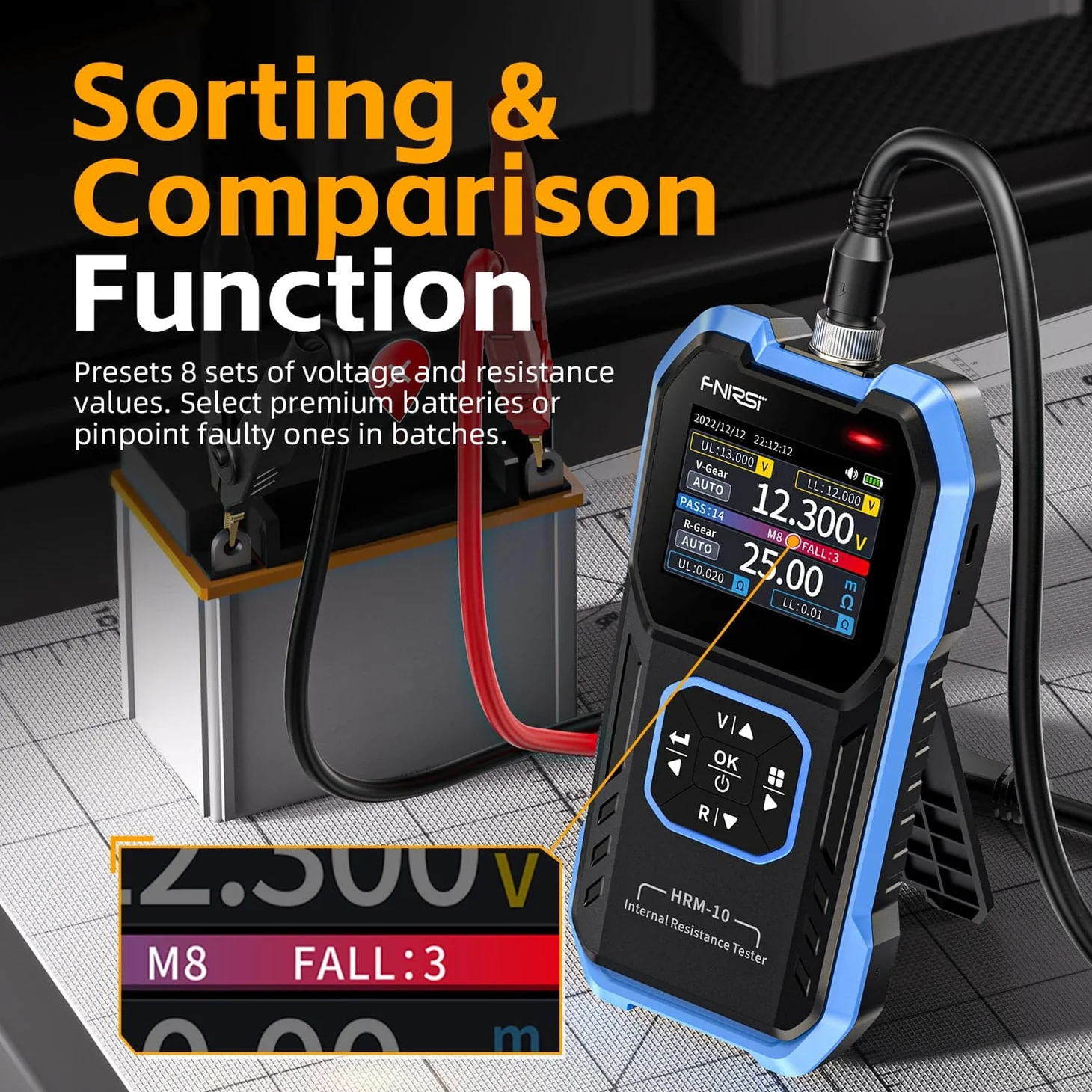

- Battery Sorting Function – Helps compare and sort batteries based on test results
- History Records – Stores previous measurement results
- Data Export – Allows recorded test data to be exported
- User Calibration – Supports calibration for maintaining measurement accuracy
- Rechargeable Battery – Built-in 1000mAh lithium battery
- USB Type-C Charging – Convenient 5V/1A charging interface
- Portable Handheld Design – Easy to carry and use in different locations

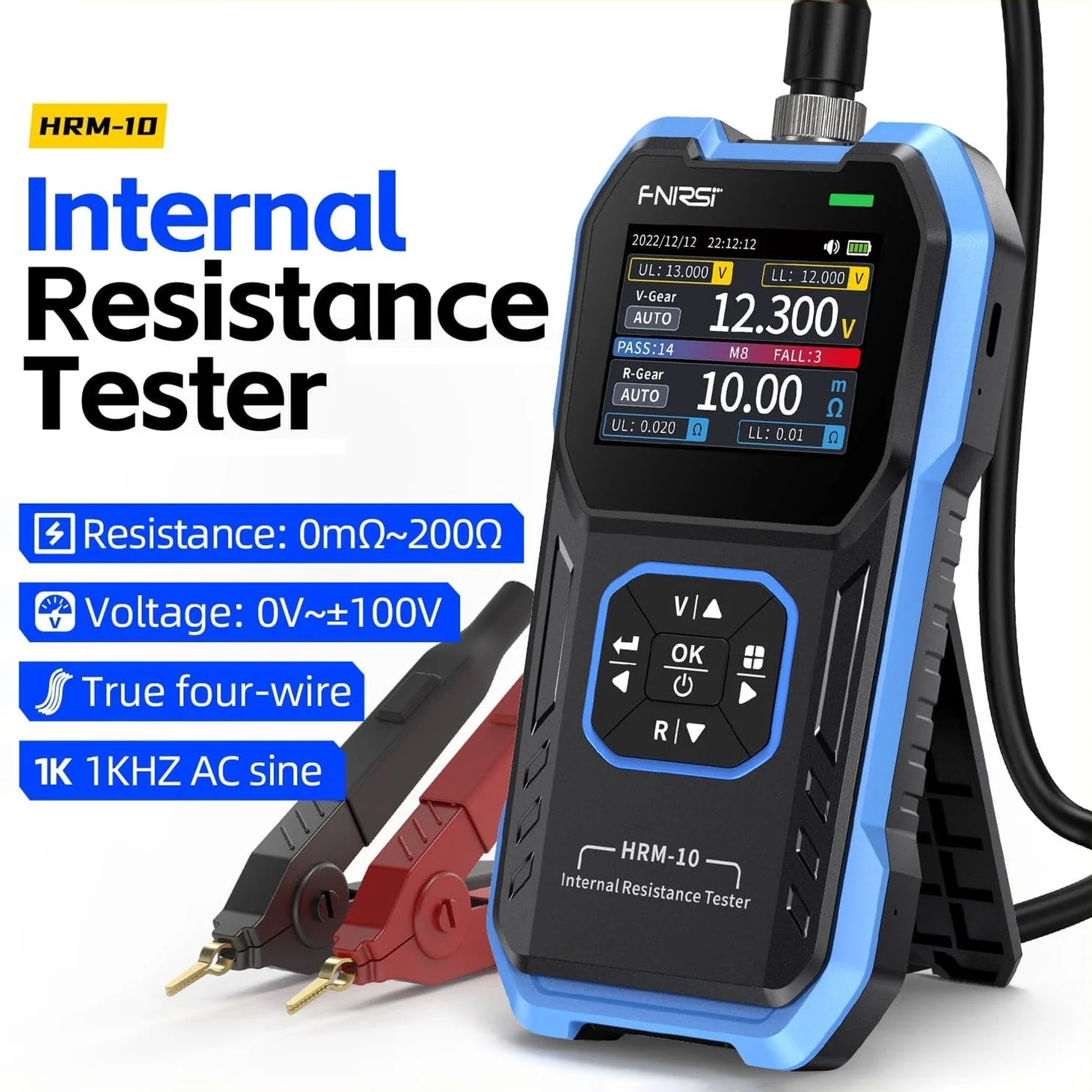

Specifications
| Specification | Details |
|---|---|
| Brand | FNIRSI |
| Model | HRM-10 |
| Product Type | Battery Voltage & Internal Resistance Tester |
| Voltage Measurement Range | 0 to ±100V DC |
| Voltage Ranges | Auto / 1V / 10V / 100V |
| Resistance Measurement Range | 0–200Ω |
| Resistance Ranges | Auto / 20mΩ / 200mΩ / 2Ω / 20Ω / 200Ω |
| Accuracy | ±0.5% |
| Test Signal Frequency | AC 1kHz |
| Measurement Method | Kelvin Four-Wire Connection |
| User Calibration | Supported |
| Sorting Mode | Supported |
| History Records | Supported |
| Data Export | Supported |
| Charging Interface | USB Type-C, 5V/1A |
| Battery | 1000mAh Rechargeable Lithium Battery |
| Working Temperature | −10°C to +45°C |
| Working Humidity | <80% RH |
| Storage Temperature | −20°C to +80°C |
| Storage Humidity | <80% RH |
| Dimensions | 158.7 × 80.5 × 28.4 mm |
| Weight | Approx. 225 g |

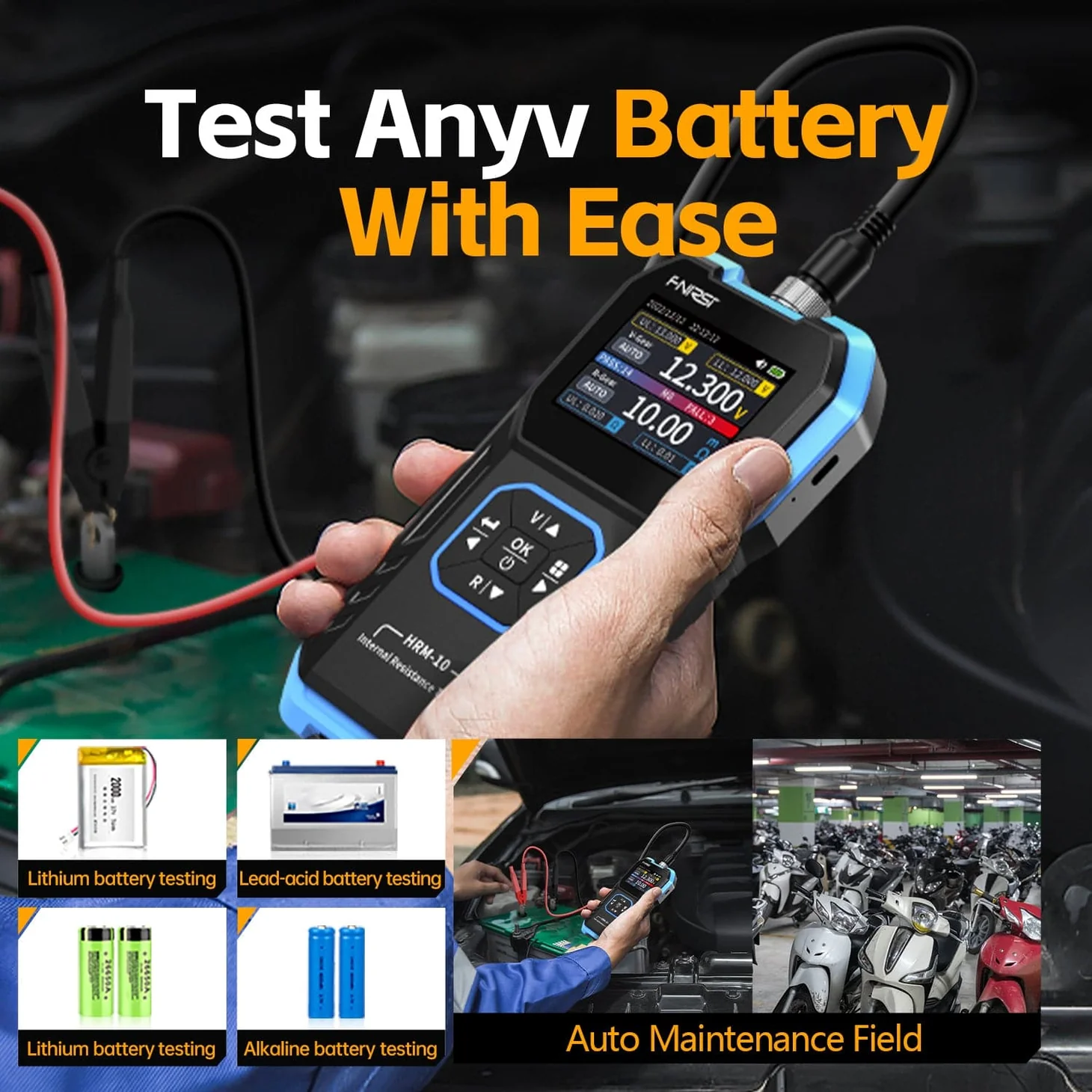

Applications
The FNIRSI HRM-10 can be used for testing and comparing:
- 18650 lithium-ion batteries
- Lithium battery packs
- Lead-acid batteries
- Automotive batteries
- Household batteries
- Rechargeable battery cells
- Electronic capacitors
- Battery maintenance and repair
- Battery sorting and quality inspection
Important Safety Note
The HRM-10 is designed for DC voltage measurement only. Do not connect the tester to a DC voltage higher than 100V. Never apply AC voltage to the device.
