Description

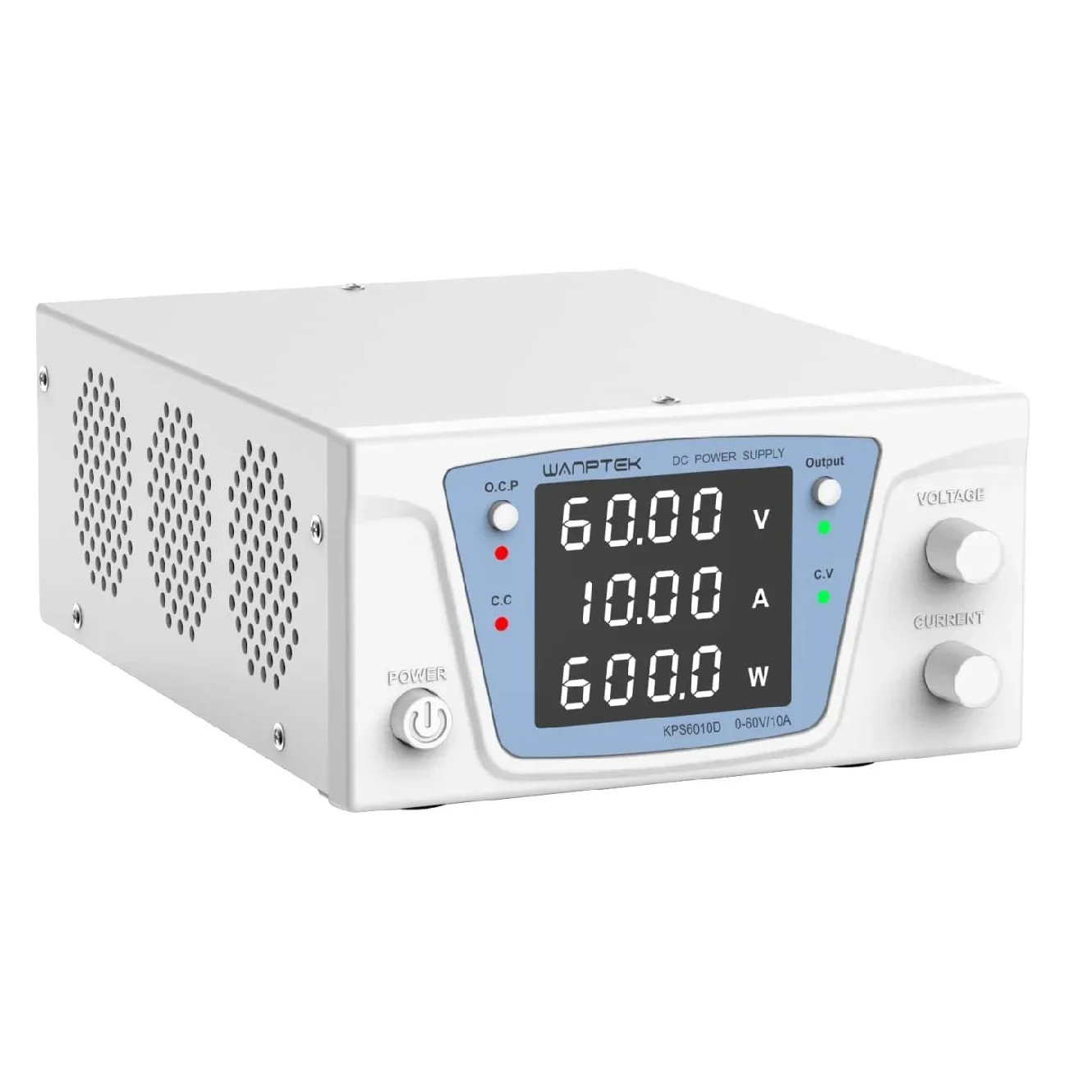

Wanptek KPS6010D 60V 10A Adjustable DC Laboratory Power Supply
The Wanptek KPS6010D is a high-power, adjustable switching DC bench power supply designed for laboratories, electronics repair, product aging tests, research and development, and other demanding electronics applications. It provides a continuously adjustable output from 0–60V DC and 0–10A, with a maximum output power of 600W.

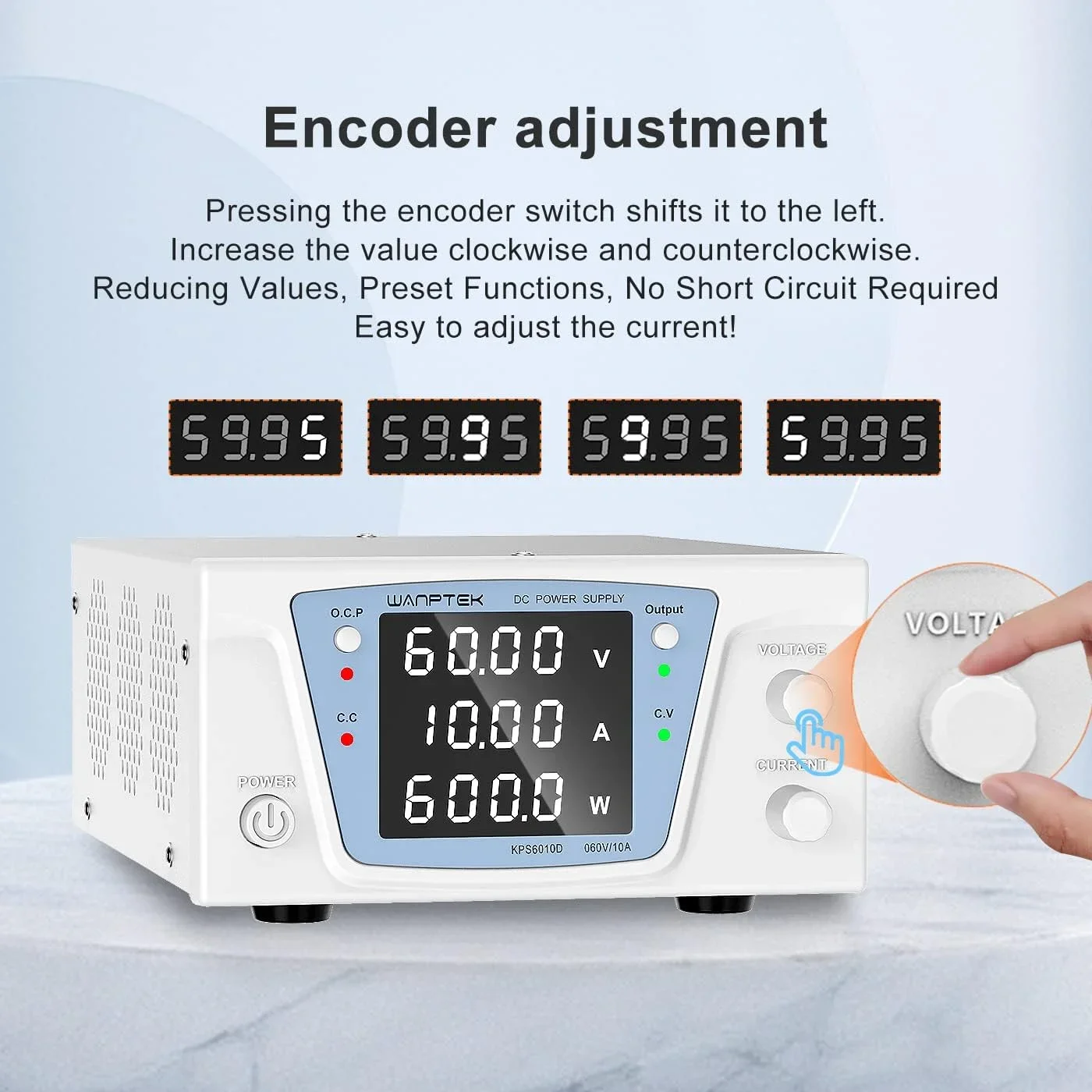

The power supply features a clear four-digit digital tube display that shows output voltage and current simultaneously. Its accurate encoder adjustment controls allow convenient and precise setting of the required voltage and current.

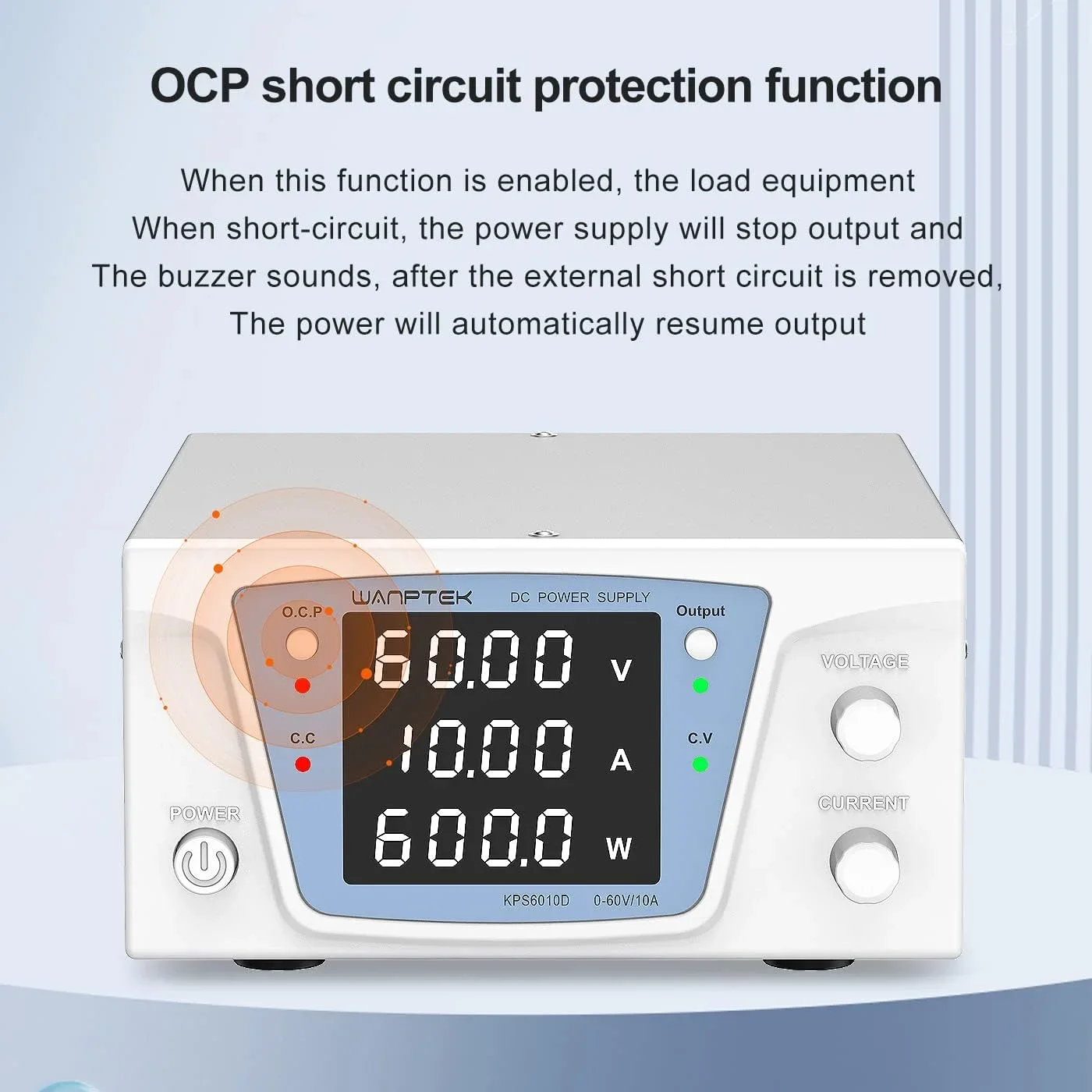

The KPS6010D supports both Constant Voltage (CV) and Constant Current (CC) operating modes, automatically adapting to the connected load. It also includes an output switch and an OCP short-circuit protection function. When a short circuit is detected, the output can be stopped and an audible alarm activated.
An intelligent temperature-controlled fan provides cooling while helping maintain efficient and low-noise operation. Multiple protection functions, including over-voltage, over-current, overload, over-temperature, and short-circuit protection, provide additional safety during operation.
Key Features
- Adjustable 0–60V DC output
- Adjustable 0–10A current
- Maximum 600W output power
- High-precision encoder adjustment knobs
- Four-digit digital voltage and current display
- Constant Voltage (CV) and Constant Current (CC) modes

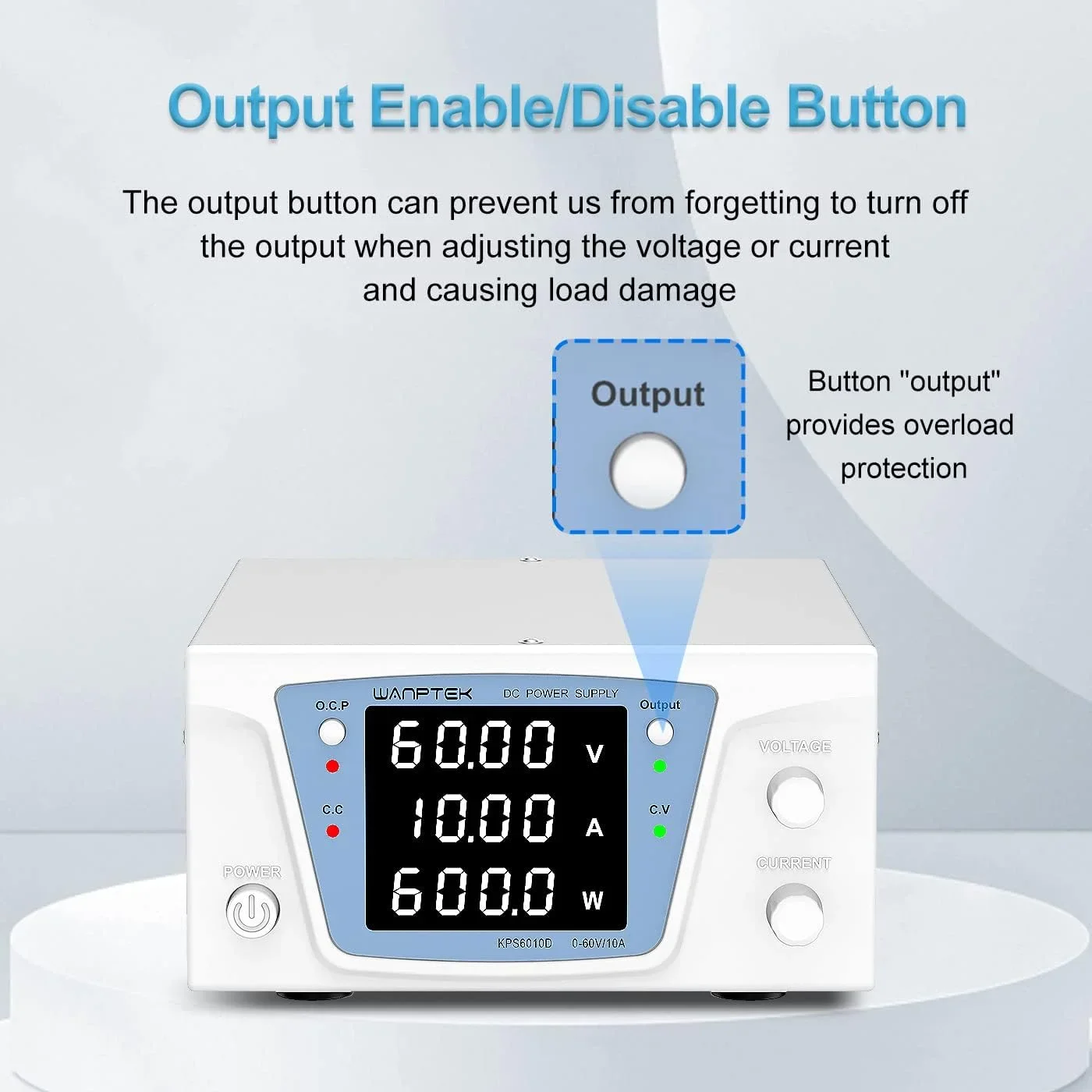

- Output ON/OFF switch
- OCP short-circuit protection and alarm
- Over-voltage protection (OVP)
- Over-current protection (OCP)
- Overload protection (OPP)
- Over-temperature protection (OTP)
- Intelligent temperature-controlled cooling fan
- Low-ripple output
- Compact bench-top design
- Suitable for laboratory, repair, testing, and R&D applications
Suitable Applications
- Electronics laboratories
- Circuit testing and development
- Electronics repair
- Product aging tests
- Research and development
- DIY electronics projects
- Component testing
- Adjustable DC power applications
Specifications
| Specification | Details |
|---|---|
| Model | KPS6010D |
| Product Type | Regulated Switching DC Power Supply |
| Output Voltage | 0–60V DC |
| Output Current | 0–10A |
| Maximum Output Power | 600W |

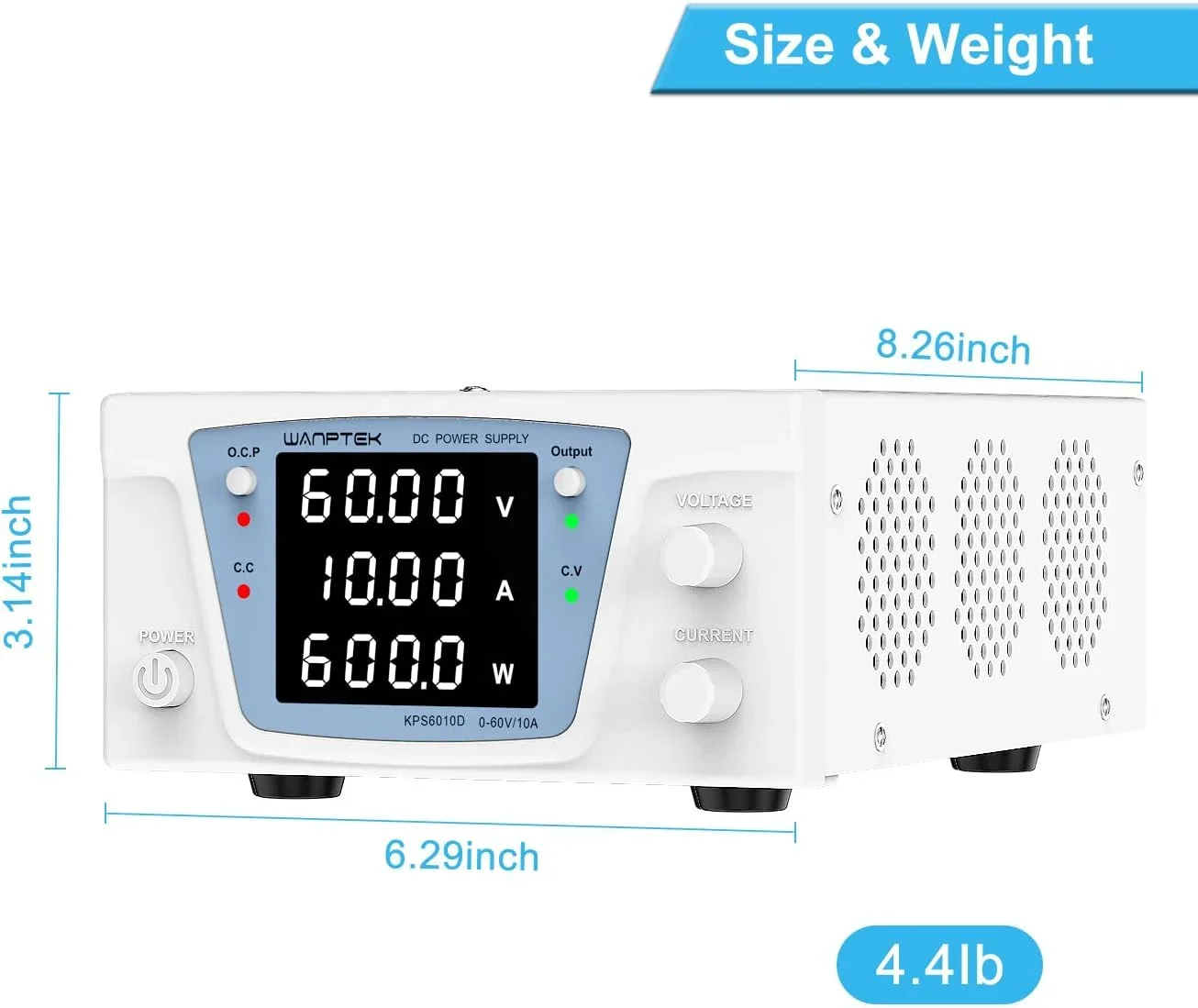

| Product Dimensions | 210 × 160 × 80 mm |
| Net Weight | 2 kg / 4.4 lb |
| Display | Four-digit digital tube |
| Display Parameters | Voltage & Current |
| Display Accuracy | 0.5% + 5 digits |
| Voltage Resolution | 0.01V |
| Current Resolution | 0.01A |
| Regulation Modes | CV / CC |
| Auxiliary Functions | Output switch & OCP short-circuit protection switch |
| Operating Temperature | 0°C–40°C |
| Operating Humidity | <80% RH |
| Storage Temperature | -10°C to 70°C |
| Storage Humidity | <70% RH |
| Cooling | Temperature-controlled fan |
| Protection | OVP, OCP, OPP, OTP & Short Circuit |
Constant Voltage (CV) Performance
| Parameter | Specification |
|---|---|
| Voltage Stability | ≤0.5% + 3mV |
| Load Stability | ≤0.5% + 3mV |
| Ripple Noise | ≤0.5% V P-P |
Constant Current (CC) Performance
| Parameter | Specification |
|---|---|
| Current Stability | ≤0.5% + 3mA |
| Load Stability | ≤0.5% + 3mA |
| Ripple Noise | ≤0.5% A P-P |

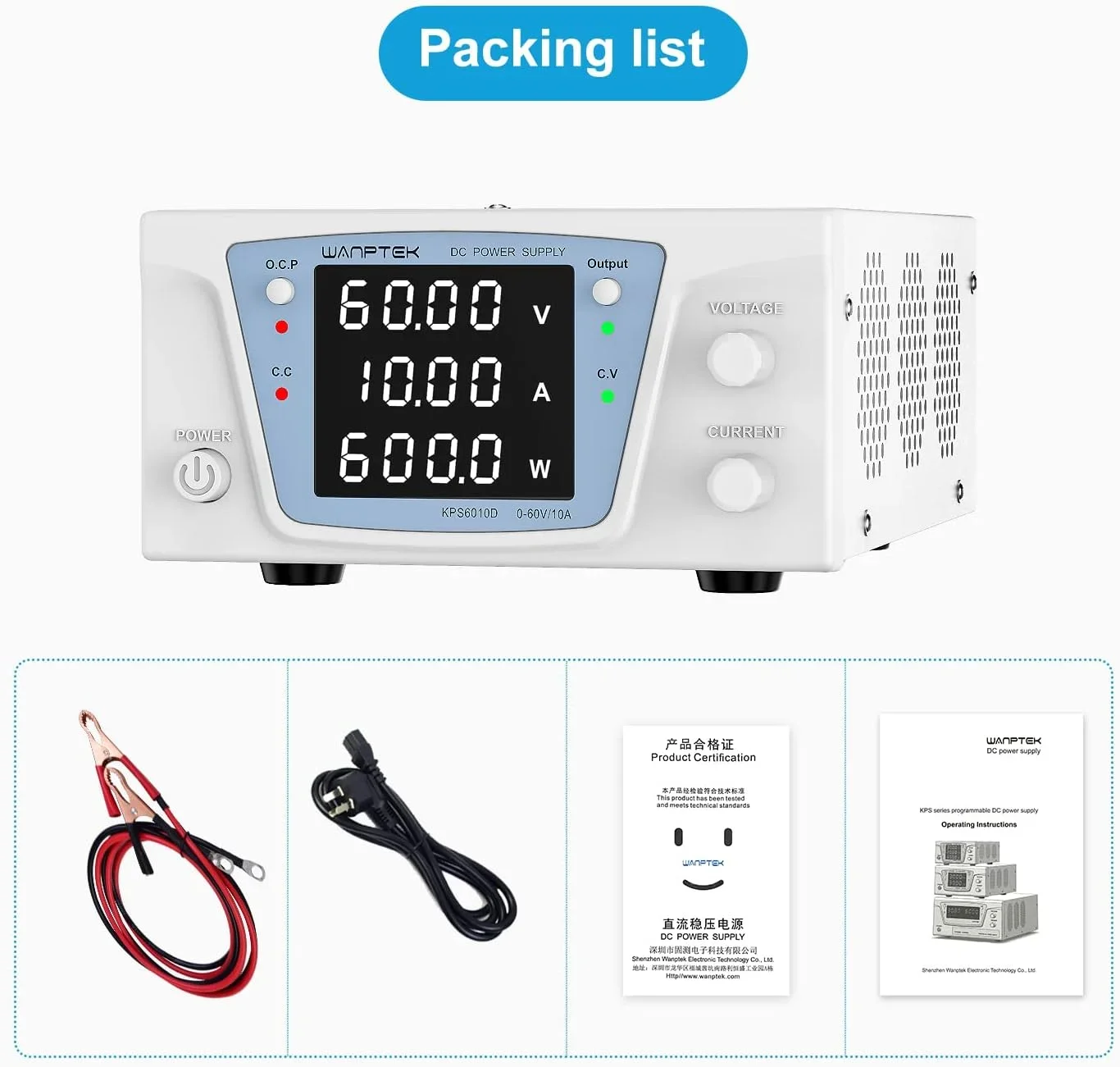

Package Includes
- 1 × KPS6010D Power Supply
- 1 × Power Cable
- 1 × Instruction Manual
- 2 × Output Terminals
- 1 × Product Quality Certificate
Packaging Details
- Gross Weight: 2.5 kg
- Package Size: 300 × 210 × 135 mm
