Description

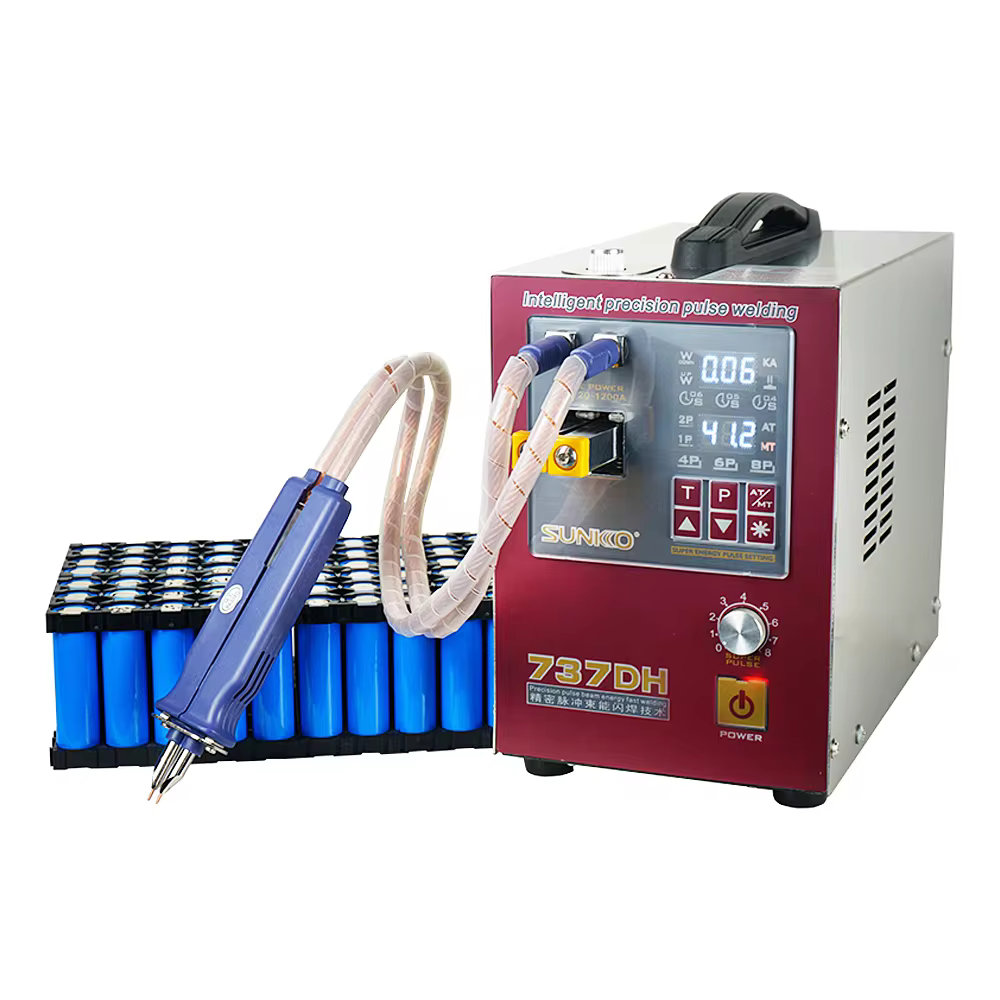

The SUNKKO 737DH 4.3KW Spot Welder is a multifunctional battery spot welding machine designed for precision welding applications, particularly for lithium battery pack assembly and repair. With adjustable welding power and multiple pulse modes, it provides greater control over welding different materials and thicknesses.
The machine features a delayed welding function with three adjustable power levels, allowing users to achieve precise and consistent welding results. Its induction-based automatic current release mode is suitable for battery pack welding, while the adjustable pulse power control helps accommodate different welding materials and thicknesses.
The SUNKKO 737DH supports 2, 4, 6, and 8 pulse selections, providing flexibility for different welding requirements. Welding current can be monitored through the built-in current display, allowing users to observe the output during operation.
It offers two welding configurations: a fixed welding head and a movable welding pen. An external foot pedal control can also be used to provide convenient hands-free operation and better control during repetitive welding tasks.
Key Features
- 4.3KW high-power spot welding machine
- Adjustable welding current from 120–1200A
- Dual-pulse precision welding capability
- 2, 4, 6, and 8 pulse selection
- Adjustable pulse duration for different welding requirements

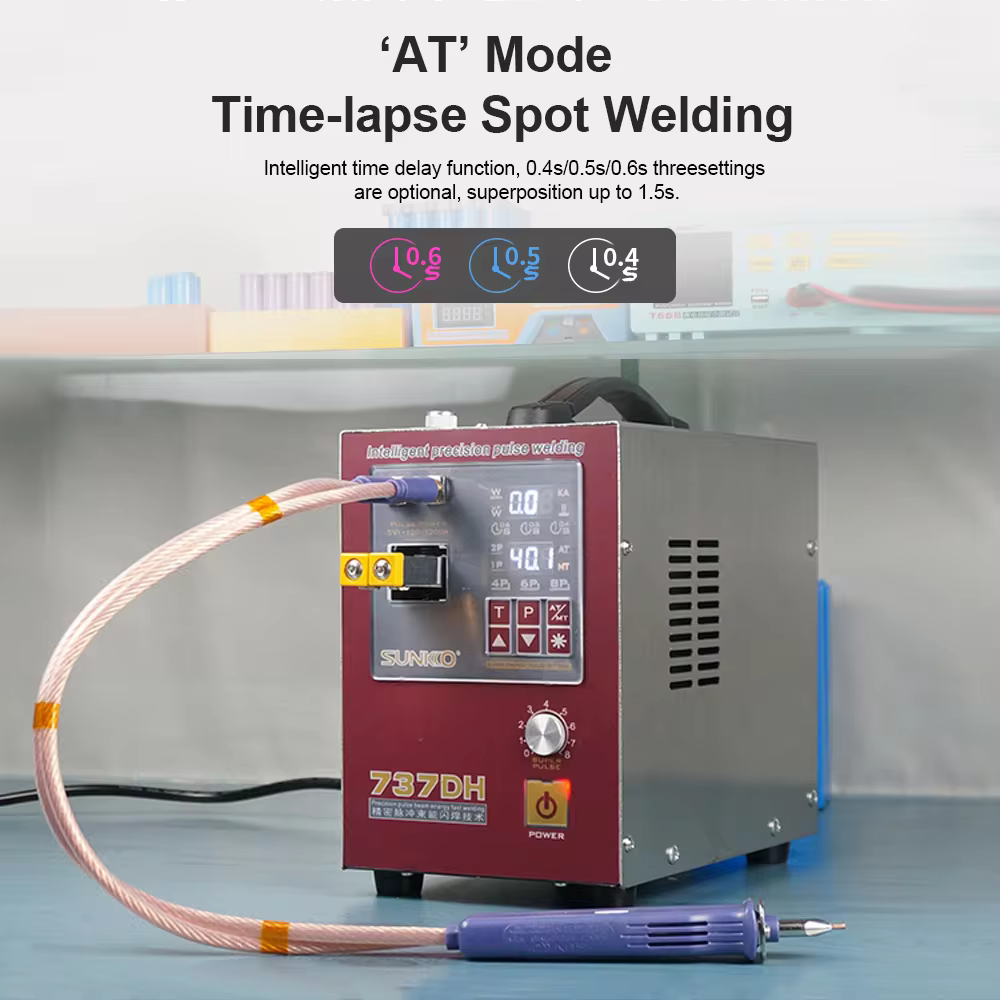

- Delayed welding function
- Three-level power adjustment
- Current output monitoring display
- Fixed welding head and movable welding pen

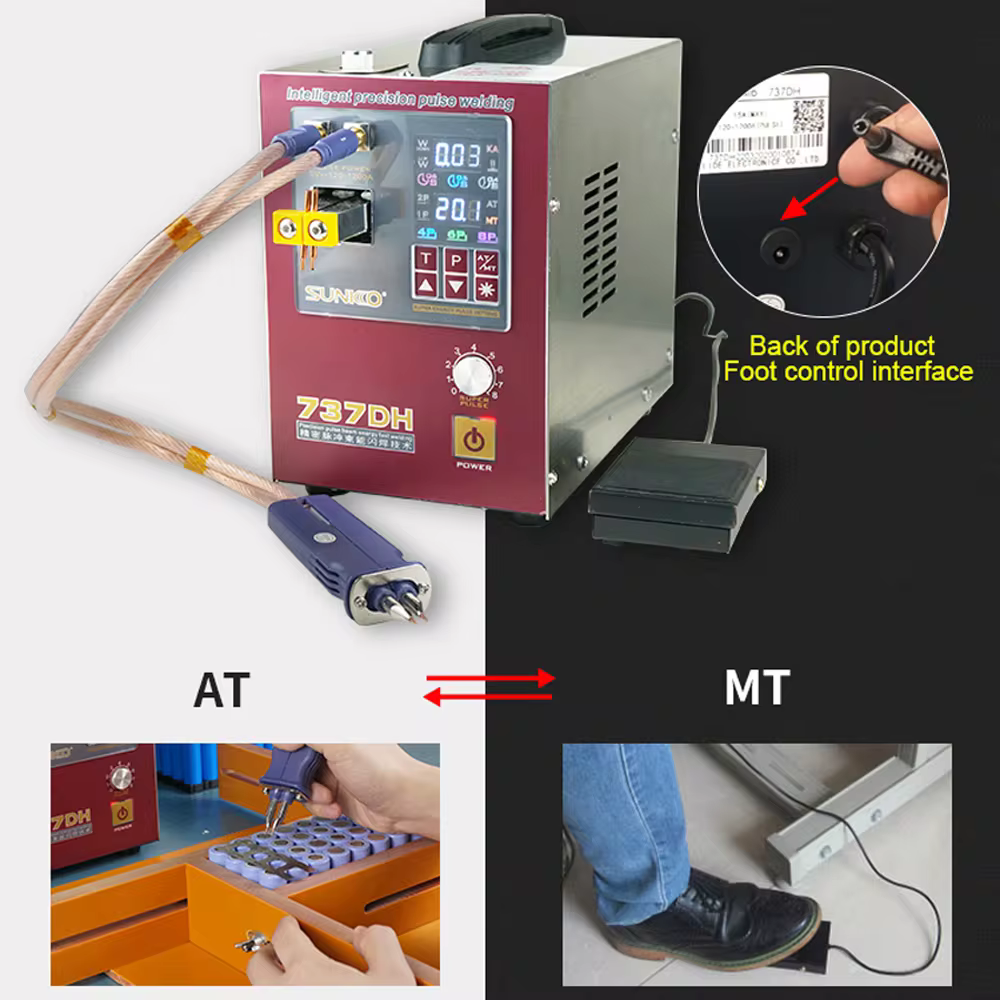

- External foot pedal control
- Adjustable welding-pin distance

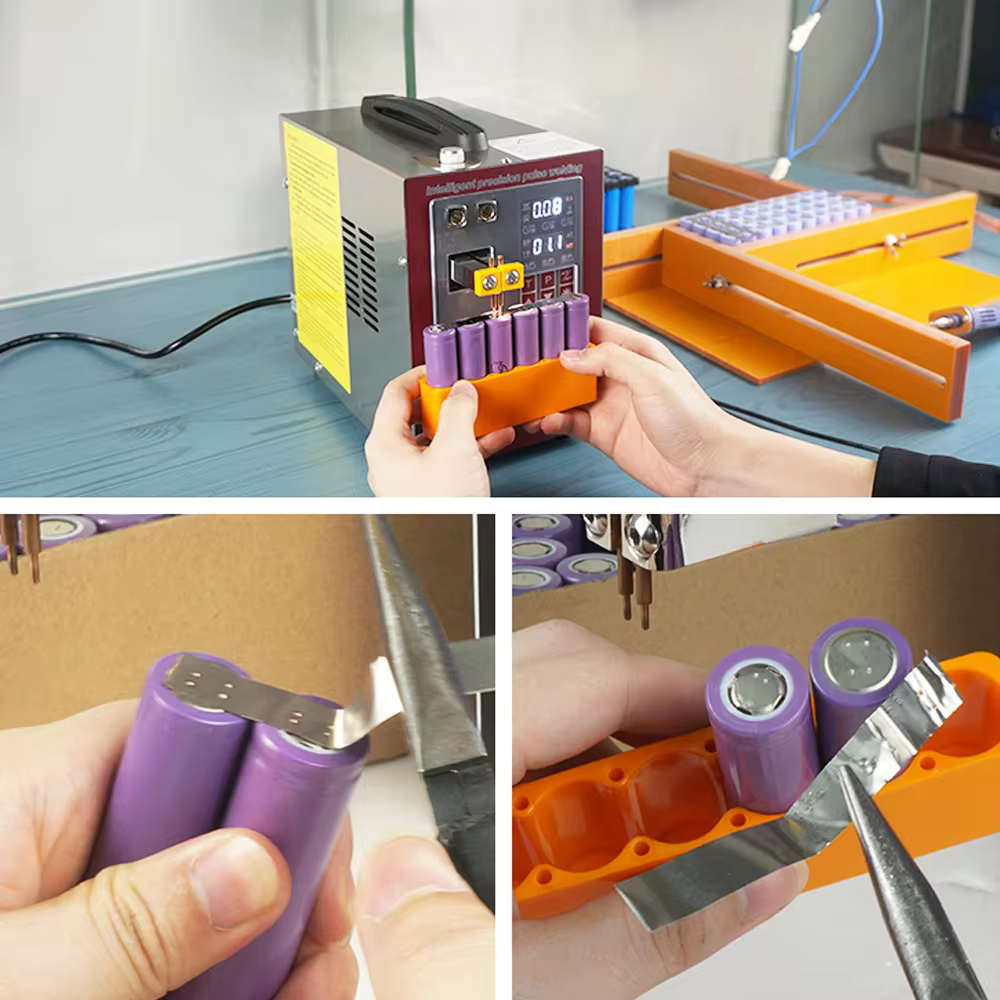

- Suitable for battery pack assembly and repair
- Designed for welding stainless steel, iron, nickel, and similar materials
- Suitable for 18650 and 14500 lithium battery pack applications
Technical Specifications
- Brand: SUNKKO
- Model: 737DH
- Type: Battery Spot Welder
- Welding Principle: Resistance Welding
- Spot Welding Current: 120–1200A
- Spot Welder Power: 4300W / 4.3KW
- Input Voltage: 220V AC
- 2-Pulse Time: 1–10ms
- 4-Pulse Time: 2–20ms
- 8-Pulse Time: 8–80ms
- Welding Pen Temperature: 150–450°C
- Fixed Welding Head Thickness: 0.05–0.25mm
- Adjustable Telescopic Arm Distance: 0.15–0.35mm
- Adjustable Welding Pin Distance: 2–7mm
- Welding Range: Stainless steel, iron, nickel, and similar materials
- Dimensions: 140 × 245 × 200mm
- Weight: 7kg
- Condition: New

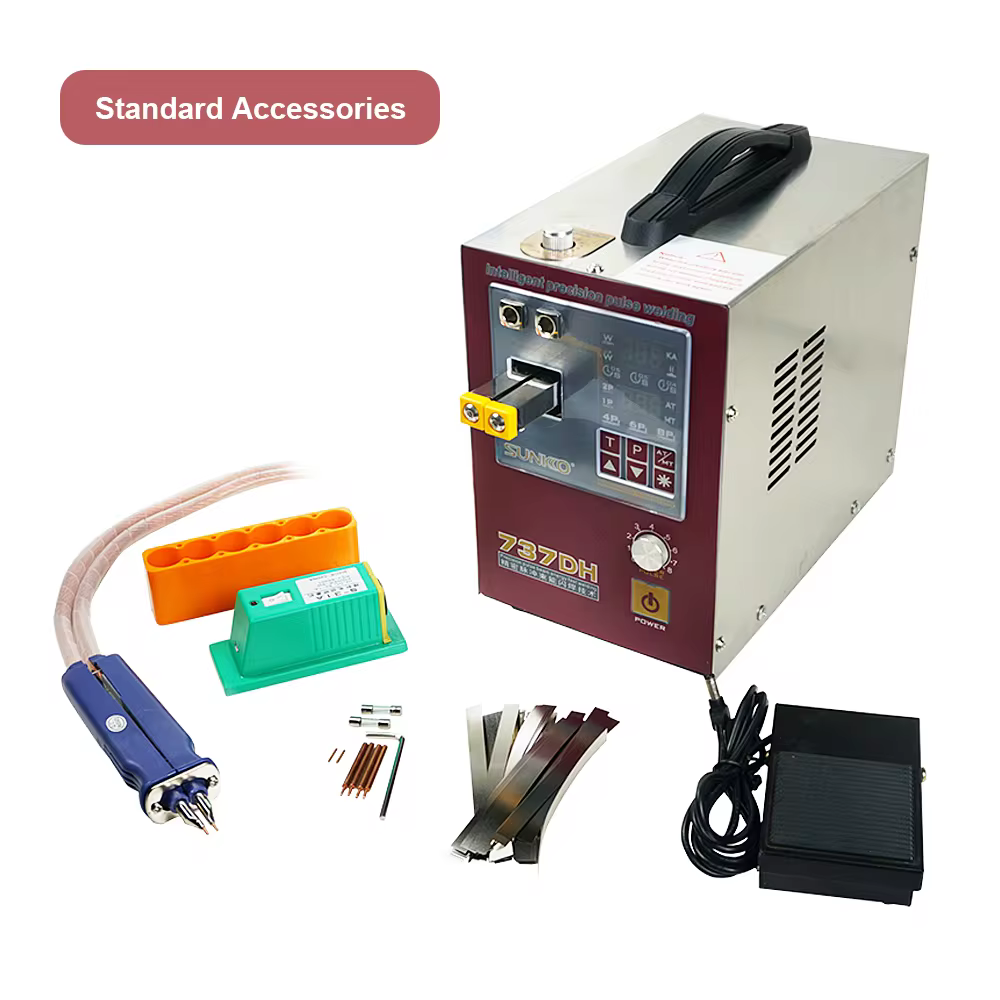

Package Includes
- 1 × SUNKKO 737DH Spot Welder
- 1 × Foot Pedal Control
- 1 × Battery Holder
- 4 × Welding Needles
- 1 × Hex Wrench
- 2 × Fuse Tubes
- 60 × 0.1 × 4 × 100mm Nickel-Plated Strips
- 1 × English Manual
