Description
The Titan TN-605D 60V 5A DC Laboratory Power Supply is a compact and durable regulated power supply designed for electronics testing, repair, servicing, and laboratory applications. Its adjustable voltage and current outputs provide precise control for powering and testing a wide range of electronic circuits and devices.

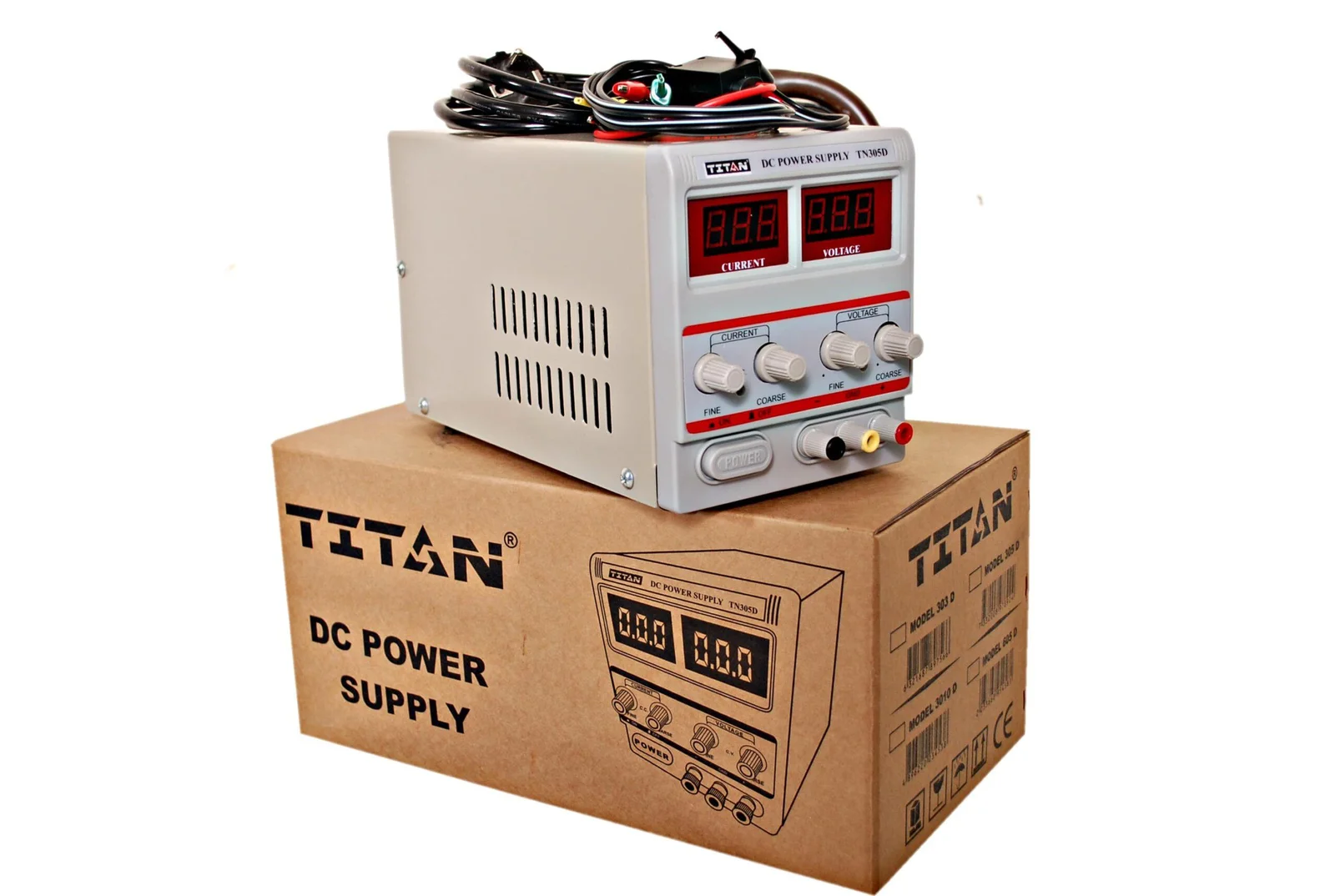

The unit features a clear dual LED digital display that allows users to monitor output voltage and current at a glance. Both voltage and current can be adjusted smoothly rather than through stepped settings, providing greater precision when working with sensitive electronic equipment.
The TN-605D supports both constant voltage (CV) and constant current (CC) operation, allowing it to adapt to different testing and power requirements. It also includes overcurrent, overload, and short-circuit protection to help safeguard the power supply and connected equipment.

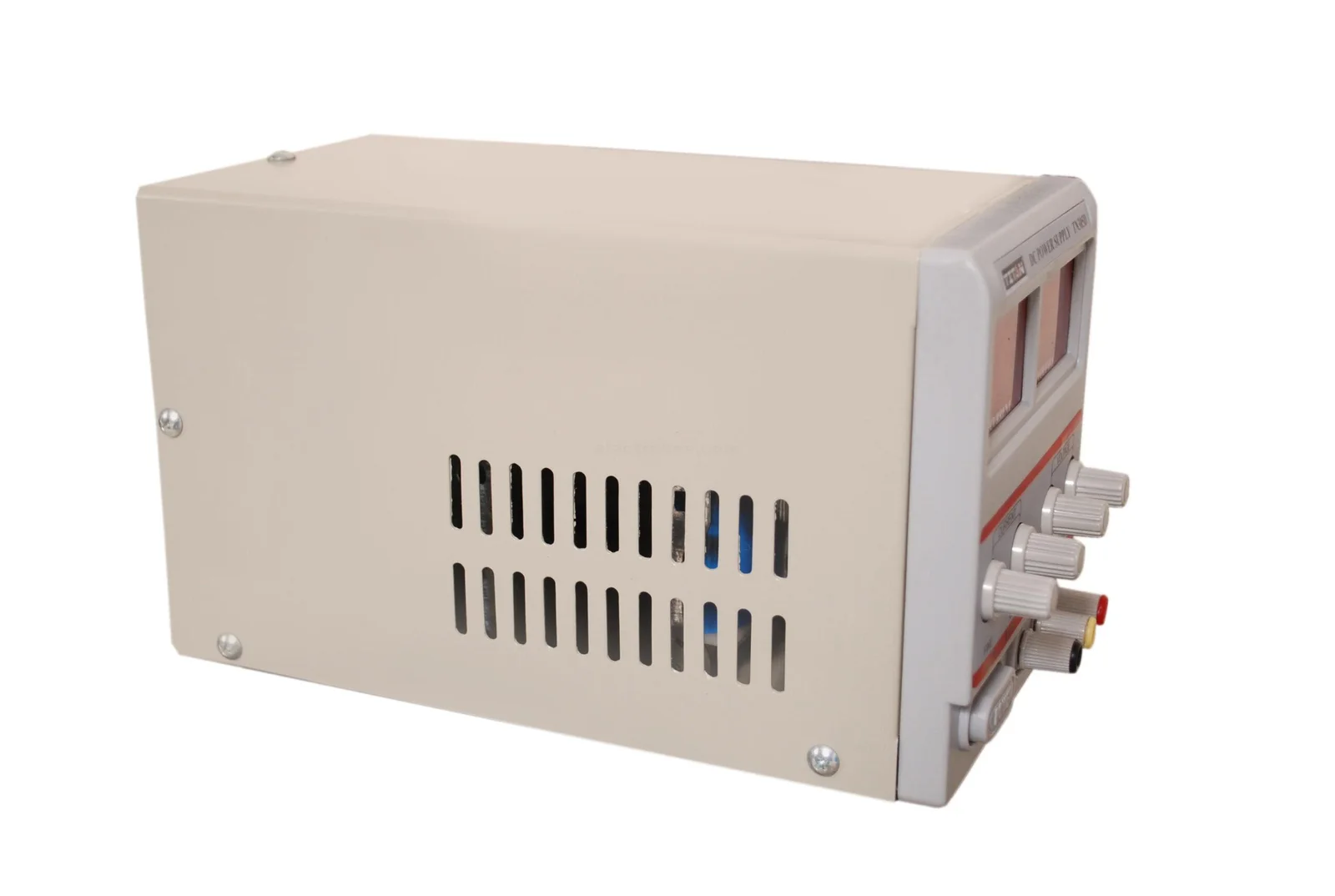

With its all-metal construction, stabilized output, and compact design, the Titan TN-605D is suitable for electronics repair shops, laboratories, educational institutions, DIY projects, and general bench testing.
Specifications
| Specification | Details |
|---|---|
| Brand | Titan |
| Model | TN-605D |
| Type | Regulated Variable DC Power Supply |
| Output Voltage | 0–60V |
| Output Current | 0–5A |

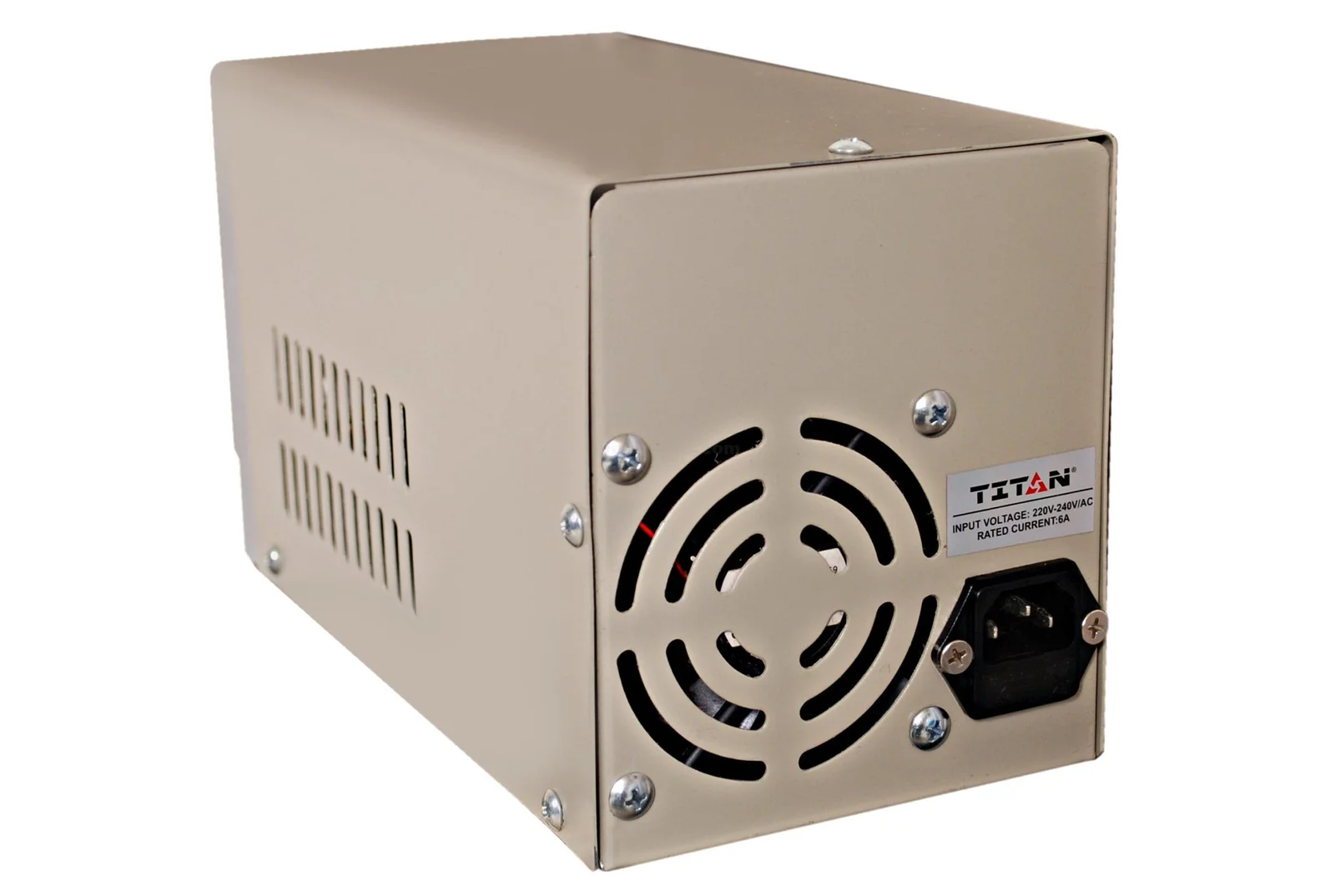

| Input Voltage | AC 220–240V |
| Frequency | 50/60Hz |
| Display | Dual LED Digital Display |
| Operating Modes | Constant Voltage (CV) / Constant Current (CC) |
| Voltage Adjustment | Smooth / Continuous |
| Current Adjustment | Smooth / Continuous |
| Voltage Stability | ≤0.01% + 2mV |
| Load Stability | ≤0.01% + 2mV |
| Recovery Time | ≤100µs |
| Voltage Ripple & Noise | ≤1mV RMS |
| Temperature Coefficient | ≤200 PPM/°C |
| Current Stability | 0.1% + 3mA |
| Current Load Stability | 0.2% + 3mA |
| Current Ripple & Noise | ≤2mA |
| Working Temperature | -10°C to 40°C |
| Working Humidity | <90% RH |
| Storage Temperature | -10°C to 40°C |
| Storage Humidity | <80% RH |
| Protection | Overcurrent, Overload & Short Circuit |
| Construction | All-Metal |
| Weight | Approx. 6.8kg |
Package Includes
- 1 × Titan TN-605D Variable DC Power Supply
- 1 × Power Cable
- 1 × Set of Probes
