Description

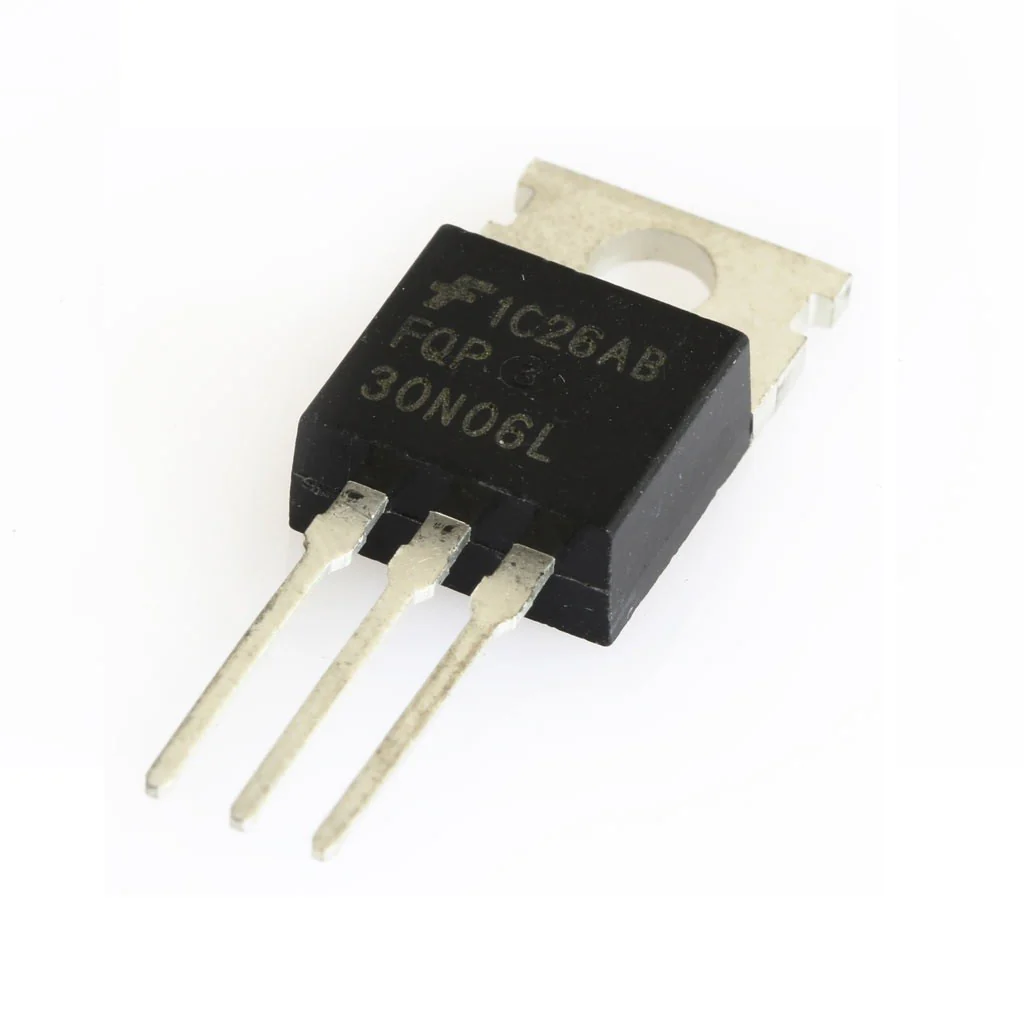

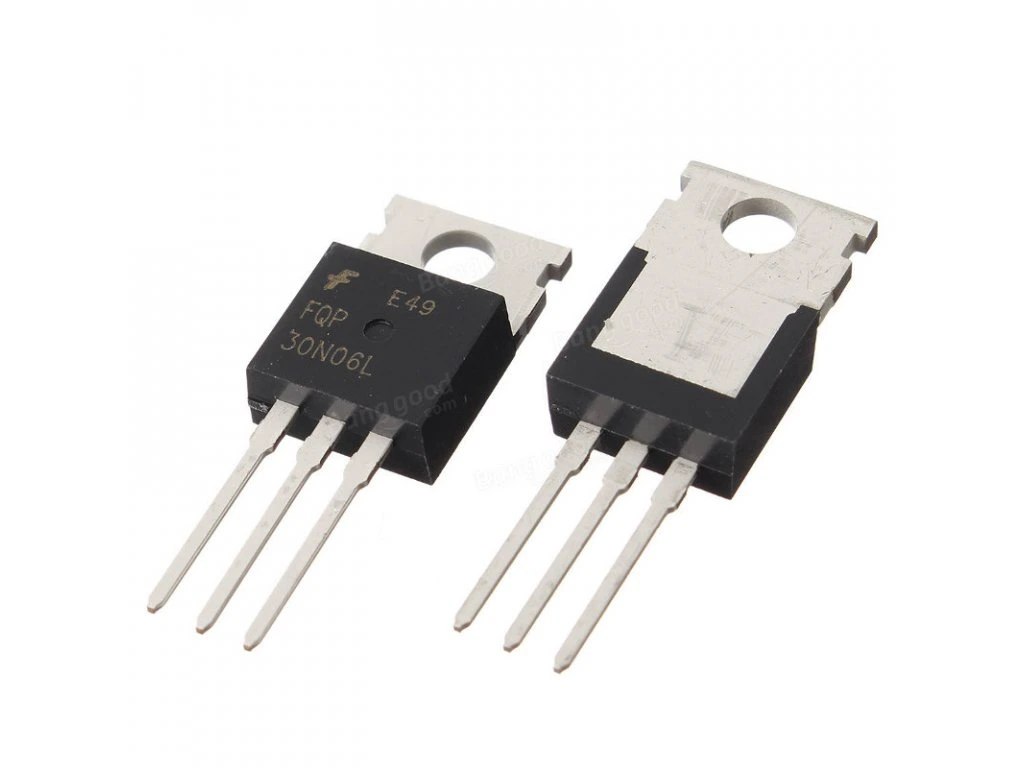

The FQP30N06 N-Channel Power MOSFET is a power semiconductor designed to switch electrical loads efficiently in DC circuits. Its low on-state resistance helps reduce conduction losses when the MOSFET is driven with an appropriate gate voltage. The TO-220 package makes it suitable for through-hole PCB mounting and heatsink installation.
This MOSFET can be used in motor drivers, LED lighting controllers, DC power switching, battery-powered projects, and other power electronics applications. It can be controlled by a microcontroller through a suitable gate-drive arrangement, but the gate voltage must be high enough to achieve the required low on-resistance.
Although the listing describes it as logic-level compatible, do not assume that every 5V control signal will allow 30A operation. The specified on-resistance is 35mΩ at a gate-source voltage of 10V, so performance at 5V should be verified from the exact manufacturer’s datasheet.
Key Features
- N-channel enhancement-mode power MOSFET
- Maximum drain-to-source voltage: 60V
- Listed continuous drain current: 32A under specified case-temperature conditions
- Maximum power dissipation: 79W with the case maintained at the specified temperature
- Listed on-resistance: 35mΩ at 16A and VGS = 10V
- TO-220-3 through-hole package
- Suitable for DC switching and power-control circuits
- Supports heatsink mounting for thermal management
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FQP30N06 |
| Component Type | N-Channel Power MOSFET |
| Drain-to-Source Voltage (VDS) | 60V |
| Continuous Drain Current (ID) | 32A at specified case-temperature conditions |
| On-Resistance (RDS(on)) | 35mΩ maximum, at 16A and VGS = 10V (listed) |
| Gate Threshold Voltage (VGS(th)) | 2.0–4.0V (listed) |
| Maximum Gate-to-Source Voltage (VGS) | ±20V |
| Gate Charge (Qg) | 20nC at VGS = 5V (listed) |
| Input Capacitance (Ciss) | 1040pF at VDS = 25V (listed) |
| Maximum Power Dissipation | 79W at specified case temperature |
| Junction Temperature Range | -55°C to +175°C (listed) |
| Mounting Type | Through-hole |
| Package | TO-220-3 |
| SKU | 1686-1 |
| Availability | Out of stock |
| Price | ₨ 80 |
