Description

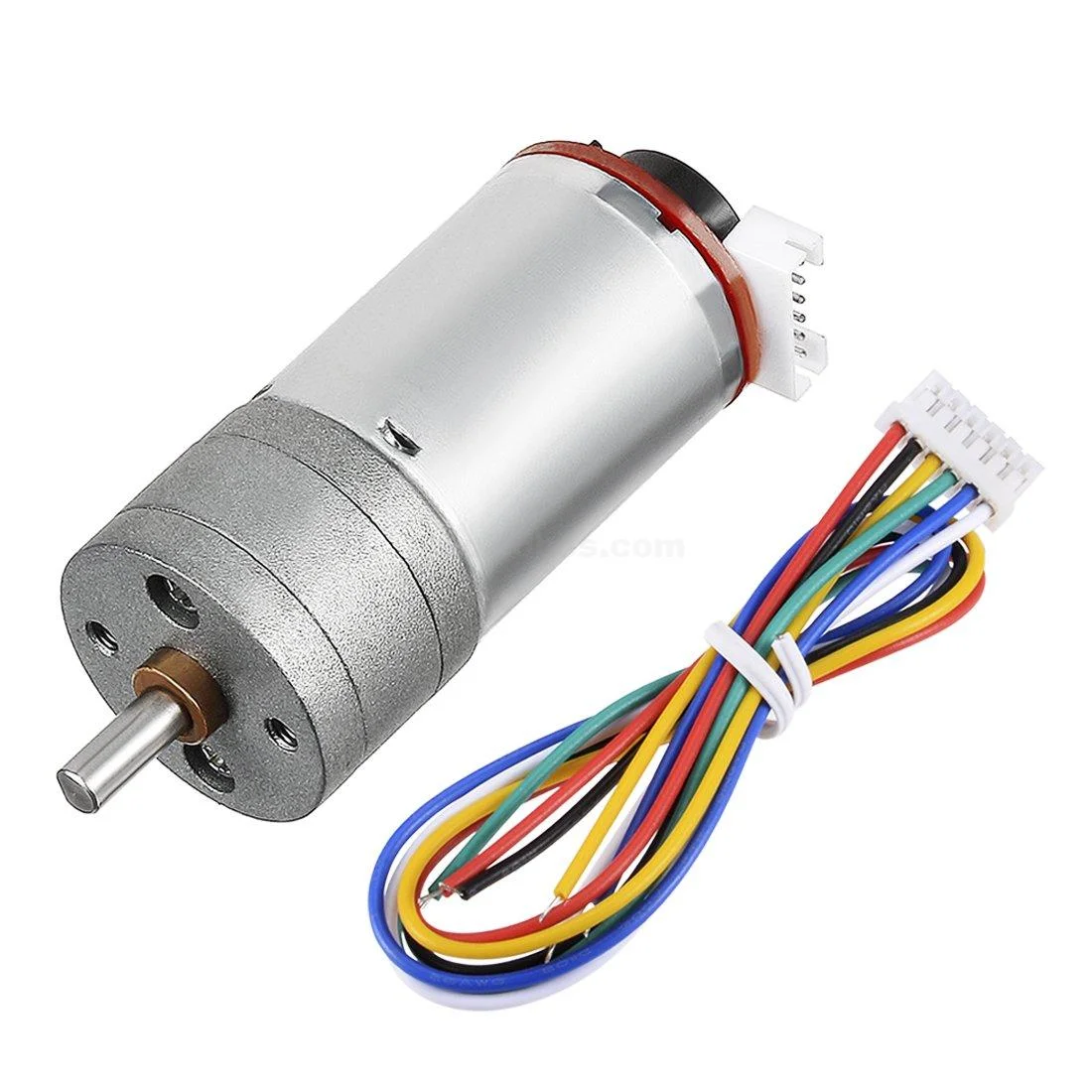

The JGA25-370 12V Gear Motor with Encoder combines a durable DC geared motor with a dual-phase Hall encoder for speed and position feedback. Its metal construction, low-noise operation, high torque, and long service life make it suitable for a wide range of robotic and automation applications.
The motor can operate across a 6–24V voltage range and provides approximately 280 RPM at 12V. The integrated encoder provides feedback signals for applications requiring controlled speed, direction, and movement.
Features
- Dual-phase Hall encoder
- Metal gear motor construction
- High torque output
- Low-noise operation
- Long service life
- Stable and reliable performance
- Reversible motor rotation
- 11-line encoder resolution
- Suitable for robots, smart cars, tracking vehicles, and automation projects
- Ideal for camera platforms and other precision motion applications
Specification
- Model: JGA25-370
- Motor Type: DC Gear Motor with Encoder
- Material: Metal
- Color: Silver
- Rated Voltage: 12V DC
- Voltage Range: 6–24V DC
- Speed at 12V: 280 RPM
- Speed at 9V: 210 RPM
- Speed at 14V: 325 RPM
- No-Load Speed: 201 RPM
- Load Speed: 168 RPM
- No-Load Current: 46mA
- Load Current: 300mA
- Stall Current: 1A
- Motor Diameter: 25mm
- Shaft Diameter: 4mm
- Shaft Length: 12mm
- Encoder Resolution: 11 lines
- Encoder Voltage: 3.3–6V
- Gross Weight: Approx. 100g

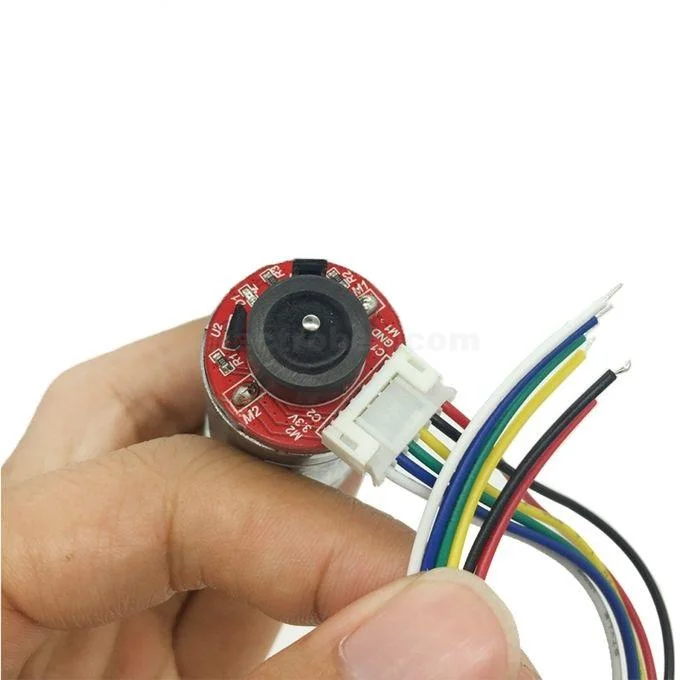

Encoder Connection
- Red: Motor power positive (+)
- Black: Encoder power negative (−)
- Yellow: Encoder signal feedback
- White: Encoder GND
- Green: Encoder power positive (+)
Package Includes
- 1 × JGA25-370 Encoder Gear Motor
