Description

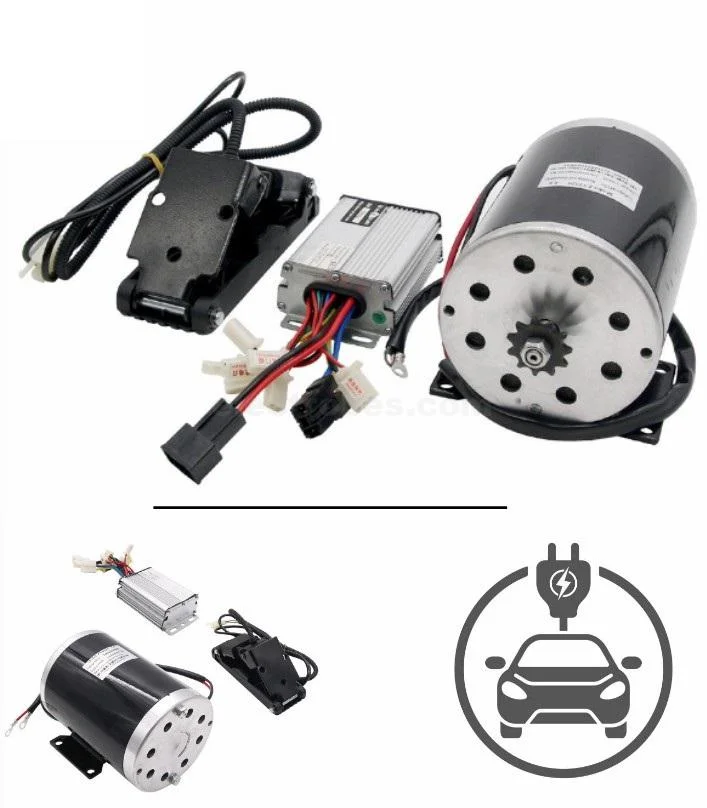

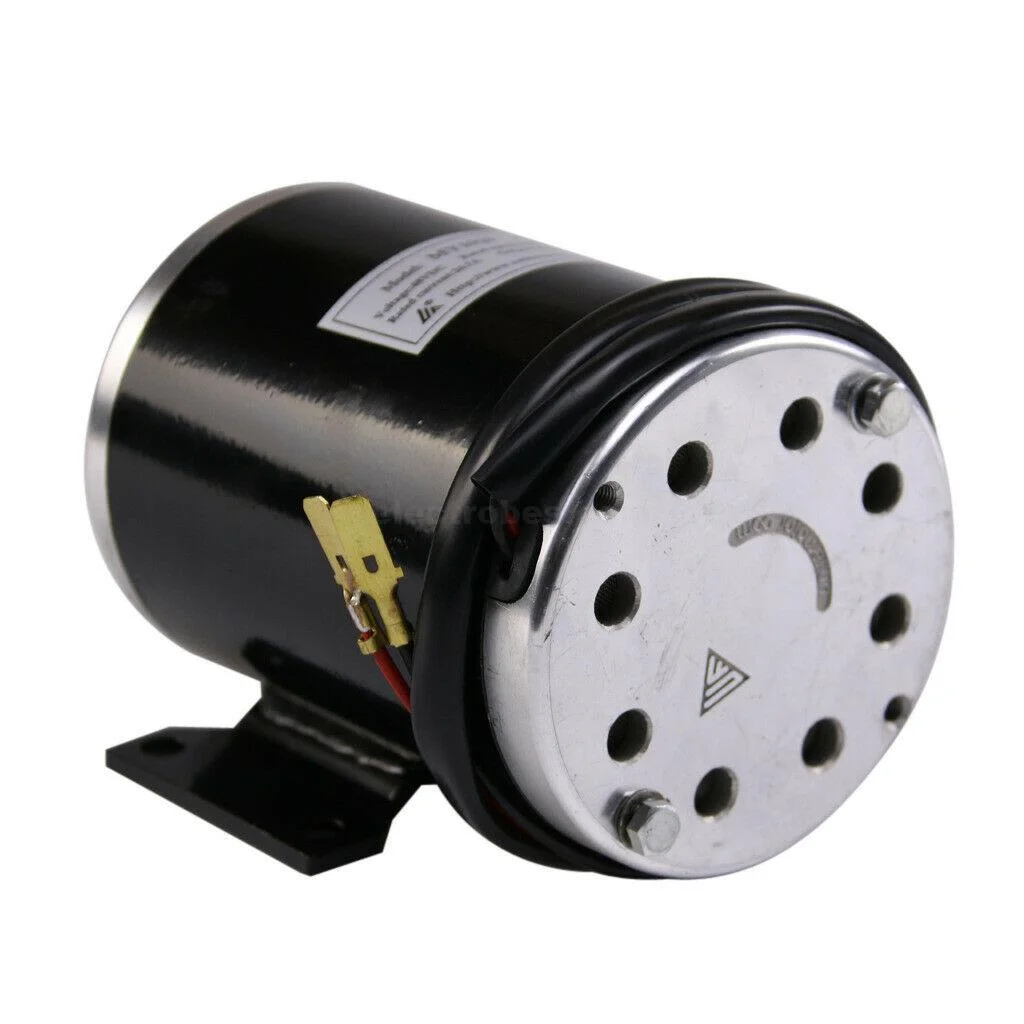

The MY1020 48V 1000W Brushed DC Motor Kit is designed for electric mobility and DIY vehicle projects requiring reliable power and speed control. The motor delivers up to 1000W of power and a rated speed of 3000 RPM, making it suitable for go-karts, electric scooters, mini quad bikes, and custom electric bicycles.

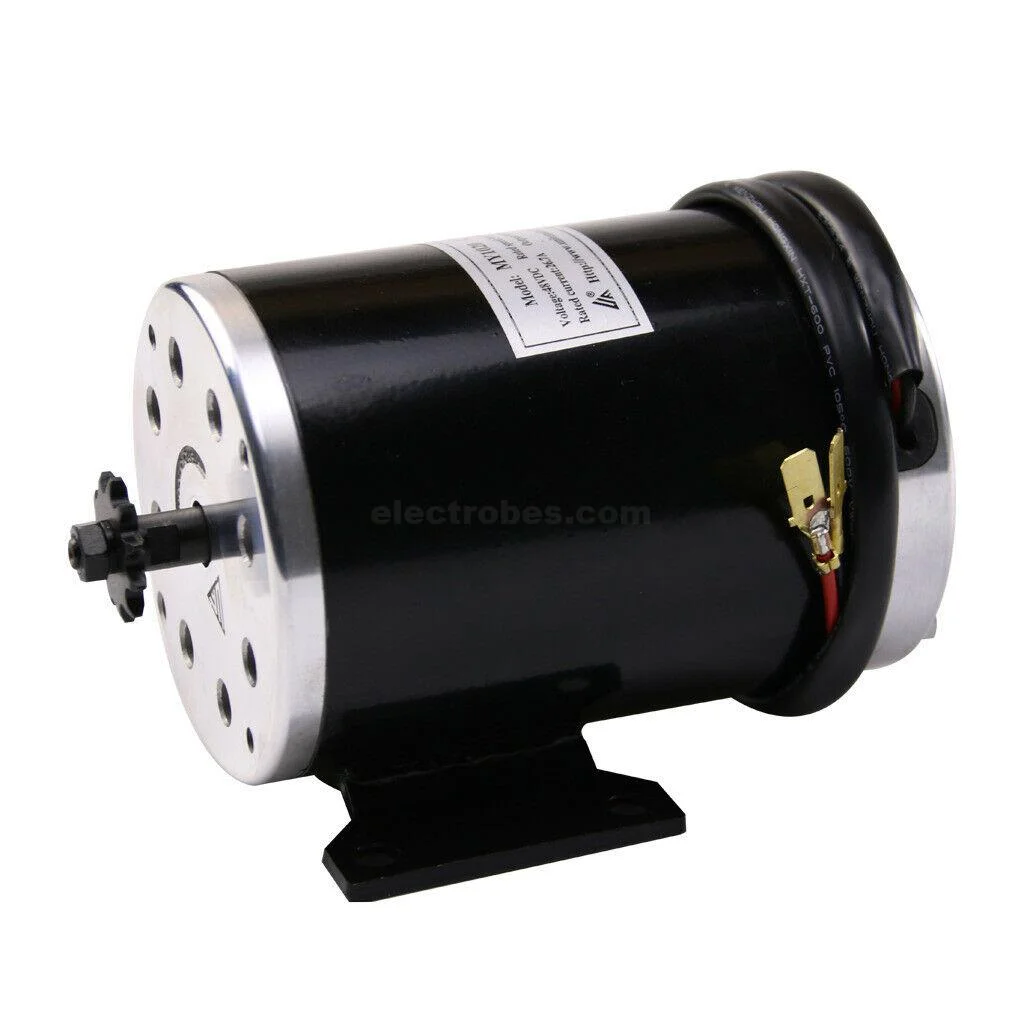

The motor uses a permanent magnet brushed DC design and features a 9-tooth sprocket compatible with T8F chain systems. The included speed controller and foot pedal throttle provide a convenient setup for controlling the motor in compatible applications.
Features
- MY1020 / ZY1020 brushed DC motor
- 48V DC operating voltage
- 1000W maximum power
- Rated speed of 3000 RPM
- 9-tooth sprocket for T8F chain
- Permanent magnet motor design
- Reversible rotation
- Includes speed controller
- Includes foot pedal throttle
- 12-gauge motor leads
- Suitable for electric vehicle conversion projects
- Designed for go-karts, scooters, mini quad bikes, and electric bikes
Specification

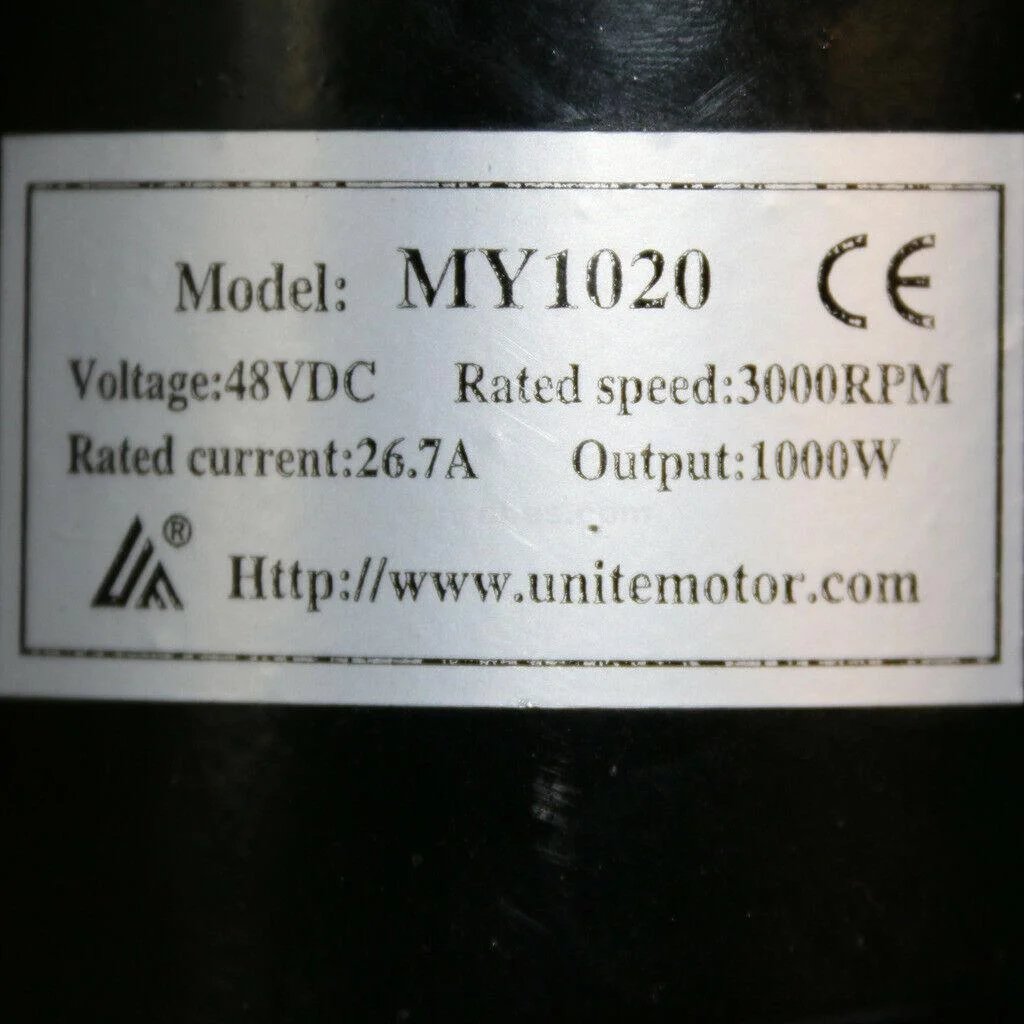

- Model: MY1020 / ZY1020
- Motor Type: Brushed DC Motor
- Voltage: 48V DC
- Power: 1000W
- Rated Speed: 3000 RPM
- Rated Current: 26.7A
- Supply Current: Approximately 20.8A
- Sprocket: 9-tooth
- Chain Compatibility: T8F chain
- Chain Type: #25 chain
- Chain Pitch: 6.35mm
- Motor Diameter: Approximately 4.25 inches
- Length Without Shaft: Approximately 6.25 inches
- Length With Shaft: Approximately 7.25 inches
- Leads: 12-gauge
- Motor Construction: Permanent magnet
- Direction: Reversible
Applications
- Electric go-karts
- Electric scooters
- Electric bicycles
- Mini quad bikes
- DIY electric vehicles
- Custom motorized projects
Package Includes
- 1 × 48V 1000W DC Brushed Electric Motor with Base
- 1 × Speed Controller
- 1 × Foot Pedal Throttle
