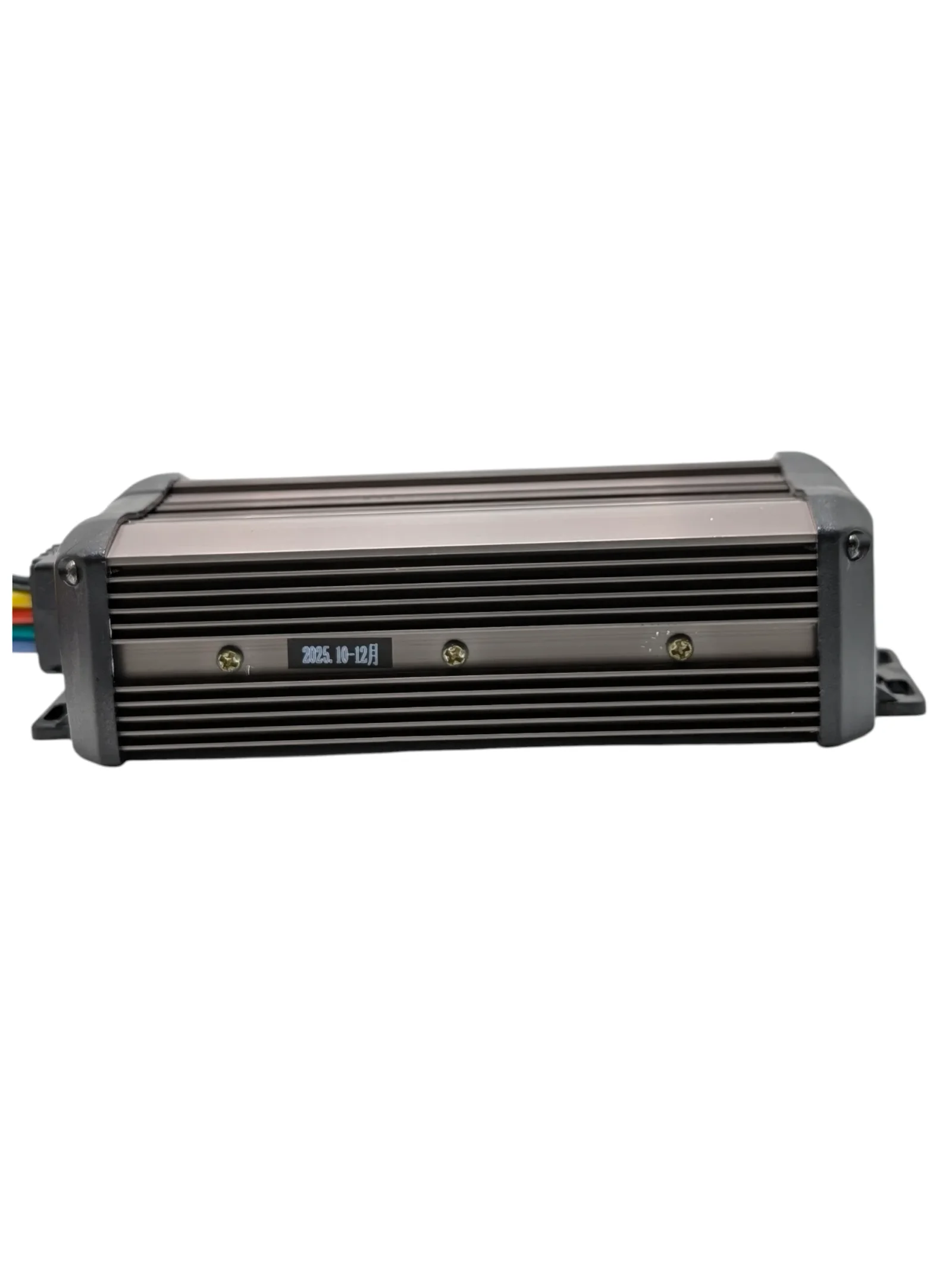

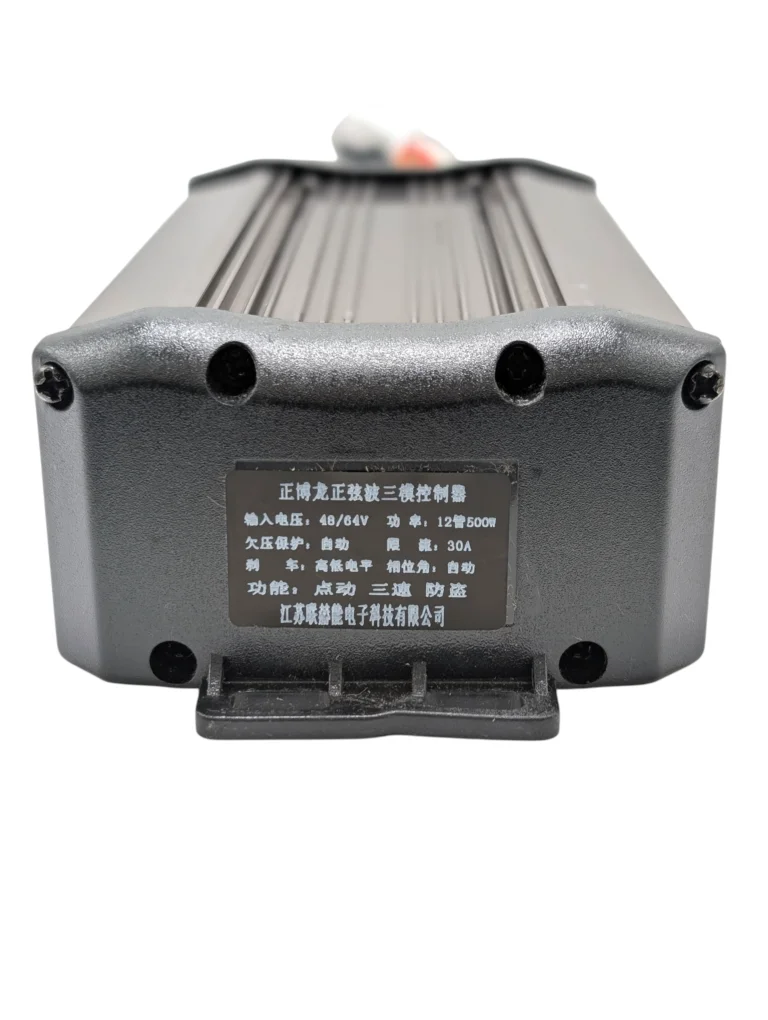

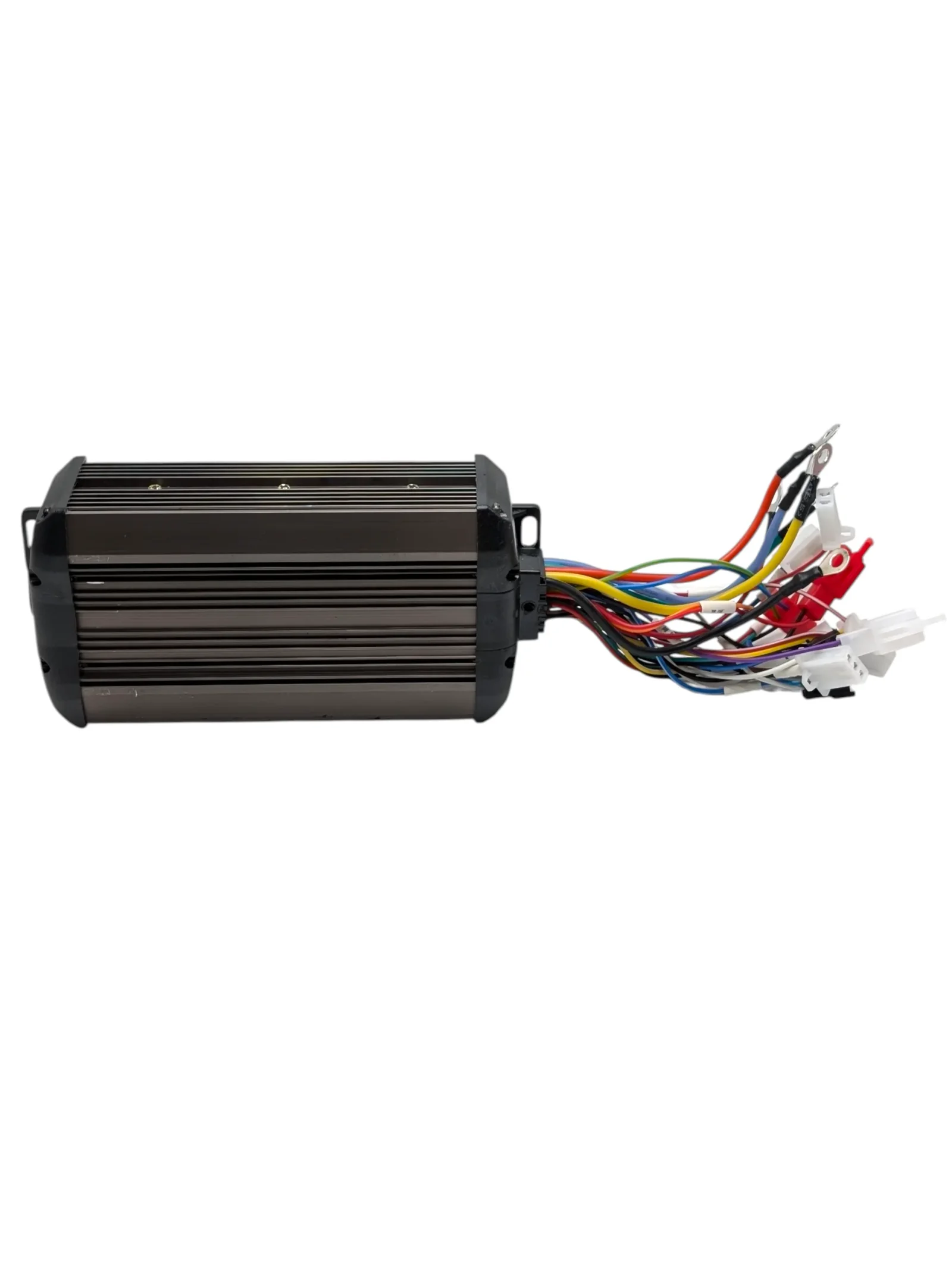

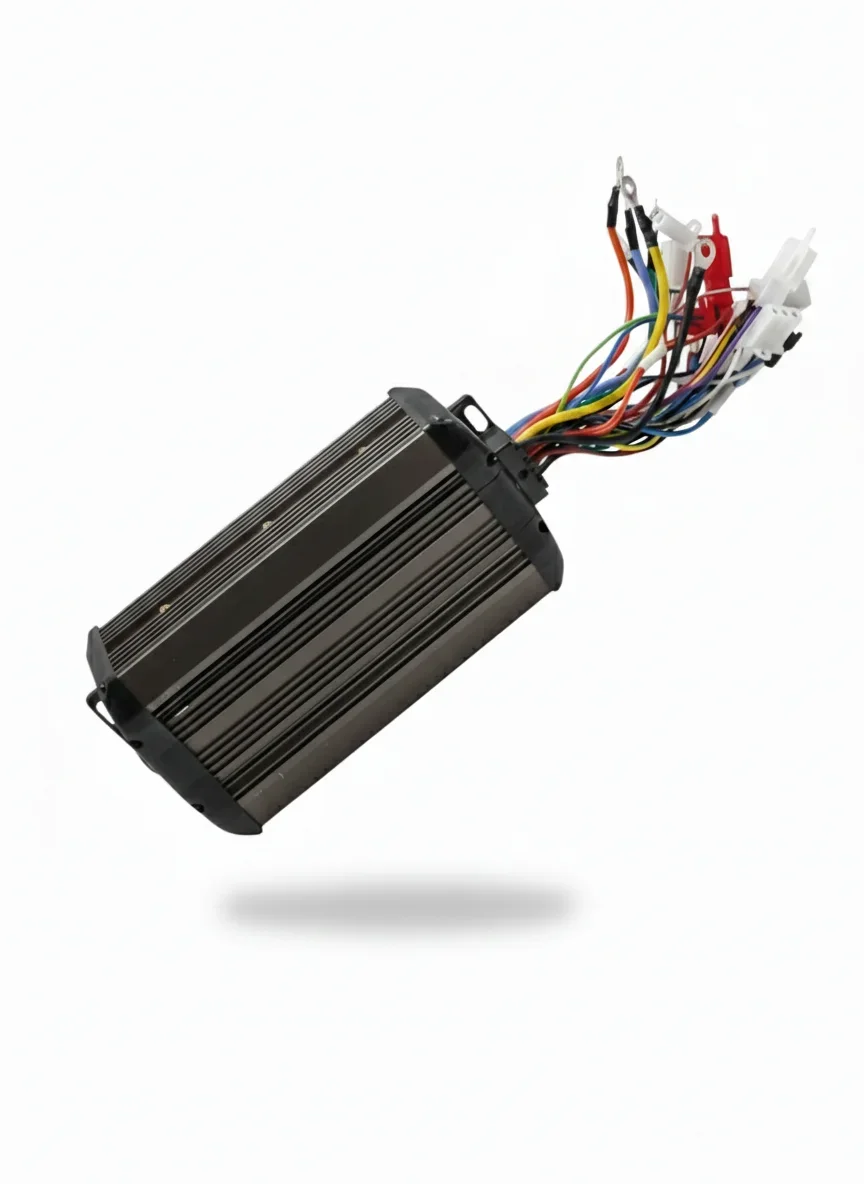

The DC 48–64V 500W Brushless Motor Controller is a reliable and efficient control unit designed for electric bicycles, e-bikes, electric scooters, and other compatible light electric vehicles. It provides smooth motor operation, stable power delivery, and reliable speed control for brushless DC (BLDC) motors.
This controller is suitable for 500W brushless motor systems and supports Hall sensor-based motors for accurate and stable operation. Its compact design and standard connections make it suitable as a replacement or upgrade controller for compatible electric drive systems.
The controller is equipped with 12 MOS tubes for efficient motor control and features natural cooling to help manage operating temperature. Built-in protection features provide additional reliability during everyday use.
Features
- Designed for 500W brushless motors
- Suitable for electric bicycles and scooters
- Compatible with Hall sensor brushless motors
- Supports 48–64V DC systems
- 12 MOS tubes
- Smooth and stable motor operation
- Low-noise performance
- Easy to install
- Compact design
- Natural cooling
- Durable construction
- Long service life
Operation Notice
- Connect the power, motor, throttle, and power-lock wires without connecting the Hall sensor wires initially.
- Connect the adaptive-learning wires.
- Switch on the power lock and slowly operate the throttle.
- If the motor operates correctly, connect the Hall sensor wires.
- If the motor rotates in the wrong direction, disconnect the adaptive-learning wire and check the motor operation again before connecting the Hall sensor wires.
Package Includes
- 1 × Brushless Motor Controller
Specification
- Product Type: Brushless Motor Controller
- Input Voltage: DC 48–64V
- Rated Power: 500W
- Motor Type: Brushless DC (BLDC)
- Motor Support: Hall Sensor Type
- Rated Current: Approx. 20–30A
- Throttle Type: Hall Throttle Compatible
- Throttle Voltage: 1–4.2V
- Phase Angle: 60° / 120°
- Brake Level: Low / High
- Under-Voltage Protection: 41V
- Efficiency: ≥85%
- Control Method: PWM / Vector Control, depending on model
- Protection Features: Over-current, over-voltage, and short-circuit protection
- Cooling Method: Natural Air Cooling
- Housing Material: Aluminum Alloy
- Operating Temperature: -20°C to +60°C
- Protection Grade: IP55
- Installation: External Mounting
- Dimensions: Approx. 103 × 70 × 35 mm
- MOS Tubes: 12
- Applications: E-Bike, Electric Bicycle, Electric Scooter
- Condition: Brand New
Note
Please allow a 0–1 cm measurement difference due to manual measurement. Product color may appear slightly different depending on your monitor or display settings.
