Description

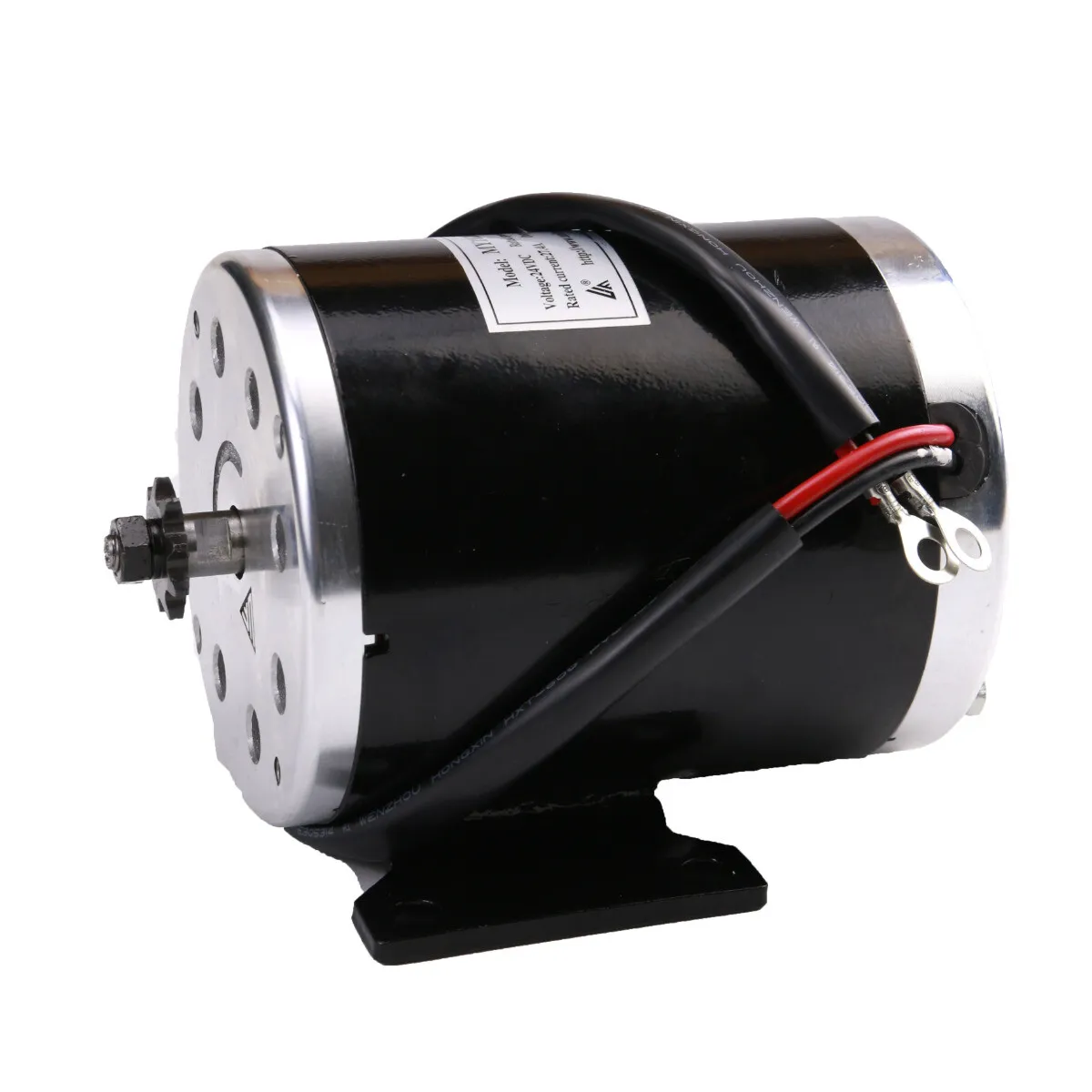

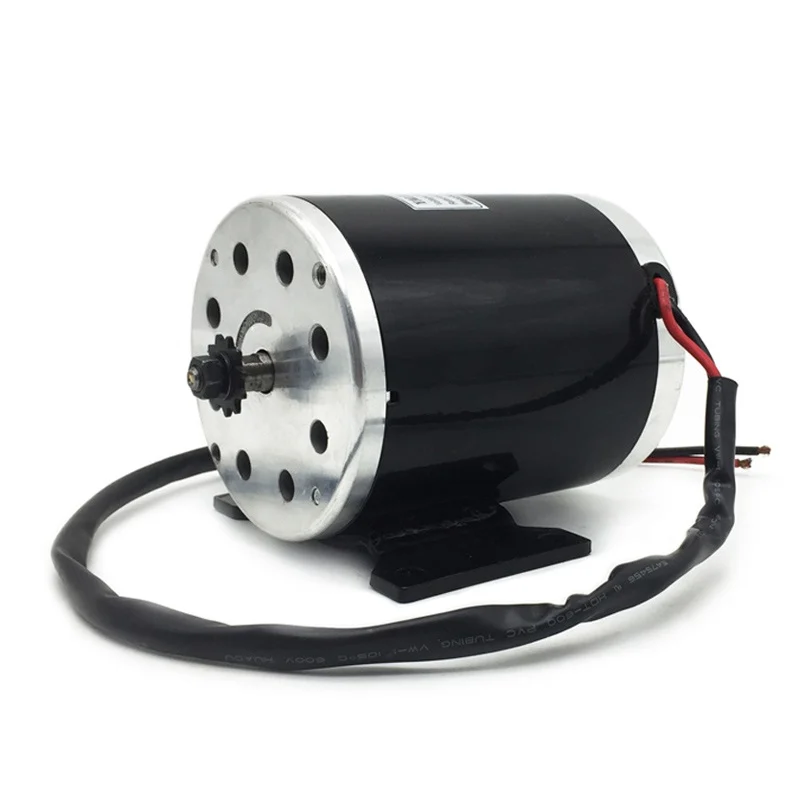

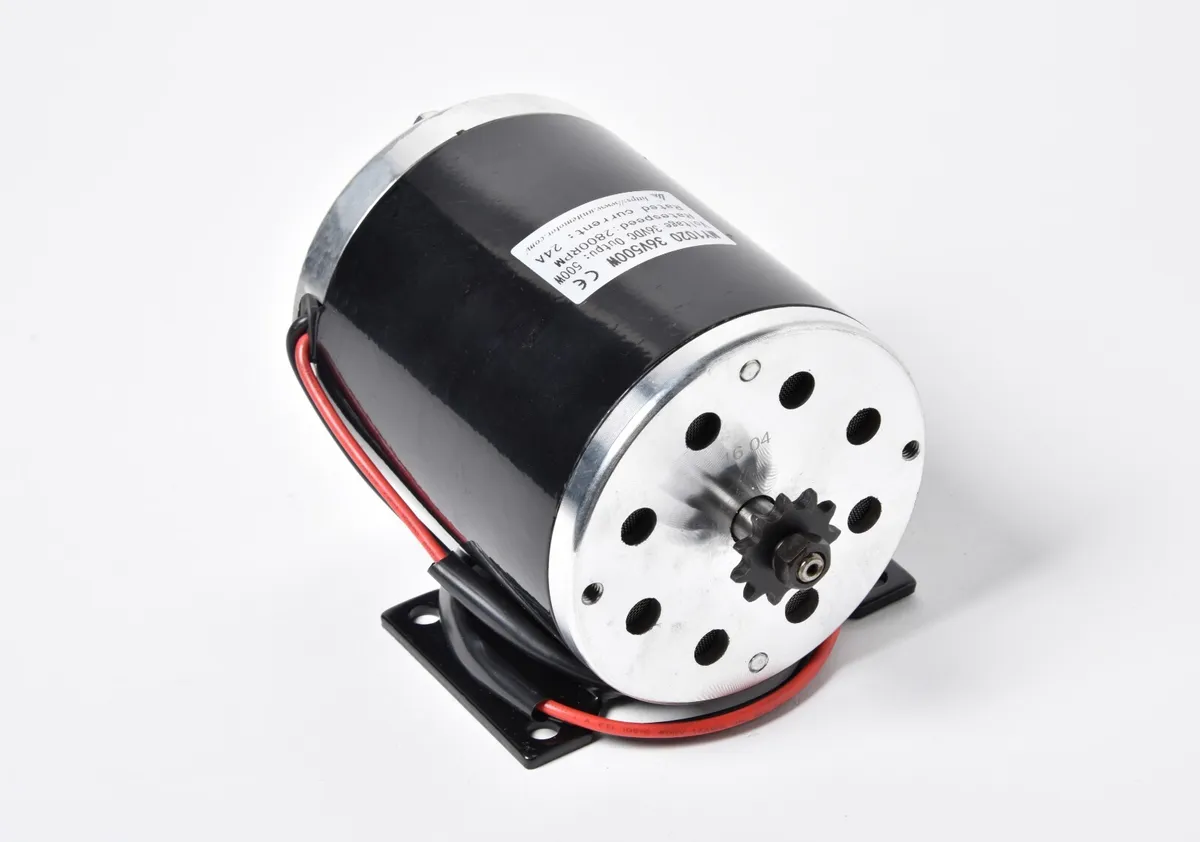

The MY1020 24V 500W Brushed DC Electric Motor is a high-performance permanent-magnet motor suitable for electric bikes, scooters, mini bikes, go-karts, and other DIY electric vehicle applications. Its robust construction and reversible operation make it a versatile choice for both replacement and custom electric drive projects.
The motor delivers up to 500W of power with a rated speed of 2500 RPM under load and up to 3000 RPM without load. It comes with an 11-tooth sprocket compatible with a #25 chain with 6.35 mm pitch, making it suitable for chain-driven applications.
Features
- 500W high-power brushed DC motor
- 24V DC operating voltage
- Permanent magnet motor design
- Reversible rotation
- 2500 RPM rated speed under load
- Up to 3000 RPM no-load speed
- 11-tooth sprocket for #25 chain
- 6.35 mm chain pitch
- Suitable for electric bikes, scooters, mini bikes, and go-karts
- Suitable for replacement and DIY electric vehicle projects
Specification
- Model: MY1020
- Motor Type: Brushed DC Motor
- Rated Voltage: 24V DC
- Rated Power: 500W
- Rated Current: 26.7A
- Loaded Current: 26.7A
- No-Load Current: 2.5A
- Rated Speed with Load: 2500 RPM
- No-Load Speed: 3000 RPM
- Torque: 1.91 Nm
- Efficiency: Greater than 75%
- Sprocket: 11 Teeth
- Chain Compatibility: #25 Chain
- Chain Pitch: 6.35 mm
- Reversible: Yes
- Motor Construction: Permanent Magnet
- Lead Wires: 12 Gauge
- Weight: Approx. 4.1 kg
- Condition: New
Package Includes
- 1 × MY1020 24V 500W Brushed DC Electric Motor
