Description

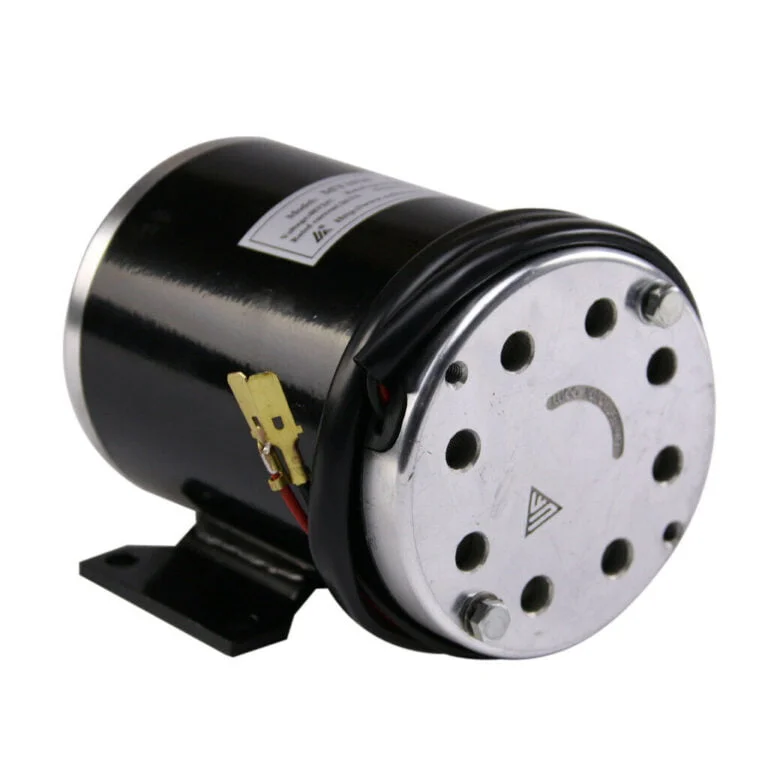

The MY1020 48V 1000W Brushed DC Electric Motor is a heavy-duty permanent-magnet motor designed for electric mobility and DIY conversion projects. It can be used with suitable controllers and throttles in electric scooters, mini bikes, quad bikes, go-karts, and custom electric bicycles.
With a 1000W maximum output, 48V DC operating voltage, and up to 3000 RPM, this motor provides strong performance for chain-driven electric vehicle applications. Its reversible design allows the direction of rotation to be changed according to the requirements of the setup.
Features
- 1000W high-power brushed DC motor
- 48V DC operating voltage
- Maximum speed up to 3000 RPM
- Reversible rotation
- Permanent magnet construction
- Heavy-duty design for electric vehicle applications
- 12-gauge motor leads

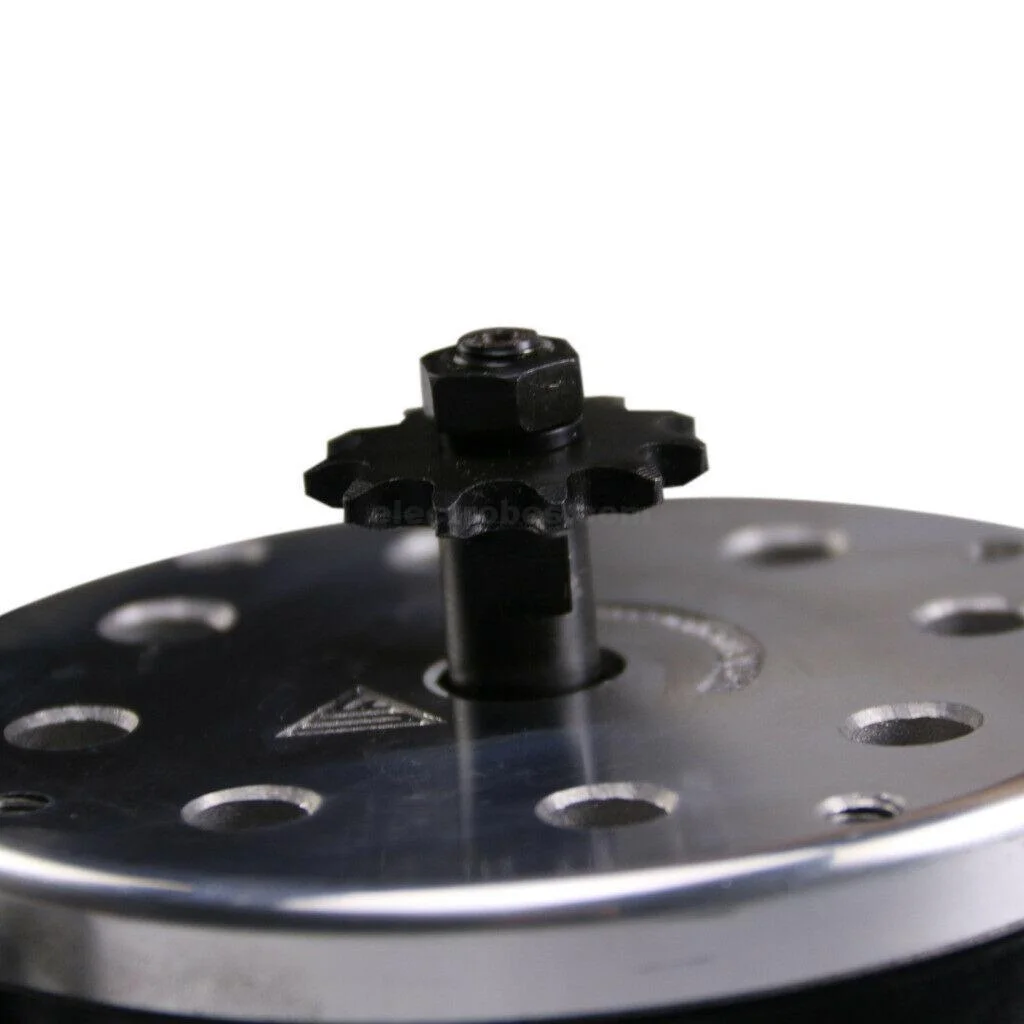

- 25H-11T chain-drive sprocket
- Suitable for e-bikes, electric scooters, mini bikes, quads, and go-karts
- Suitable for DIY electric vehicle conversion projects

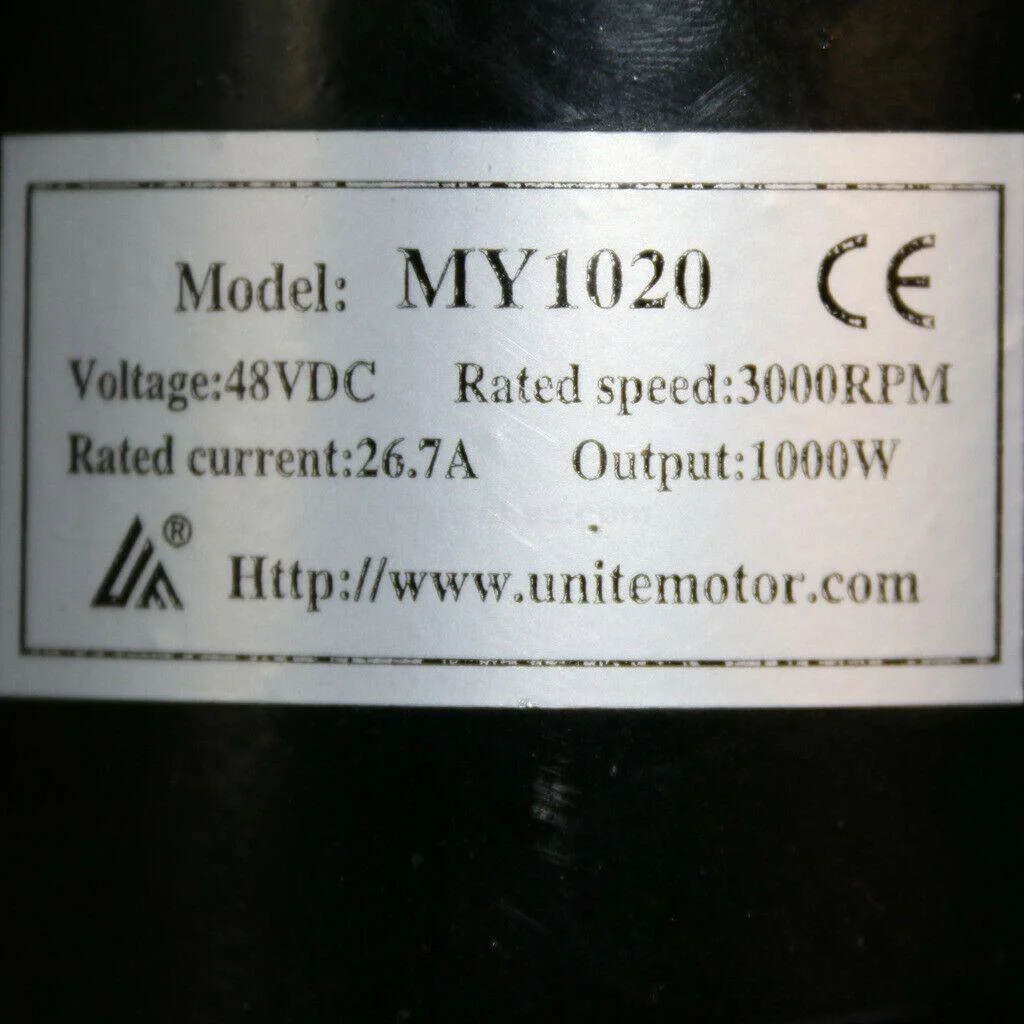

Specification
- Model: MY1020
- Motor Type: DC Brushed Motor
- Voltage: 48V DC
- Maximum Output Power: 1000W
- Rated Current: 26.7A
- Maximum Speed: 3000 RPM
- Reversible: Yes
- Motor Construction: Permanent Magnet
- Lead Wires: 12 Gauge
- Chain Drive: 25H-11T
- Package Size: 23 × 16 × 13 cm
- Gross Weight: 5.6 kg
Package Includes
- 1 × MY1020 48V 1000W Brushed DC Electric Motor
