Description
The KADA PS-305D Adjustable DC Power Supply is a compact and versatile regulated power supply designed for electronics laboratories, workshops, educational environments, and hobbyist projects. It provides continuously adjustable output voltage from 0 to 30V DC and current from 0 to 5A, allowing you to supply a wide range of electronic circuits and devices.

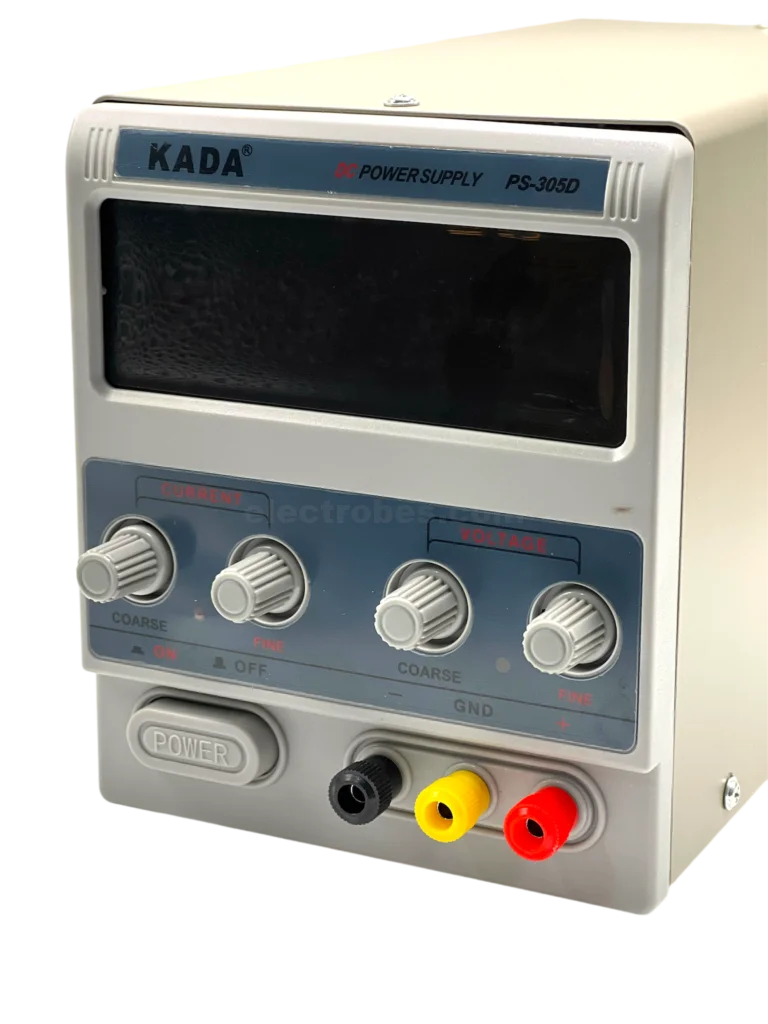

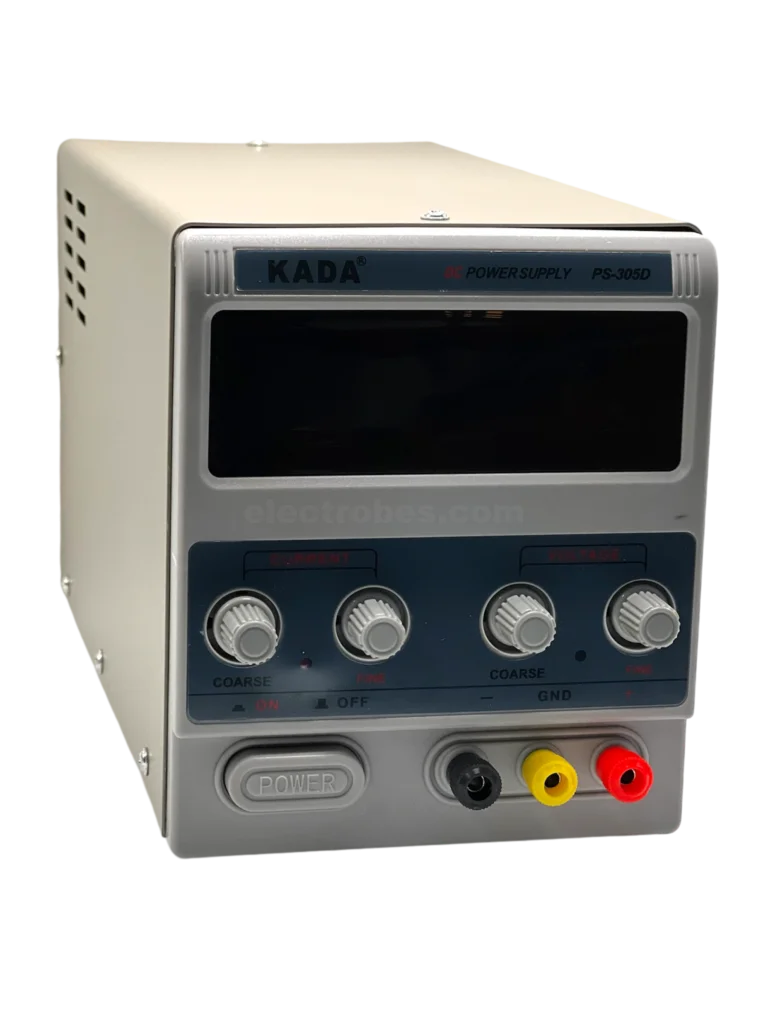

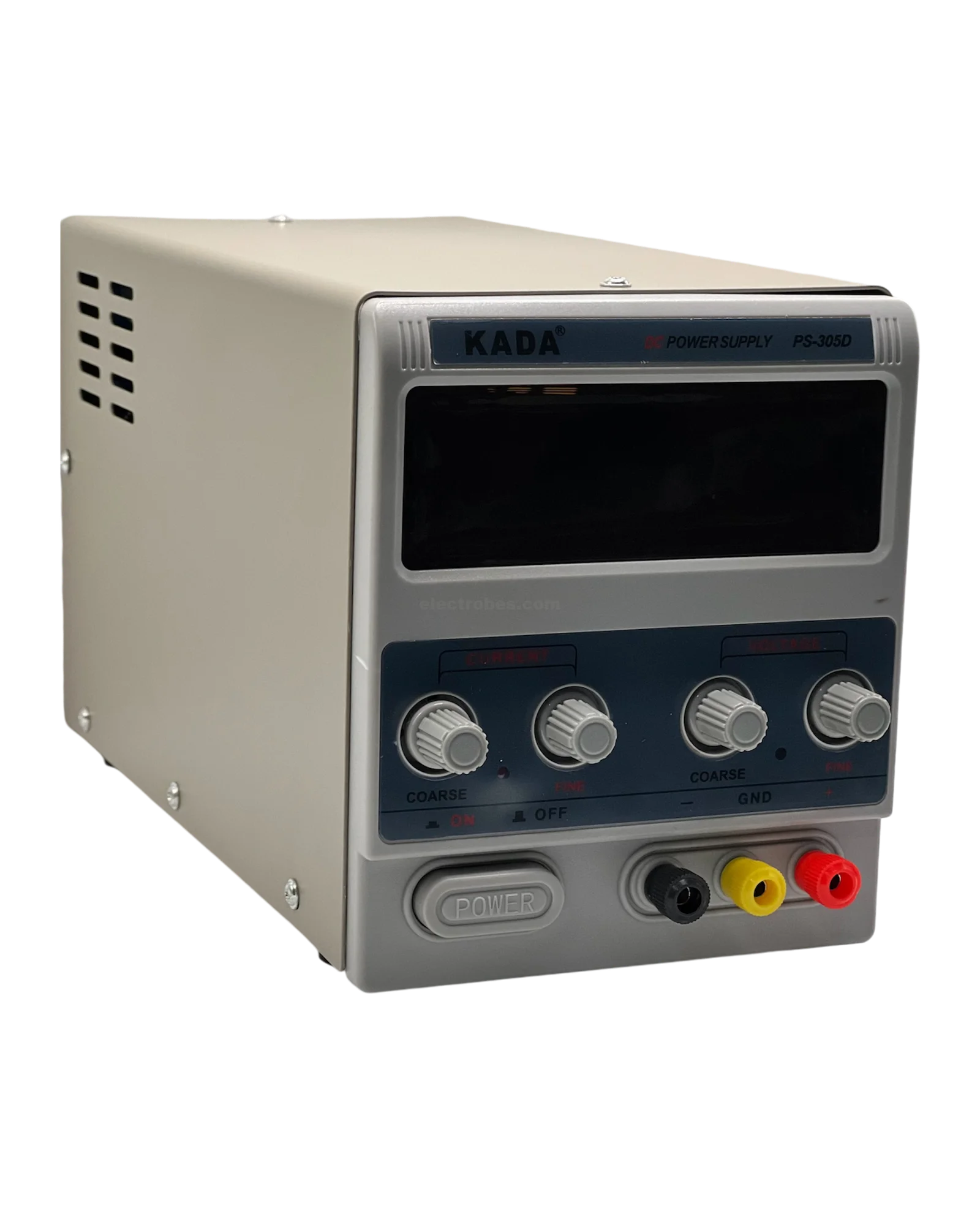

The power supply features easy-to-use voltage and current adjustment knobs, giving you precise control over the output. Its dual LED display allows you to monitor voltage and current clearly during operation, making it easier to keep track of your circuit’s power requirements.
With Constant Voltage (CV) and Constant Current (CC) operating modes, the PS-305D can automatically regulate the output according to the connected load and selected settings. Built-in overload and short-circuit protection helps protect both the power supply and connected equipment during testing.

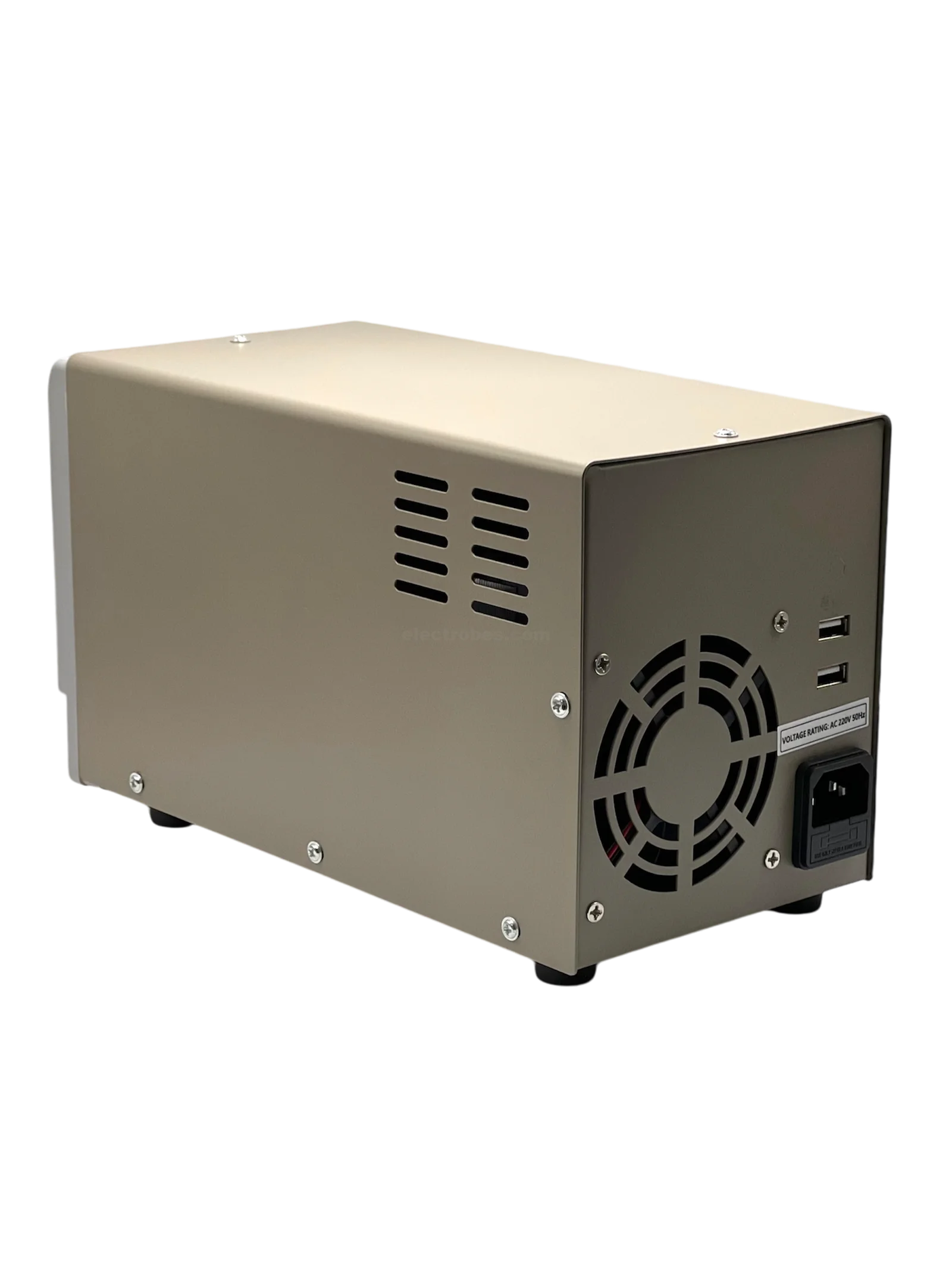

A built-in cooling fan helps maintain an appropriate operating temperature during extended use. The unit also provides convenient output terminals for connecting test leads and electronic circuits.
Key Features
- Adjustable 0–30V DC output voltage
- Adjustable 0–5A output current
- Dual LED display for voltage and current monitoring
- Constant Voltage (CV) and Constant Current (CC) modes
- Precise voltage and current adjustment knobs
- Overload protection
- Short-circuit protection
- Built-in cooling fan
- Multiple output terminals
- Calibration capability for fine-tuning readings
- Suitable for laboratories, workshops, education, and DIY electronics
- Compact and practical bench-top design
Applications
- Testing electronic circuits and prototypes
- Powering development boards and electronic projects
- Electronics laboratory experiments
- Educational and training applications
- Battery charging applications
- Workshop testing and troubleshooting
- DIY electronics projects
Specifications
- Model: PS-305D
- Input Voltage: AC 110V/220V, selectable
- Output Voltage: 0–30V DC adjustable
- Output Current: 0–5A adjustable
- Ripple Voltage: ≤ 1mV (no load)
- Load Regulation: ≤ 0.01% + 3mV
- Line Regulation: ≤ 0.01% + 2mV
- Efficiency: Approximately 85%
- Operating Temperature: 0°C to 40°C
- Dimensions: Approximately 210 × 130 × 240mm
- Weight: Approximately 3–4kg
- Cooling: Built-in cooling fan
- Display: Dual LED display
Package Includes
- 1 × KADA PS-305D 30V/5A Regulated DC Power Supply
