Description
The Mini PIR Motion Sensor Light Switch is a compact and easy-to-install infrared motion detector designed to automatically control lights and other compatible electrical devices. Its small size makes it especially useful for applications where space is limited, such as cabinets, closets, corridors, ceilings, and other indoor areas.
Using PIR (Passive Infrared) technology, the sensor detects movement within its coverage area and automatically switches the connected light or device on. When no further movement is detected, it turns the output off after the selected time delay.
The sensor features three adjustable time-delay settings: 15 seconds, 45 seconds, and 5 minutes. It also includes adjustable photo-sensing levels of 2 Lux, 25 Lux, and 2000 Lux, allowing the sensor to be configured to operate according to the surrounding light conditions.
With a 110° detection angle and a sensing distance of approximately 4-6 meters, this mini motion sensor is suitable for automatic lighting in corridors, stairways, bathrooms, basements, closets, garages, warehouses, and similar areas.
In addition to LED lighting, the sensor can also be used to control compatible exhaust fans, doorbells, and other electrical devices, provided their power requirements are within the sensor’s rated limits.
Features
- PIR Motion Detection: Automatically detects movement using passive infrared technology.
- Compact Design: Small size makes it easy to install in cabinets, ceilings, closets, and other confined spaces.
- Automatic ON/OFF: Switches connected devices on when motion is detected and turns them off after the selected delay.
- Adjustable Time Delay: Choose between 15 seconds, 45 seconds, or 5 minutes.
- Adjustable Light Sensitivity: Photo-sensing levels of 2 Lux, 25 Lux, and 2000 Lux.
- 110° Detection Angle: Provides a broad sensing area for suitable installations.
- 4-6m Sensing Distance: Designed to detect movement within an approximately 4-6 meter range.
- Low Standby Consumption: Standby power consumption is less than 0.1W.
- Multiple Applications: Suitable for LED lights, ceiling lights, panel lights, strip lights, floodlights, exhaust fans, doorbells, and other compatible devices.
- Easy Installation: Designed for simple integration into suitable lighting circuits.
Applications
- LED strip lighting
- Ceiling lights
- Panel lights
- Floodlights
- Cabinet and closet lighting
- Corridors and stairways
- Bathrooms
- Basements
- Garages
- Warehouses
- Advertisement lighting
- Automatic exhaust fan control
- Doorbell and other compatible device control

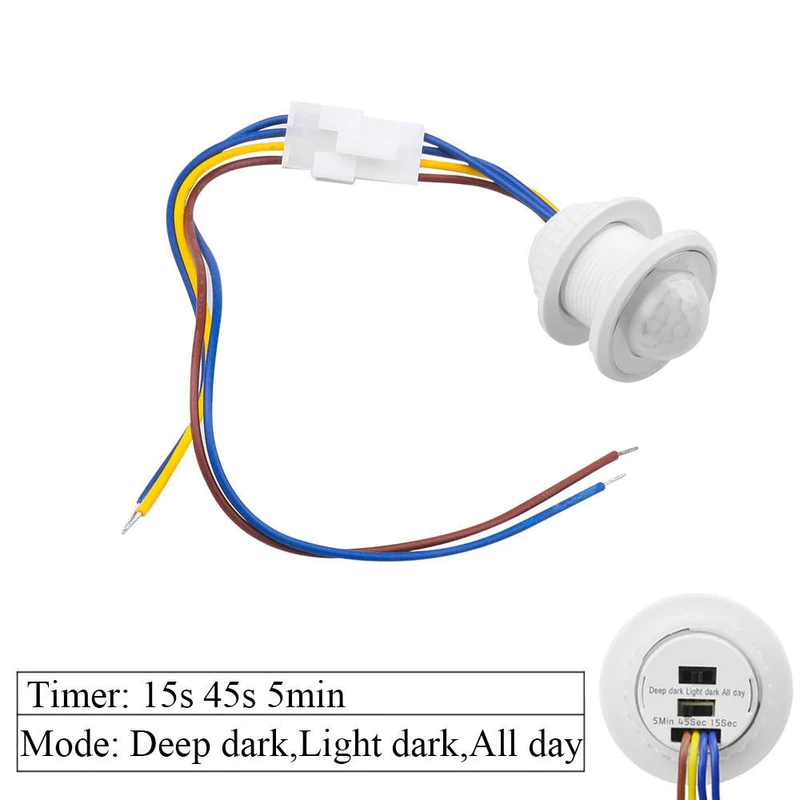

Pin Descriptions
- Red Wire: Live wire (L)
- Outer Blue Wire: Neutral wire (N)
- Yellow Wire: Connects to the light/load
- Inner Blue Wire: Connects to the light/load
Important: This sensor is designed for AC mains voltage. Ensure the wiring is completed correctly and power is disconnected before installation. The connected load should remain within the specified rating.
Specifications
- Product Type: Mini PIR Motion Sensor Light Switch
- Sensor Technology: PIR / Passive Infrared
- Working Voltage: AC 110-265V
- Input Voltage/Frequency: AC 100-240V, 50/60Hz
- Maximum Load Power: ≤40W
- Detection Angle: 110°
- Sensing Distance: Approximately 4-6m
- Time Delay: 15 seconds / 45 seconds / 5 minutes
- Light Sensitivity: 2 Lux / 25 Lux / 2000 Lux
- Mounting Hole Diameter: 25mm / 0.98 inch
- Standby Power Consumption: <0.1W
- Waterproof Rating: IP22
- Working Temperature: Approximately -20°C to +40°C
- Extreme Temperature Range: Approximately -10°C to +45°C
- Material: Plastic
- Color: White
- Cable Material: Copper
- Application: LED lighting, ceiling lights, panel lights, floodlights, and compatible electrical devices
Package Includes
- 1 × Mini PIR Motion Sensor Light Switch
