Description

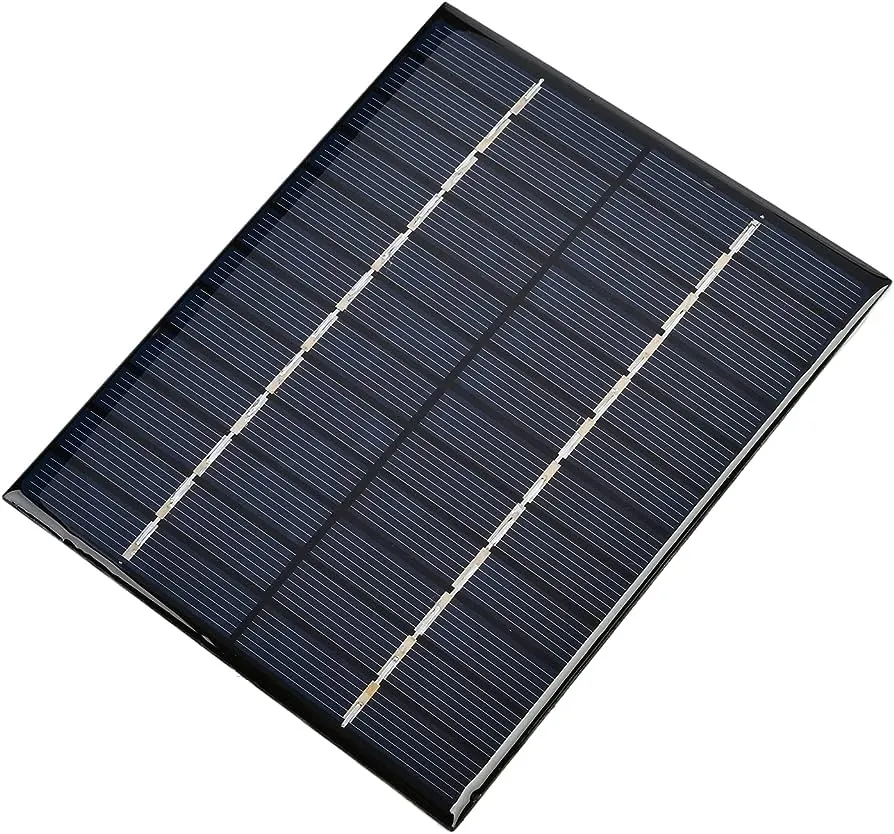

The Mini 12V 2W Solar Panel is a compact and lightweight polycrystalline solar panel designed for DIY solar projects, small battery charging systems, toys, and low-power electronic applications. Its small size makes it easy to integrate into custom solar-powered projects where space is limited.
The panel provides a rated output of approximately 12V DC and 165mA, making it suitable for applications that require a small solar power source. It can be used as part of a battery charging system when paired with a suitable solar charge controller or charging circuit designed for the specific battery chemistry.
With its durable construction, tempered glass surface, and protective outer frame, the panel is designed for convenient installation in various small-scale solar applications.
Key Features
- Compact 12V solar panel
- Rated current: approximately 165mA
- Power output: approximately 2W
- Polycrystalline solar cells
- Suitable for DIY solar projects
- Useful for small battery charging systems
- Suitable for low-power electronics and toys
- High light-transmission tempered glass
- Designed for good performance in outdoor conditions
- Lightweight construction
- Easy to install in custom projects
- RoHS-approved panel according to the supplied product information
Compact Solar Power Solution
This mini solar panel is a practical option for projects where a full-size solar panel would be unnecessarily large. Its compact dimensions make it suitable for DIY electronics, educational projects, small solar systems, and portable applications.
The polycrystalline solar cells convert sunlight into electrical energy, providing a convenient renewable power source for compatible low-power devices and charging circuits.
12V 2W Solar Panel
The panel is rated at approximately 12V DC and 165mA, with a power rating around 2W. The supplied product information also lists a maximum working current of approximately 240–280mA, depending on the operating conditions.
Actual voltage and current output can vary depending on sunlight intensity, panel temperature, angle, shading, and other environmental conditions.
Durable Construction
The solar cells are protected by a durable outer frame and a high-transmission tempered glass surface. The supplied specifications also list a PCB back cover.
The panel is designed to withstand normal outdoor conditions and can be incorporated into fixed or portable DIY solar projects.
Applications
The Mini 12V 2W Solar Panel can be used for:
- DIY solar battery charging projects
- Small solar power systems
- Educational solar projects
- Solar-powered toys
- Small electronic projects
- Low-power sensors
- DIY solar generators
- Portable solar applications
- Arduino and electronics projects
- Small energy harvesting systems
Battery Charging Compatibility
This solar panel provides electrical power but does not include a built-in battery charging controller. When charging a LiPo, Li-ion, or other rechargeable battery, use an appropriate solar charging controller or dedicated battery charging circuit between the panel and battery.
The charging circuit should be selected according to the battery’s chemistry, voltage, capacity, and charging requirements.
Specifications
| Specification | Details |
|---|---|
| Product Type | Mini Solar Panel |
| Rated Voltage | 12V DC |
| Rated Current | 165mA |
| Power Rating | Approx. 2W |
| Maximum Working Current | Approx. 240–280mA |
| Cell Type | Polycrystalline |
| Panel Size | Approx. 136 × 110mm |
| Product Dimensions | Approx. 138 × 128mm (as supplied) |
| Operating Temperature | -20°C to +60°C |
| Front Cover | Tempered Glass |
| Back Cover | PCB |
| Weight | Approx. 60g |
| SKU | 1745 |
| Availability | Out of Stock |
| Price | ₨650 |
