Description

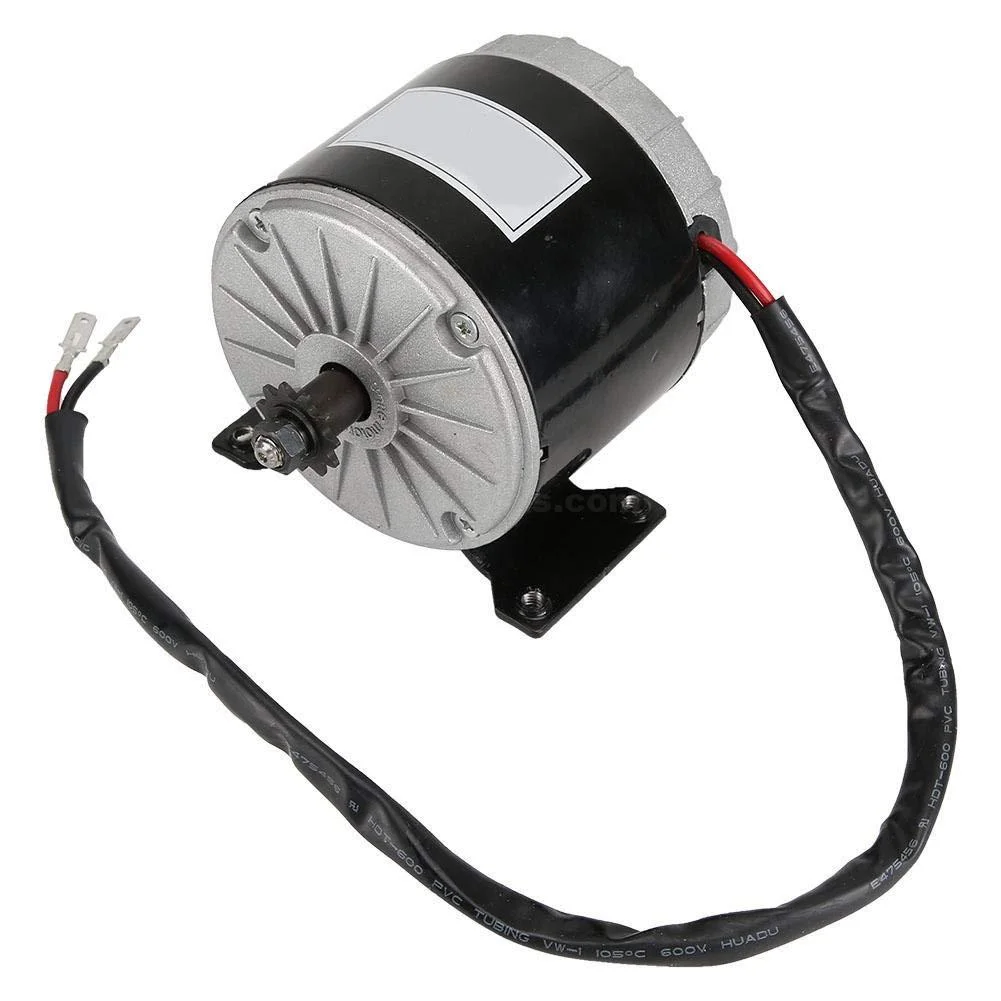

The MY1016 24V 350W Brushed DC Motor is a compact and reliable high-speed motor designed for electric scooters, e-bikes, balance vehicles, and other electric vehicle projects. It provides 350W of power, a rated speed of approximately 2750 RPM, and a maximum speed of up to 3350 RPM.
The motor features a durable copper-wire and iron construction, low-noise operation, and an 11-tooth exchangeable sprocket compatible with 25H chain. A welded mounting bracket is also included for convenient installation in different applications.
Features
- 24V DC brushed motor
- 350W rated power
- High-speed operation up to 3350 RPM
- Rated speed of approximately 2750 RPM
- Rated torque of 1.22 Nm
- 11-tooth 25H chain sprocket
- Exchangeable sprocket design
- Low-noise operation
- Low power consumption
- Welded mounting bracket for easier installation
- Suitable for electric scooters, e-bikes, balance vehicles, and DIY EV projects
- Clockwise rotation
Specification
- Model: MY1016
- Motor Type: Brushed DC Motor
- Material: Copper Wire, Iron
- Color: Black
- Operating Voltage: 24V DC
- Rated Power: 350W
- Rated Current: 18.7A
- Rated Speed: 2750 RPM ±5%
- Maximum Speed: 3350 RPM ±5%
- No-Load Current: 2A
- Rated Torque: 1.22 Nm
- Drive Direction: Clockwise
- Sprocket: 11 Teeth
- Chain Type: 25H
- Chain Pitch: 6.35 mm (1/4 inch)
- Sprocket Shaft Diameter: 10 mm
- Wiring: 2 Wire
- Positive Wire: Red
- Negative Wire: Black
- Mounting: Welded Mount Bracket
Package Includes
- 1 × MY1016 24V 350W Brushed DC Motor
- 1 × 11-Tooth Chain Sprocket
