Description
The SUNLU S2 Filament Dryer is designed to help protect 3D printer filaments from moisture and humidity, which can affect print quality and filament performance. It provides controlled heating to dry and store filament before or during printing.

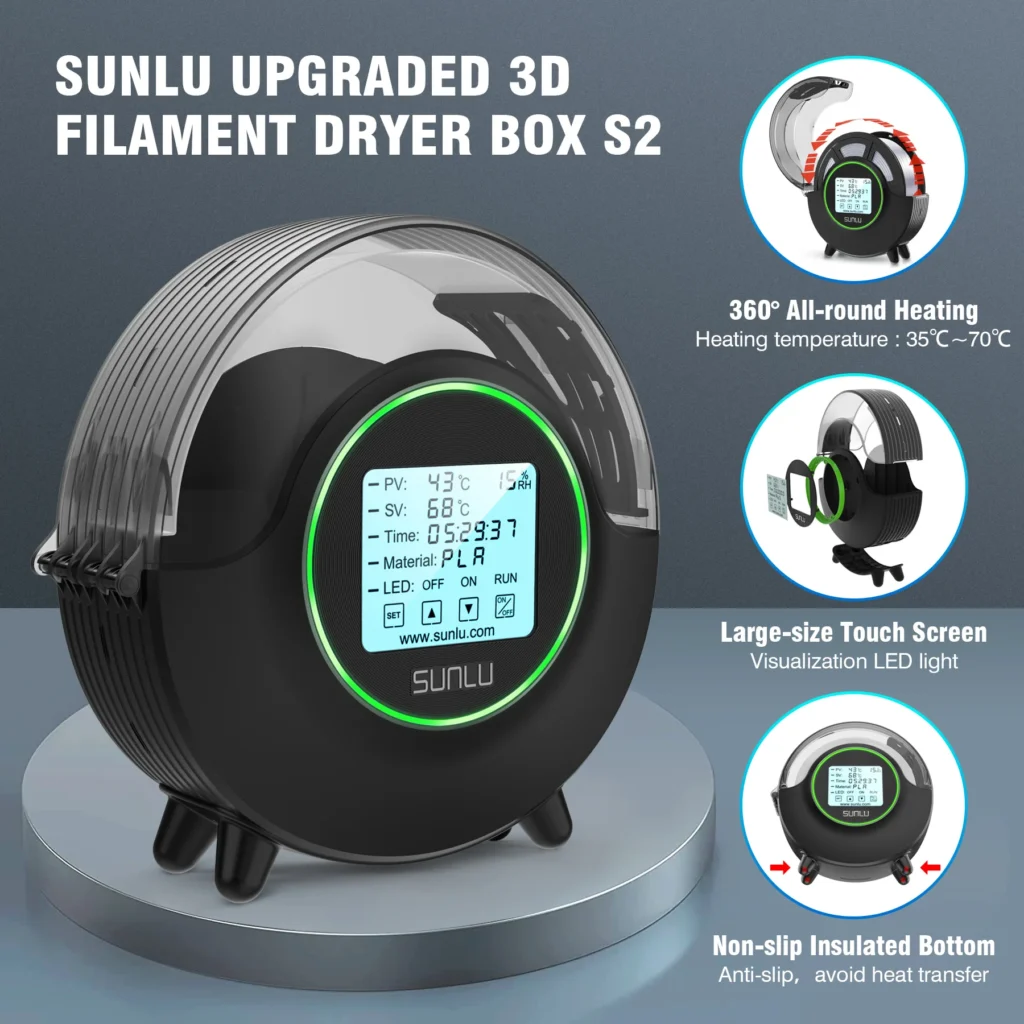

With its 360° surround heating system, the S2 distributes heat evenly around the filament for more consistent drying. The heating system is designed to provide faster and more efficient drying compared with conventional filament storage boxes.
The dryer supports a temperature range of 35°C to 70°C, making it suitable for a wide variety of filament materials. Higher-temperature settings can be used for moisture-sensitive materials such as PA and PC, according to the filament manufacturer’s recommended drying temperature.

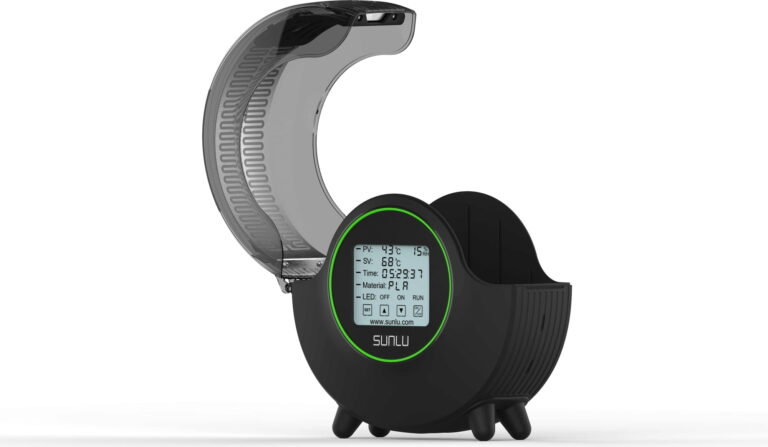

The S2 features a curved housing with upper and lower heating plates to improve heat distribution. Its raised feet also provide additional stability while helping reduce direct heat transfer between the dryer and the surface underneath.

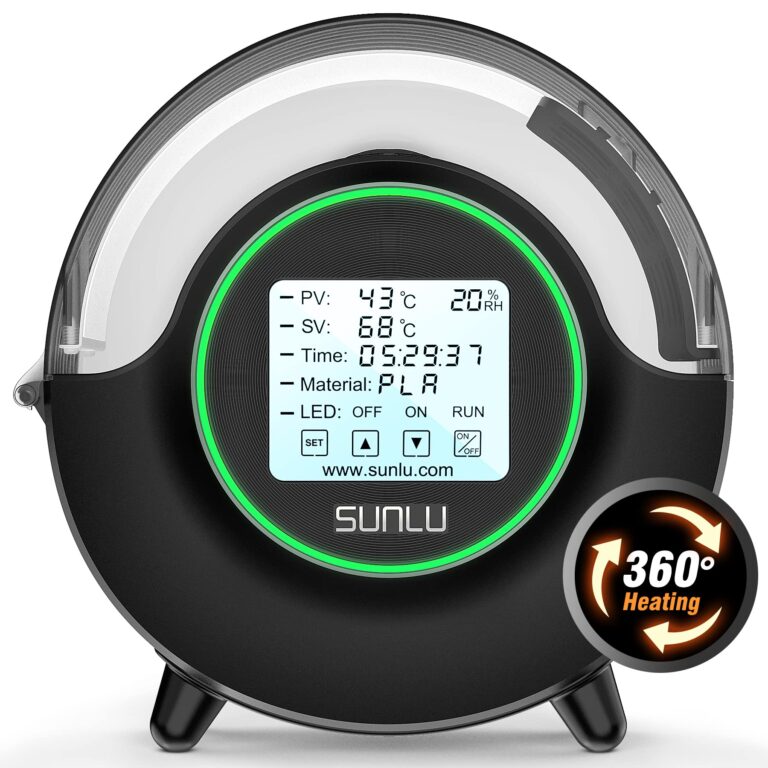

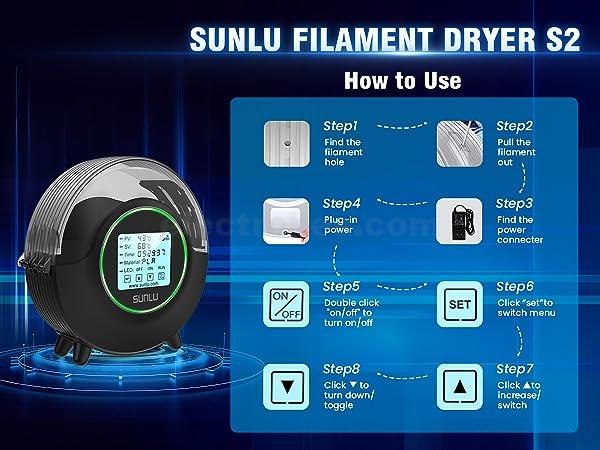

An easy-to-use LED touchscreen displays important operating information such as temperature, drying time, material selection, and LED settings. The unit also supports switching between Celsius and Fahrenheit temperature displays.

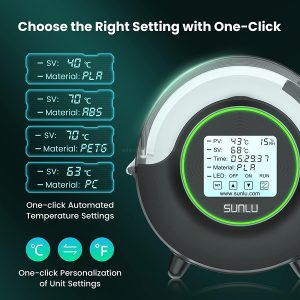

For added convenience, the SUNLU S2 includes intelligent drying modes and material presets, allowing users to select an appropriate drying setting without manually configuring every parameter.
Key Features
- 360° Surround Heating: Provides more even heat distribution around the filament.
- Up to 70°C Heating: Suitable for drying a variety of filament materials.
- Smart Drying Modes: Preset options make it easier to select suitable drying settings.
- LED Touchscreen: Conveniently monitor temperature, time, material, and settings.
- Upper & Lower Heating Plates: Help improve overall heating efficiency.
- Wide Filament Compatibility: Supports 1.75mm, 2.85mm, and 3.00mm filament diameters.
- Large Spool Capacity: Supports spools up to 210mm in diameter and 85mm in width.
- Temperature Unit Selection: Can display temperature in °C or °F.
- Stable Curved Design: Raised feet provide better stability during operation.
Specifications
| Specification | Details |
|---|---|
| Product Type | Filament Dryer & Storage Box |
| Model | SUNLU S2 |
| Heating Method | 360° Surround Heating |
| Temperature Range | 35°C – 70°C |
| Maximum Spool Size | Ø210 × 85mm |
| Supported Filament Diameter | 1.75mm / 2.85mm / 3.00mm |
| Product Dimensions | 265 × 274 × 118mm (L × W × H) |
| Net Weight | Approx. 1190g including power supply |
| Input Voltage | AC 100–240V |
| Input Frequency | 50/60Hz |
| Output | DC 24V ± 1.2V, 2A |
| Maximum Working Current | 1.9A |
| Maximum Working Power | 48W |
| Standby Power | 0.05W |
| LED Screen Size | 3.43 × 2.87 inches |
| Relative Humidity | ≤90% |
| Temperature Display | °C / °F |
| Control | LED Touchscreen |
| Drying Modes | Intelligent material-based presets |
| Heating Design | Upper and lower heating plates |
| Suitable Materials | PLA, ABS, PA, PC and other compatible filaments |
