Description

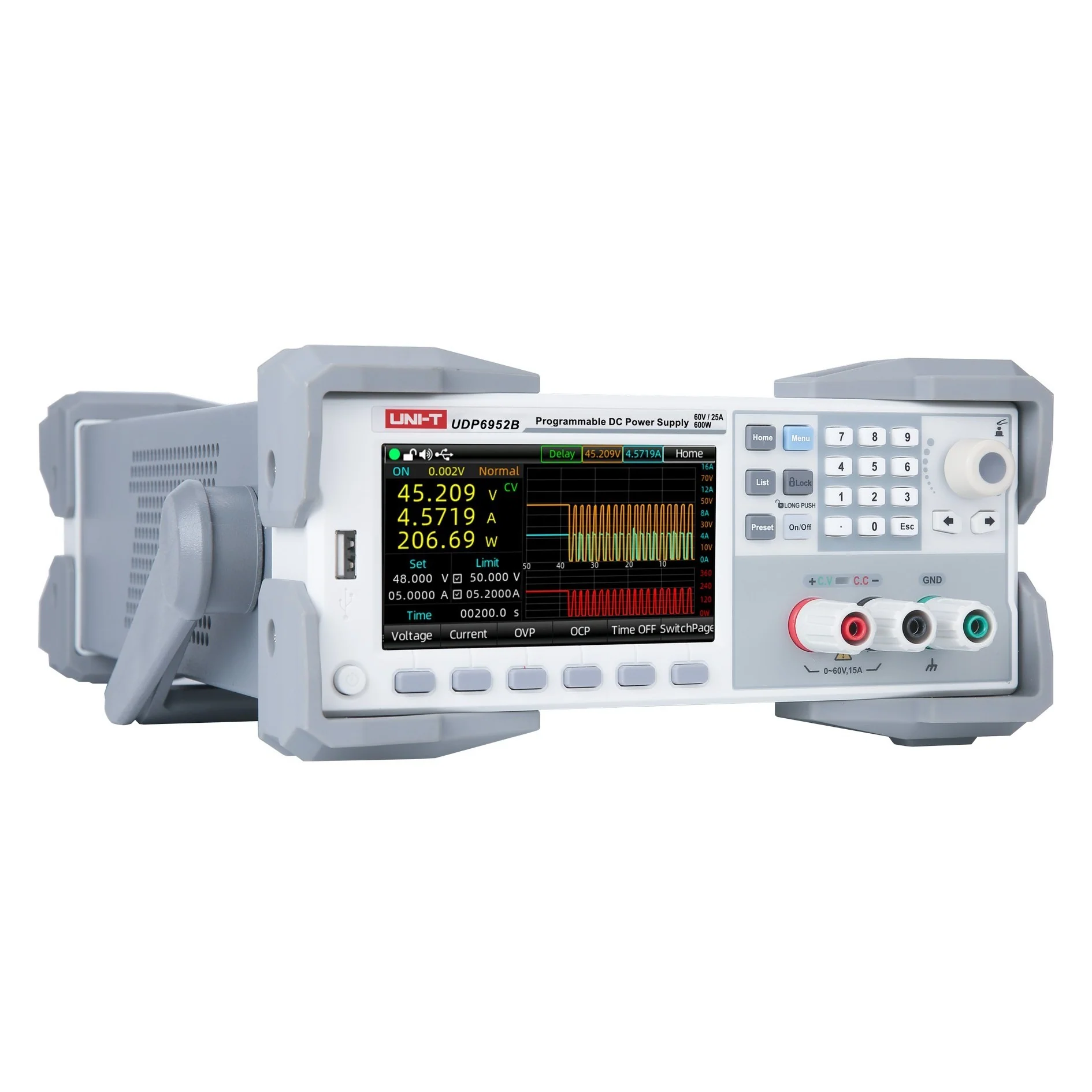

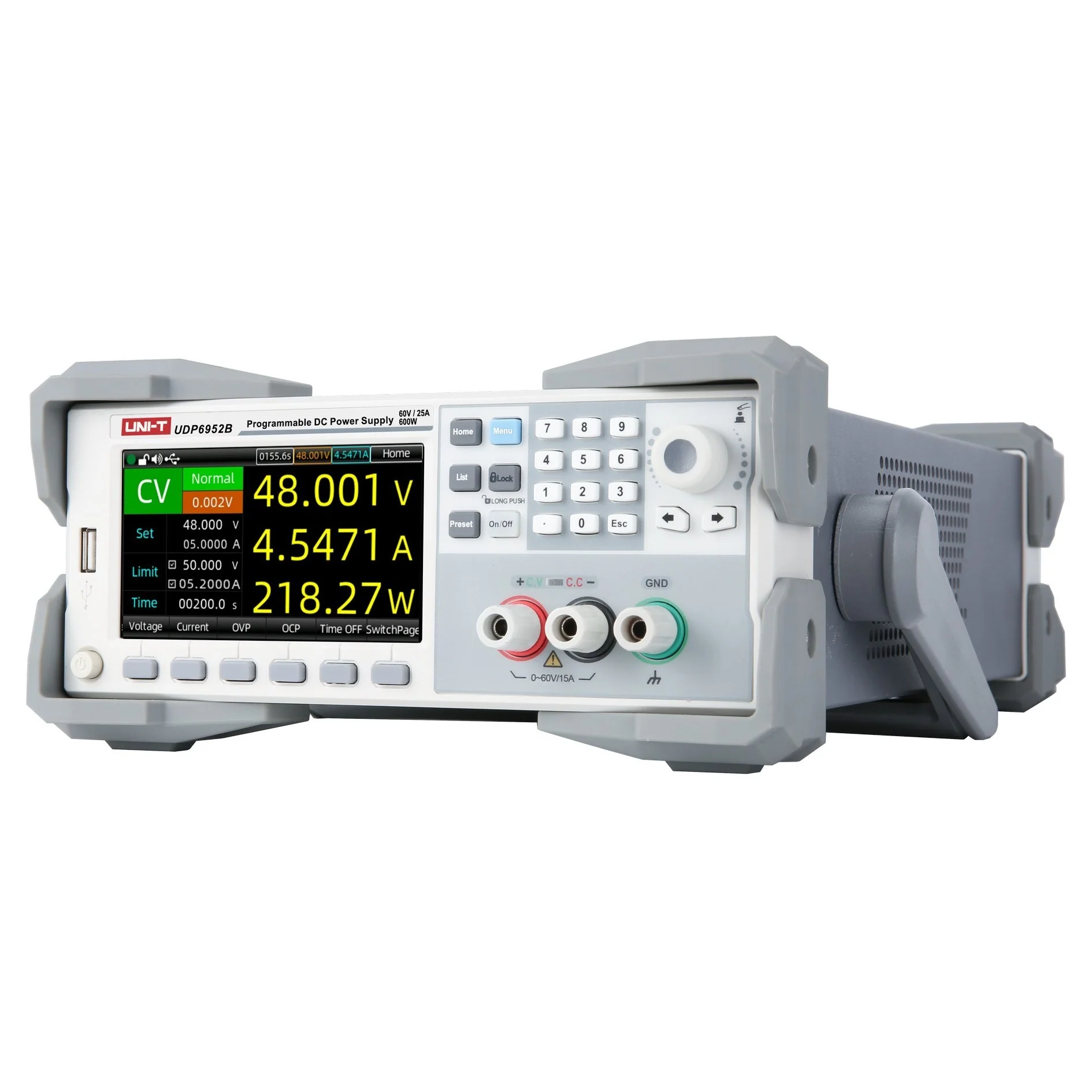

The UNI-T UDP6952B is a single-channel programmable switching DC power supply designed for demanding laboratory, industrial, and electronic testing applications. It provides an adjustable output of 0–60V and 0–25A, with a maximum power output of 600W, allowing it to handle different combinations of voltage and current within its power limit.
Featuring a 4.3-inch TFT color LCD, high measurement resolution, low ripple, and low noise, the UDP6952B provides precise and stable power for sensitive electronic equipment. The programmable design also allows users to configure timing outputs, presets, and output sequences for repeatable testing.
For remote operation and system integration, the power supply supports RS-232, RS485, USB, LAN, analog, and digital control interfaces. It also supports SCPI and Modbus RTU protocols, making it suitable for automated test platforms and industrial control systems.
Multiple protection functions, including over-voltage, over-current, over-power, and over-temperature protection, help protect both the power supply and connected devices during operation.
Key Features
- 600W Maximum Output Power – Provides high-power DC output for demanding applications
- 0–60V Output Voltage – Wide adjustable voltage range
- 0–25A Output Current – Suitable for high-current applications
- High Accuracy & Resolution – Up to 1mV voltage and 0.1mA current resolution

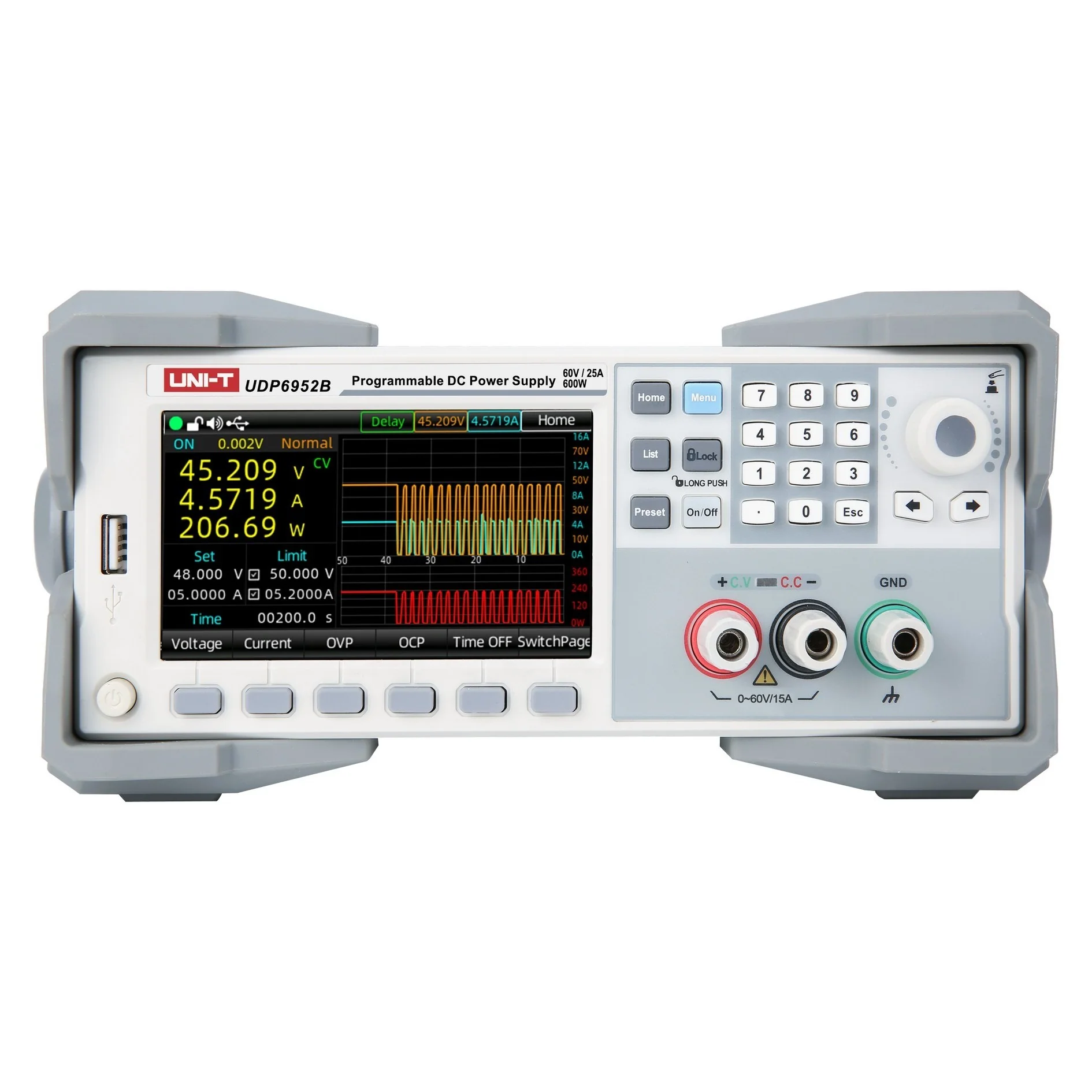

- 4.3-inch TFT Color LCD – Clear display for monitoring settings and measurements
- Low Ripple & Low Noise – Stable output for sensitive electronic equipment
- Programmable Output – Supports configurable output sequences and timing
- Timing Function – Output timing can be set from 0.1 to 99999.9 seconds
- Intelligent Fan Control – Adjusts cooling according to operating conditions
- Remote Compensation – Helps maintain accurate voltage at the load

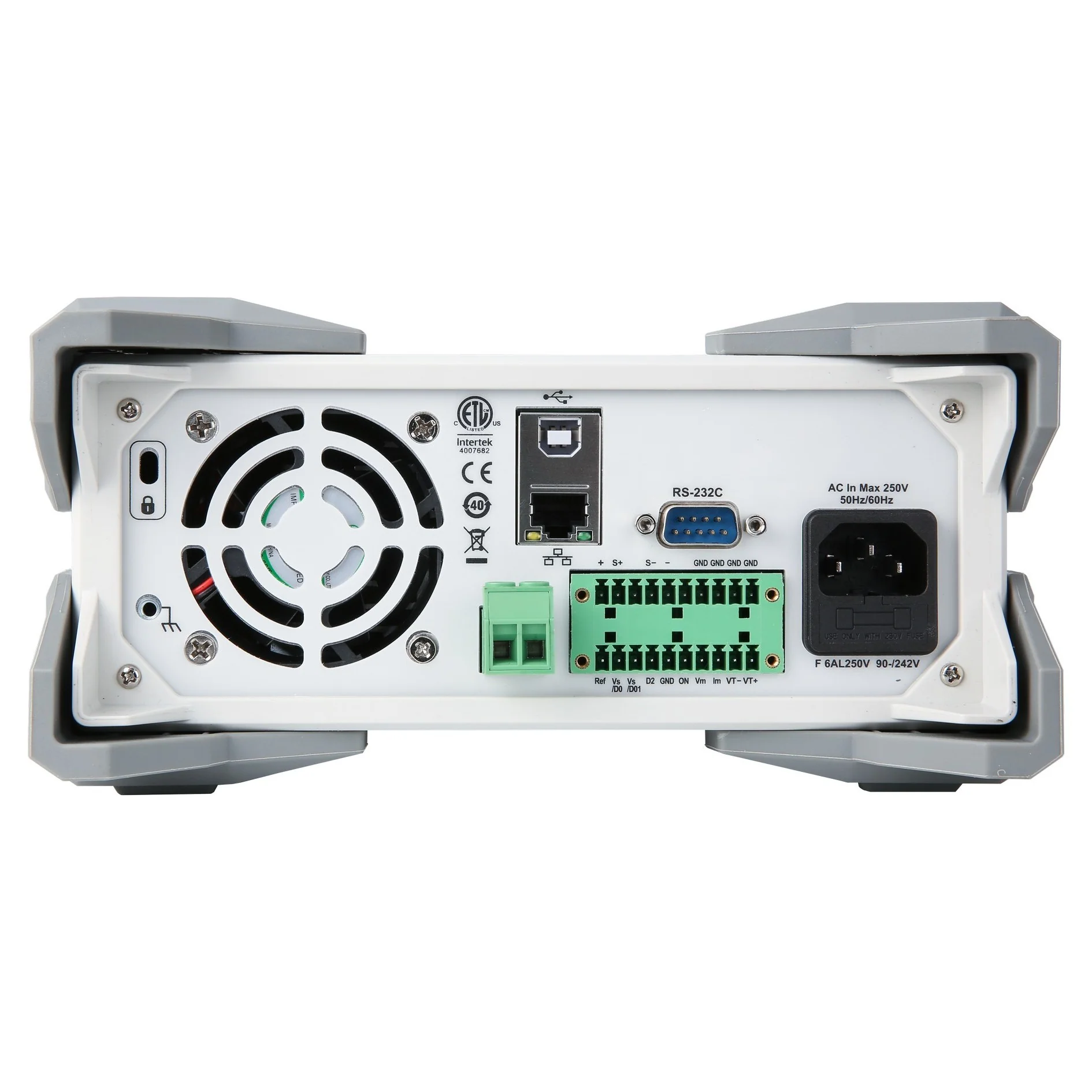

- Front & Rear Panel Outputs – Flexible connection options
- Multiple Communication Interfaces – RS-232, RS485, USB, and LAN
- SCPI & Modbus RTU Support – Convenient for automated testing and industrial integration
- External Analog & Digital Control – Supports system-level control
- Built-in Digital Voltmeter – 4.5-digit external voltage measurement
- Multiple Protection Functions – Over-voltage, over-current, over-power, and over-temperature protection
- Preset Memory – Supports storage and recall of up to 18 × 8 groups
- Waveform/Trend Display – Displays output trends for easier monitoring
- LAN Web Remote Control – Enables remote operation through a network
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UDP6952B |
| Product Type | Programmable Switching DC Power Supply |
| Number of Channels | 1 |
| Maximum Output Power | 600W |
| Output Voltage | 0–60V DC |
| Output Current | 0–25A DC |
| Voltage Resolution | 1mV |
| Current Resolution | 0.1mA |
| Display | 4.3-inch TFT True Color LCD |
| Communication Interfaces | RS-232, RS485, USB, LAN |
| Protocols | SCPI, Modbus RTU |
| Output Timing | 0.1–99999.9 seconds |
| Remote Compensation | Yes |
| External Control | Analog & Digital |
| Built-in Voltmeter | 4.5-digit |
| Protection | Over-Temperature, Over-Power, Over-Voltage & Over-Current |
| Preset Storage | 18 × 8 Groups |
| LAN Remote Control | Yes |
| Dimensions | Approx. 15 × 8.5 × 3.5 in |
| Weight | Approx. 15 lb |
Included Accessories
- 1 × Power Cord
- 1 × USB 2.0 Cable
- 1 × Digital I/O Plug
Applications
The UNI-T UDP6952B is suitable for:
- Laboratory power supply applications
- Electronics research and development
- DC/DC power module testing
- Battery charging and testing
- Sensor testing
- Industrial automation
- Production and quality-control testing
- Automated test systems
- Electronic equipment development
