Description

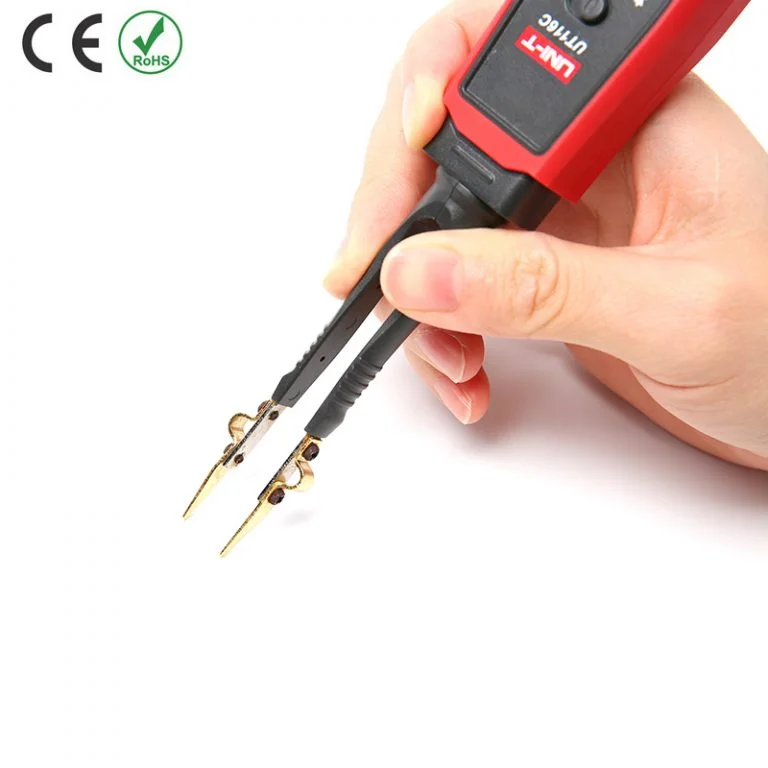

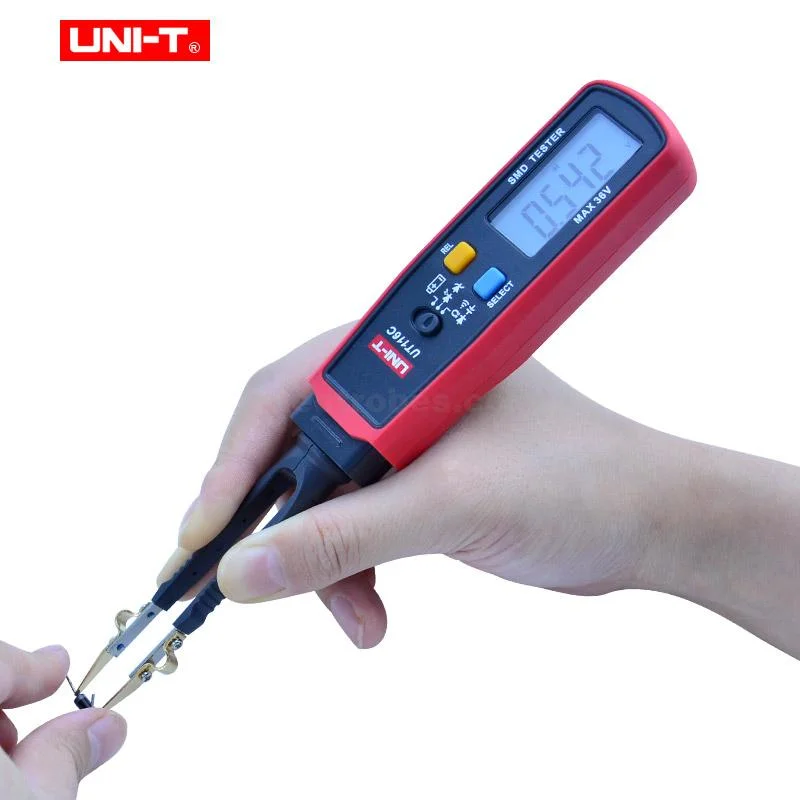

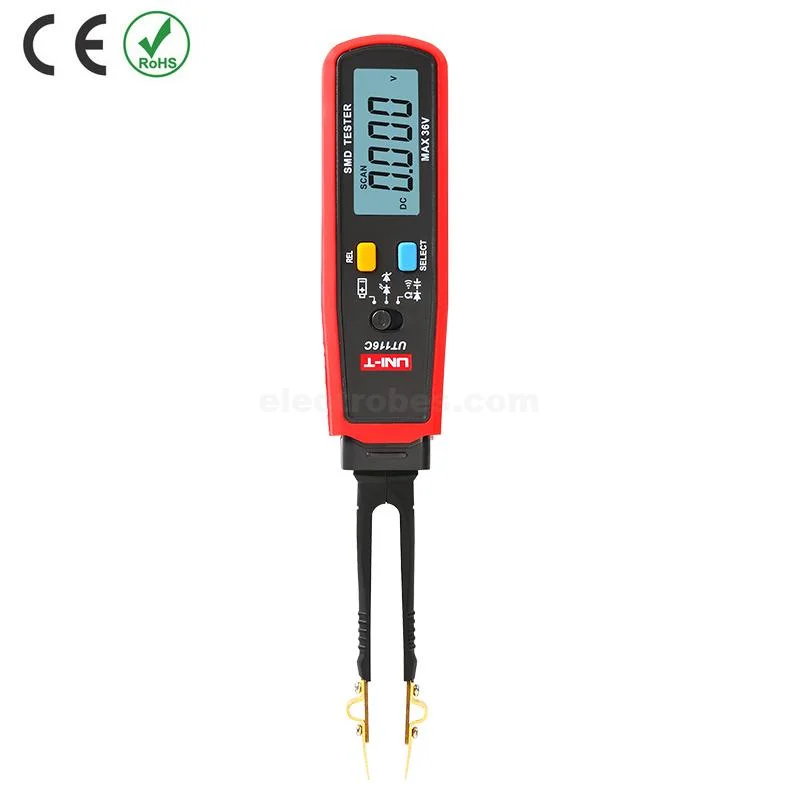

The UNI-T UT116C LED Digital Continuity Resistance Capacitance Tester is a compact and versatile pen-style measuring instrument designed for troubleshooting electronic circuits, automotive systems, and household electrical equipment. Its lightweight design makes it easy to carry and use during routine testing and maintenance.
The UT116C supports resistance measurement up to 60MΩ and capacitance measurement up to 100mF, along with continuity and diode testing. It also includes a dedicated battery test function with an approximate 10mA load current, making it useful for checking common batteries.
A key feature of the UT116C is its 180° rotating pen design, which allows the display and probe orientation to be adjusted for easier viewing and testing. The tester also supports LED and Zener/stabilivolt diode testing, making it particularly useful for electronic component identification and troubleshooting.
With a 6000-count display, automatic ranging, and automatic power-off, the UT116C offers a practical combination of portability and functionality for technicians, students, electronics hobbyists, and maintenance professionals.
Key Features
- Compact pen-style digital tester
- 6000-count display
- Resistance measurement up to 60MΩ
- Capacitance measurement up to 100mF
- Continuity testing
- Diode testing up to 3.2V
- LED/Zener diode testing
- LED/stabilivolt test: approximately 21V / 1mA
- Battery testing with approximately 10mA load current
- 36V DC voltage measurement
- Automatic range selection
- Automatic power-off
- 180° rotating pen design for convenient viewing
- Red and grey housing
- Lightweight design, approximately 80g
Specifications
| Specification | Range / Details |
|---|---|
| Model | UNI-T UT116C |
| Display Count | 6000 |
| DC Voltage Measurement | Up to 36V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 100mF |
| Diode Test | 3.2V |
| LED / Stabilivolt Test | Approx. 21V / 1mA |
| Continuity Test | <50Ω |
| Battery Test | Load current ≈ 10mA |
| Auto Range | Yes |
| Auto Power-Off | Yes |
| Display Size | 39 × 20mm |
| Power Supply | 2 × 1.5V R03 (AAA) batteries |
| Product Color | Red and Grey |
| Product Weight | Approx. 80g |
| Product Dimensions | 204 × 33 × 25mm |
Applications
The UNI-T UT116C is suitable for:
- Electronics troubleshooting
- SMD component testing
- LED and diode testing
- Zener diode testing
- Battery testing
- Automotive electrical testing
- Household electrical troubleshooting
- Circuit continuity testing
- Resistance and capacitance measurement
- Educational and laboratory projects
- DIY electronics and repair work
Package Includes
- 1 × UNI-T UT116C Digital Tester
- 2 × 1.5V R03 (AAA) Batteries
