Description

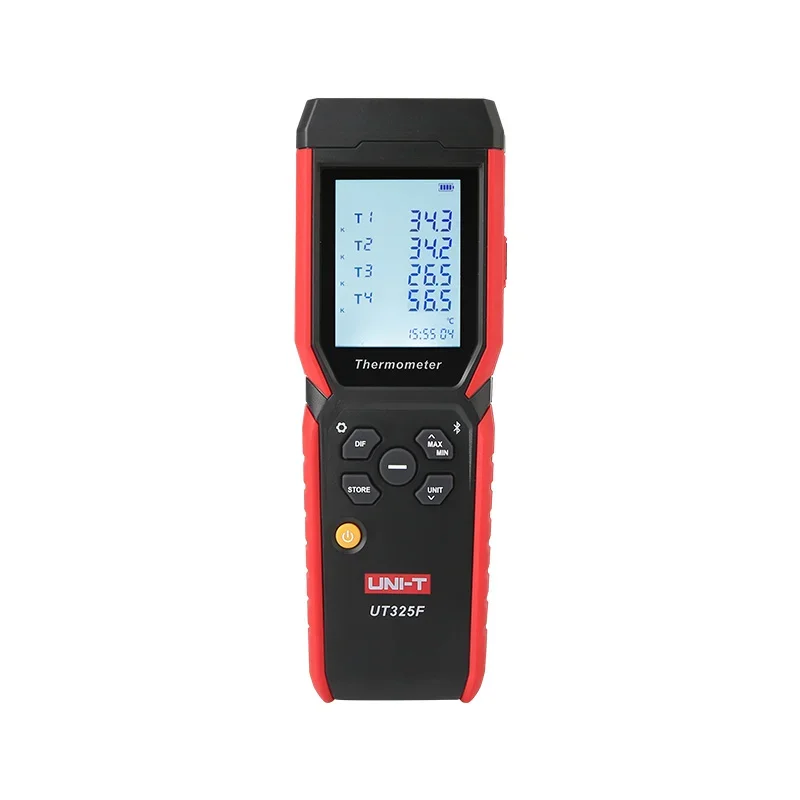

The UNI-T UT325F 4-Channel Digital Thermometer is a versatile temperature measurement instrument designed for professional and industrial applications. It supports seven thermocouple types: K, J, T, E, R, S, and N, allowing users to measure temperatures across a wide range depending on the selected probe.

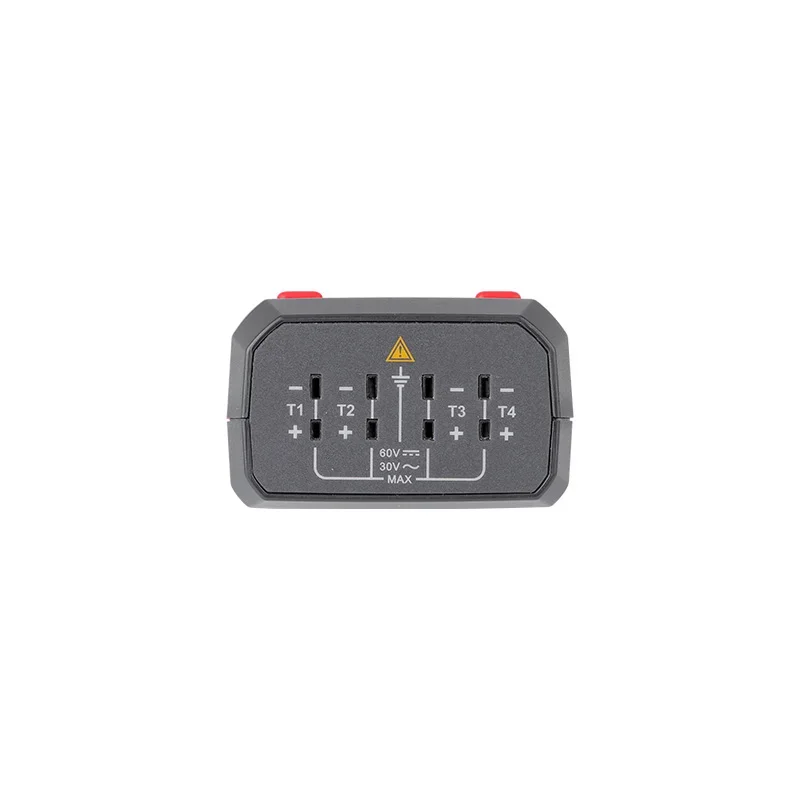

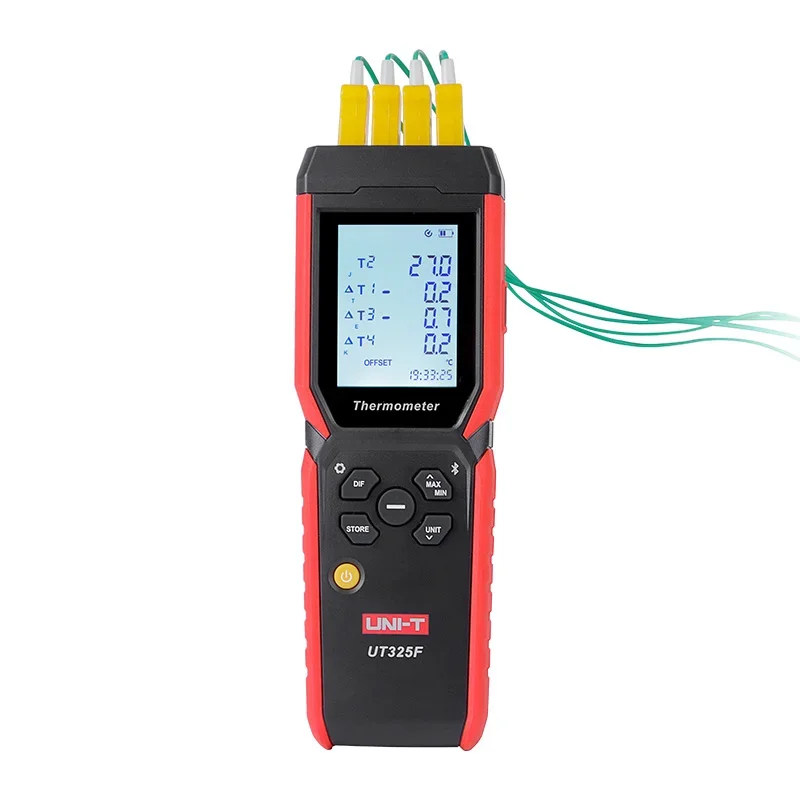

With four independent input channels, the UT325F can monitor multiple temperature points simultaneously. It also provides MIN, MAX, AVG, and differential temperature measurements, making it useful for comparing temperatures between different locations or components.
The thermometer features a fast response time of approximately 500 ms and offers a resolution of 0.1°C/°F/K below 1000° and 1°C/°F/K at or above 1000°. Its accuracy is specified as ±(0.2% + 0.5°C) under the stated operating conditions.
For long-term monitoring, the UT325F can record up to 72,000 measurement records and supports programmable recording intervals from 1 second to 24 hours. Data can be transferred through Type-C USB or Bluetooth, allowing convenient connection to a computer or mobile device.
Its compact design, backlit display, data hold, automatic power-off, battery status indicator, and 1-meter drop protection make it suitable for both workshop and field applications.
Key Features
- 4-channel temperature measurement
- Supports K, J, T, E, R, S, and N thermocouples
- Wide temperature measurement ranges
- MIN, MAX, and AVG measurement modes
- Differential temperature measurement between channels
- Fast approximately 500 ms response time
- 0.1°C/°F/K resolution below 1000°
- Data hold function
- Automatic power-off
- Programmable timing measurement
- Stores up to 72,000 data records
- Type-C USB and Bluetooth data transmission
- Backlight function
- Battery status indicator
- 50/60Hz power-frequency interference protection
- 1-meter drop protection
- More than 30 hours operating time
- Compact and portable design
Specifications
| Specification | Details |
|---|---|
| Model | UNI-T UT325F |
| Channels | 4 |
| Thermocouple Types | K, J, T, E, R, S, N |
| Type K Range | -200°C to 1372°C |
| Type J Range | -210°C to 1200°C |
| Type T Range | -250°C to 400°C |
| Type E Range | -150°C to 1000°C |
| Type R Range | 0°C to 1767°C |
| Type S Range | 0°C to 1767°C |
| Type N Range | -200°C to 1300°C |
| Resolution | 0.1°C/°F/K (<1000°); 1°C/°F/K (≥1000°) |
| Accuracy | ±(0.2% + 0.5°C) |
| Repeatability | ±(0.1% + 0.3°C) |
| Response Time | Approx. 500ms |
| Temperature Units | °C / °F / K |
| Measurement Modes | MIN / MAX / AVG |
| Differential Measurement | Temperature difference between any two channels |
| Data Recording | Up to 72,000 records |
| Recording Interval | 1 second – 24 hours |
| Data Transmission | Type-C USB / Bluetooth |
| Operating Time | >30 hours |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | Up to 90% RH, non-condensing |
| Drop Protection | 1m |

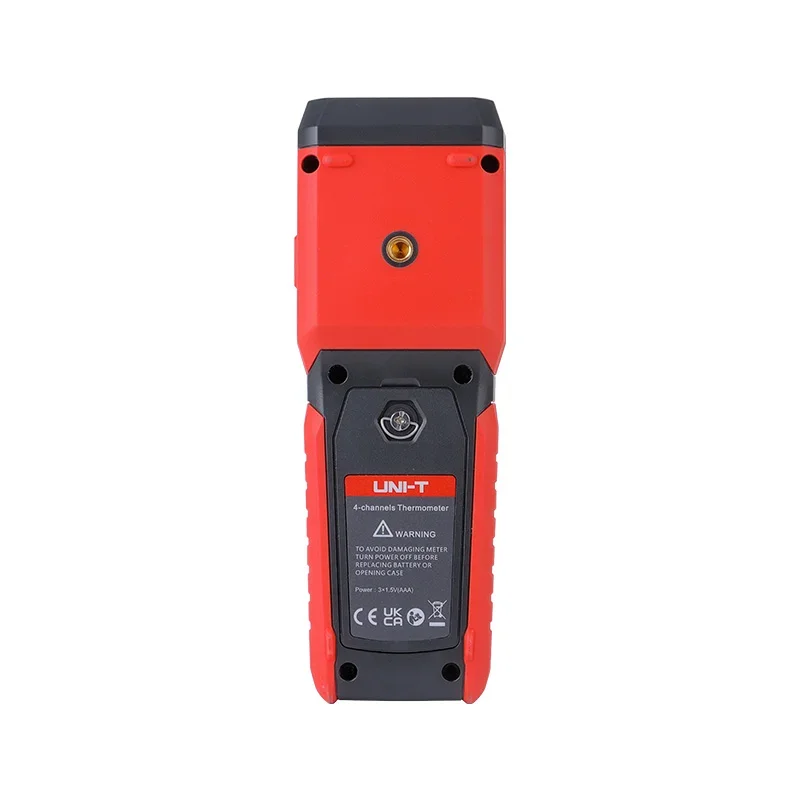

| Power Supply | 3 × AAA alkaline batteries |
| Product Dimensions | 178 × 63 × 38mm |
Applications
- Industrial temperature monitoring
- Electronics and electrical testing
- HVAC system testing
- Laboratory measurements
- Mechanical equipment monitoring
- Hardware processing
- Concrete temperature monitoring
- Research and development
- Production and maintenance environments
Package Includes
- 1 × UNI-T UT325F 4-Channel Thermometer
- 4 × Thermocouples
- 3 × AAA Batteries
- 1 × USB Type-C Cable
- 1 × User Manual
- 1 × Safety Instructions
- 1 × Gift Box
