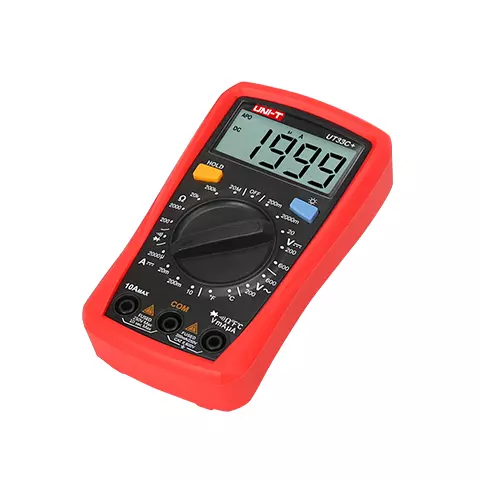

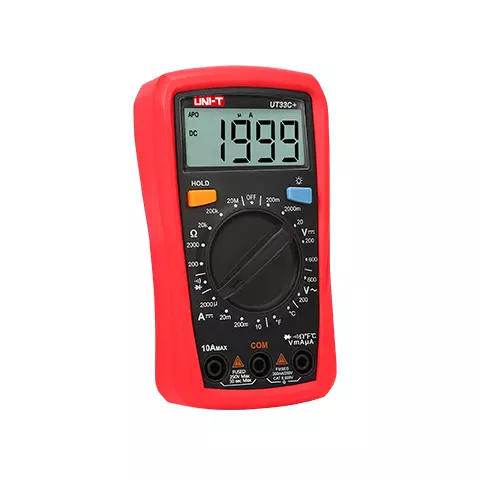

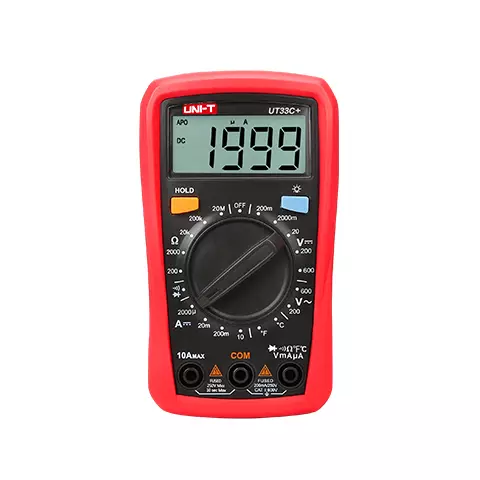

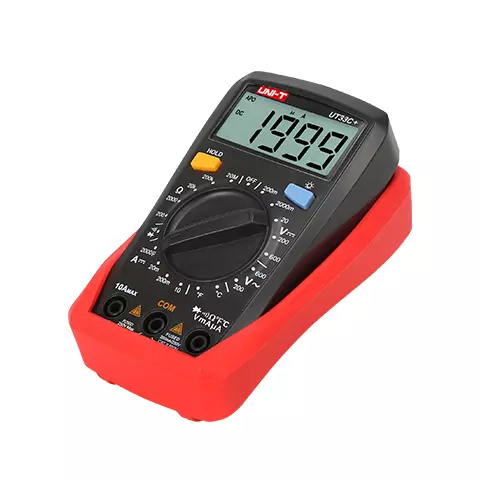

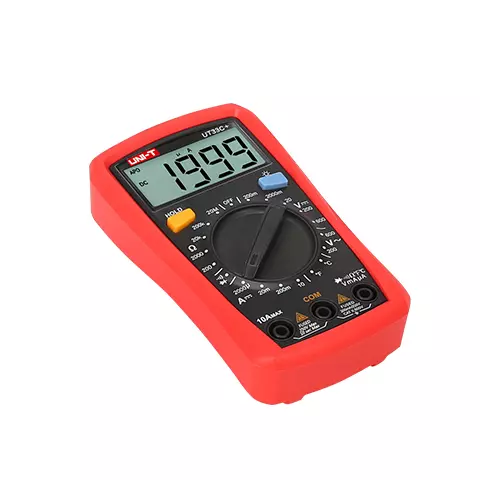

UNI-T UT33C+ Palm Size Digital Multimeter DMM
The UNI-T UT33C+ is a compact palm-size digital multimeter designed for everyday electrical and electronic testing. It measures AC/DC voltage, DC current, resistance, and temperature, along with diode and continuity testing. Its portable design, backlit LCD, data hold, and 2-meter drop protection make it a practical choice for students, technicians, electricians, and hobbyists.
Key Features
- AC/DC voltage measurement
- DC current measurement up to 10A
- Resistance measurement up to 20MΩ
- Temperature measurement in °C and °F
- Diode testing
- Continuity test with buzzer
- Data hold function
- Backlit LCD display
- Low-battery indication
- Manual range selection
- Auto power-off
- Auto backlight-off
- Test probe holder
- 2-meter drop protection
- 2000-count display
- Approximately 10MΩ input impedance for DC voltage
Technical Specifications
| Specification | UT33C+ |
|---|---|
| DC Voltage | 200mV / 2V / 20V / 200V / 600V |
| DC Voltage Accuracy | ±(0.5%+2) |
| AC Voltage | 200V / 600V |
| AC Voltage Accuracy | ±(1.2%+3) |
| DC Current | 2000μA / 20mA / 200mA / 10A |
| DC Current Accuracy | ±(1%+2) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ |
| Resistance Accuracy | ±(0.8%+2) |
| Temperature | -40°C to 1000°C |
| Temperature Accuracy (°C) | ±(1%+4) |
| Temperature | -40°F to 1832°F |
| Temperature Accuracy (°F) | ±(1.5%+5) |
| Display | LCD, 2000 counts |
| Diode Test | Yes |
| Continuity Buzzer | Yes |
| Data Hold | Yes |
| Backlight | Yes |
| Auto Power Off | Yes |
| Drop Test | 2m |
| Power Supply | 2 × 1.5V R03 batteries |
| Dimensions | 134 × 77 × 47mm |
| Weight | 206g (with batteries) |
Package Contents
- 1 × UNI-T UT33C+ Digital Multimeter
- 2 × Test Leads
- 1 × K-Type Thermocouple
- 1 × Protective Case
- 1 × User Manual
