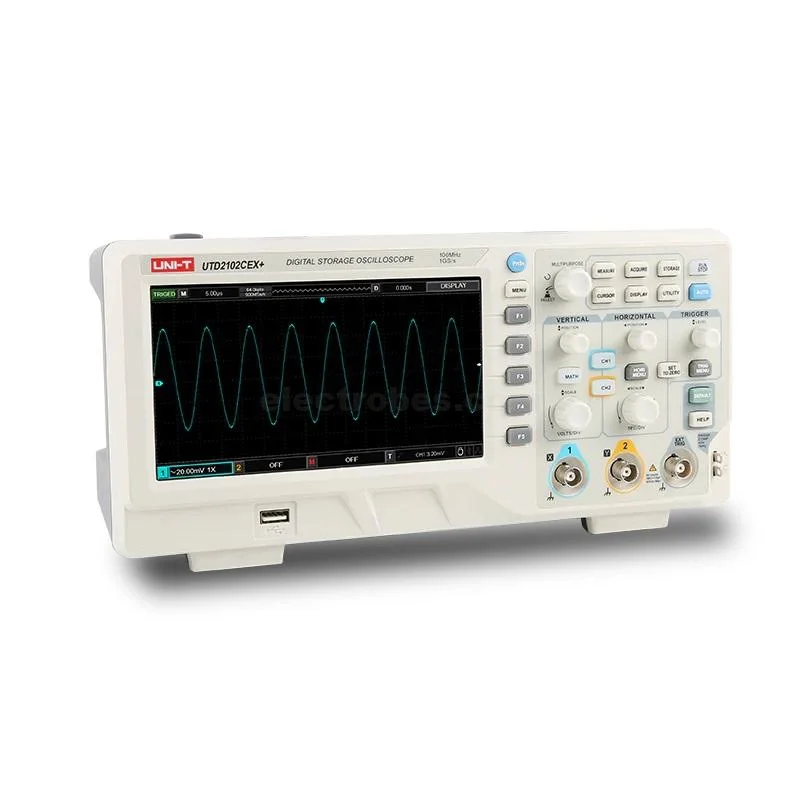

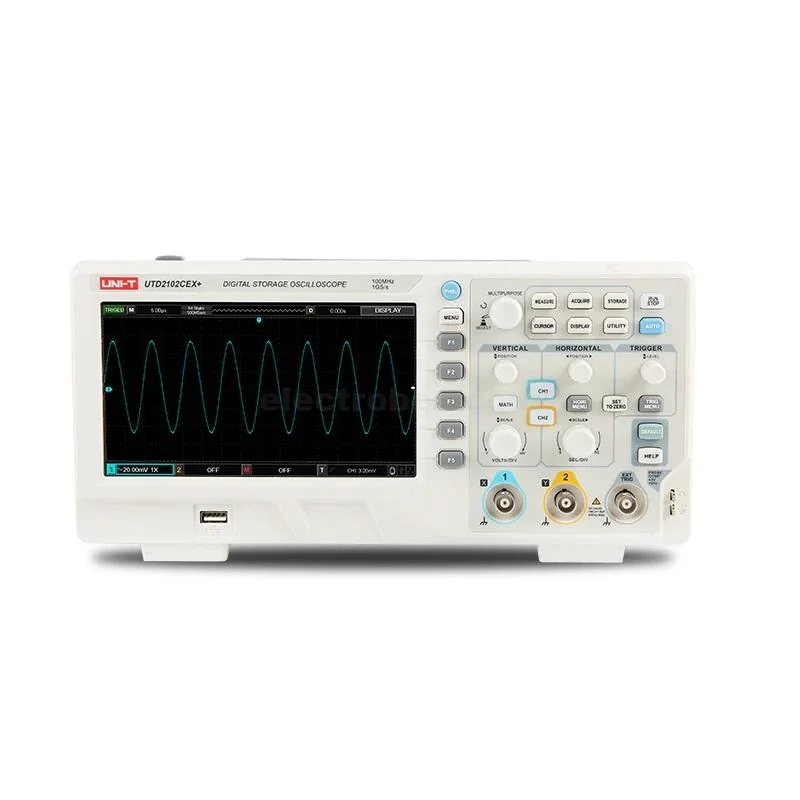

UNI-T UTD2102CEX+ Digital Storage Oscilloscope
The UNI-T UTD2102CEX+ is a cost-effective benchtop digital storage oscilloscope designed for general-purpose signal measurement, electronics troubleshooting, and technical development. With 100MHz bandwidth, 1GSa/s real-time sampling, two analog channels, and an 8-inch high-resolution display, it provides clear waveform visualization and reliable measurement performance.
Key Features
- 100MHz bandwidth
- 2 analog channels
- 1GSa/s real-time sampling rate
- Up to 28Mpts memory depth
- Up to 10Mpts waveform recording
- Waveform capture rate up to 20,000 wfms/s according to the supplied series description
- 8-inch TFT LCD display
- 800 × 480 display resolution
- 64K-color display
- Multiple trigger types
- Built-in calibration signal output
- Calibration frequencies: 10Hz, 100Hz, 1kHz, 10kHz, 100kHz
- 1×/10× switchable probes
- USB connectivity
Technical Specifications
| Specification | Details |
|---|---|
| Model | UNI-T UTD2102CEX+ |
| Channels | 2 Analog |
| Bandwidth | 100MHz |
| Real-Time Sample Rate | 1GSa/s |
| Rise Time | ≤3.5ns |
| Memory Depth | 25kpts / up to 28Mpts* |
| Waveform Record Length | Up to 10Mpts |
| Display | TFT LCD |
| Display Size | 8-inch |
| Display Resolution | 800 × 480 |
| Display Colors | 64K |
| Calibration Output | 10Hz / 100Hz / 1kHz / 10kHz / 100kHz |
| Probe | 1×/10× switchable |
| Material | ABS |
| Color | White + Grey |
Applications
- Serial data analysis
- Jitter analysis
- Data storage device testing
- Electric vehicle electronics development
- Electronics equipment design
- Audio equipment frequency-response evaluation
- Automotive engine troubleshooting
- Electronics repair and maintenance
- General laboratory signal measurement

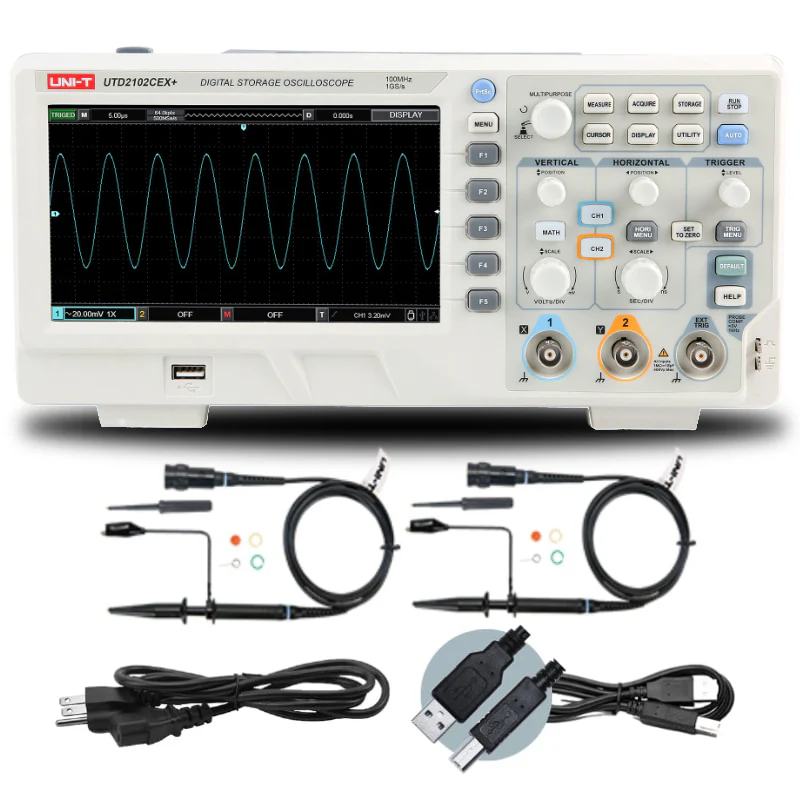

Package Contents
- 1 × UNI-T UTD2102CEX+ Oscilloscope
- 2 × Oscilloscope Probes
- 1 × Power Cord
- 1 × USB Cable
