Description

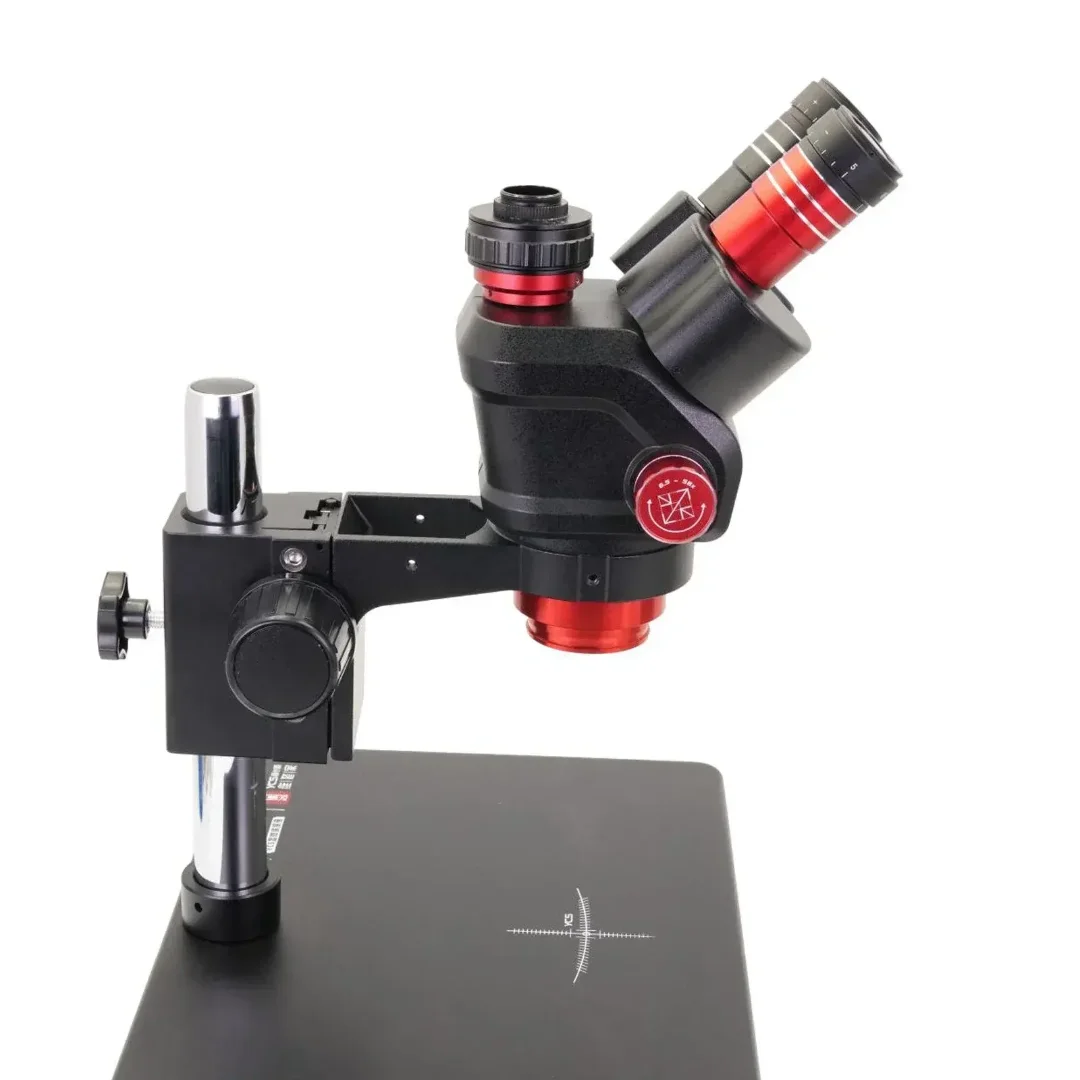

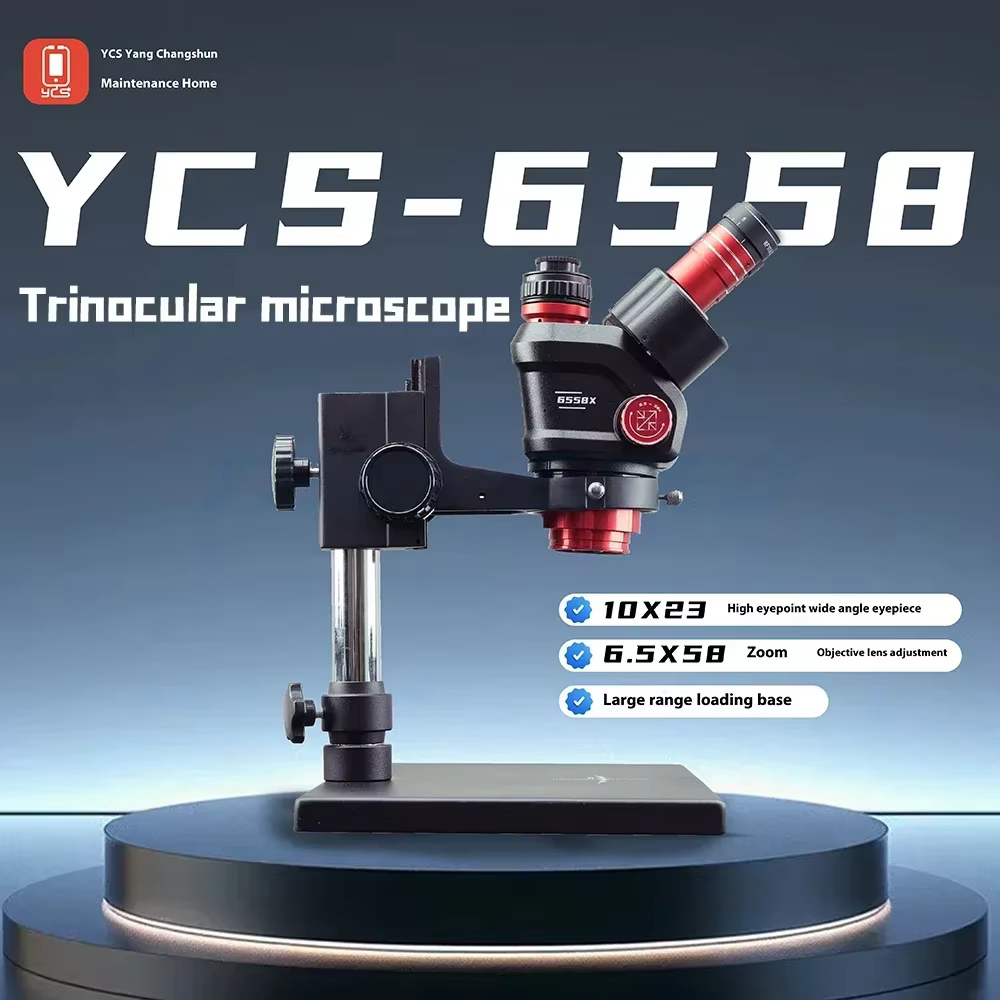

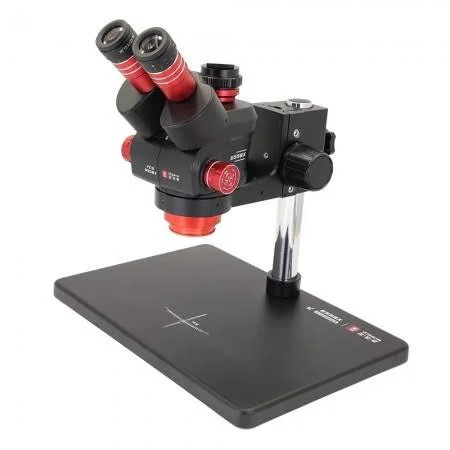

The YCS-6558X Trinocular Stereo Zoom Microscope is a professional inspection and repair microscope designed for detailed work on mobile phones, PCBs, electronic components, and precision instruments. Its continuous 6.5X to 58X optical zoom provides a wide range of magnification for both general inspection and fine soldering work.
The microscope features a 45° inclined trinocular head that can rotate 360°, allowing comfortable viewing and flexible positioning during extended repair sessions. The high eye-point WF10X/23 wide-angle eyepieces use high-transparency optical glass to provide a clear and comfortable viewing experience.

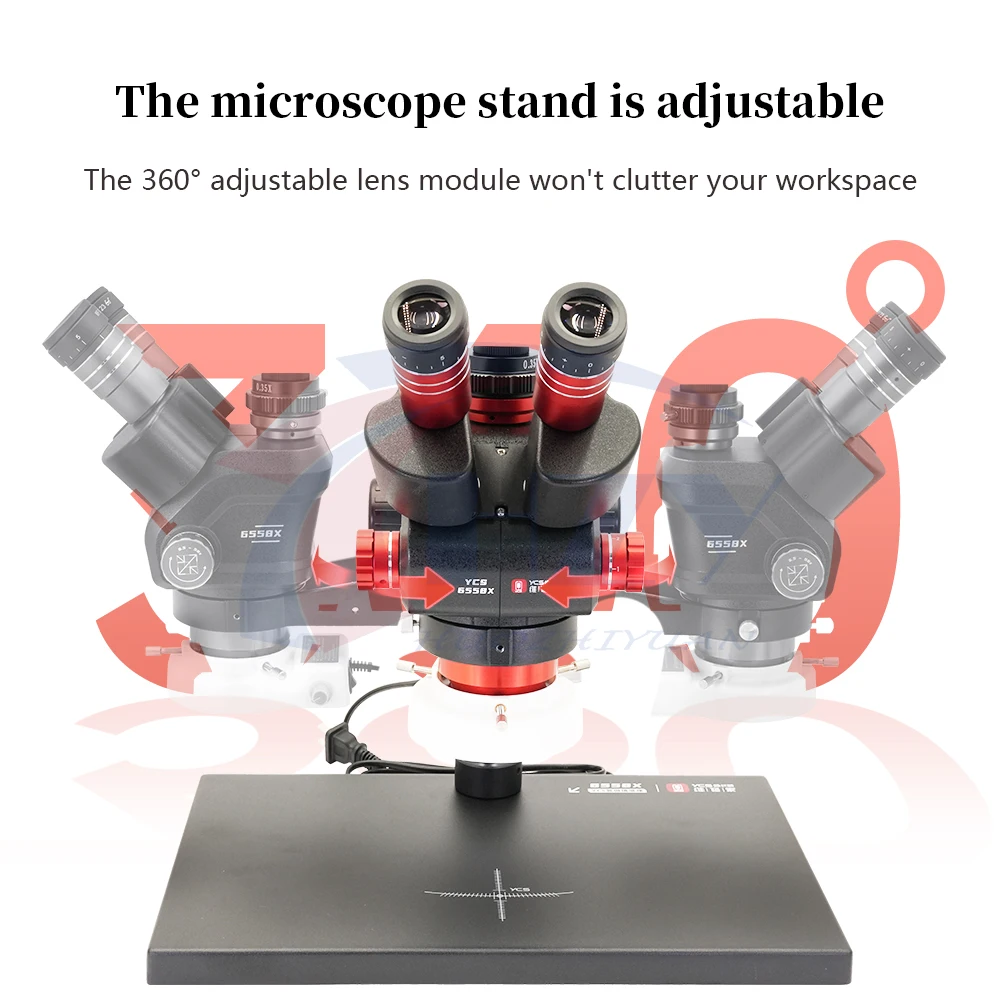

Its durable construction and large carrier base provide excellent stability while working on PCBs and other small components. The microscope holder assembly can be adjusted freely, while the lens module can rotate up to 360° to accommodate different working positions without interfering with other tools.
An integrated touch-adjustable LED ring light provides consistent illumination around the work area. The dustproof lampshade and low-energy LED design help provide long-lasting operation while reducing shadows during detailed inspection.
The YCS-6558X is suitable for mobile phone repair, PCB soldering, electronics inspection, precision assembly, laboratory work, biological observation, and other applications requiring detailed visual inspection.
Key Features
- 6.5X–58X continuous optical zoom
- Trinocular microscope head for viewing and camera connectivity
- 45° inclined head with 360° rotation
- WF10X/23 high eye-point wide-angle eyepieces
- High-transparency optical glass for clear imaging
- Large and stable working base
- Adjustable microscope holder assembly
- 360° adjustable lens module
- Integrated LED ring illumination
- Touch-adjustable light source
- Low-energy LED design with long service life
- Dustproof ring lampshade
- Suitable for long-duration precision work
- Ideal for mobile phone and PCB soldering
- Durable aluminum-alloy construction
Specifications
| Specification | Details |
|---|---|
| Model | YCS-6558X / 6558S |
| Microscope Type | Trinocular Stereo Zoom Microscope |
| Total Magnification | 6.5X–58X |
| Zoom Ratio | 1:6.4 |
| Zoom Type | Continuous Optical Zoom |
| Objective Lens | 0.65X–5.8X |

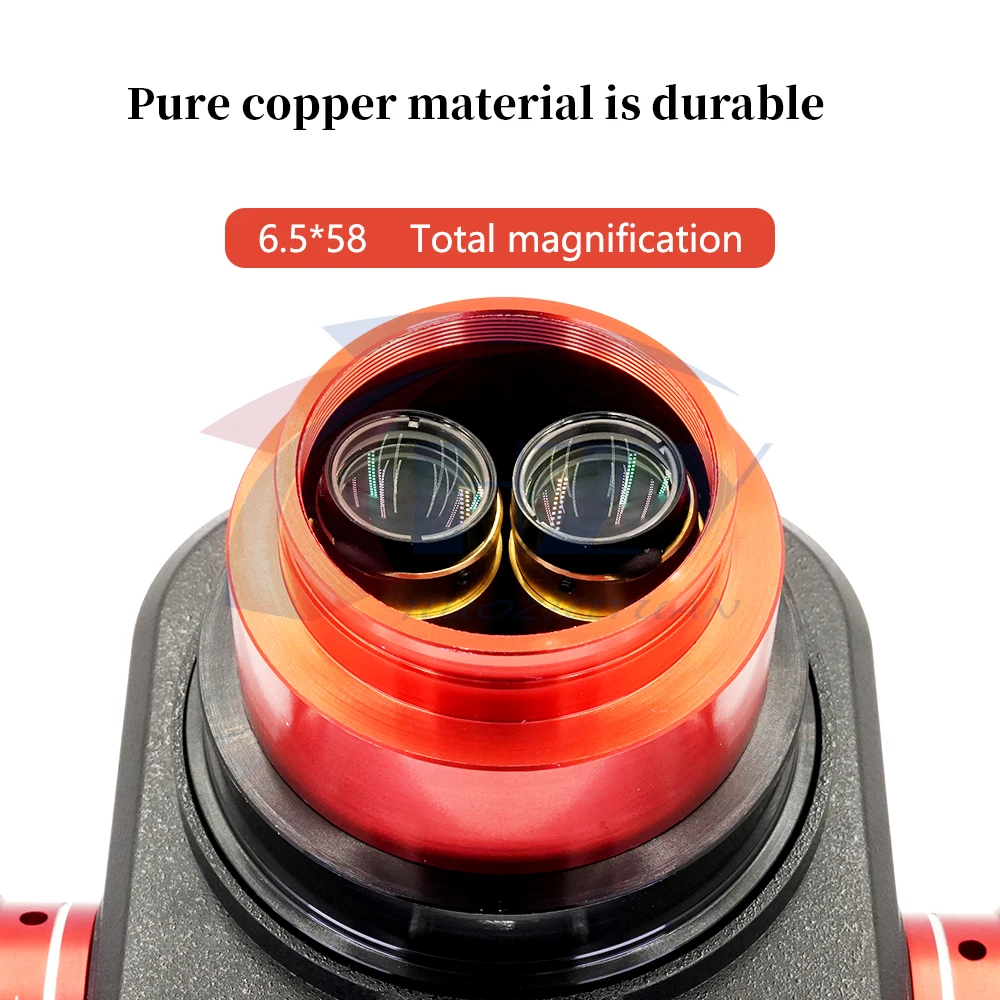

| Objective Material | Pure Copper |
| Eyepieces | WF10X/23 |
| Eyepiece Type | High Eye-Point Wide-Angle |
| Optical Glass | High-Transparency Optical Glass |
| Head Angle | 45° Inclined |
| Head Rotation | 360° |
| Illumination | LED Ring Light |
| Base | Large Wide-Range Carrier Base |
| Construction | Aluminum Alloy |
| Lens Adjustment | 360° |
| Lighting Control | Touch Adjustable |
| Application | PCB, Mobile Phone & Electronics Repair |
Applications
- Mobile phone repair
- PCB soldering and inspection
- Electronics component inspection
- Precision instrument repair
- Electronic device assembly
- Laboratory applications
- Biological observation
- Jewelry and precision work
- Fine component inspection
Package Includes
- 1 × Microscope Body
- 1 × Microscope Focusing Arm
- 1 × Base
- 2 × WF10X/23 Eyepieces
- 1 × CTV Lens
- 1 × Dustproof Lens
- 1 × LED Lamp
- 1 × Protective Goggles
