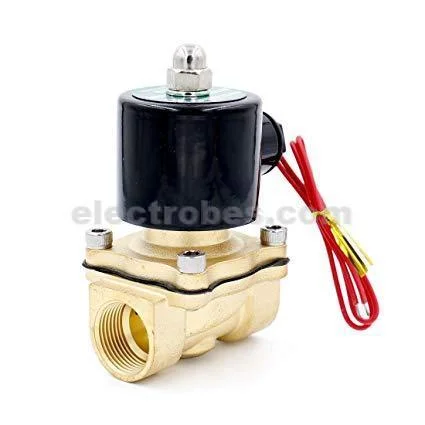

3/4 Inch 24V AC/DC Solenoid Valve Normally Closed
The 3/4 Inch 24V AC/DC Solenoid Valve is a practical and durable 2/2-way normally closed (NC) valve designed for controlling air, water, light oil, and gases. Its direct-diaphragm design allows it to operate directly under low-pressure conditions, making it suitable for a variety of fluid and pneumatic control applications.
The valve features a brass body and NBR seal material, providing a robust construction for regular industrial use. With a 3/4-inch port size and an operating viscosity below 20 CST, it is designed for low-viscosity fluid and gas applications.
As a normally closed valve, the flow remains closed when the solenoid is not energized and opens when power is applied. The valve supports 24V AC/DC operation and can be integrated into electrically controlled flow systems.
Key Features
- 3/4 inch solenoid valve
- Normally Closed (NC) configuration
- 24V AC/DC operation
- 2/2-way valve design
- Direct-diaphragm construction
- Durable brass body
- NBR seal material
- Suitable for air, water, light oil, and gases
- Can operate directly under low pressure
- Suitable for fluids with viscosity below 20 CST
- Pressure range of 0–10 kg/cm²
- Suitable for industrial automation and flow-control applications
Suitable Applications
The valve can be used for controlling:
- Water
- Air
- Light oil
- Gases
- Low-viscosity fluids
- Pneumatic systems
- Industrial automation
- Fluid-control equipment
Installation & Precautions
Before connecting the valve to the pipeline, ensure that the pipeline is clean and free from contaminants or foreign materials.
For extended product life, a Y-line filter should be installed at the front/inlet of the solenoid valve.
- AC voltage tolerance: ±10%
- DC voltage tolerance: ±1%
- Horizontal installation is recommended.
- Vertical installation is not recommended.
Not Suitable For
The supplied product information states that the valve is not suitable for:
- Corrosive fluids
- Fluids with viscosity greater than 20 CST
- Liquids that become solid when cooled or are otherwise unsuitable at high temperatures
Specifications
| Specification | Details |
|---|---|
| Valve Type | Solenoid Valve |
| Port Size | 3/4 inch |
| Body Material | Brass |
| Working Fluid | Air, Water, Oil |
| Valve Configuration | Normally Closed (NC) |
| Valve Design | 2/2-way |
| Diaphragm Type | Direct Diaphragm |
| Operating Viscosity | Under 20 CST |
| Seal Material | NBR |
| Operating Voltage | 24V AC/DC |
| Pressure Range | 0–10 kg/cm² |
| Fluid Temperature | -5°C to 100°C |
