Description

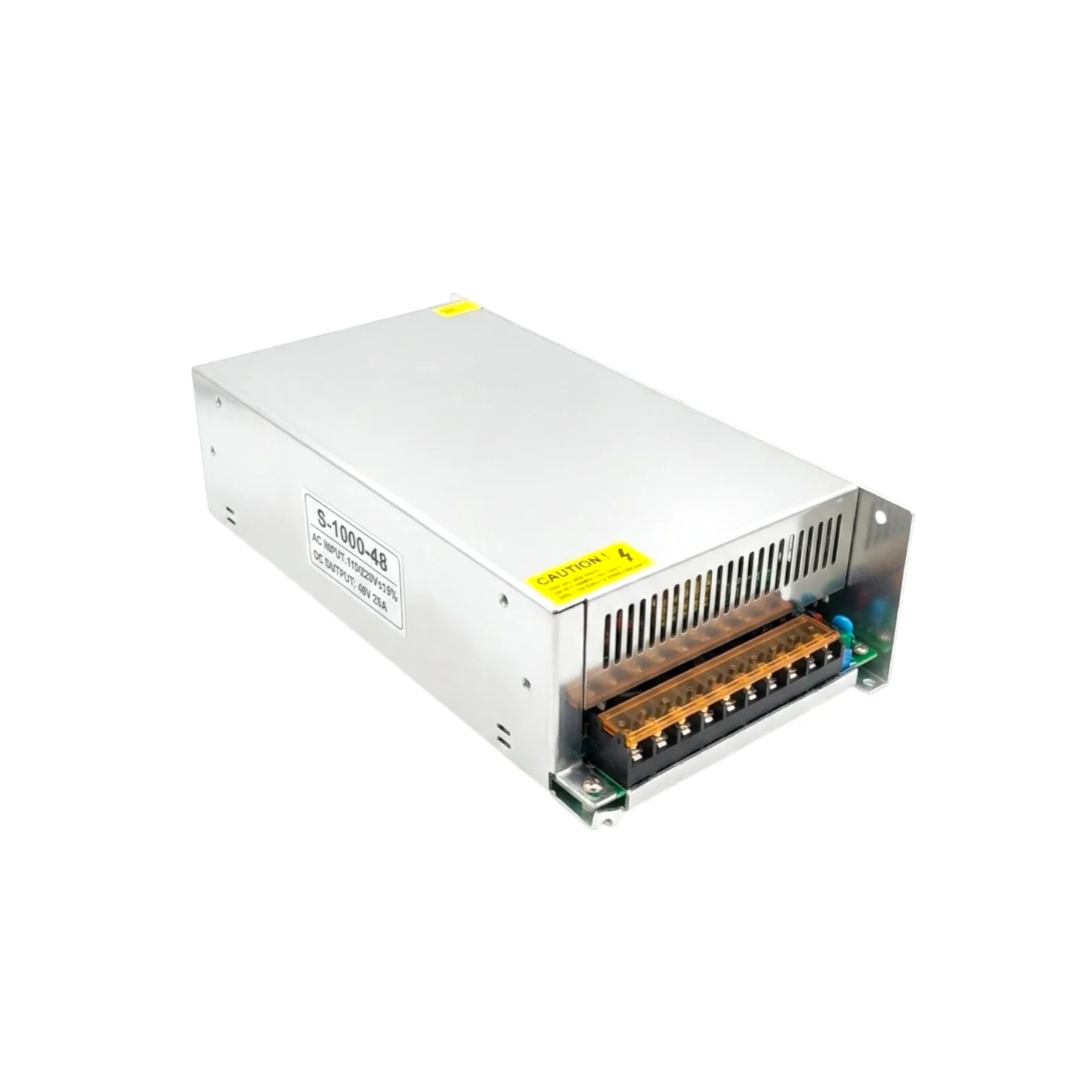

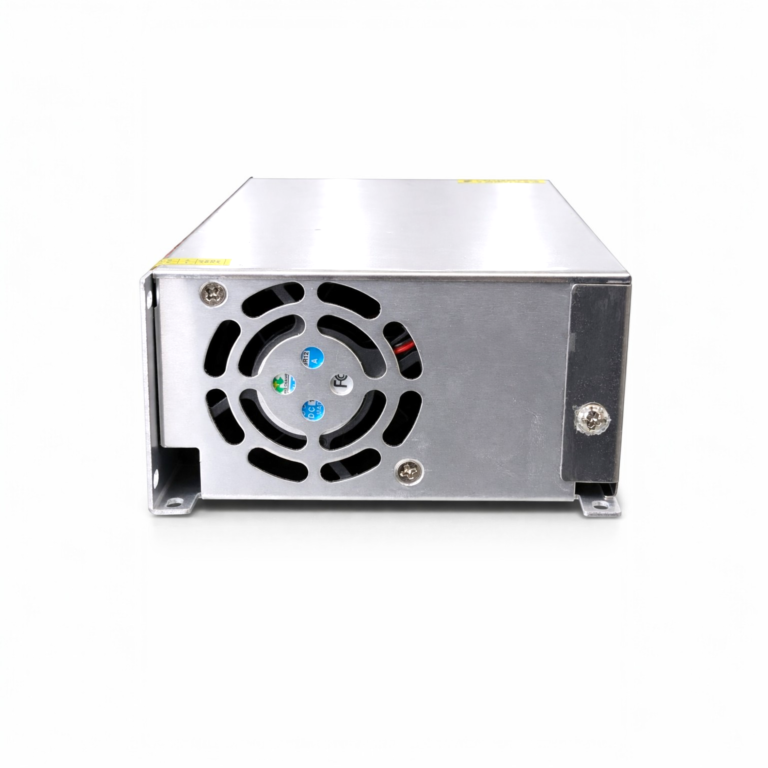

The 48V 20A 960W Switching Mode Power Supply SMPS Adapter is a high-power DC power supply designed to convert AC mains power into a 48V DC output for compatible electronic and electrical equipment.
This switching power supply uses high-frequency switching technology and storage components to efficiently supply DC power. The unit is designed with high-temperature-resistant copper enameled wire and a double-winding U-shaped iron core.
With an output rating of 48V DC, 20A, and 960W, this SMPS can be used for a variety of high-power applications. The supplied product information specifically lists LED lighting, RGB LED strips, SMD applications, CCTV cameras, street lights, lawn lamps, and advertising display screens.
The power supply includes overload protection and short-circuit protection and is designed to automatically recover after the protection function is triggered.
Key Features
- 48V DC switching mode power supply
- Maximum output current: 20A
- Maximum output power: 960W
- Input voltage: 110–220V AC
- Overload protection
- Short-circuit protection
- Automatic recovery after protection
- Good anti-interference performance
- High reliability
- Low operating temperature design
- Long service life
- High-temperature-resistant copper enameled wire
- Double-winding U-shaped iron core
- Good insulation performance
- High electric strength
- Suitable for various LED and electronic applications
- Security certifications listed: CE, RoHS, FCC
- SKU: CNC-223
Specifications
| Specification | Details |
|---|---|
| Product Type | Switching Mode Power Supply / SMPS |
| Input Voltage | 110–220V AC |
| Output Voltage | 48V DC |
| Output Current | 20A |
| Output Power | 960W |
| Protection | Overload & Short Circuit |
| Protection Recovery | Automatic |
| Certifications | CE, RoHS, FCC |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–90% RH |
| Dimensions | 215 × 115 × 50mm |
| SKU | CNC-223 |
